Installation






INSTALLATION




1. If necessary, remove any sealant residues from both the wheelhouse and the fender.
2. Install the fender (1) and install the upper fender bolts (3).
3. Open the door and install the bolt (4).
4. Install the bolt (2).




5. Install the bolts (5).

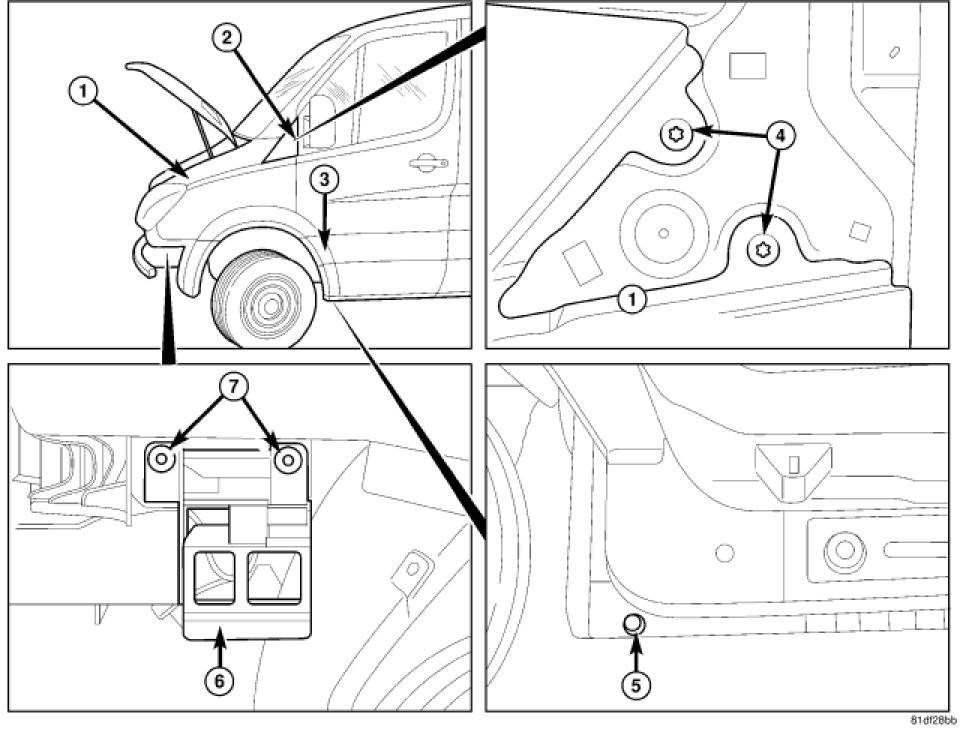

6. Install the mirror flag (2) and seat the clips fully.
7. Install the molding strip (3) and seat the clips fully.
8. Install the nut (5).
9. Install the bumper bracket (6) and install the bolts (7).
10. Install the front bumper.
