Rear

REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the air filter from the rear A/C evaporator housing.

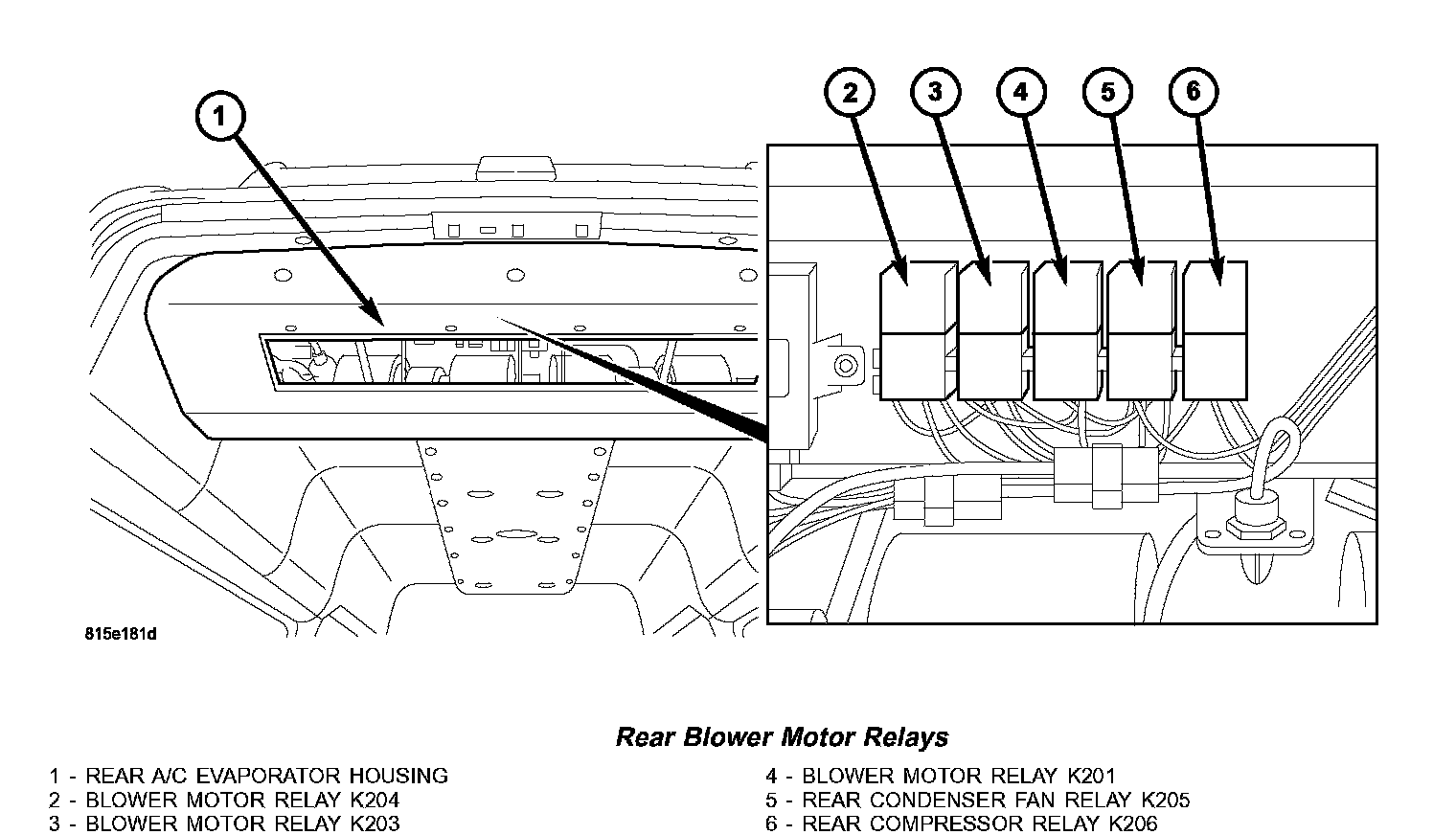

Rear Blower Motor Relays:

3. Reach up into the rear A/C evaporator housing and remove the rear blower motor relays as necessary from the relay block.

INSTALLATION
1. Position the rear blower motor relays into the proper receptacle of the relay block located in the rear A/C evaporator housing as necessary.
2. Align the blower motor relay terminals with the terminal cavities in the relay block receptacle and push down firmly on the relay until the terminals are fully seated.
3. Install the rear air filter.
4. Reconnect the negative battery cable.
