Heated Glass Element Relay: Service and Repair

REMOVAL
1. Disconnect and isolate the negative battery cable.

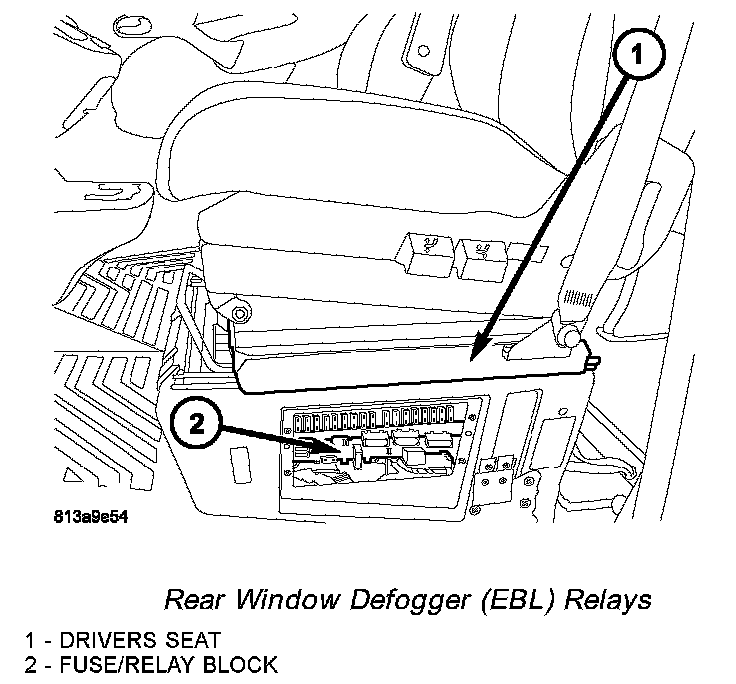

Rear Window Defogger (EBL) Relays:

2. Remove the cover from the fuse/relay block.

NOTE: Refer to the fuse and relay map located on the inner surface of the fuse/relay block cover for the left and right rear window defogger (EBL) relay locations.

3. Remove the EBL relays from the fuse/relay block as required.

INSTALLATION

NOTE: Refer to the fuse and relay map located on the inner surface of the fuse/relay block cover for the left and right rear window defogger (EBL) relay locations.

1. Position the rear window defogger (EBL) relays as required into their proper receptacles in the fuse/ relay block.
2. Align the EBL relay terminals with the terminal cavities in the fuse/relay block receptacles.
3. Push down firmly on the EBL relays until the terminals are fully seated in the terminal cavities in the fuse/relay block receptacles.
4. Install the cover onto the fuse/relay block.
5. Reconnect the negative battery cable.
