Connector Repair Procedures

WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

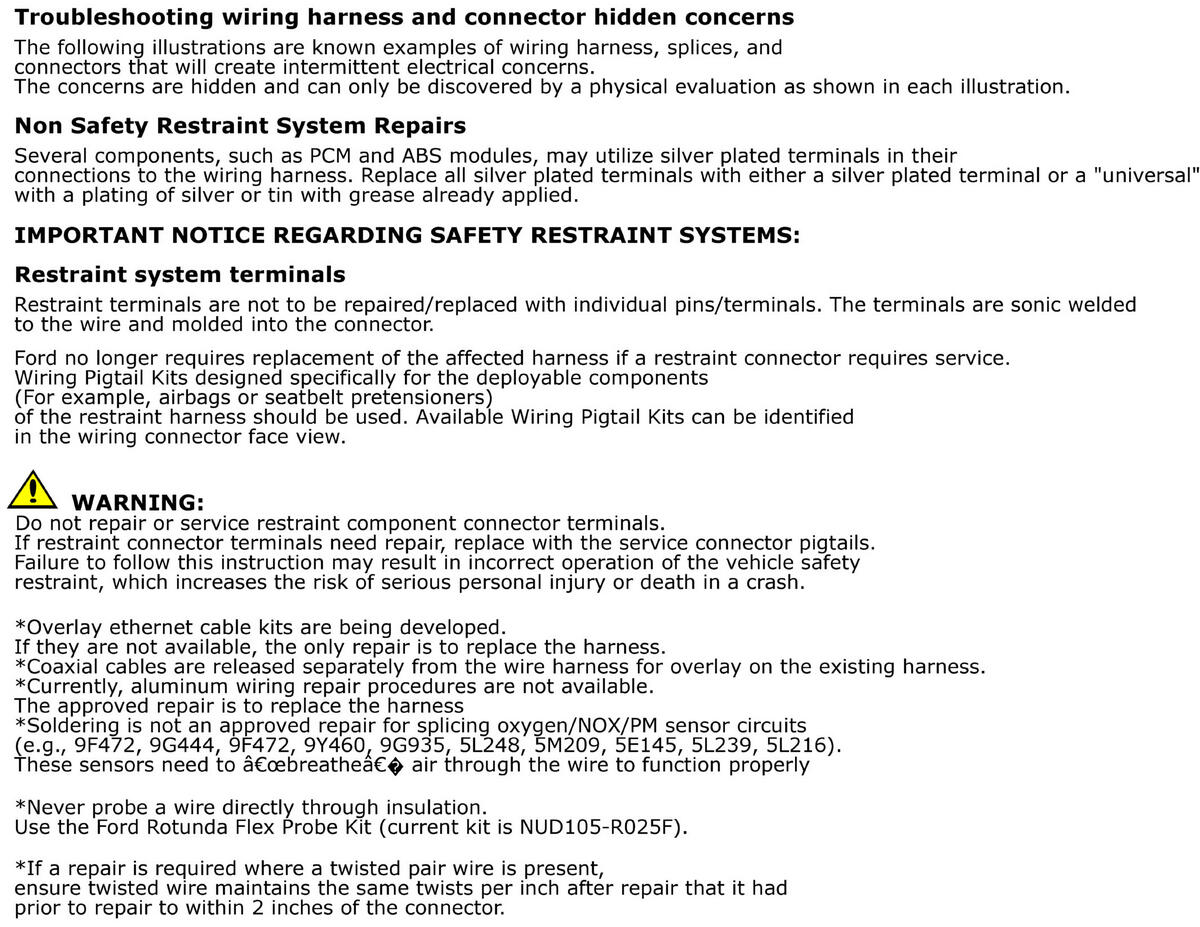

GFDWR225570Courtesy of FORD MOTOR COMPANY

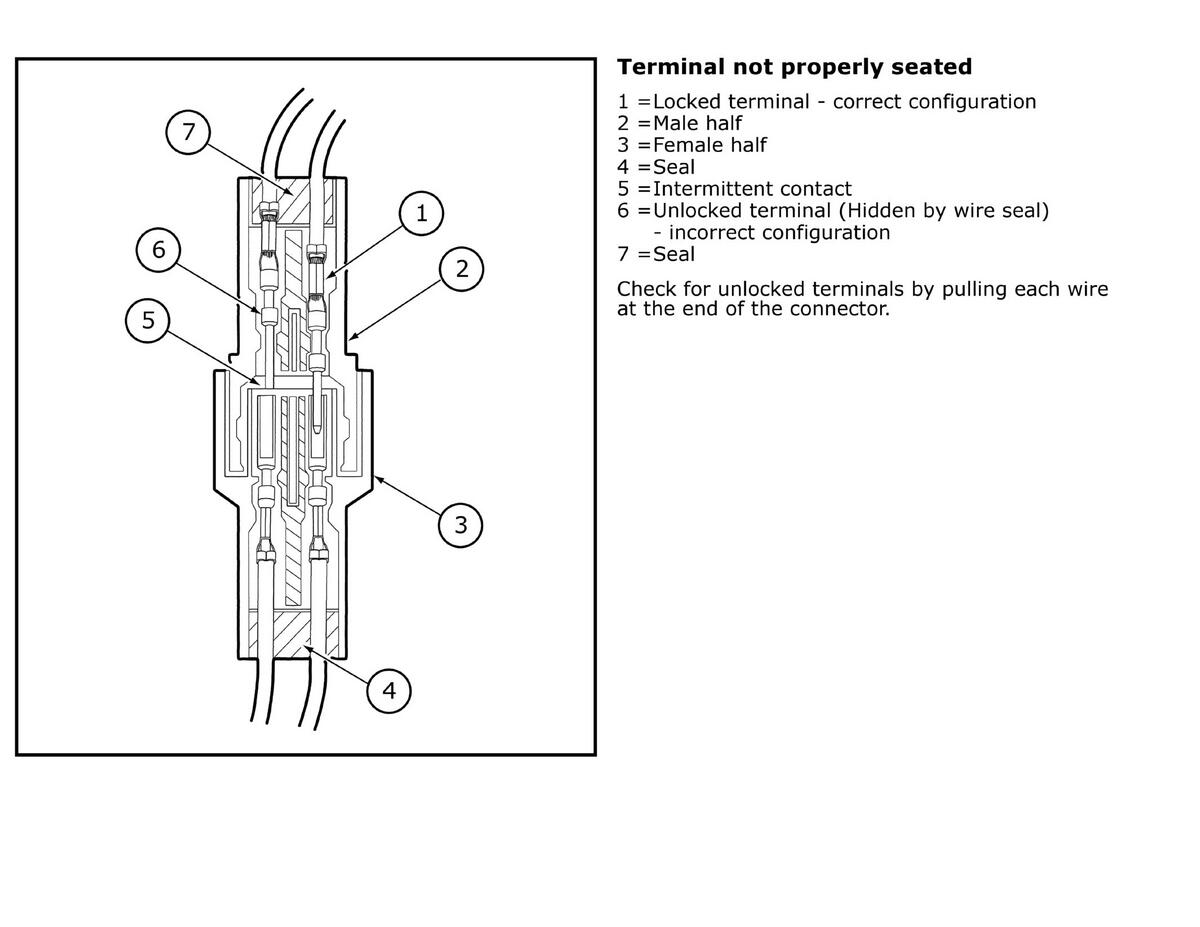

GFDWR225571Courtesy of FORD MOTOR COMPANY

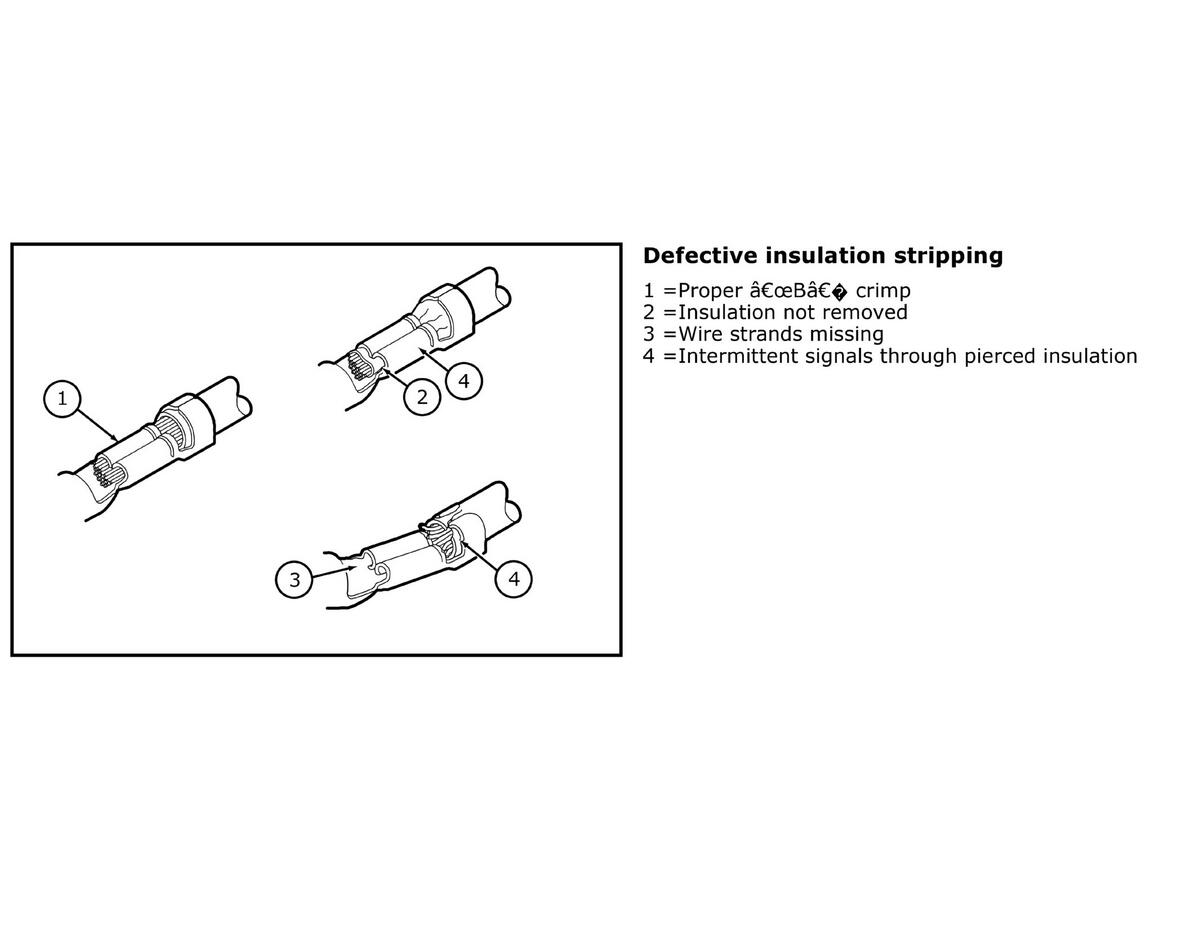

GFDWR225572Courtesy of FORD MOTOR COMPANY

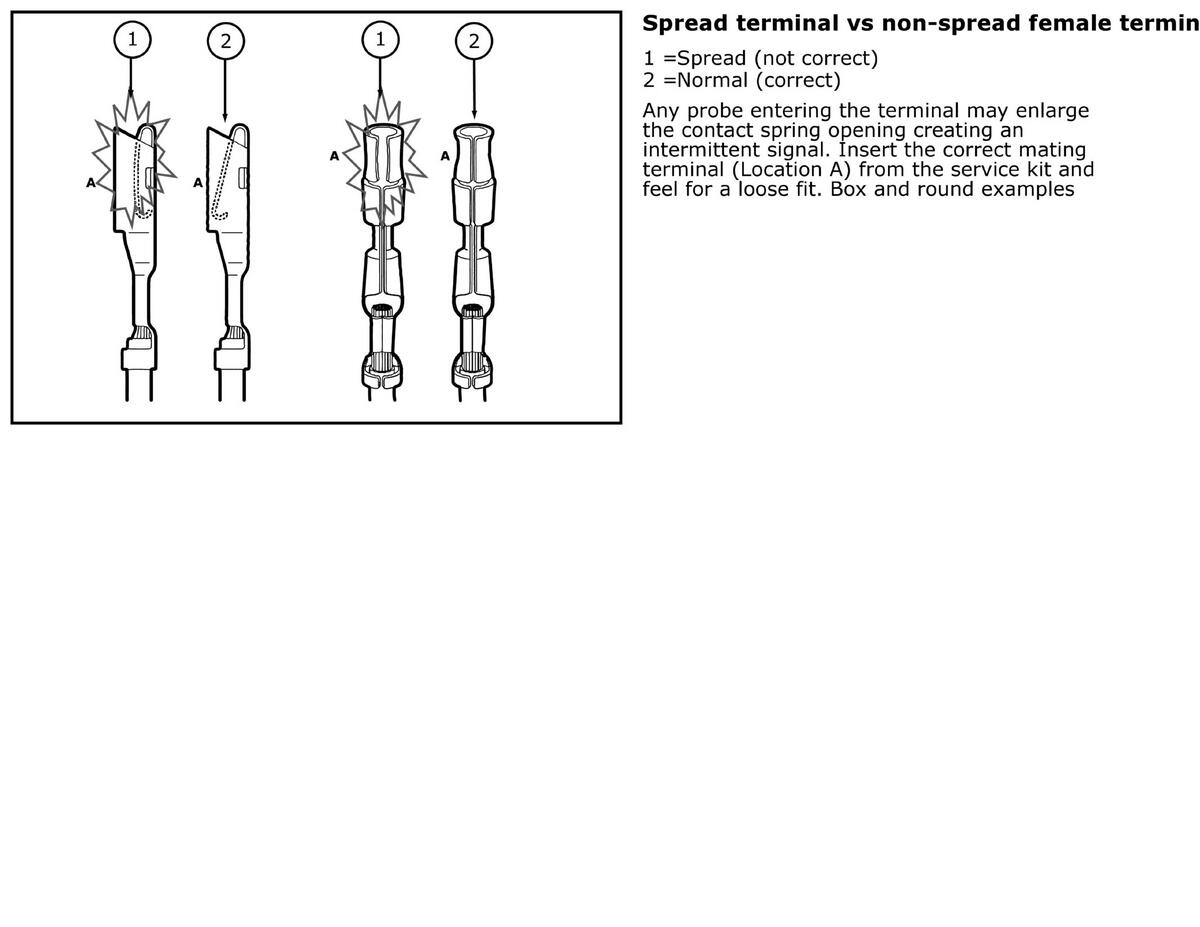

GFDWR225573Courtesy of FORD MOTOR COMPANY

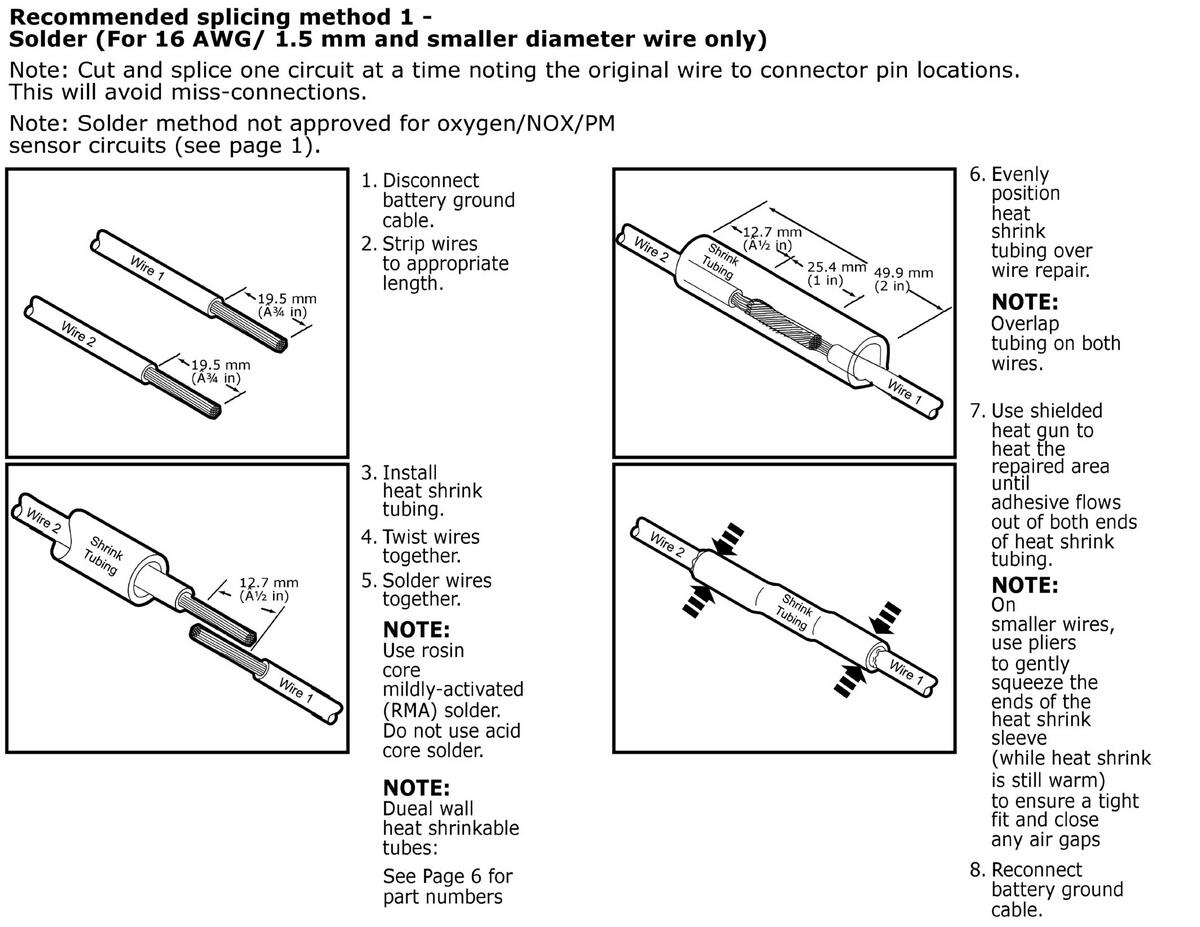

GFDWR225574Courtesy of FORD MOTOR COMPANY

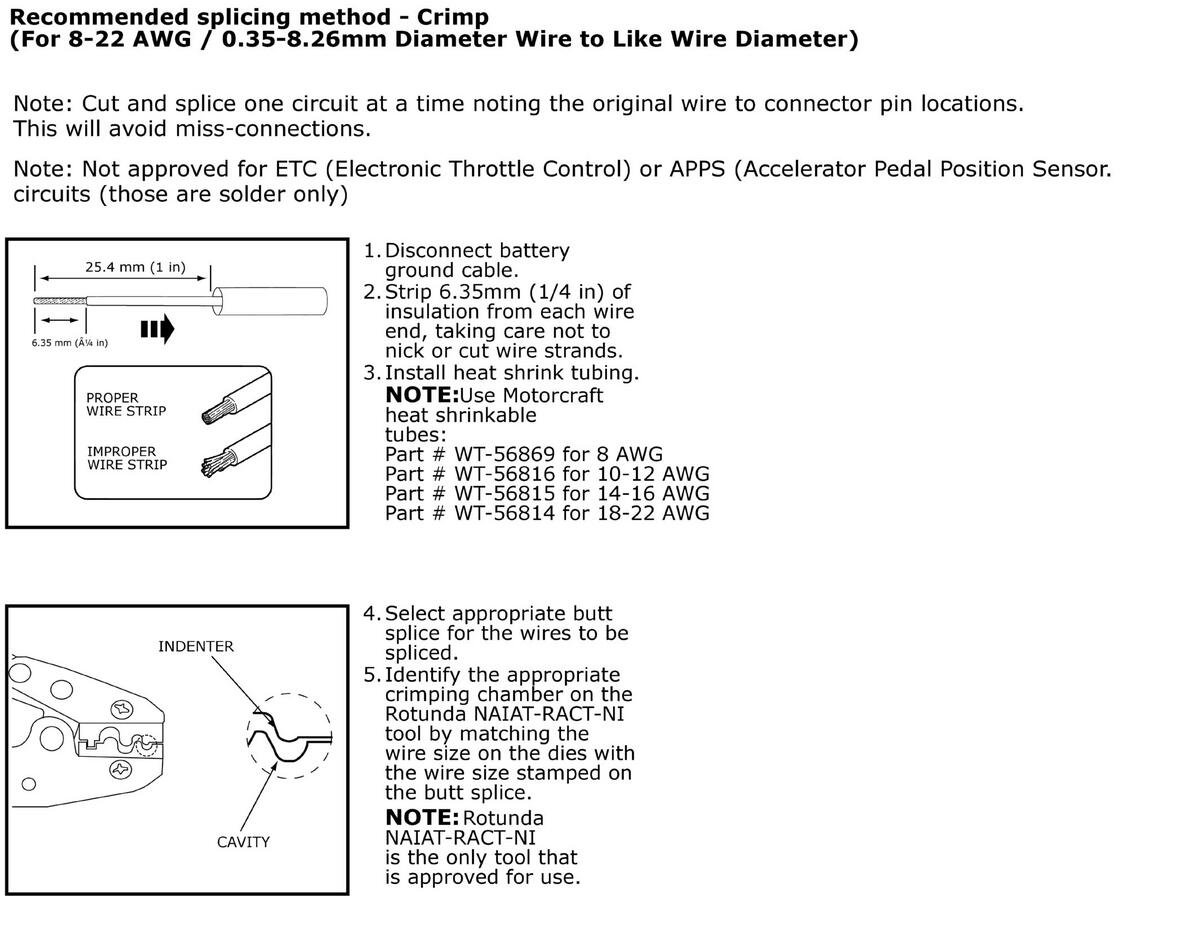

GFDWR225575Courtesy of FORD MOTOR COMPANY

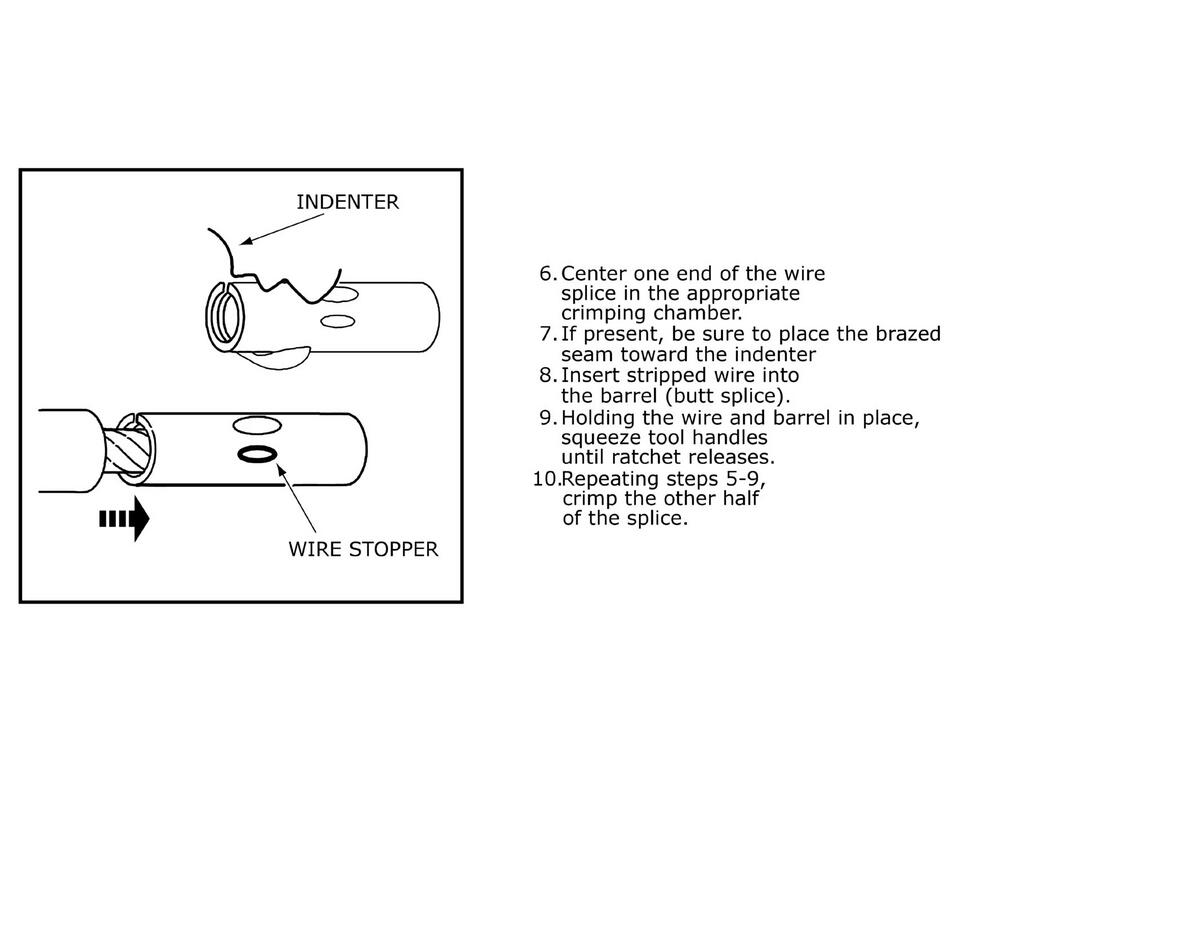

GFDWR225576Courtesy of FORD MOTOR COMPANY

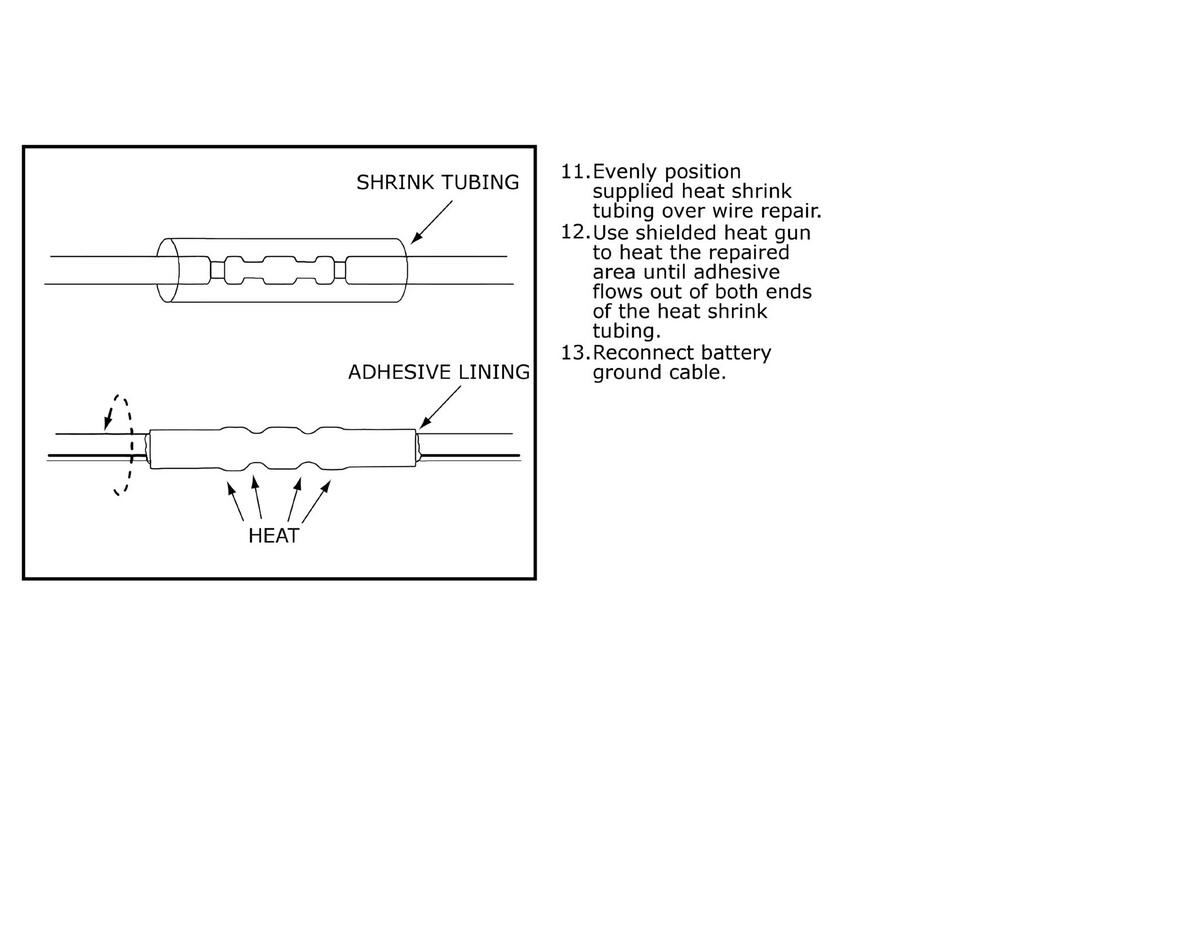

GFDWR225577Courtesy of FORD MOTOR COMPANY

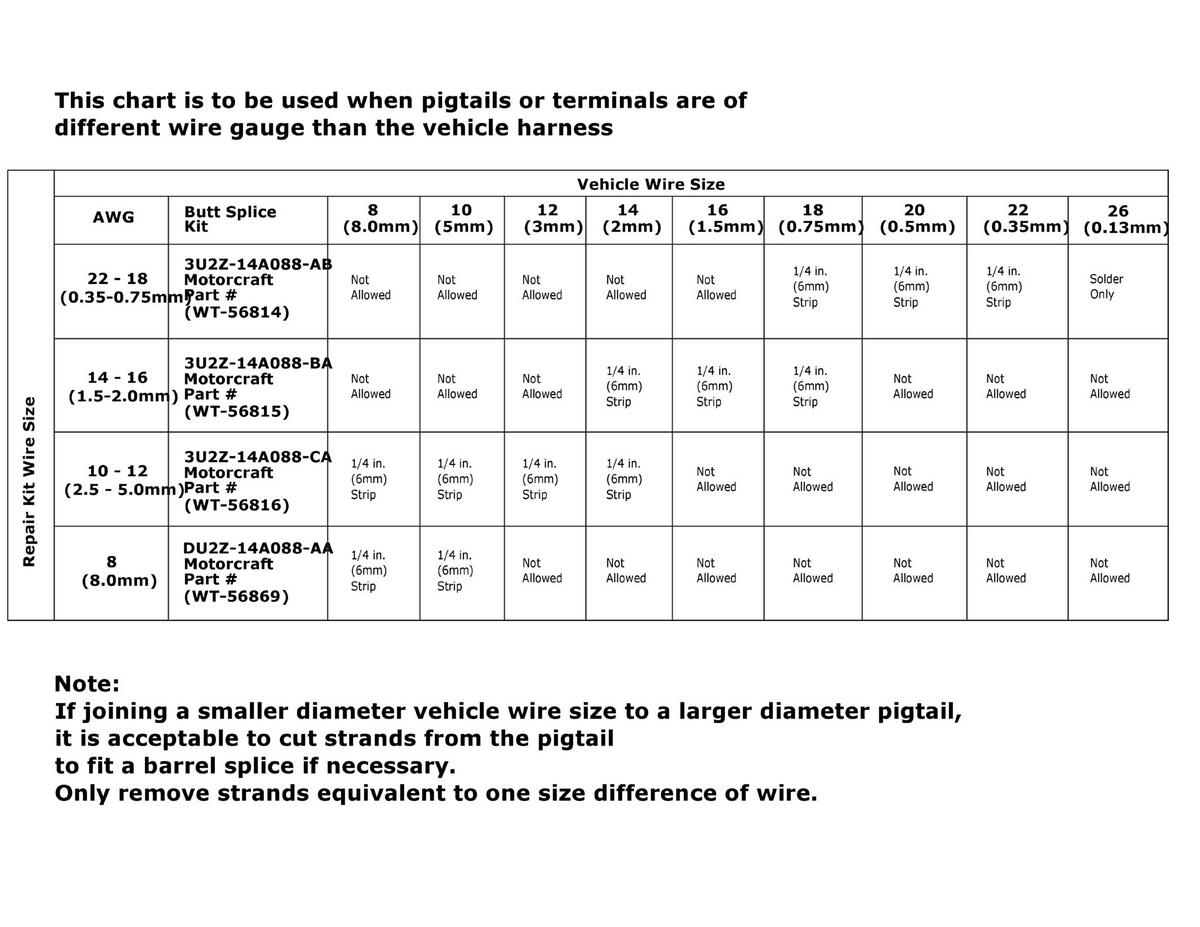

GFDWR225578Courtesy of FORD MOTOR COMPANY
