All Terrain Control Module (ATCM) - Vehicles With: Center Console: Removal

WARNING: This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor console. Refer to: Floor Console .

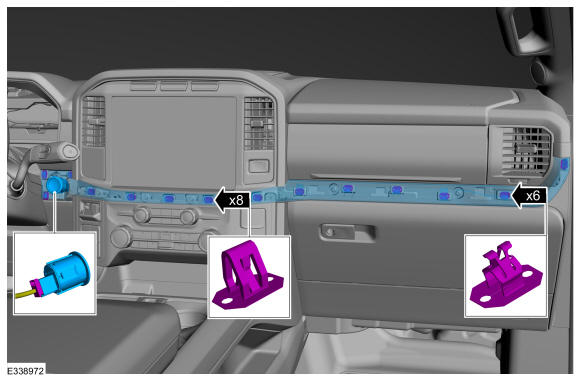

Release the clips and remove the RH instrument center trim panel.
- On vehicles equipped with push button start disconnect the electrical connector.Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

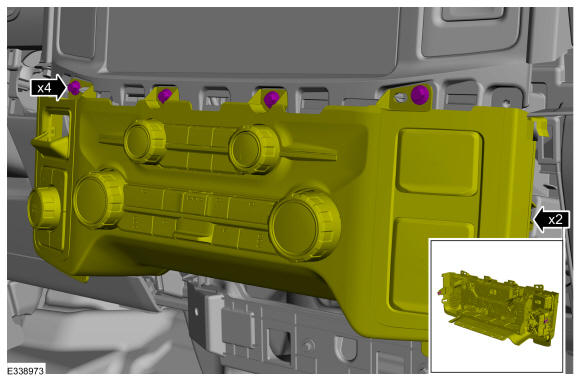

- Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
- Release the clips and position aside the lower centerstack trim panel.Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

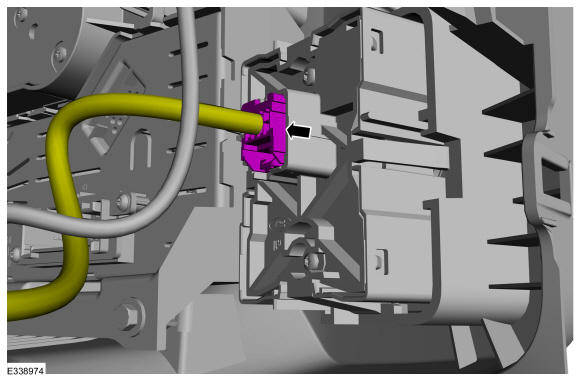

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

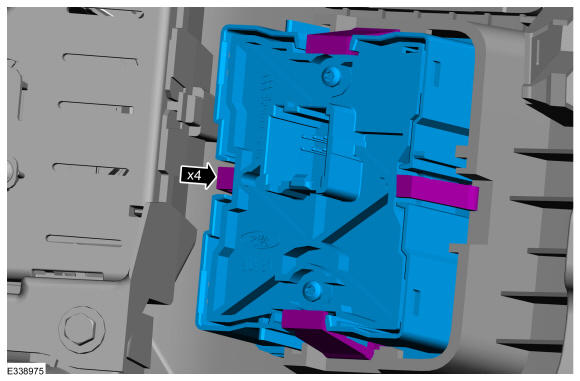

Carefully pry the ATCM from the centerstack trim panel.

Courtesy of FORD MOTOR COMPANY
