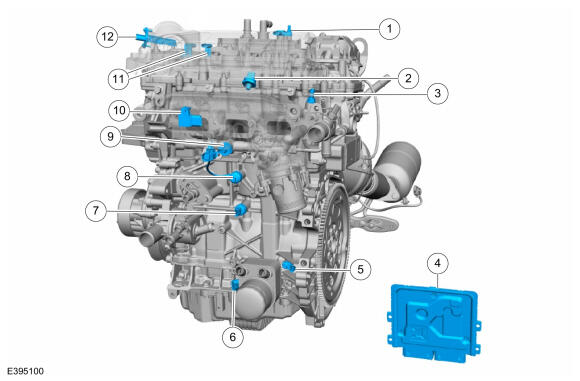

Engine Front

GFD828849Courtesy of FORD MOTOR COMPANY
Item Description
1 Crankcase pressure sensor
2 FRP and temperature sensor
3 ECT sensor
4 PCM
5 CKP sensor
6 Oil pressure control solenoid
7 EOP sensor
8 KS
9 FRP sensor
10 MAPT sensor
11 CMP sensors
12 Mass Air Flow (MAF) and Intake Air Temperature (IAT) sensor
