Powertrain Controls - FHEV/PHEV

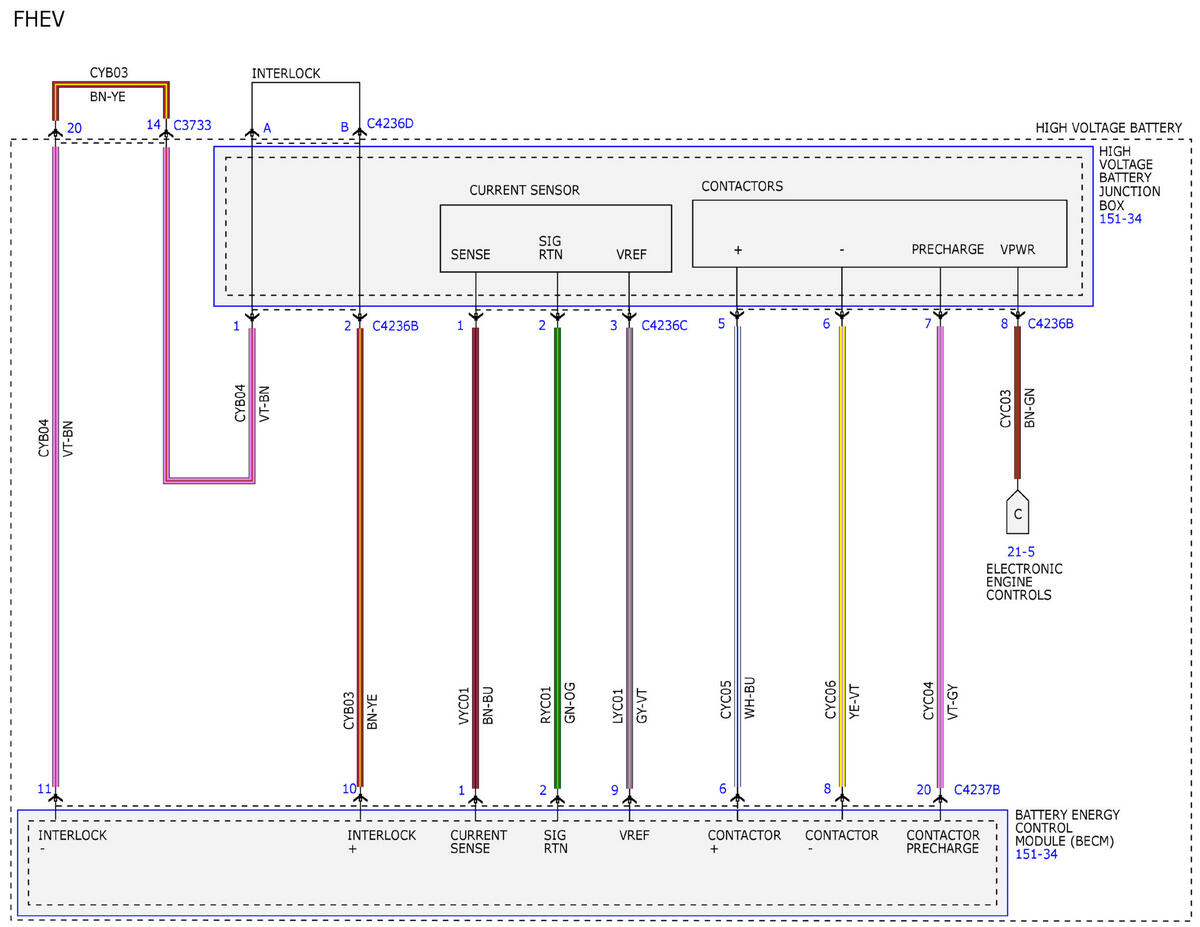

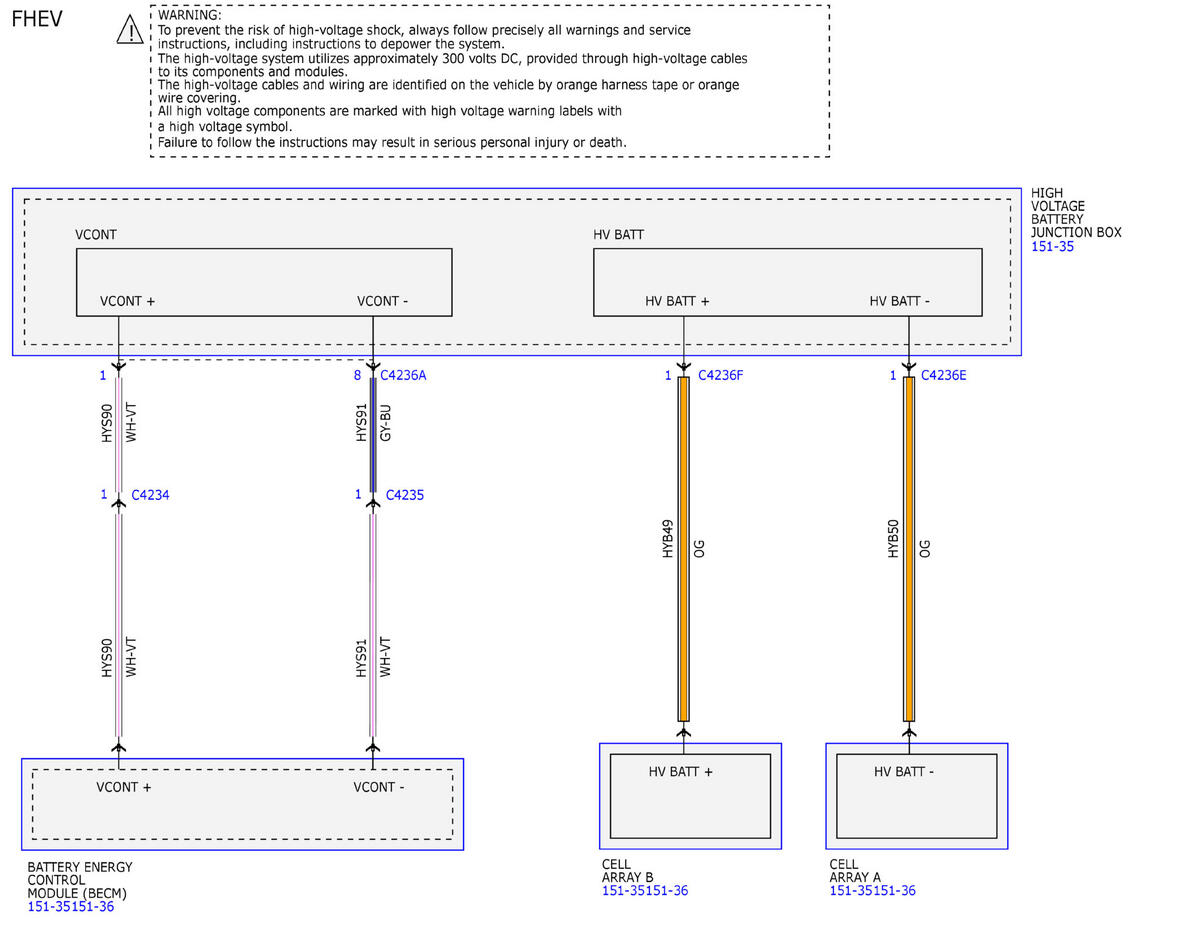

Fig 1: Powertrain Controls - FHEV/PHEV (1 Of 16)

Courtesy of FORD MOTOR COMPANY

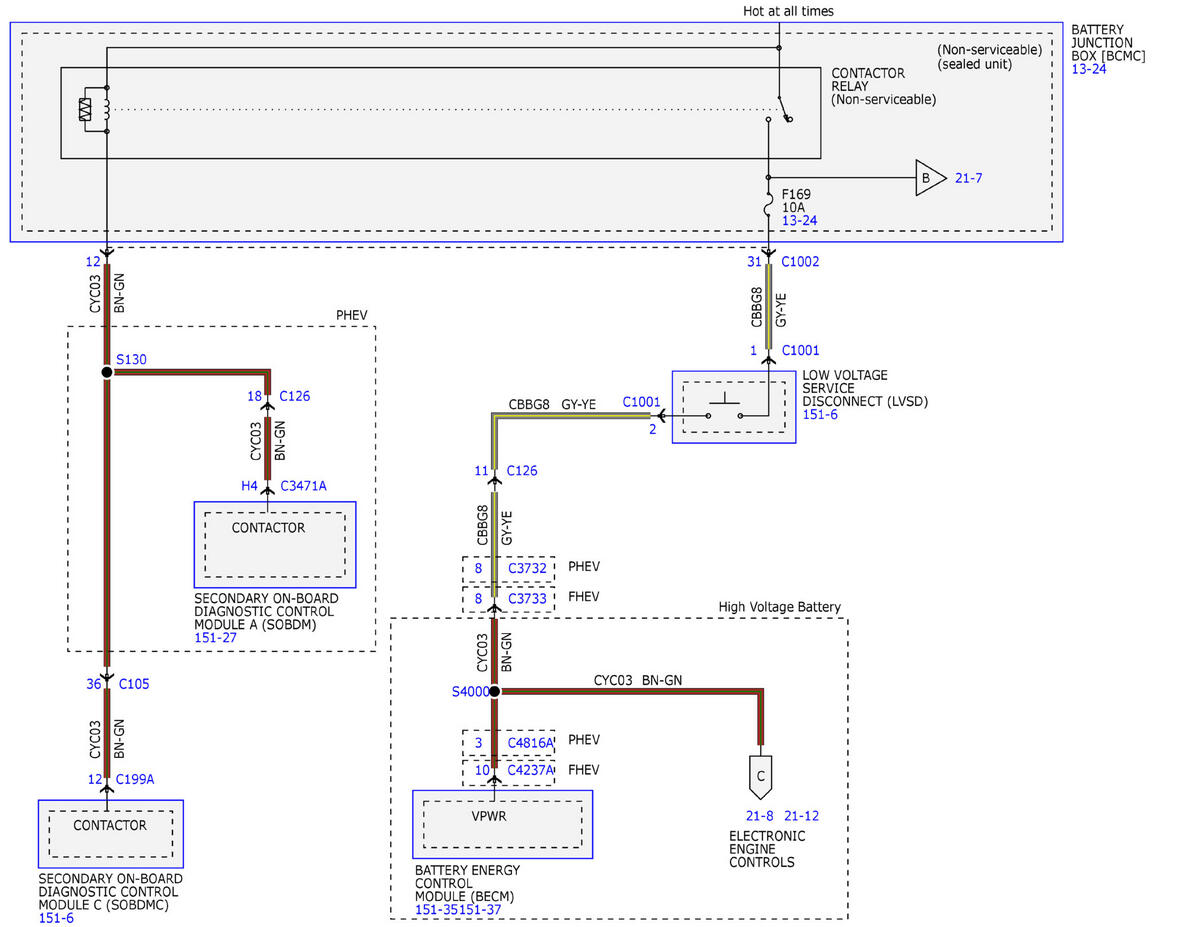

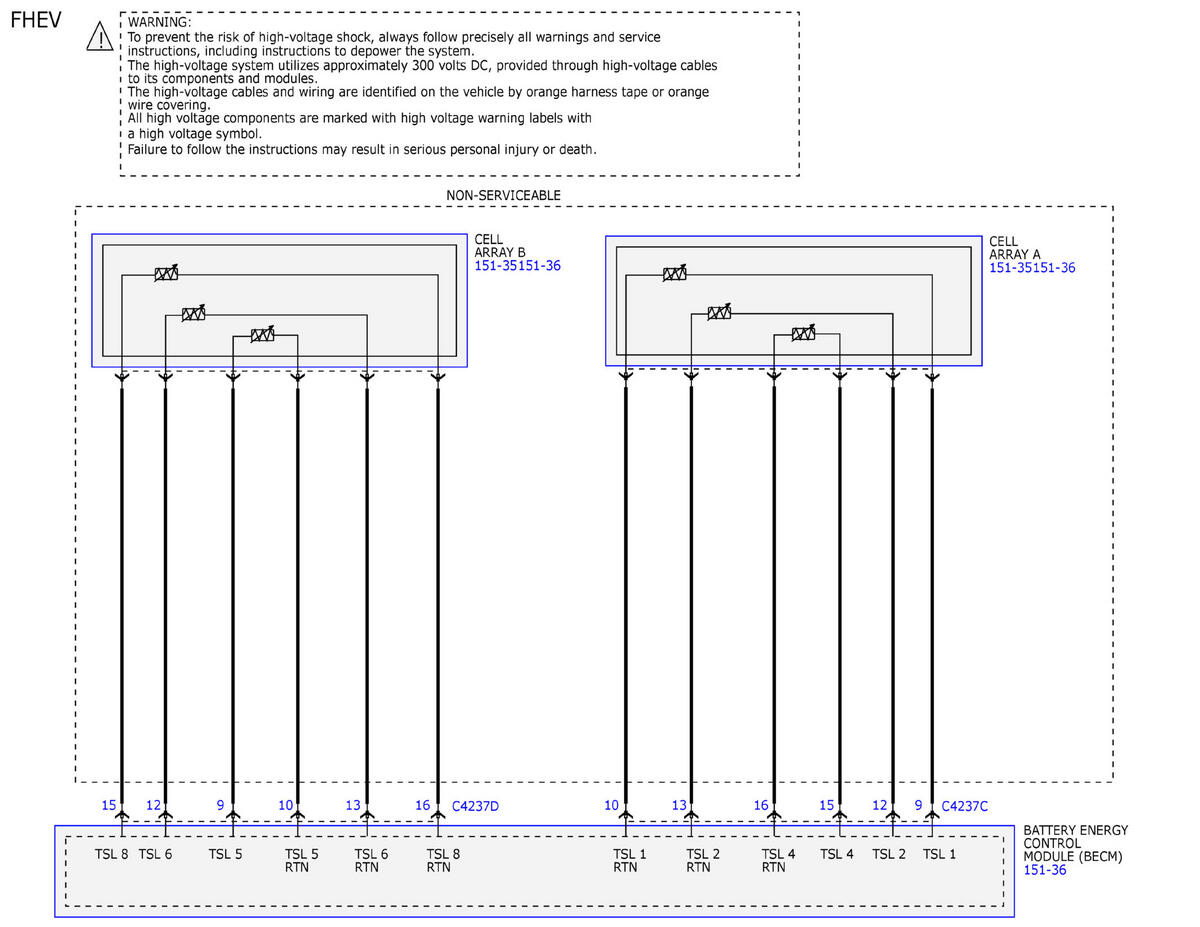

Fig 2: Powertrain Controls - FHEV/PHEV (2 Of 16)

Courtesy of FORD MOTOR COMPANY

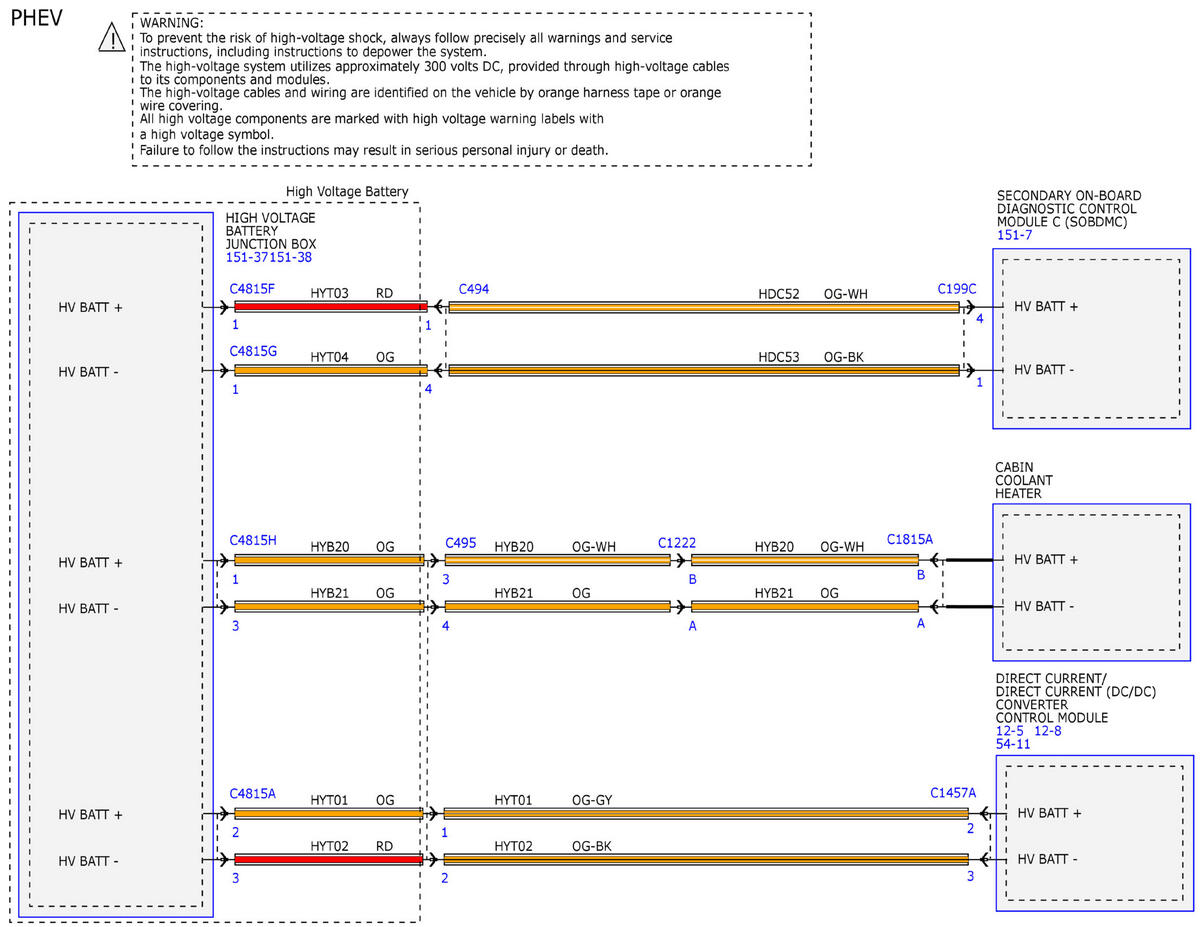

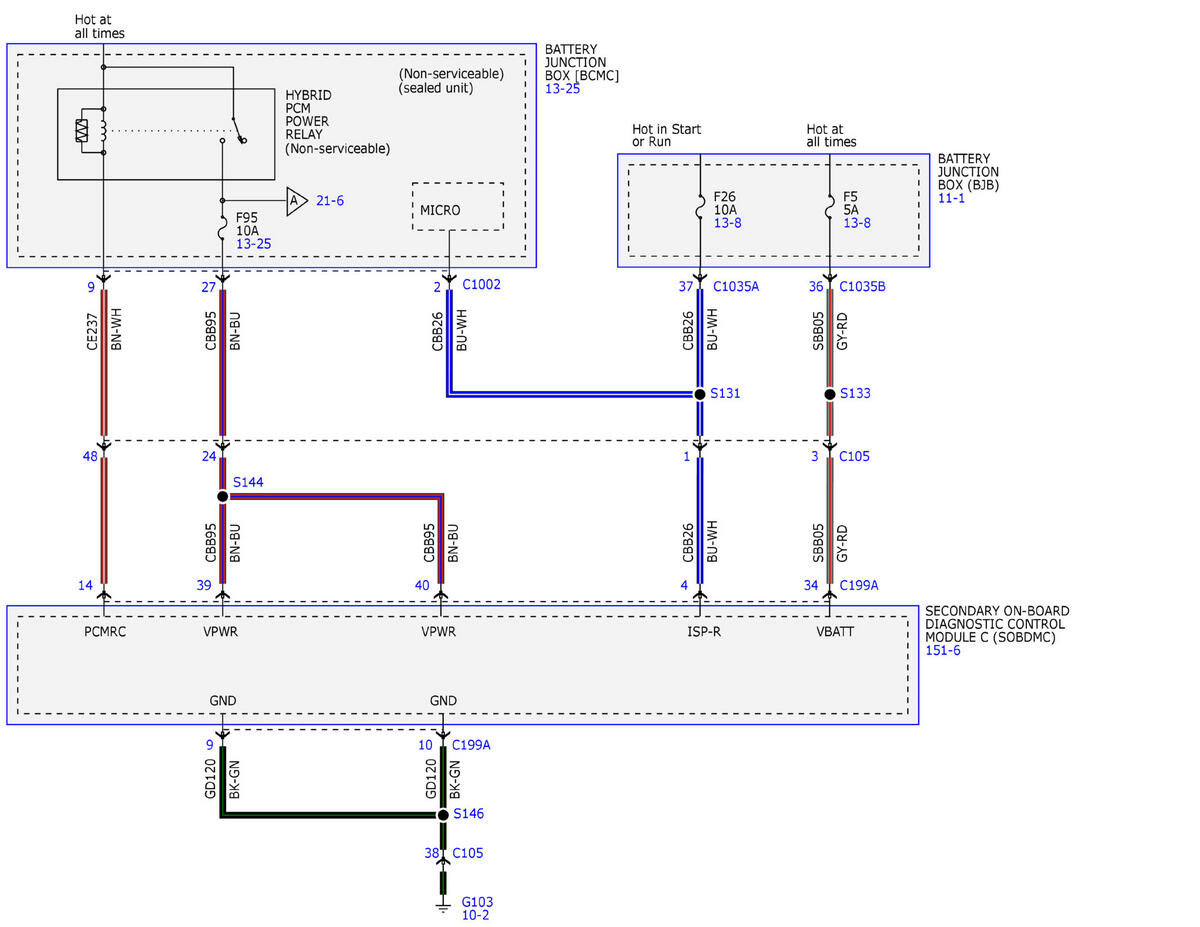

Fig 3: Powertrain Controls - FHEV/PHEV (3 Of 16)

Courtesy of FORD MOTOR COMPANY

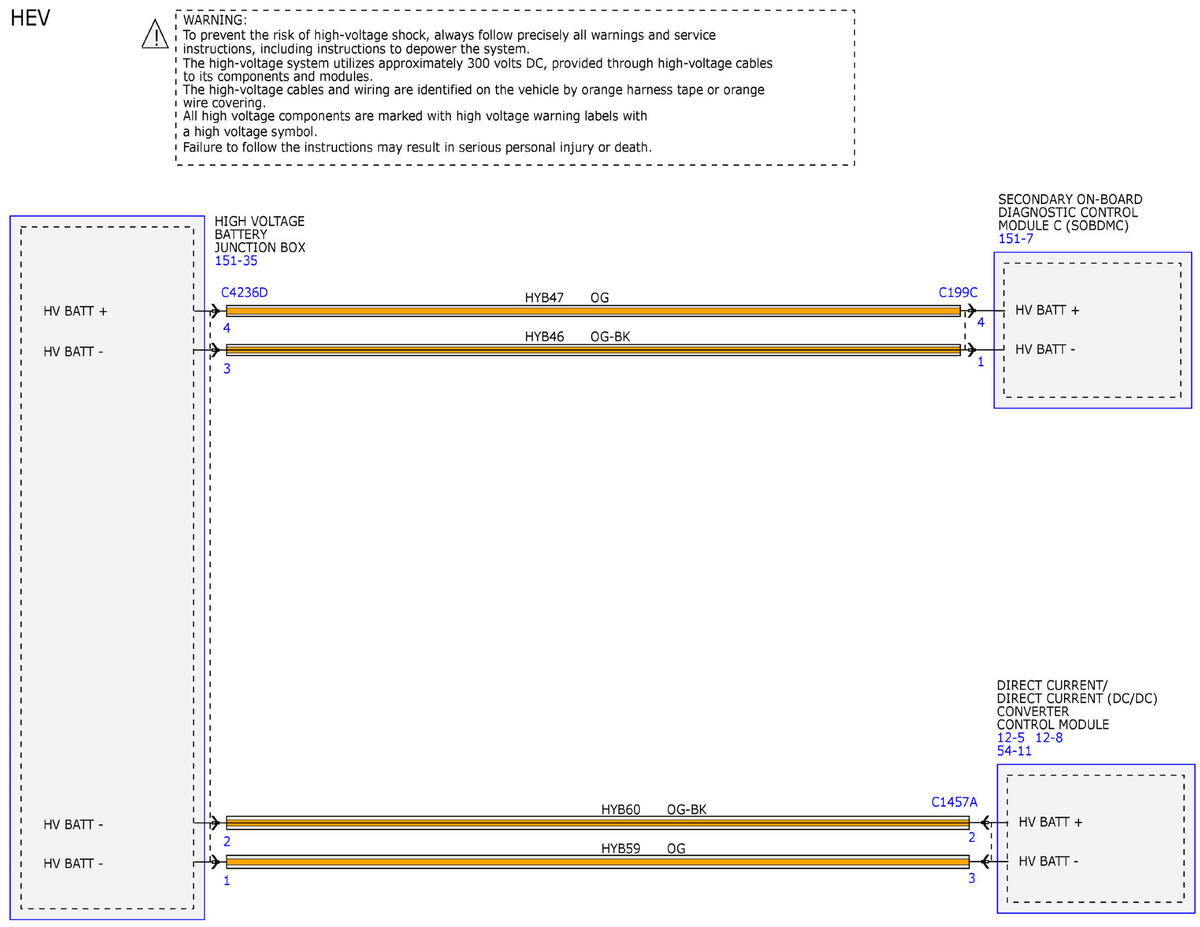

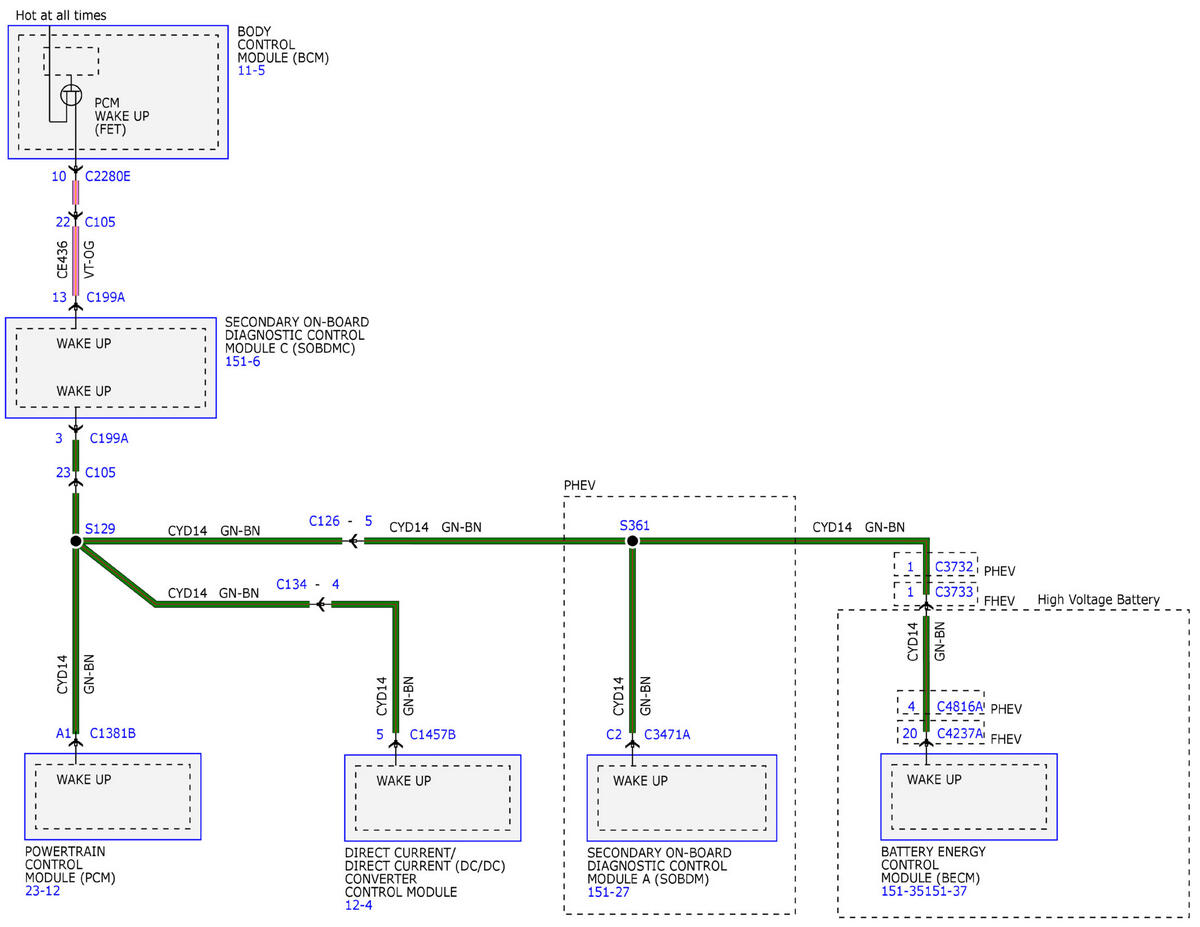

Fig 4: Powertrain Controls - FHEV/PHEV (4 Of 16)

Courtesy of FORD MOTOR COMPANY

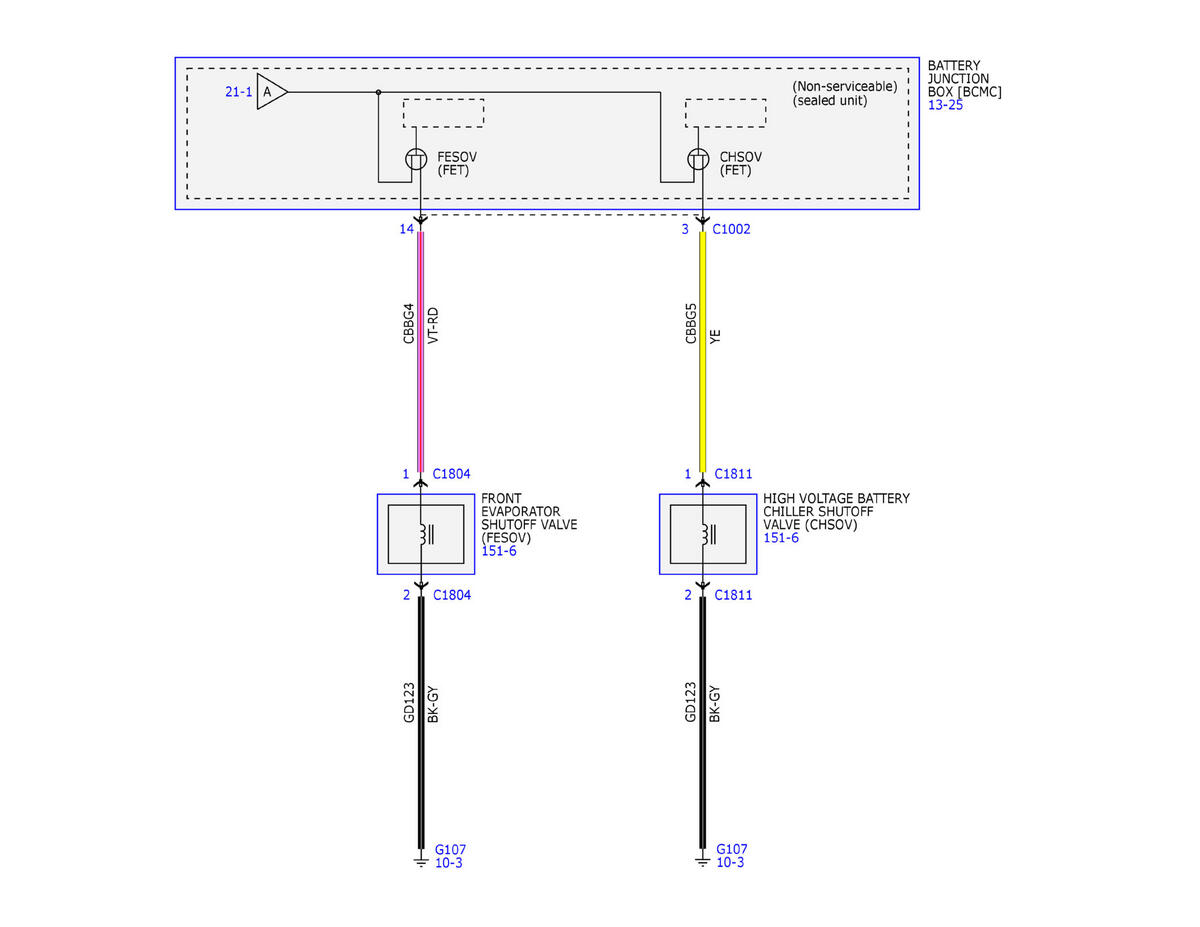

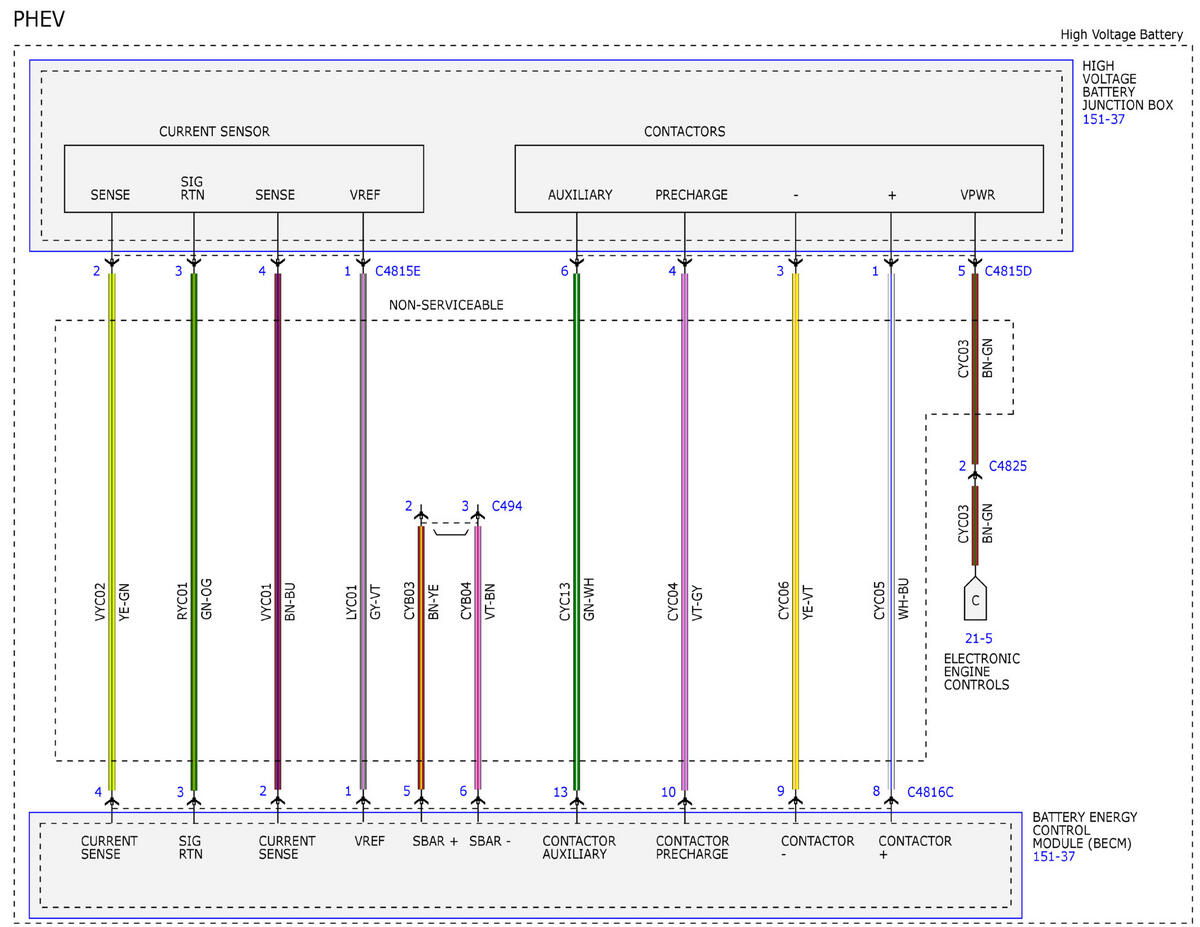

Fig 5: Powertrain Controls - FHEV/PHEV (5 Of 16)

Courtesy of FORD MOTOR COMPANY

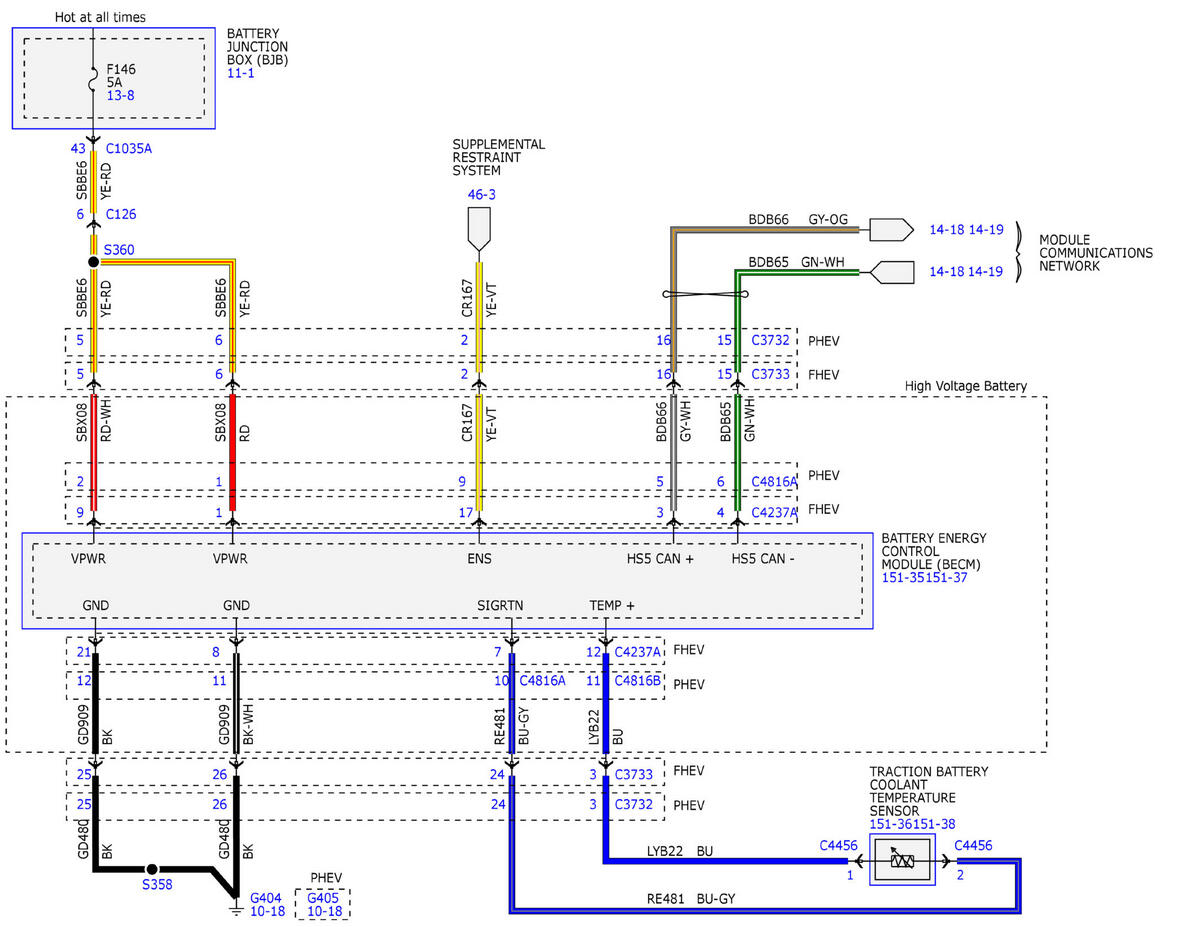

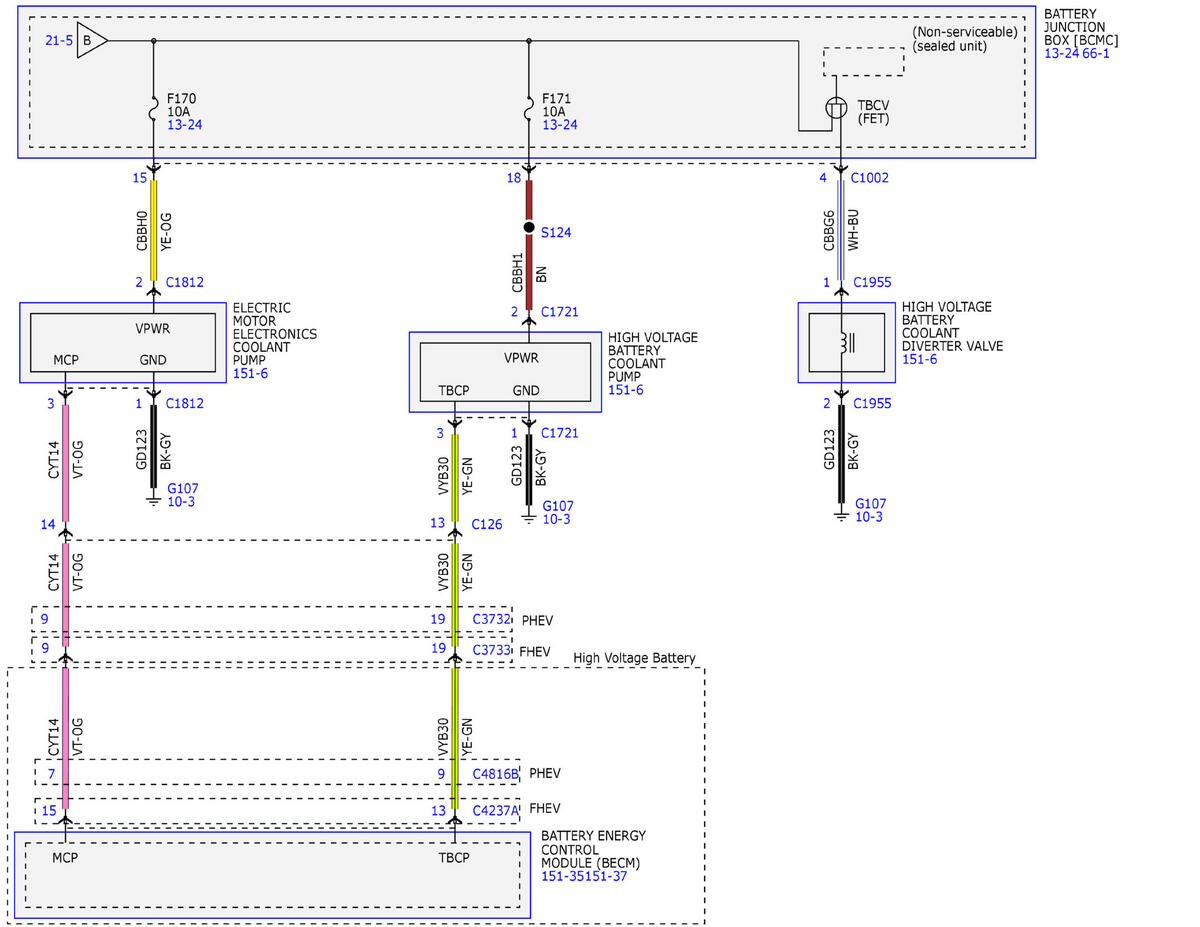

Fig 6: Powertrain Controls - FHEV/PHEV (6 Of 16)

Courtesy of FORD MOTOR COMPANY

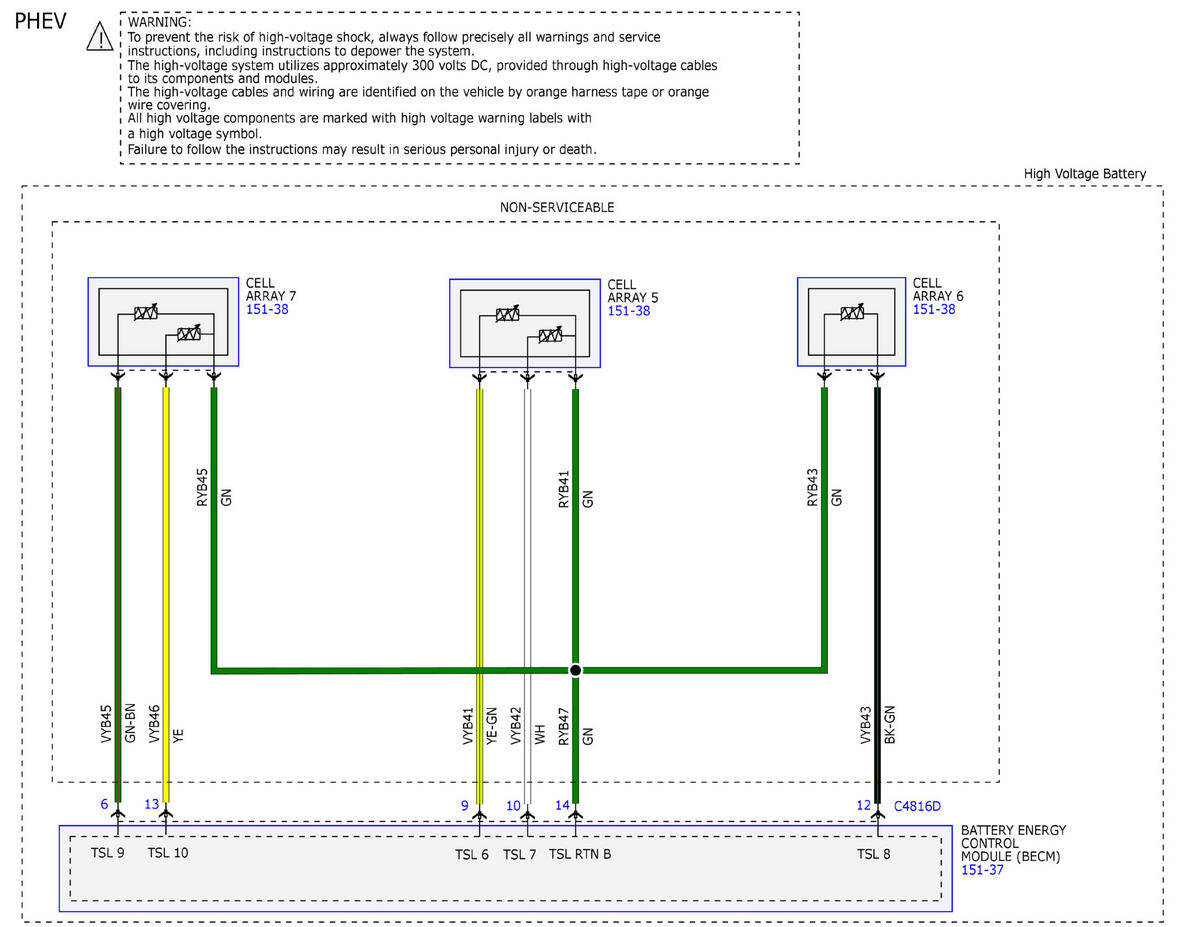

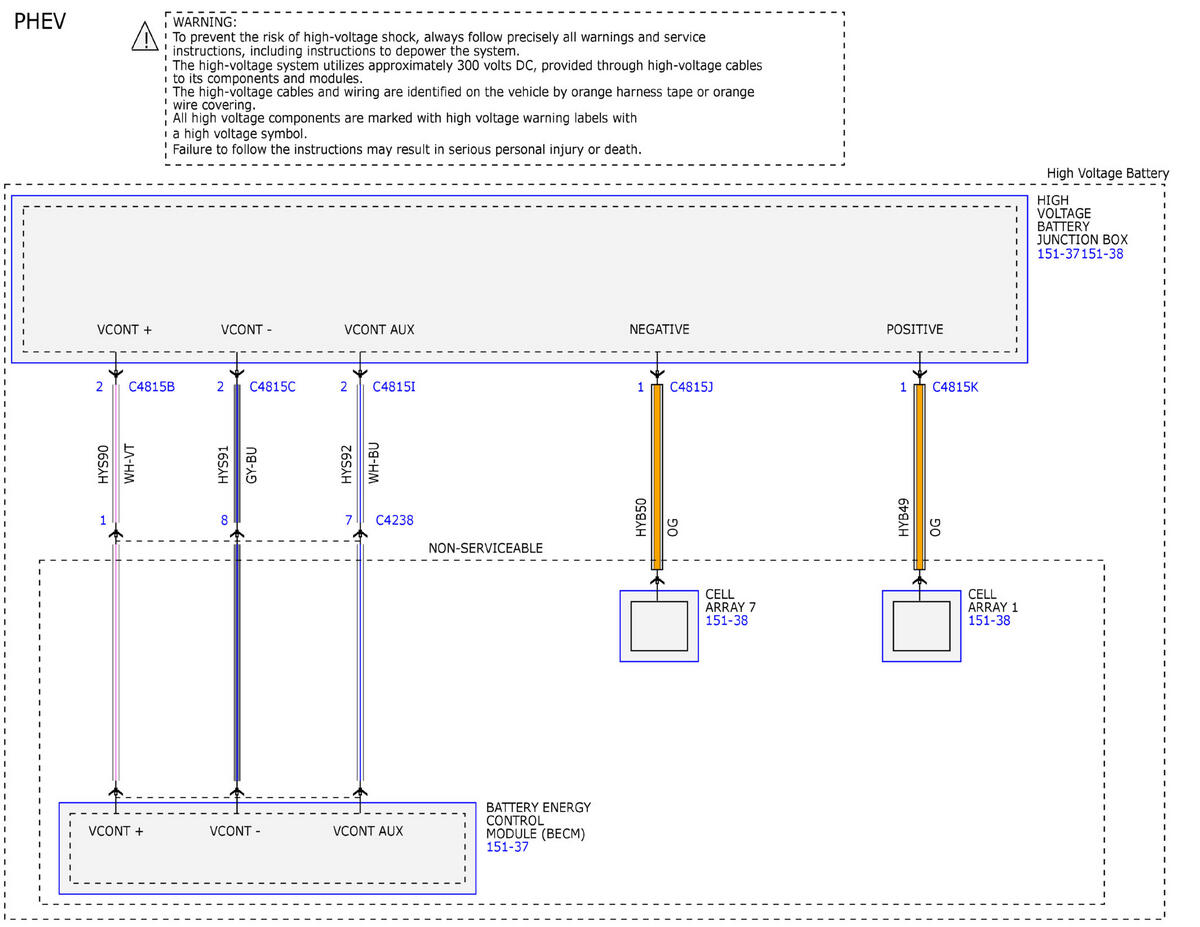

Fig 7: Powertrain Controls - FHEV/PHEV (7 Of 16)

Courtesy of FORD MOTOR COMPANY

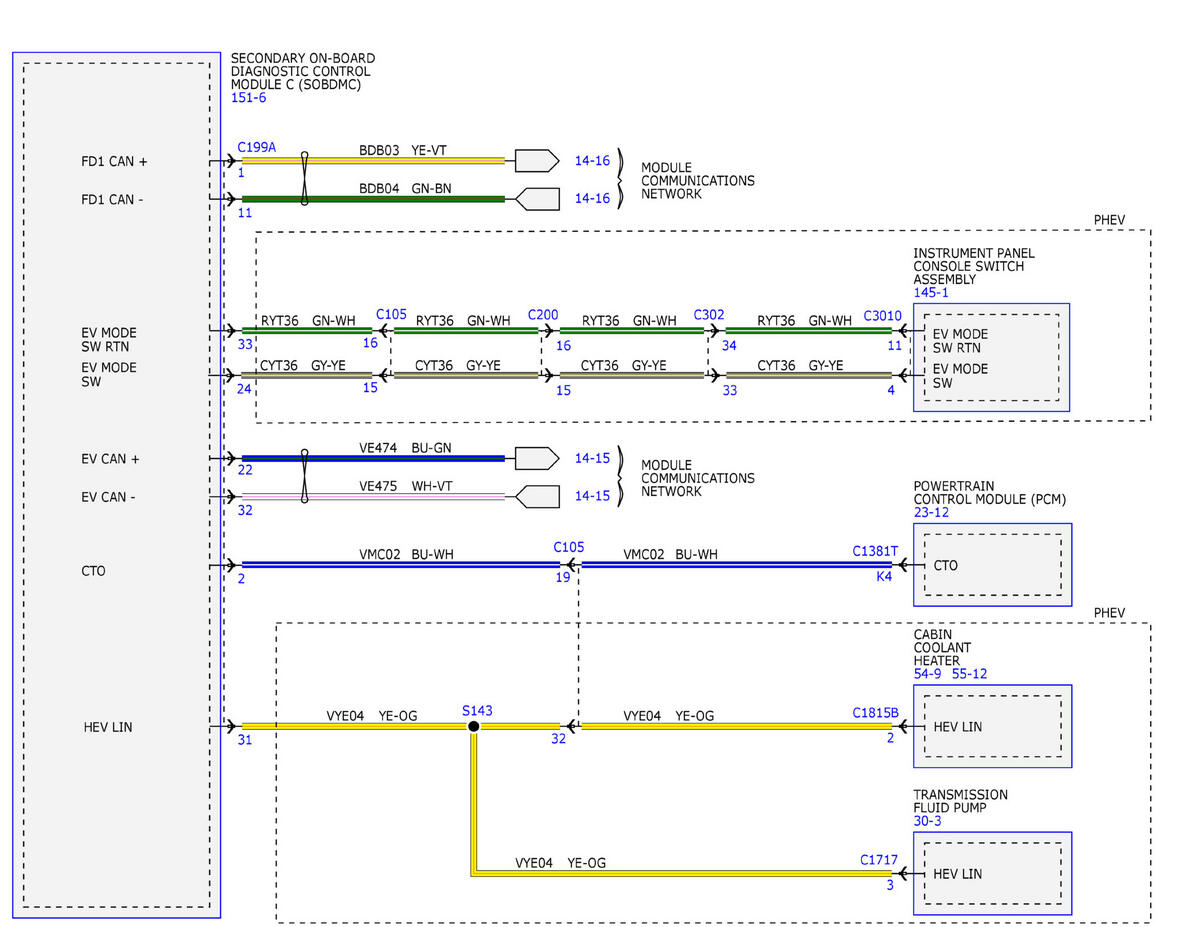

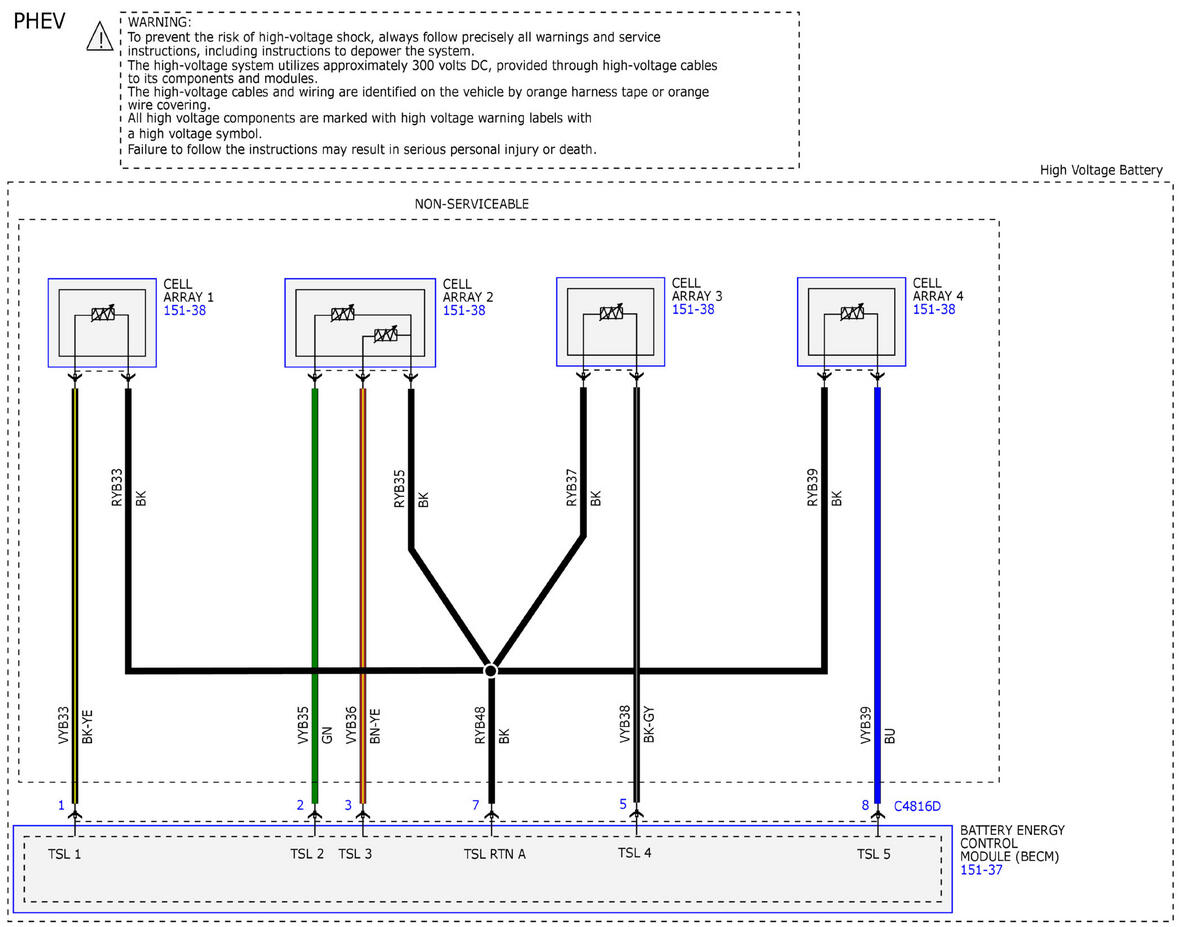

Fig 8: Powertrain Controls - FHEV/PHEV (8 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 9: Powertrain Controls - FHEV/PHEV (9 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 10: Powertrain Controls - FHEV/PHEV (10 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 11: Powertrain Controls - FHEV/PHEV (11 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 12: Powertrain Controls - FHEV/PHEV (12 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 13: Powertrain Controls - FHEV/PHEV (13 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 14: Powertrain Controls - FHEV/PHEV (14 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 15: Powertrain Controls - FHEV/PHEV (15 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 16: Powertrain Controls - FHEV/PHEV (16 Of 16)

Courtesy of FORD MOTOR COMPANY
