Charging System

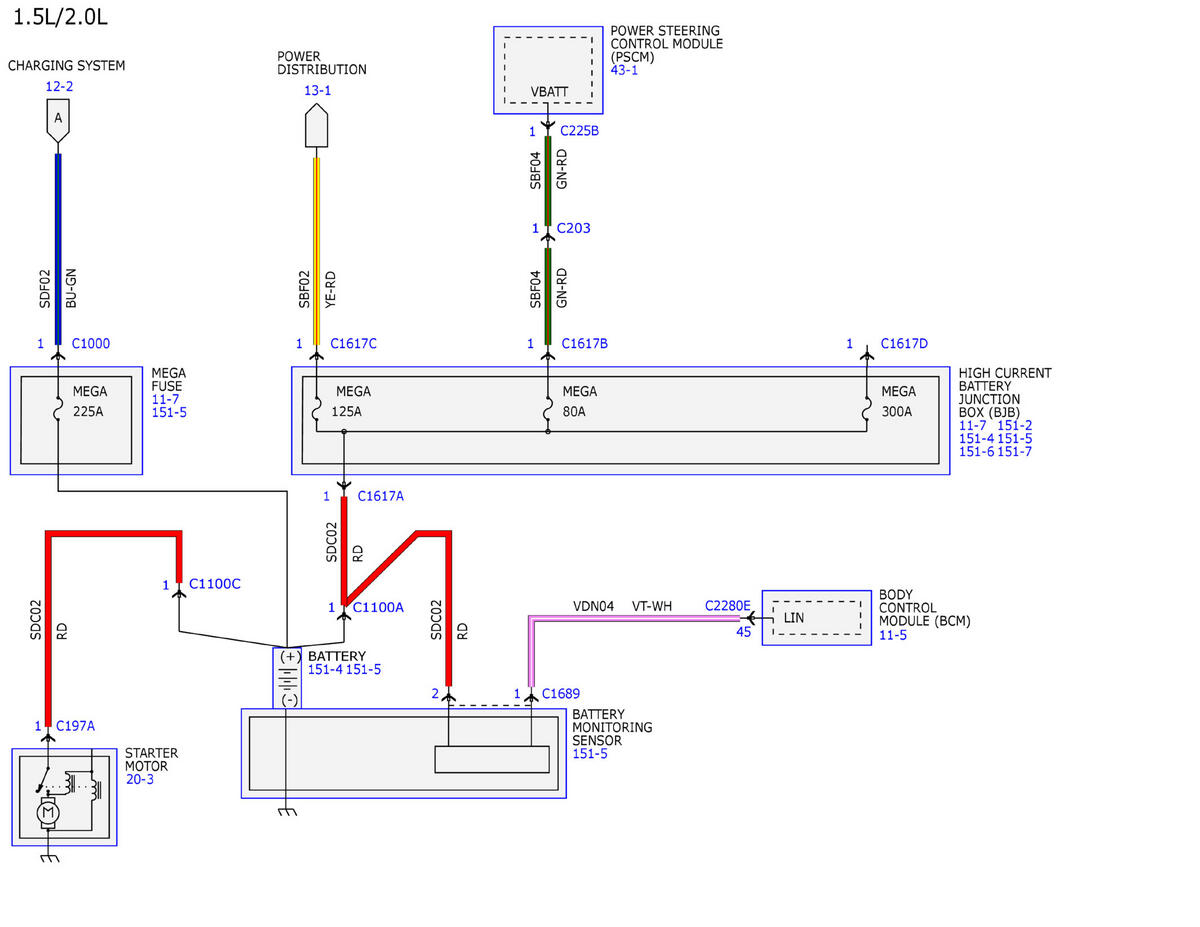

Fig 1: Charging System (1 Of 8)

GFDWR231250

Courtesy of FORD MOTOR COMPANY

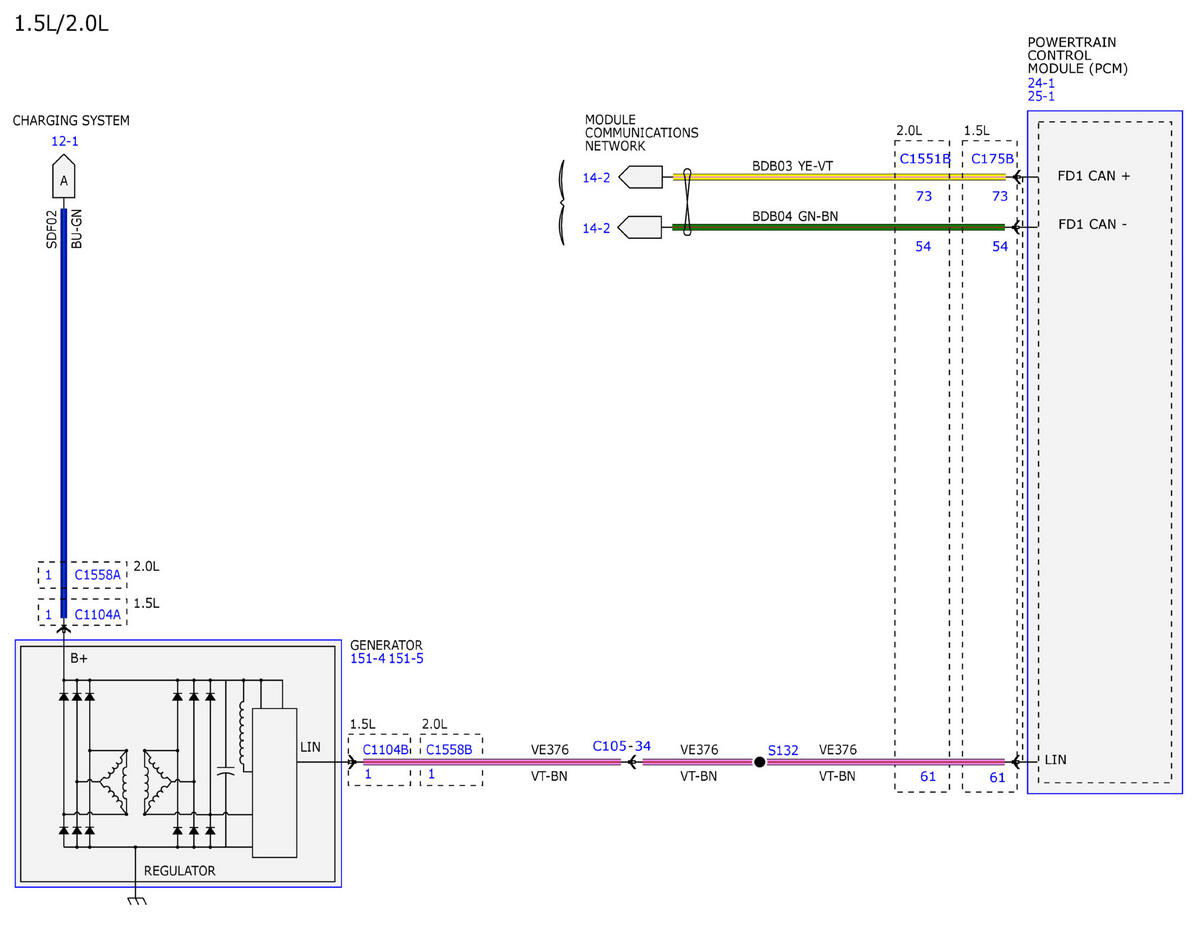

Fig 2: Charging System (2 Of 8)

GFDWR231251

Courtesy of FORD MOTOR COMPANY

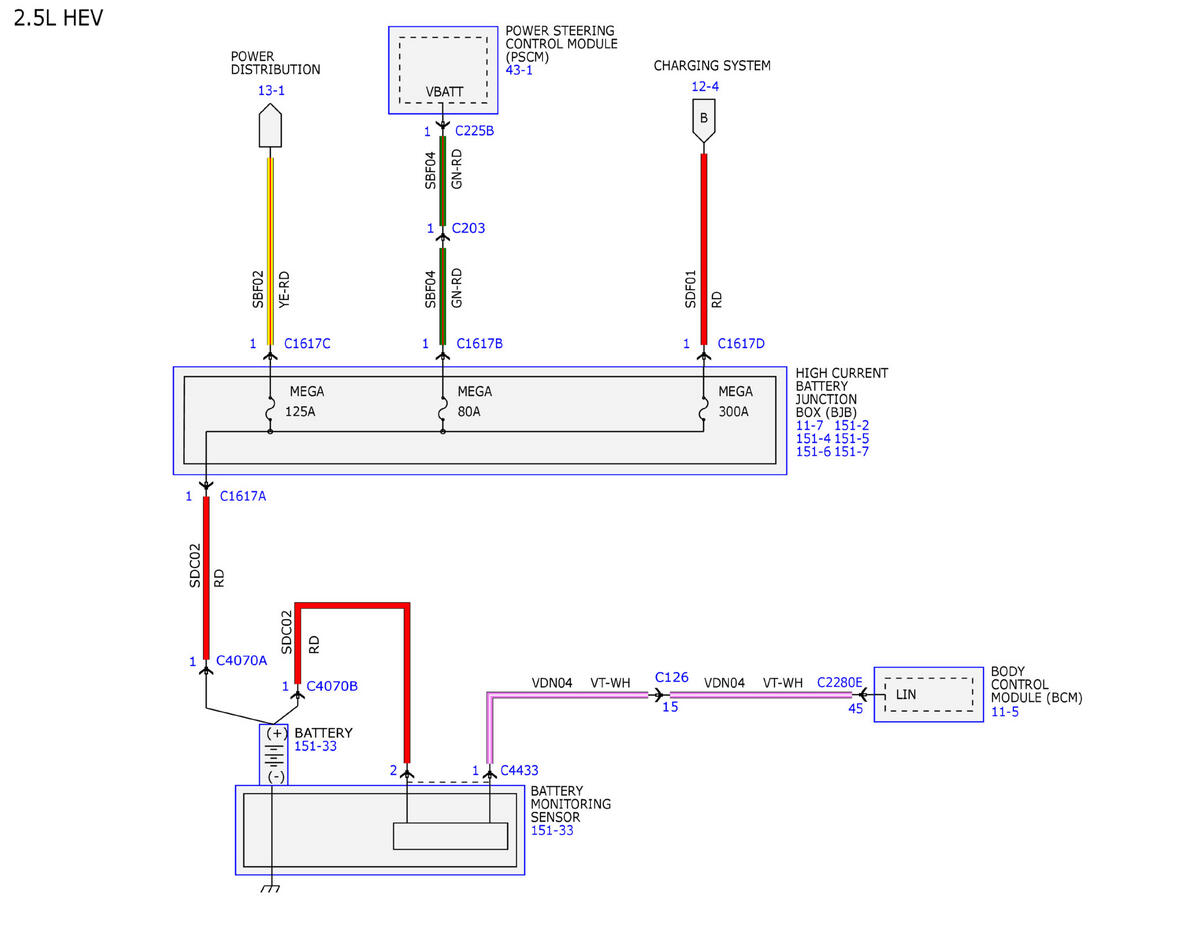

Fig 3: Charging System (3 Of 8)

GFDWR231252

Courtesy of FORD MOTOR COMPANY

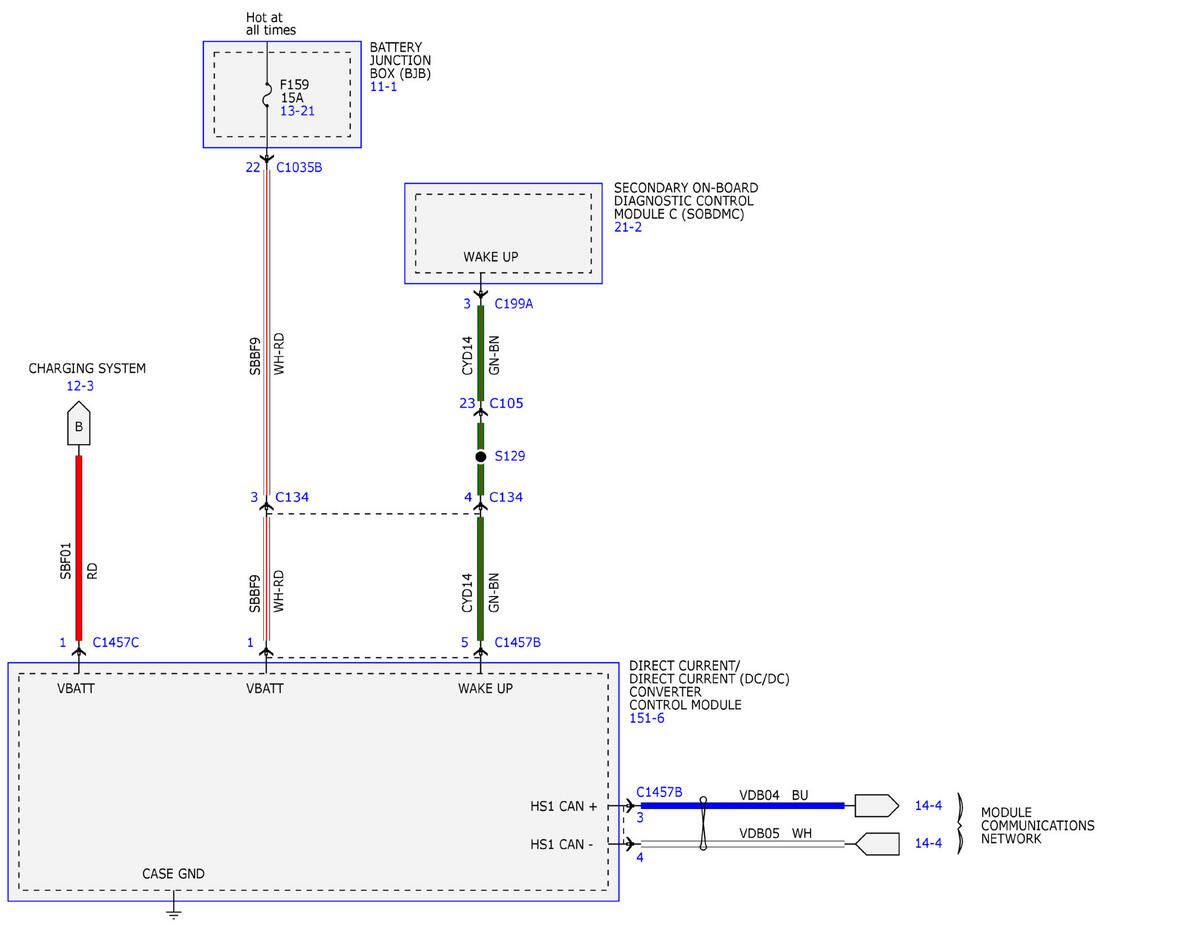

Fig 4: Charging System (4 Of 8)

GFDWR231253

Courtesy of FORD MOTOR COMPANY

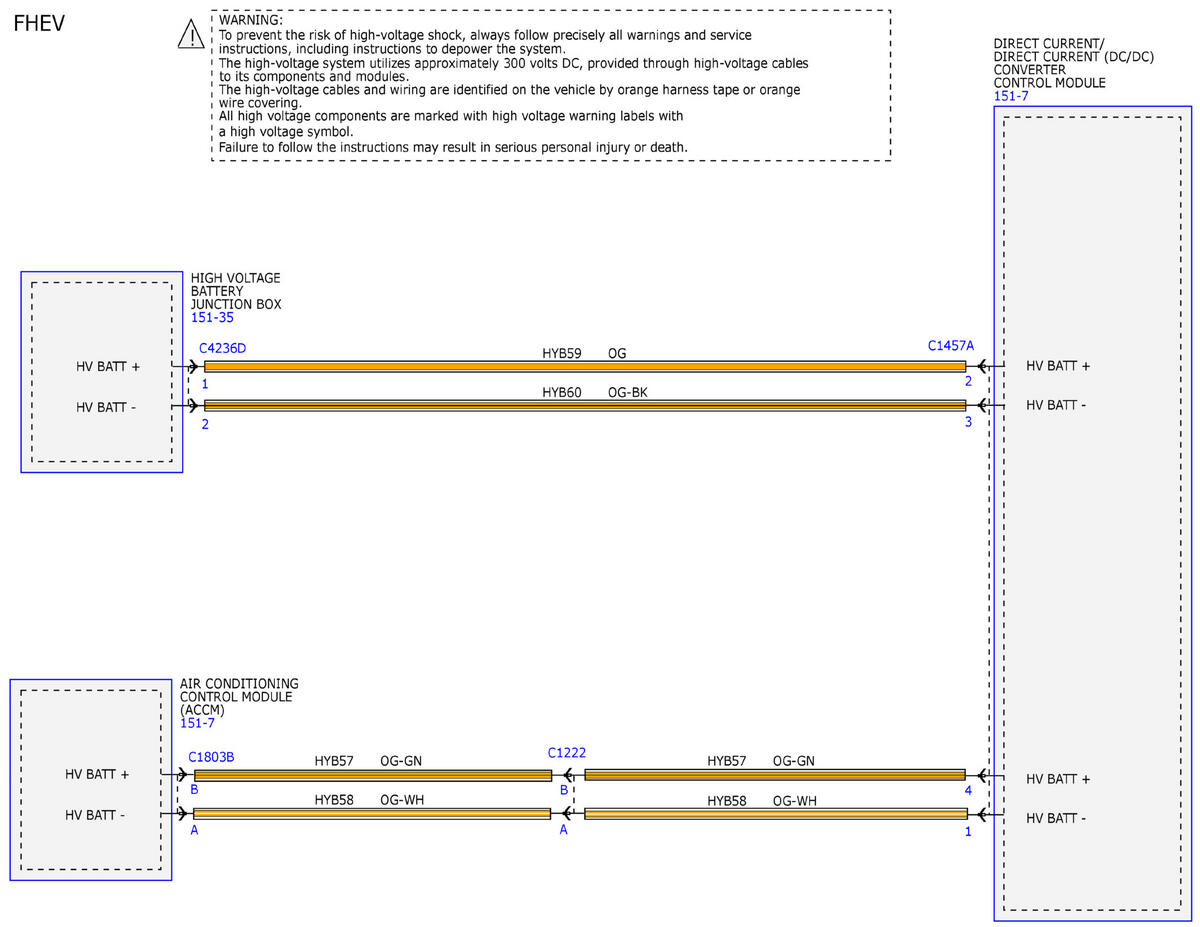

Fig 5: Charging System (5 Of 8)

GFDWR231254

Courtesy of FORD MOTOR COMPANY

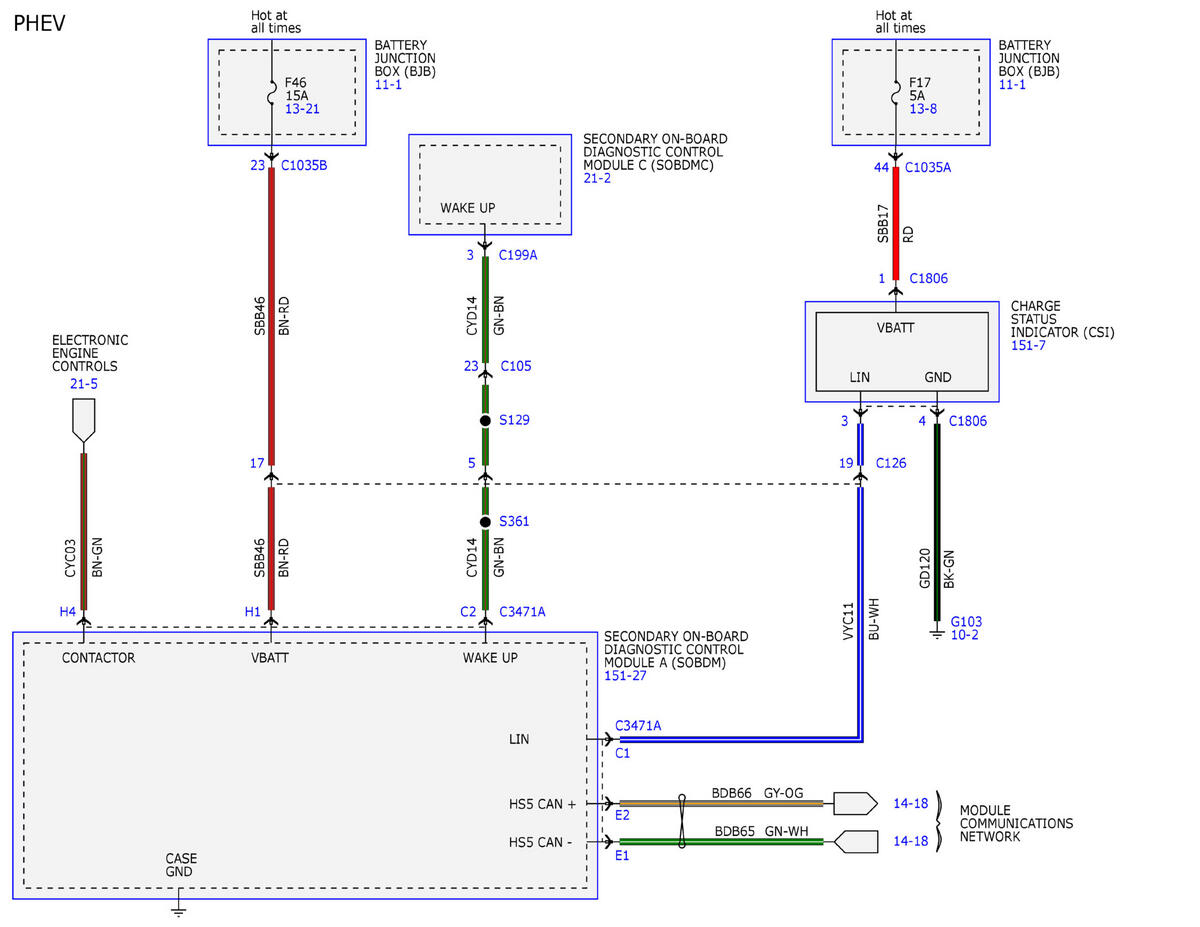

Fig 6: Charging System (6 Of 8)

GFDWR231255

Courtesy of FORD MOTOR COMPANY

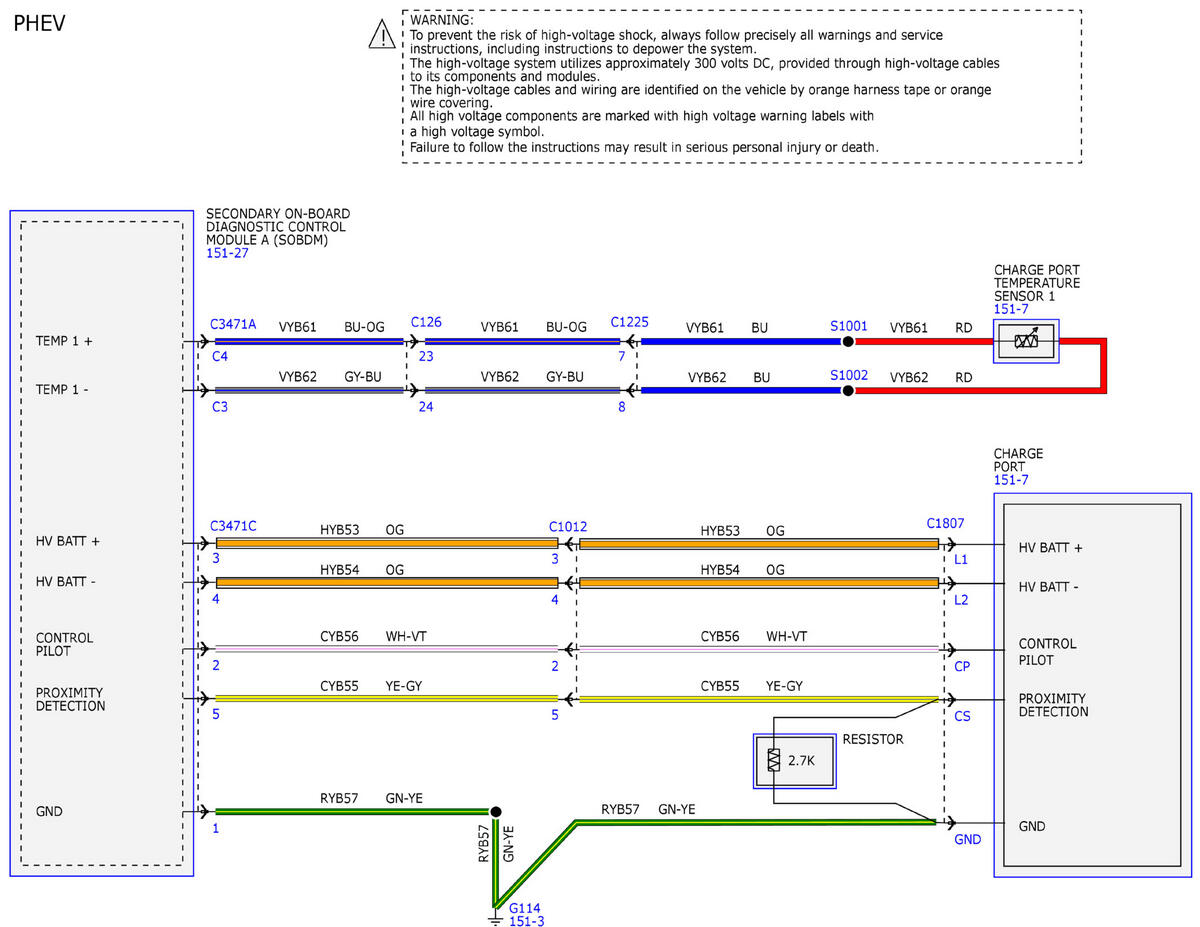

Fig 7: Charging System (7 Of 8)

GFDWR231256

Courtesy of FORD MOTOR COMPANY

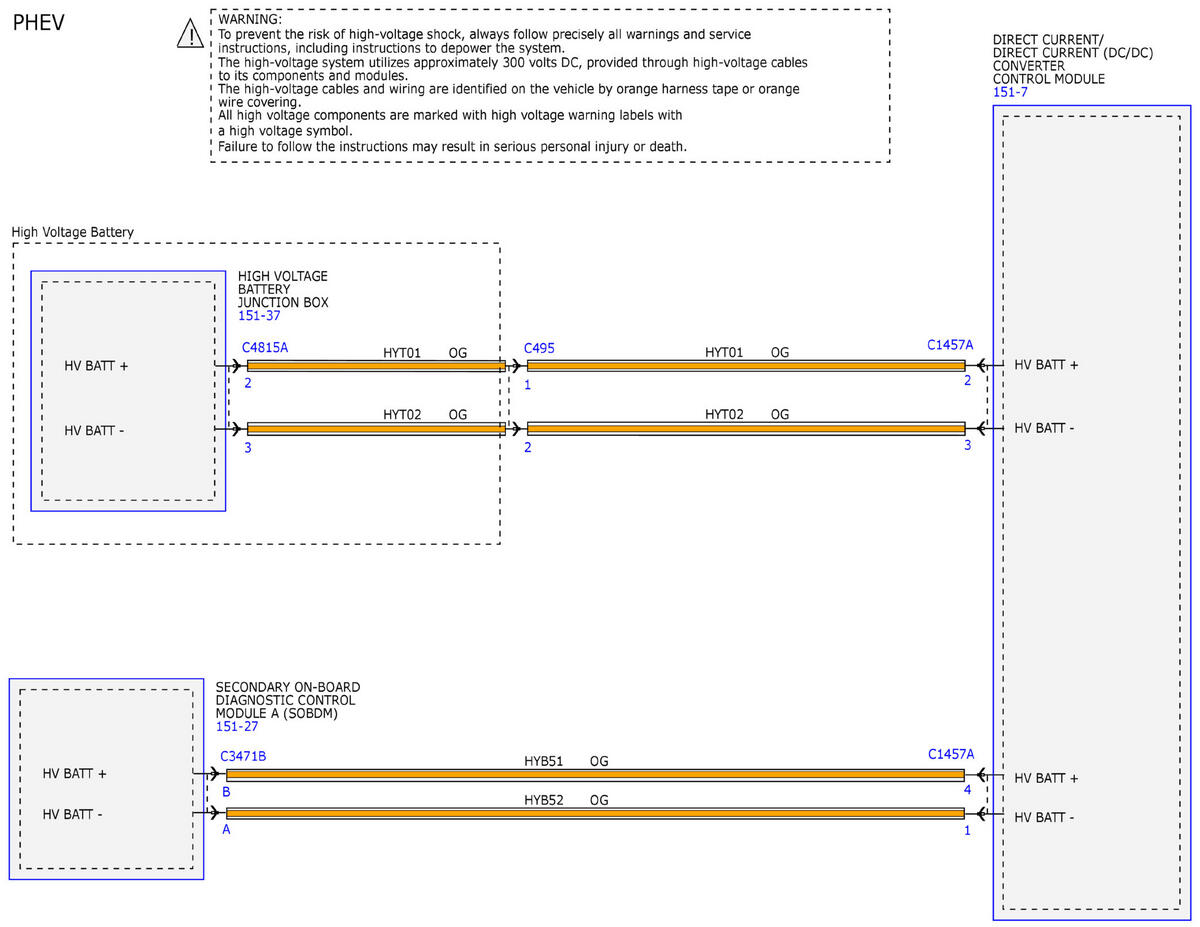

Fig 8: Charging System (8 Of 8)

GFDWR231257

Courtesy of FORD MOTOR COMPANY
