Front Door Lock Switch LH/RH - Without Memory

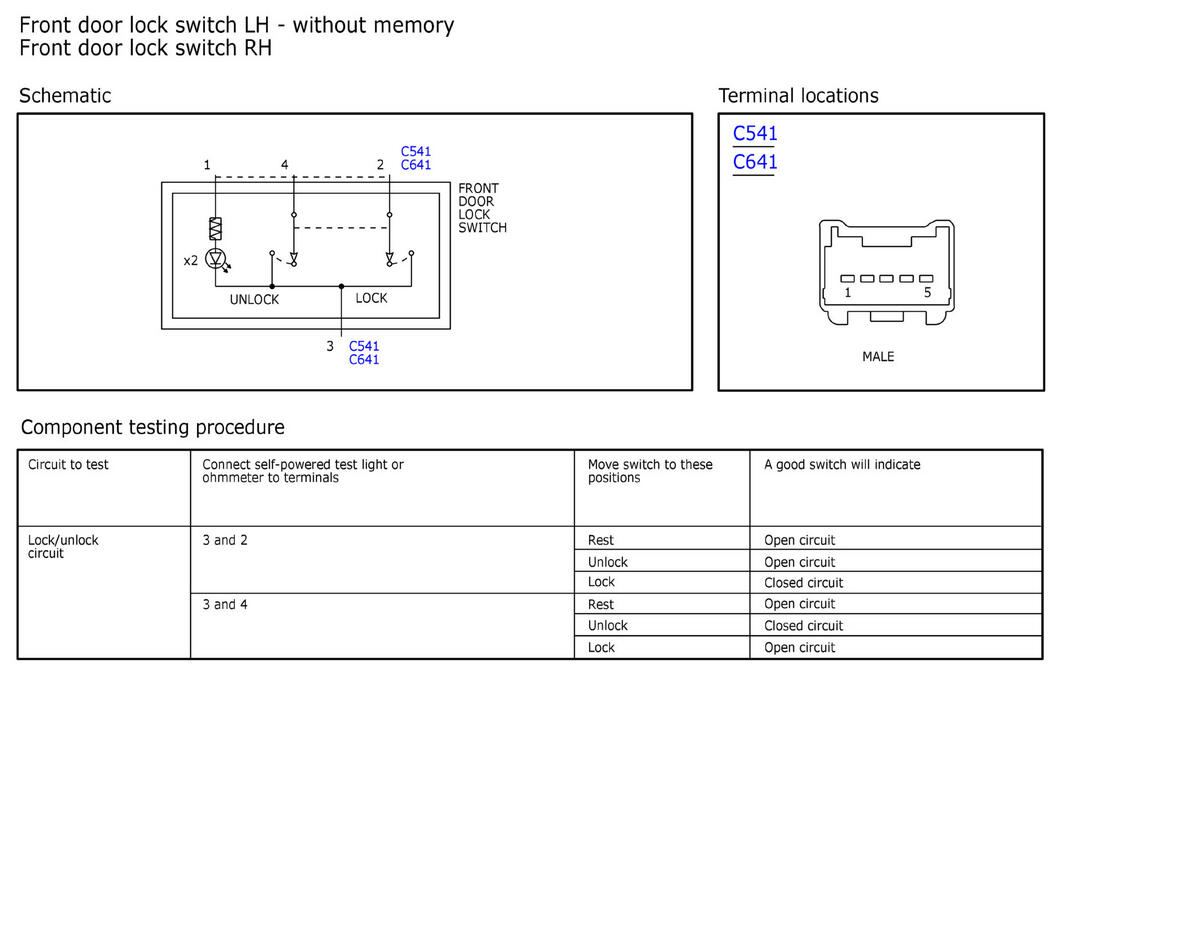

Fig 1: Front Door Lock Switch LH/RH - Without Memory Component Testing
Courtesy of FORD MOTOR COMPANY
