Front Door Lock Switch LH - With Memory

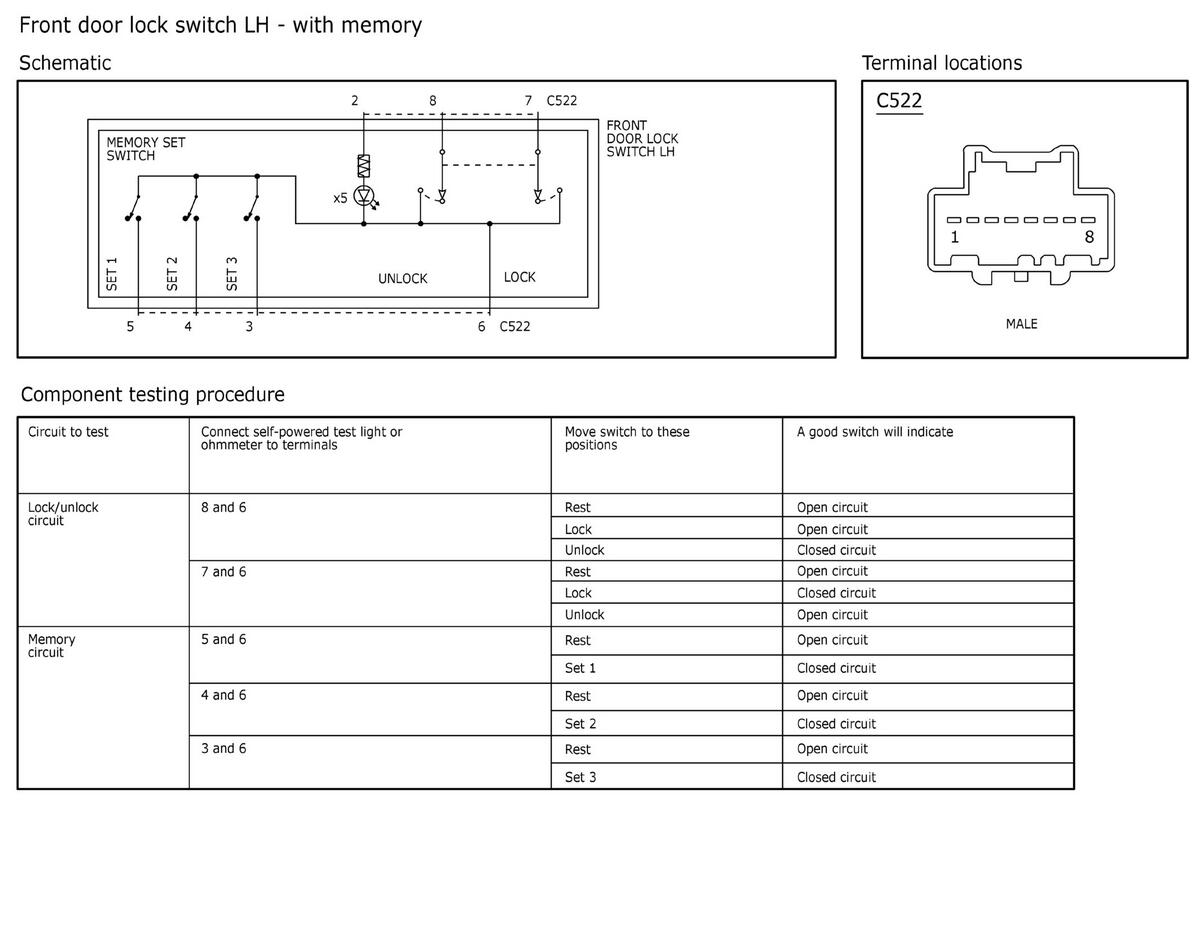

Fig 1: Front Door Lock Switch LH - With Memory Component Testing
GFDWR231545Courtesy of FORD MOTOR COMPANY
