Steering Gear Boot: Removal

NOTE: LH (left-hand) side shown below, RH (right-hand) similar.
  1. Remove the tie rod end. Refer to: Tie Rod End .
  2. NOTE: Count and record the number of turns required to remove the outer tie-rod end jamb nut for reference during installation.

    Remove the tie rod end jamb nut.

    GFD837298Courtesy of FORD MOTOR COMPANY

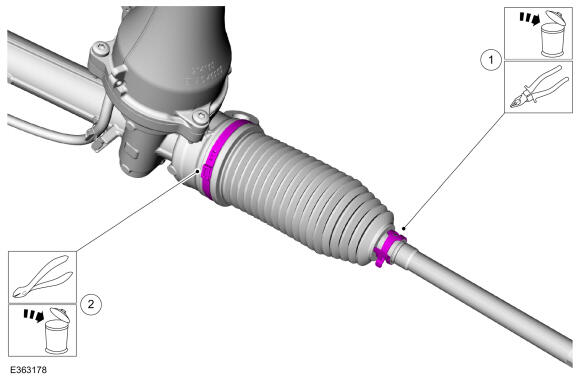

    1. Remove and discard the outer steering gear boot clamp.
    2. Remove and discard the inner steering gear boot clamp.
    GFD837299Courtesy of FORD MOTOR COMPANY

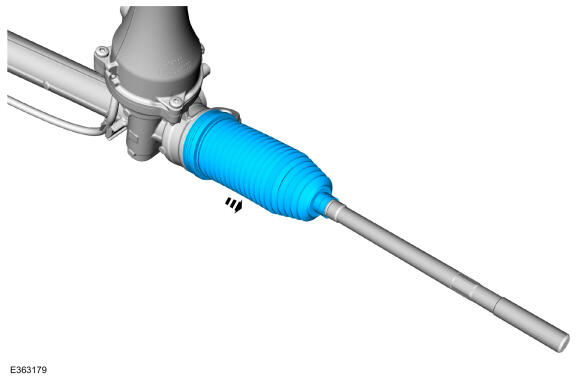

  4. Remove the steering gear boot.
GFD837300Courtesy of FORD MOTOR COMPANY
