Pedestrian Alert Control Module (PACM): Removal

WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat. Refer to: Rear Seat .

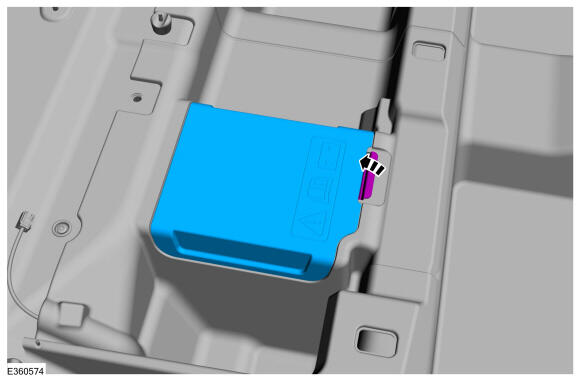

Remove the battery cover.

Courtesy of FORD MOTOR COMPANY

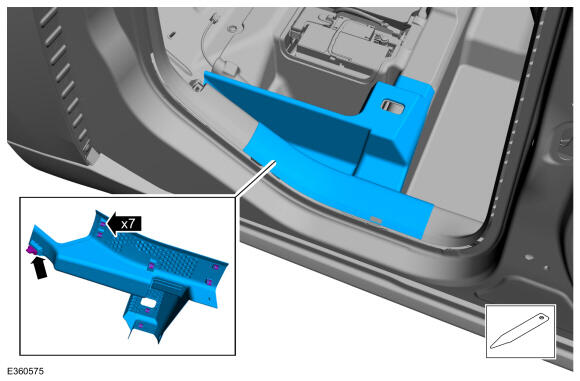

Release the clips and remove the RH interior scuff plate. Remove the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

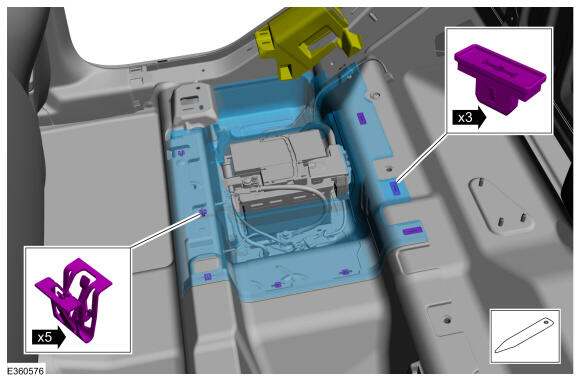

Release the clips and remove the RH storage bin. Remove the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

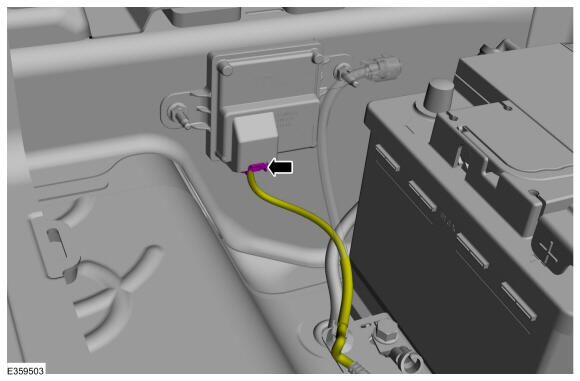

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

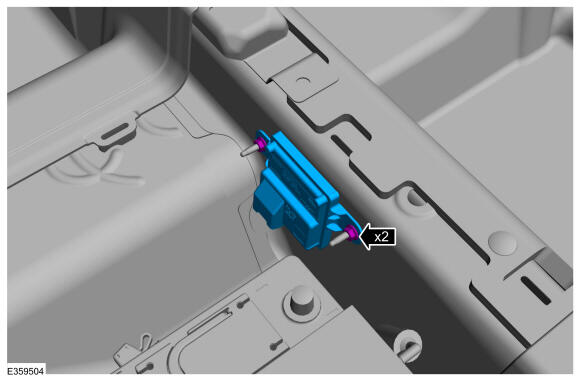

Remove the nuts and the PACM.
Torque: 8 Nm

Courtesy of FORD MOTOR COMPANY
