Climate Control Housing: Disassembly
WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Typical climate control housing shown, others similar.
NOTE:
Removal steps in this procedure may contain installation details.
Air Inlet Housing
- Remove the climate control housing. Refer to: Climate Control Housing .
-
NOTE: Use caution when releasing tabs, only pry enough to release or tabs may break.
- Remove the screws and pinch the tabs.
- Lower the cabin air filter door, and remove the cabin air filter..
- Release the tabs and remove the air inlet housing.
Blower Motor Housing

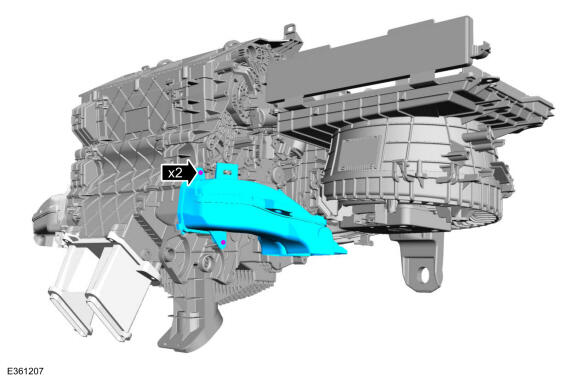

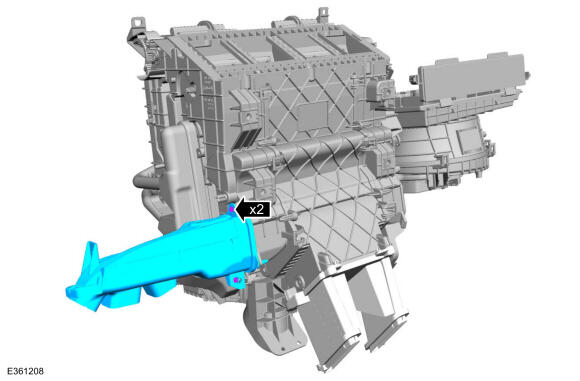

- Remove the retainers and the passanger side footwell duct.
- Remove the retainers and the driver side footwell duct.
-
NOTE: If equipped.

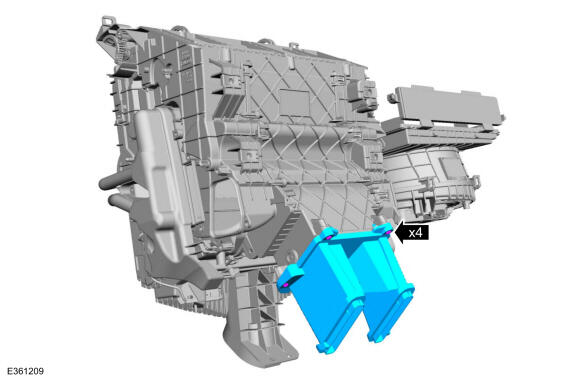

Remove the retainers and the rear duct.

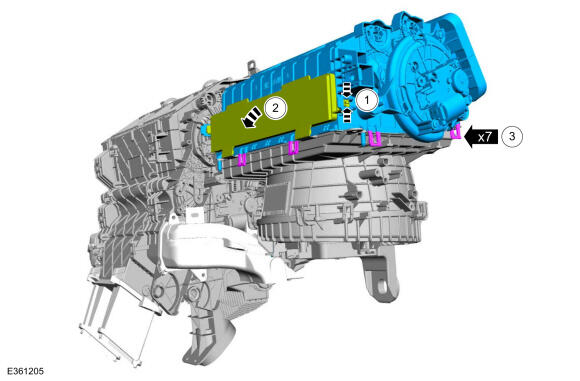

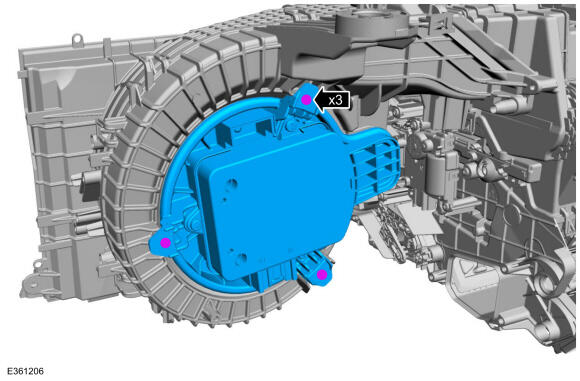

- Remove the retainers and the blower motor control module.
-
NOTE: If equipped.
Disconnect the electrical connector.
-

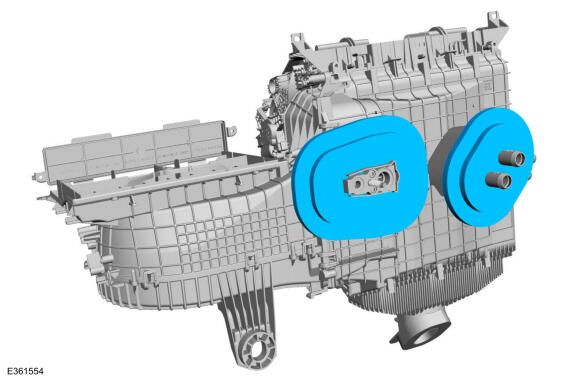

- Remove the foam seals

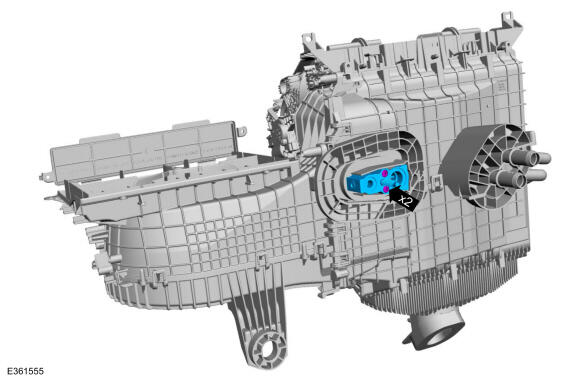

- Remove the retainers and the thermostatic expansion valve.
Torque
: 8 Nm

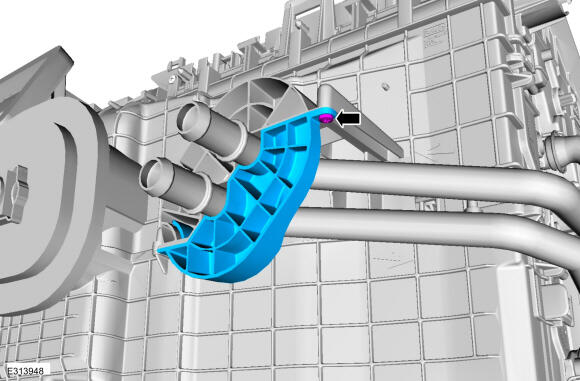

- Remove the retainer and the heater core support bracket.
-
NOTE: If equipped.

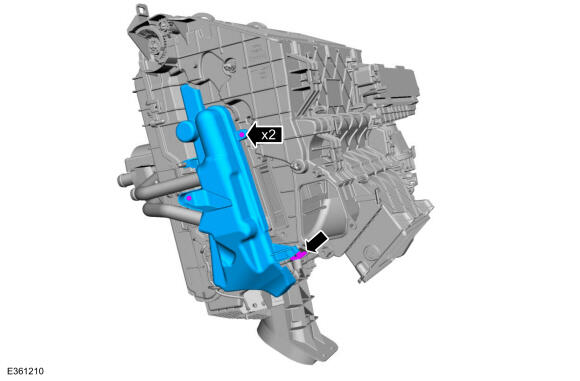

Remove the retainers, release the tab and remove the heater core cover.

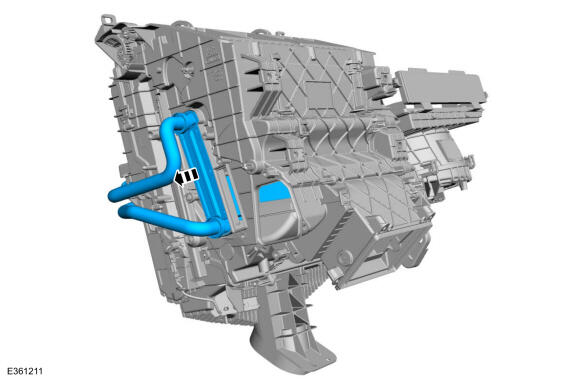

- Remove the heater core.
-
NOTE: Use caution when releasing tabs, only pry enough to release or tabs may break.

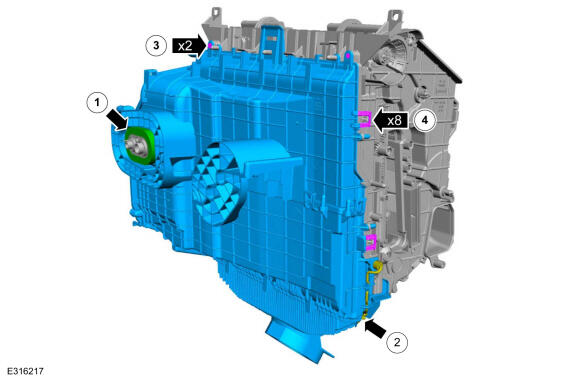

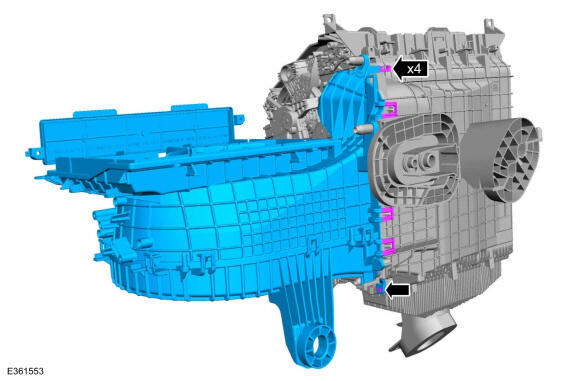

Release the tabs and remove the blower motor housing.
Evaporator Cover
-
NOTE: Use caution when releasing tabs, only pry enough to release or tabs may break.
- Remove the foam seal.
- Position aside the evaporator tempreature sensor harness.
- Remove the retainers.
- Release the tabs and remove the evaporator cover.
Air Distribution Housing

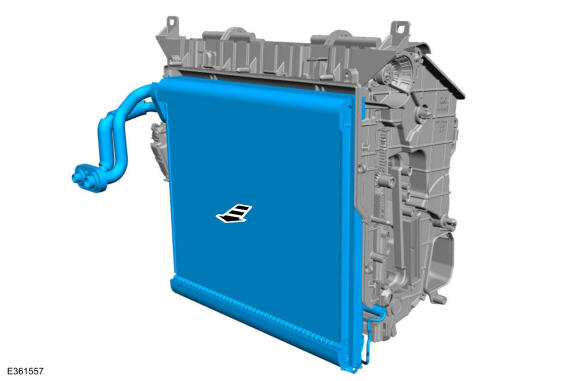

- Remove the evaporator.

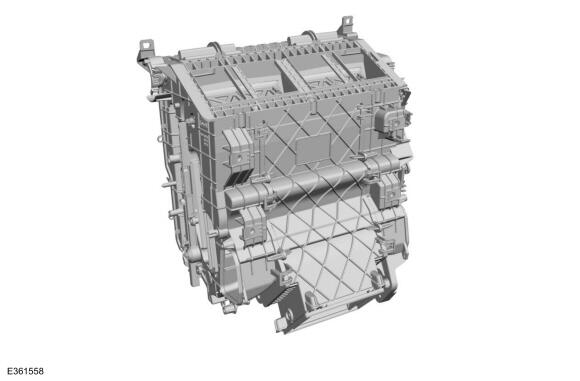

- Air distribution housing.
