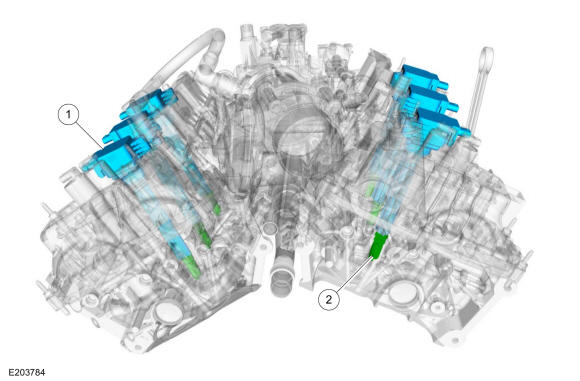

Engine Ignition - Component Location

3.0L EcoBoost

GFD658796Courtesy of FORD MOTOR COMPANY
Item Description
1 Ignition coil-on-plug
2 Spark plug
