Pedestrian Alert Control Module (PACM): Removal
WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the LH side loadspace trim panel. Refer to: Loadspace Trim Panel .

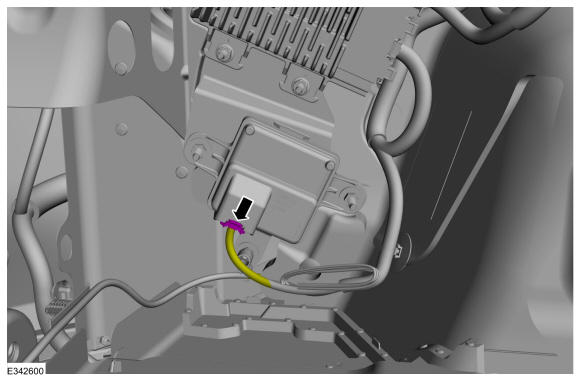

- Disconnect the PACM electrical connector.

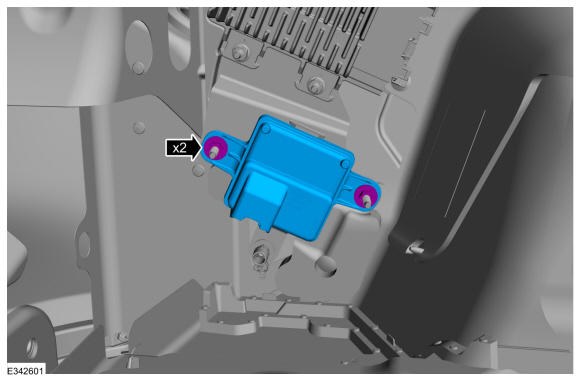

- Remove the nuts and the PACM.
Torque: 62 lb.in (7 Nm)
