Memory Seats

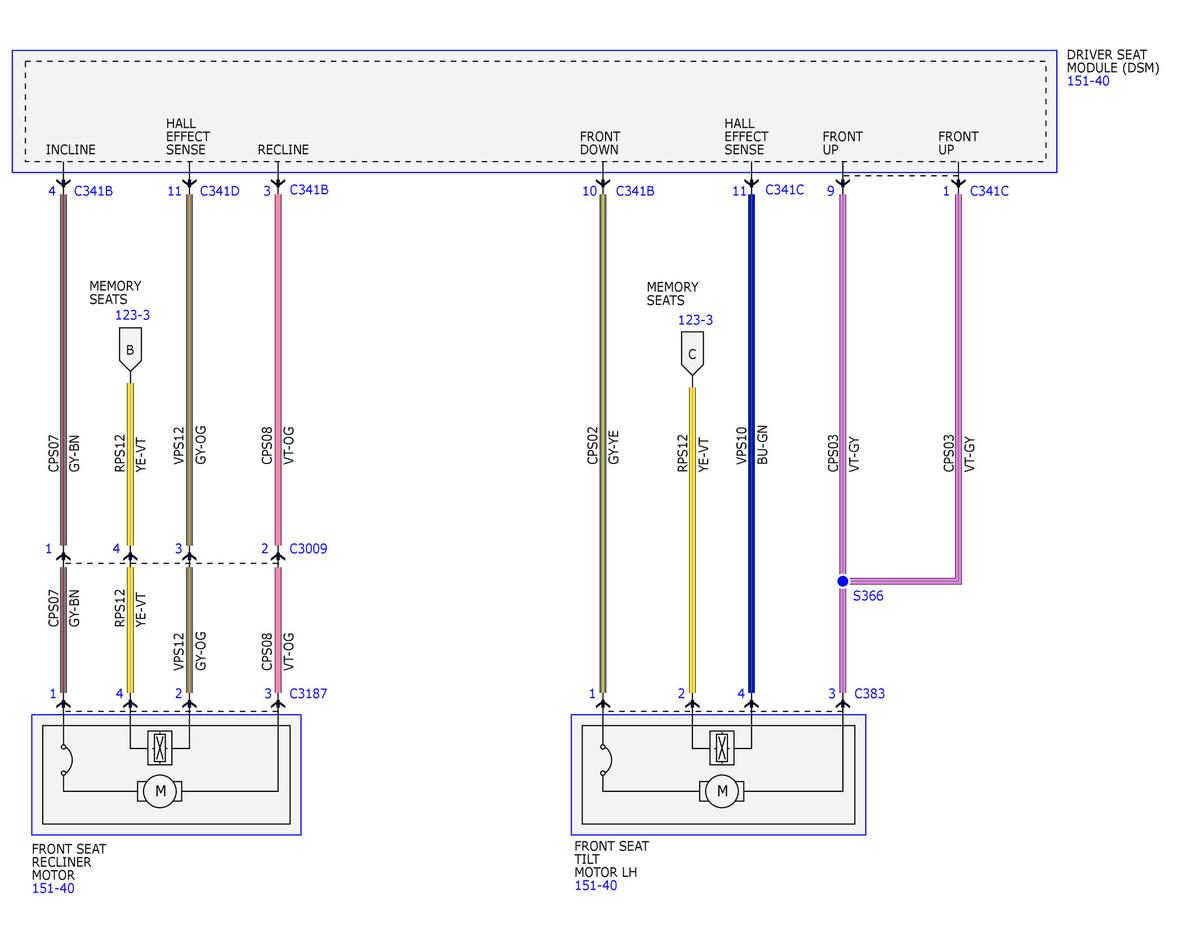

Fig 1: Memory Seats Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR COMPANY

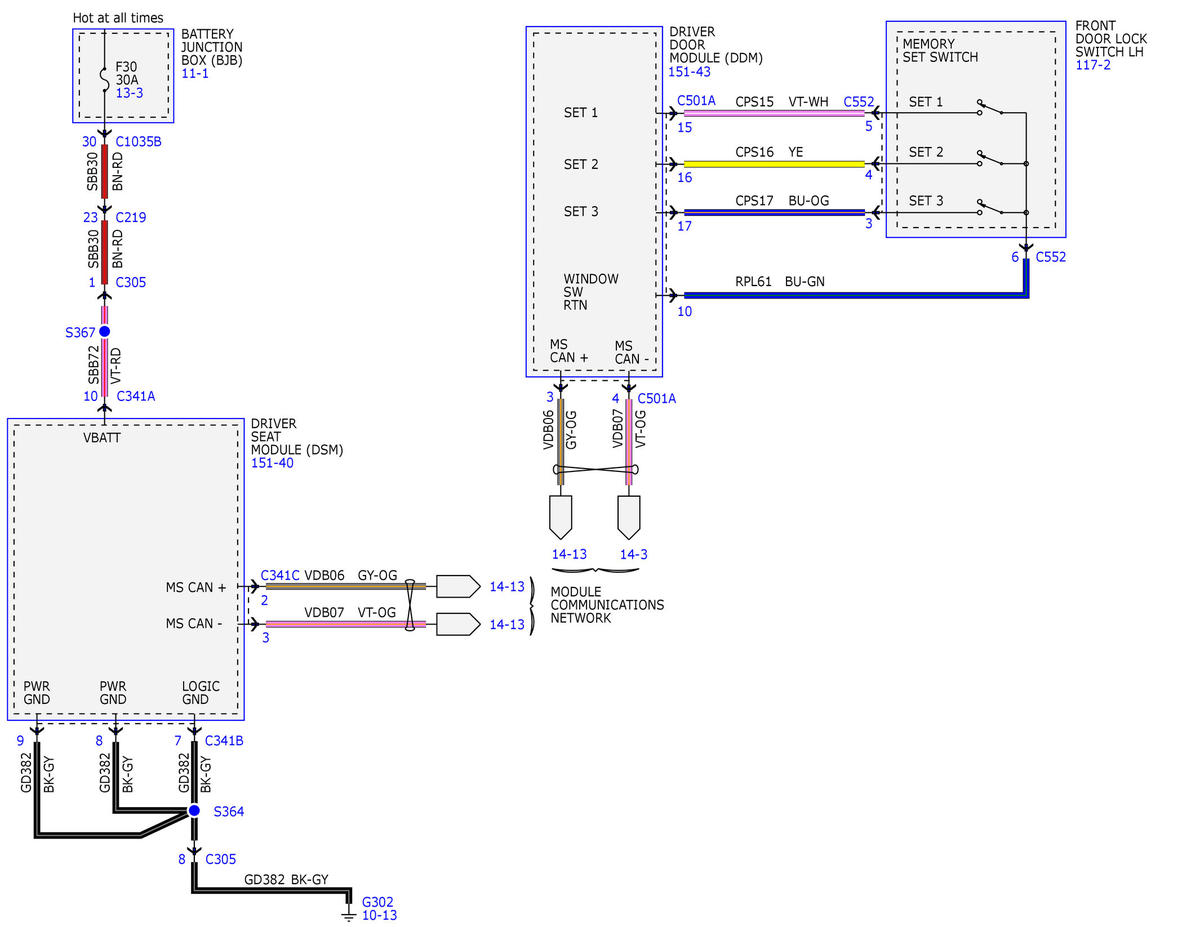

Fig 2: Memory Seats Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR COMPANY

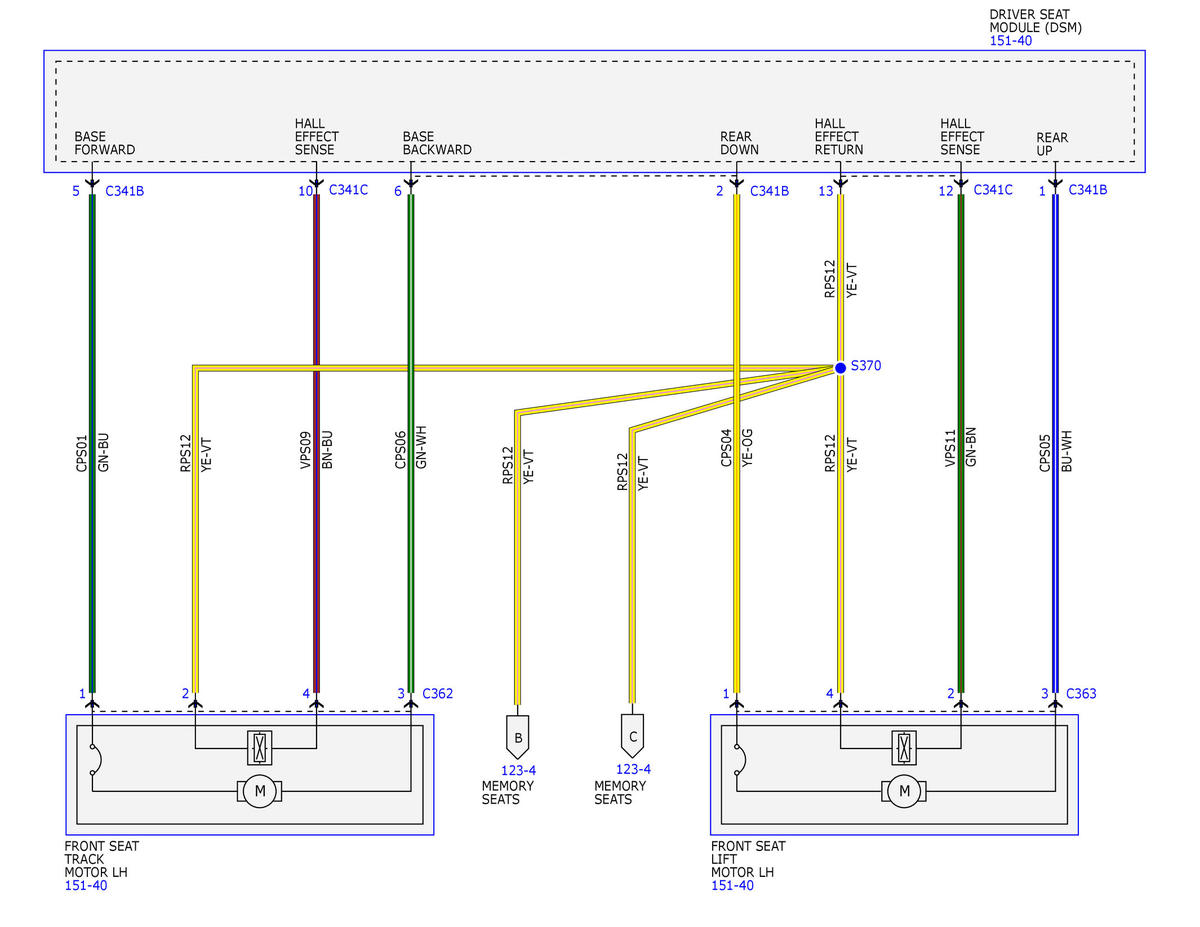

Fig 3: Memory Seats Wiring Diagram (3 Of 4)

Courtesy of FORD MOTOR COMPANY

Fig 4: Memory Seats Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR COMPANY
