Auto-Start-Stop System

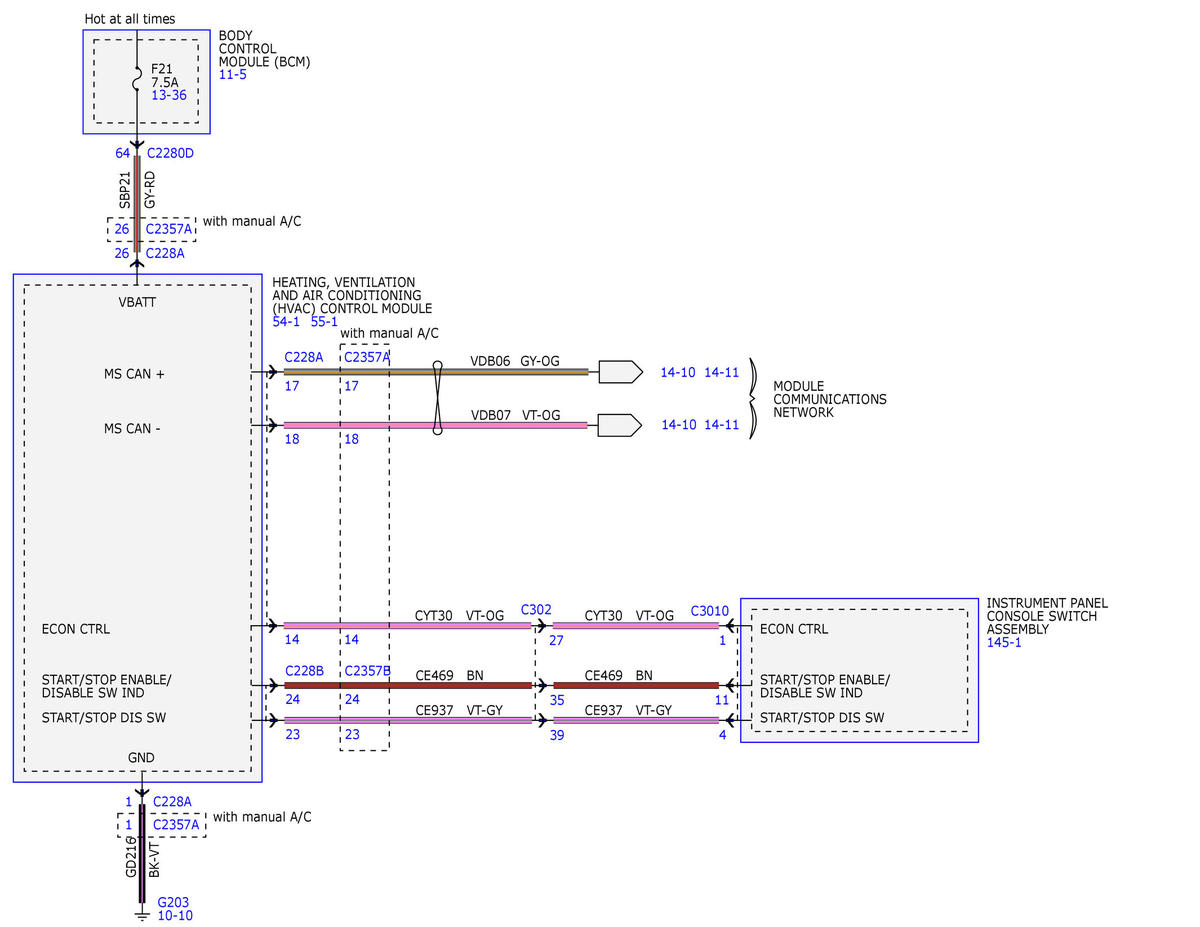

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 2)
GFDWR197856Courtesy of FORD MOTOR COMPANY

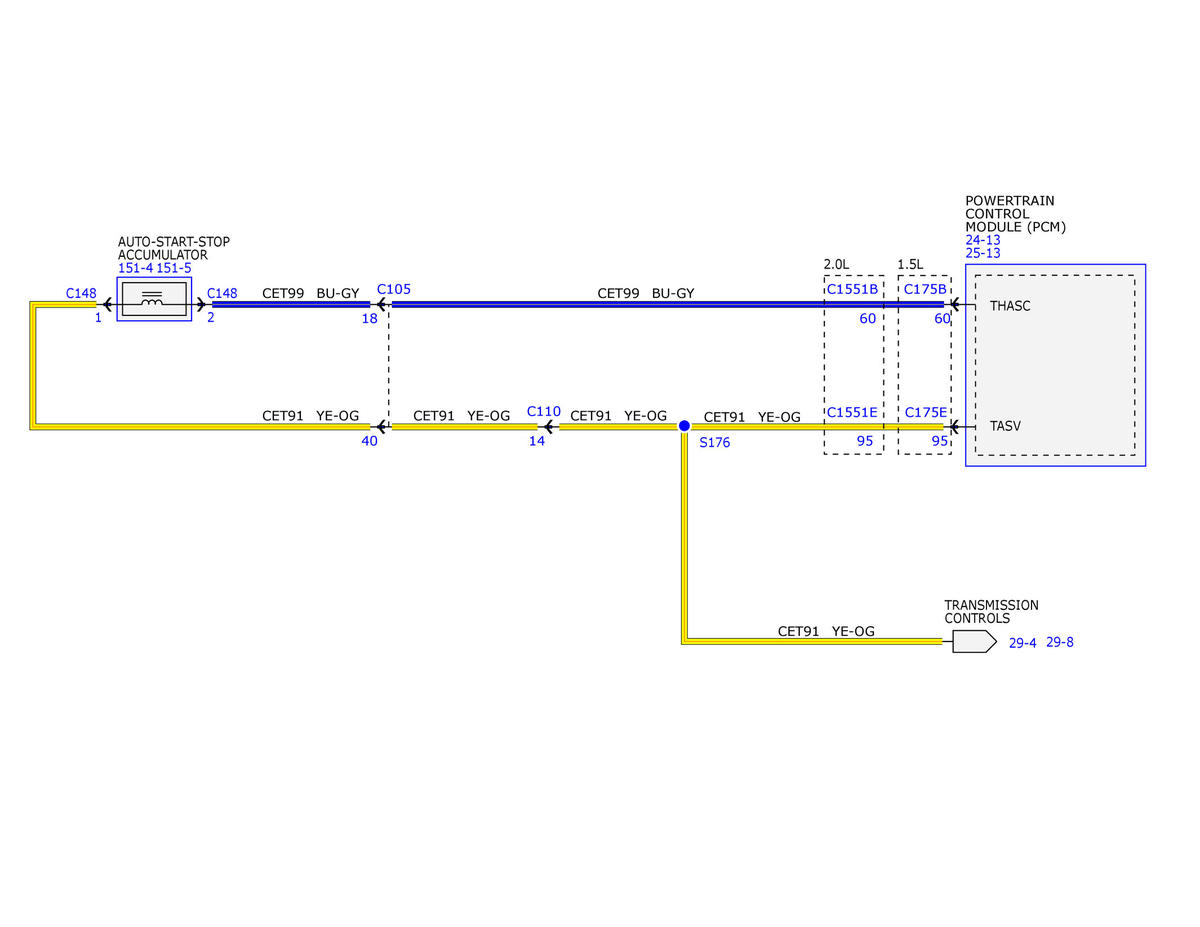

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 2)
GFDWR197857Courtesy of FORD MOTOR COMPANY
