Audio System/Navigation

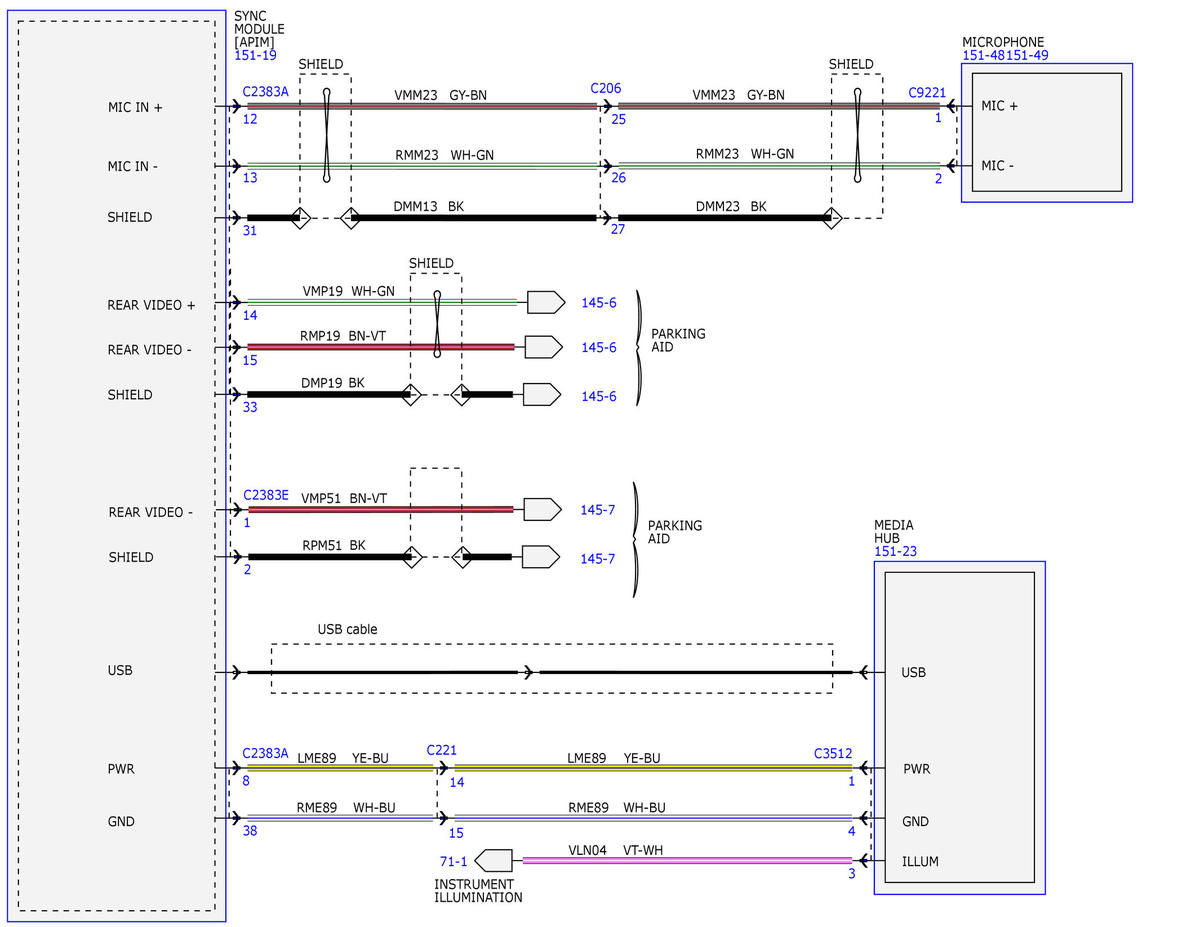

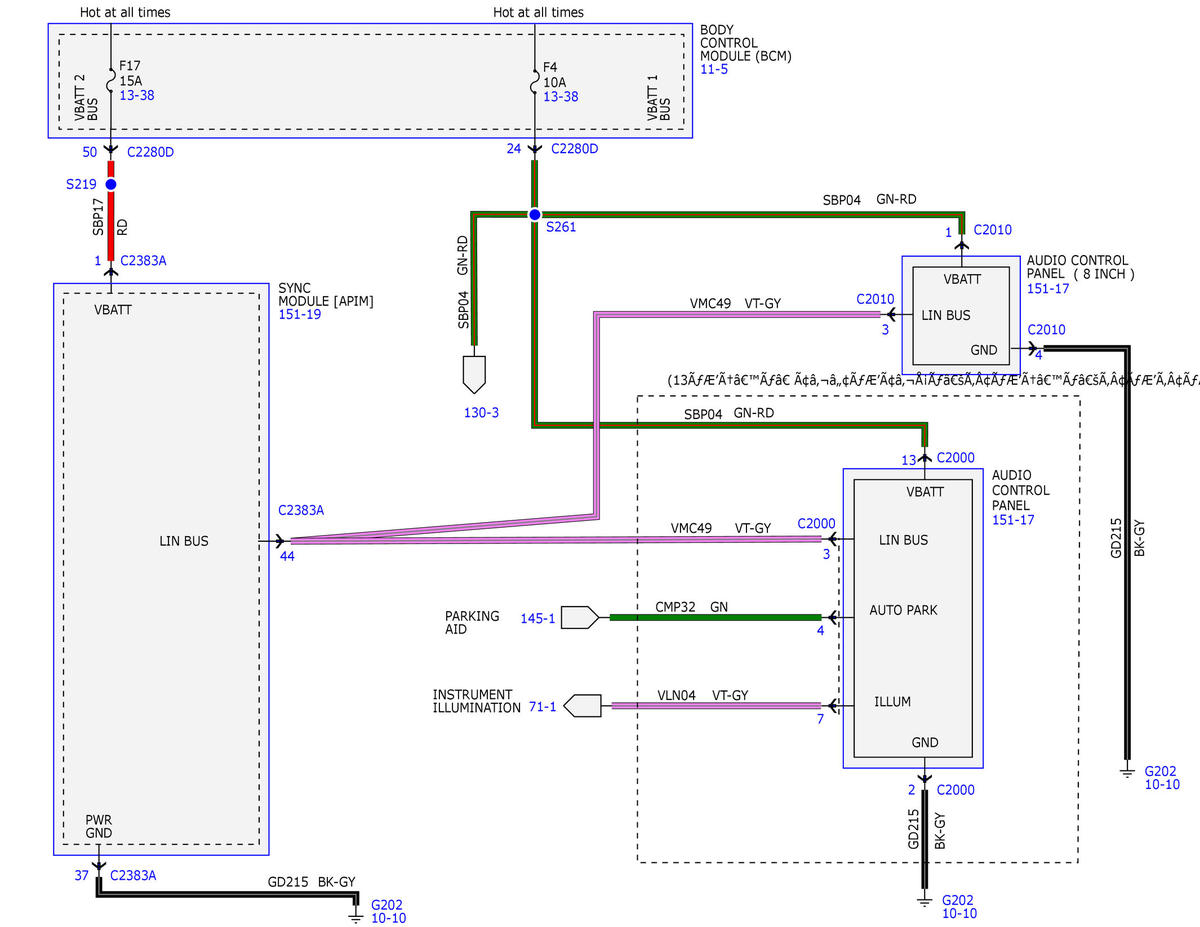

Fig 1: Audio System/Navigation Wiring Diagram (1 Of 14)
Courtesy of FORD MOTOR COMPANY

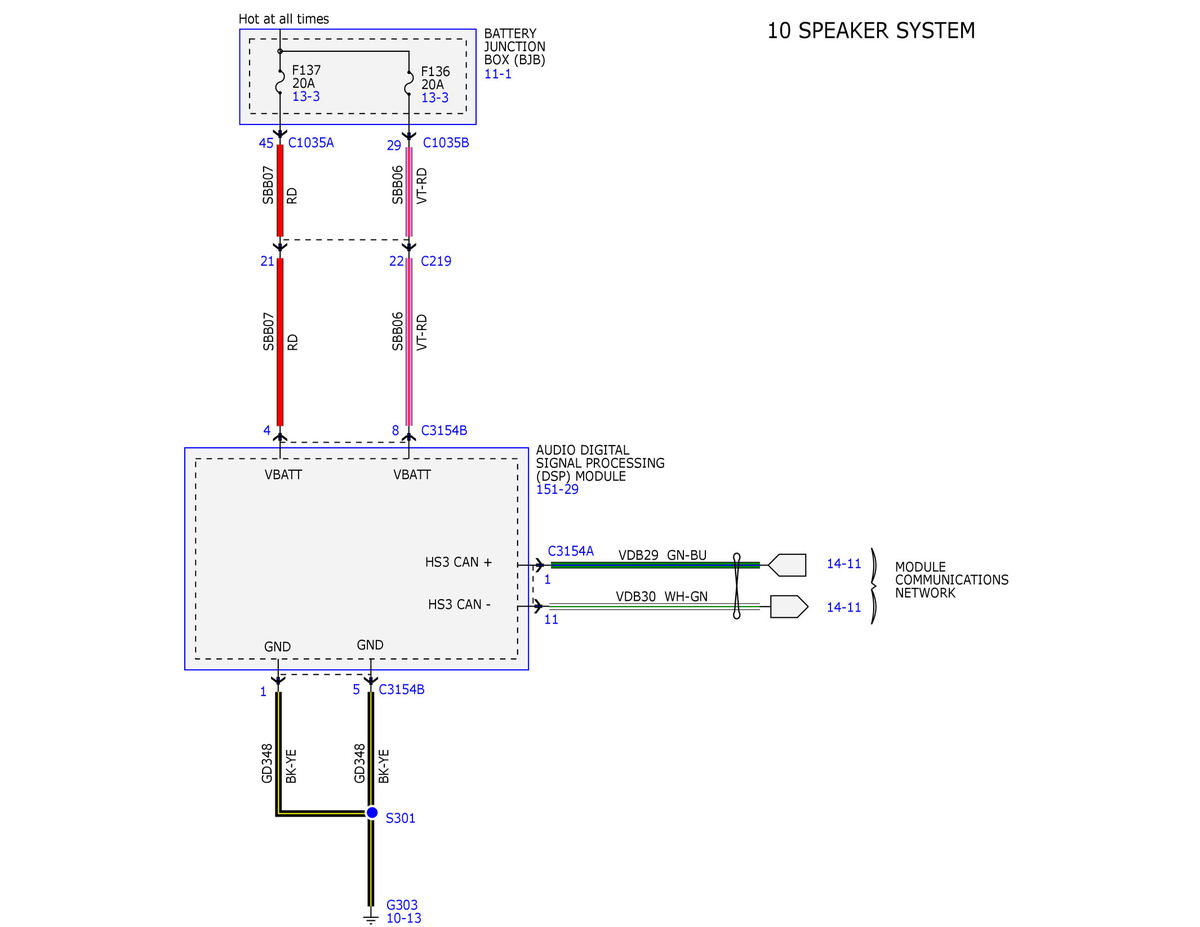

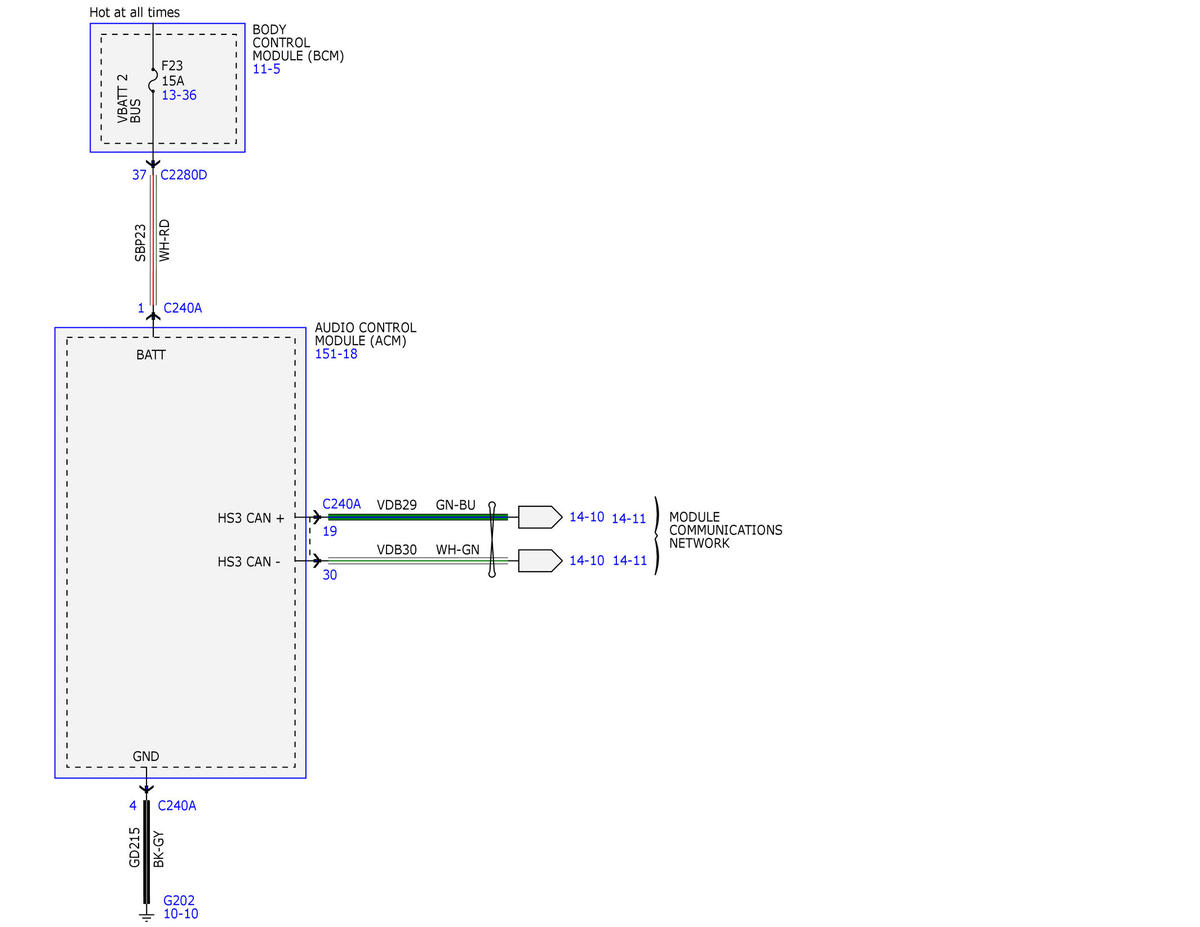

Fig 2: Audio System/Navigation Wiring Diagram (2 Of 14)
Courtesy of FORD MOTOR COMPANY

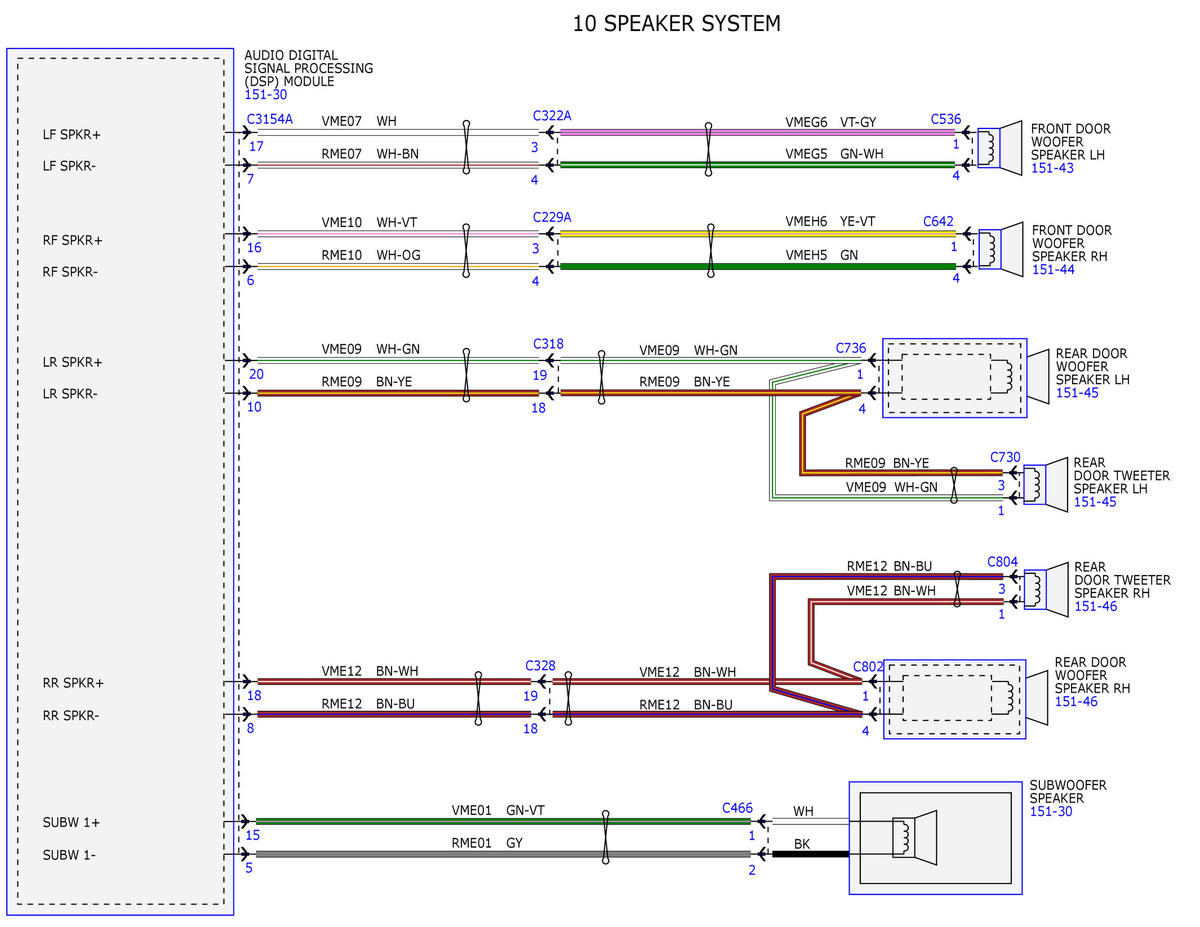

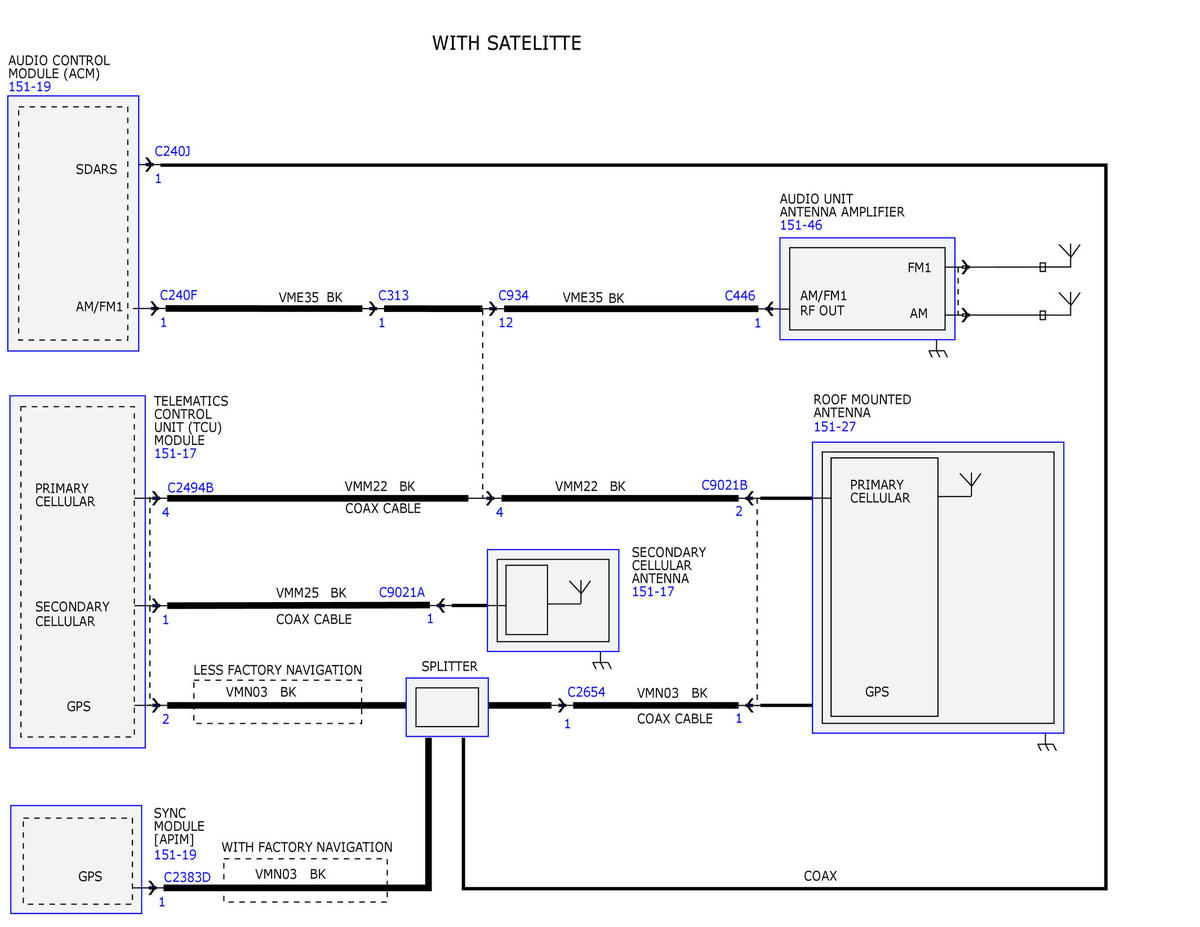

Fig 3: Audio System/Navigation Wiring Diagram (3 Of 14)
Courtesy of FORD MOTOR COMPANY

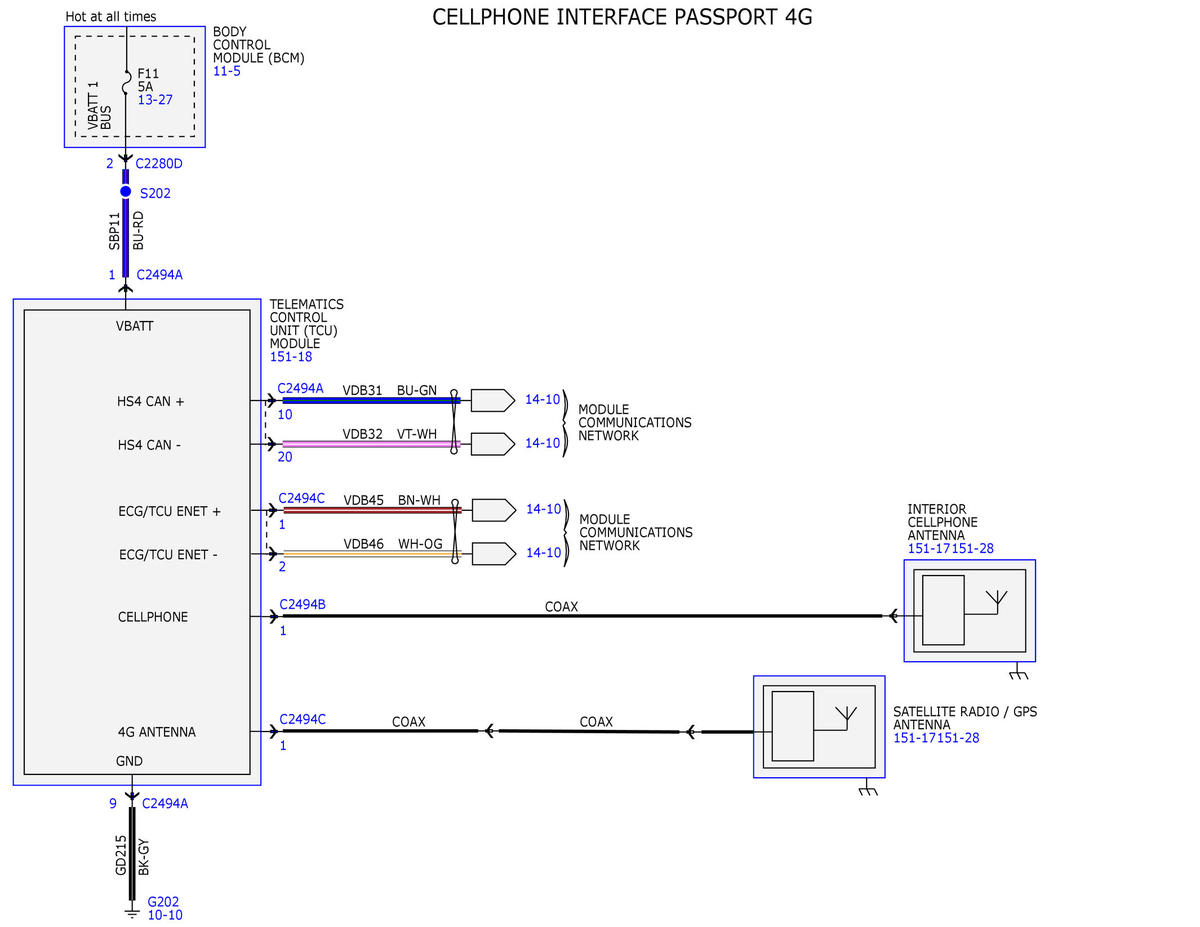

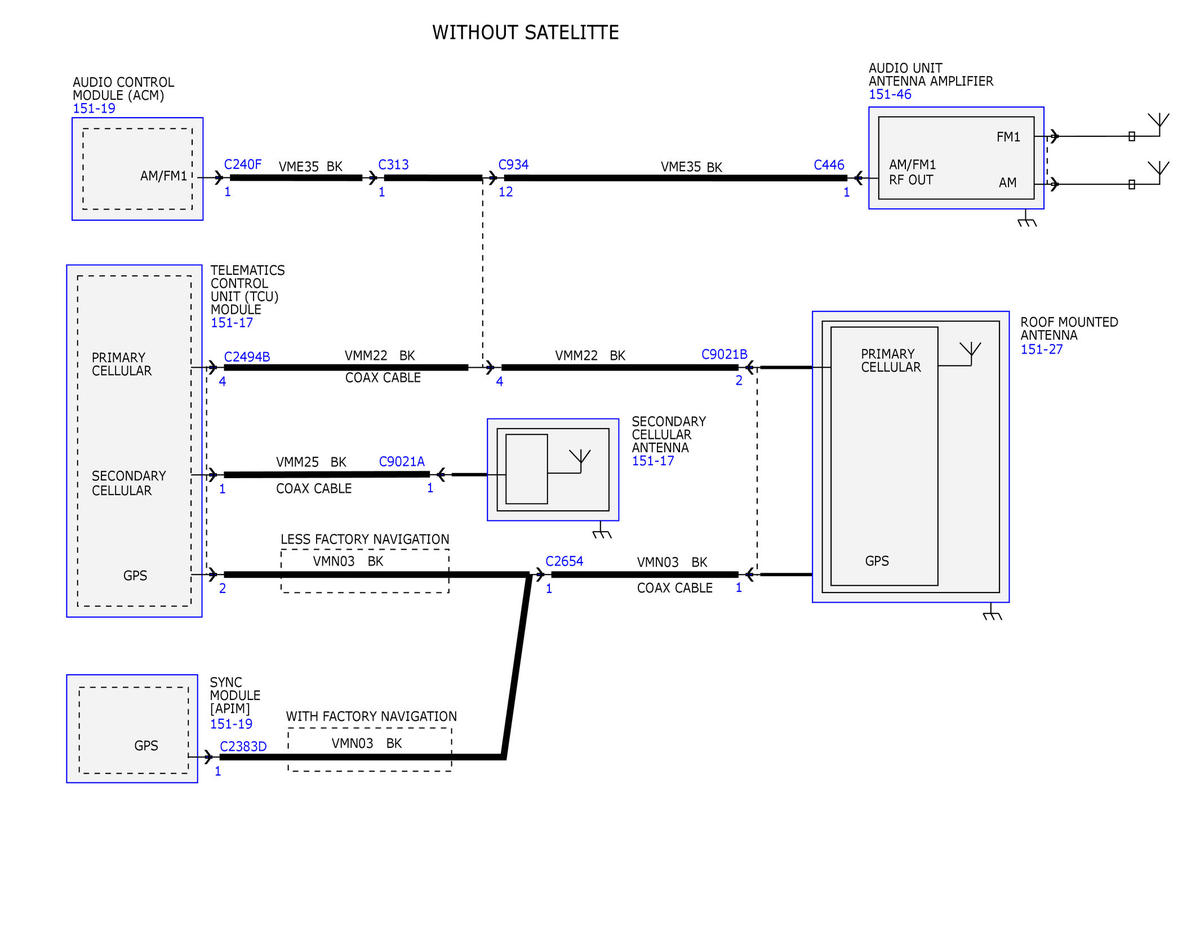

Fig 4: Audio System/Navigation Wiring Diagram (4 Of 14)
Courtesy of FORD MOTOR COMPANY

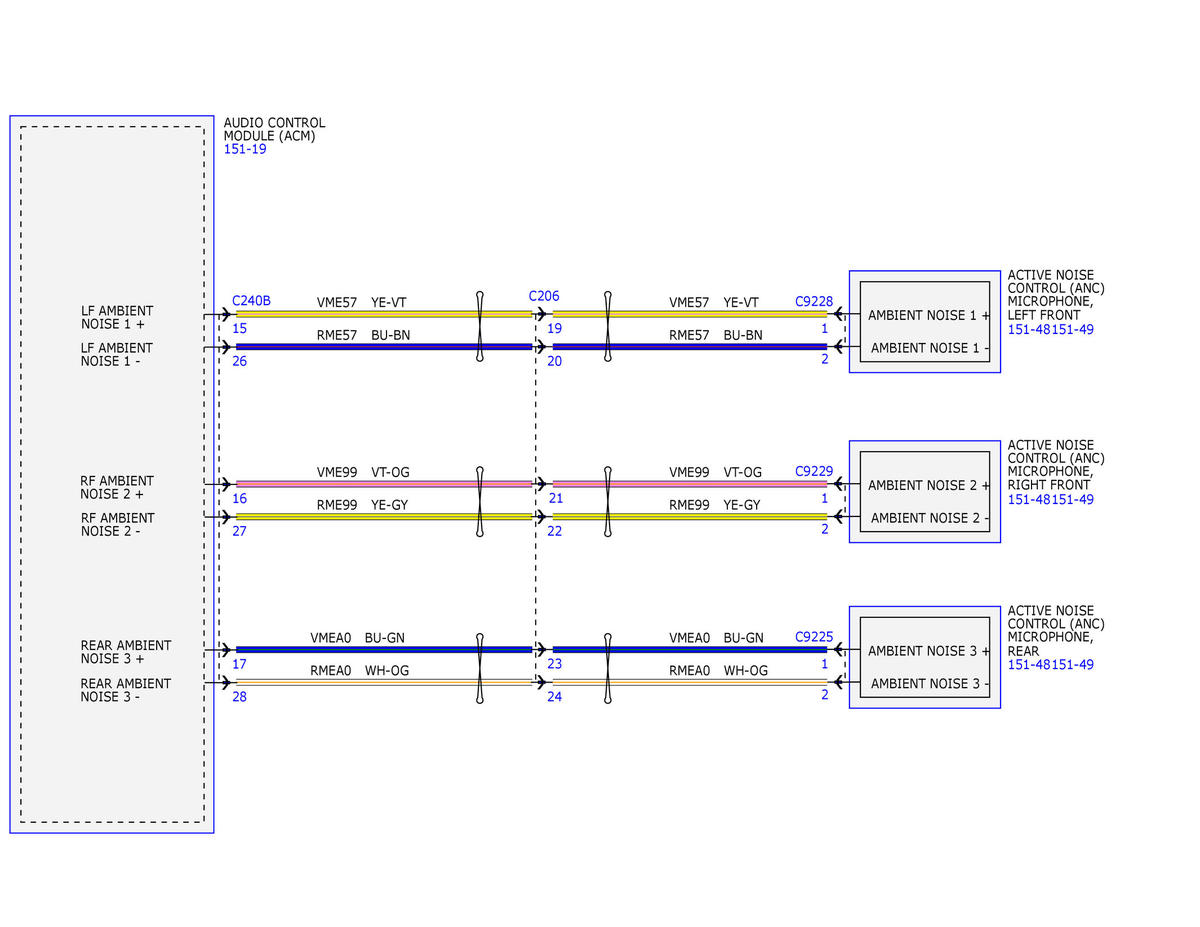

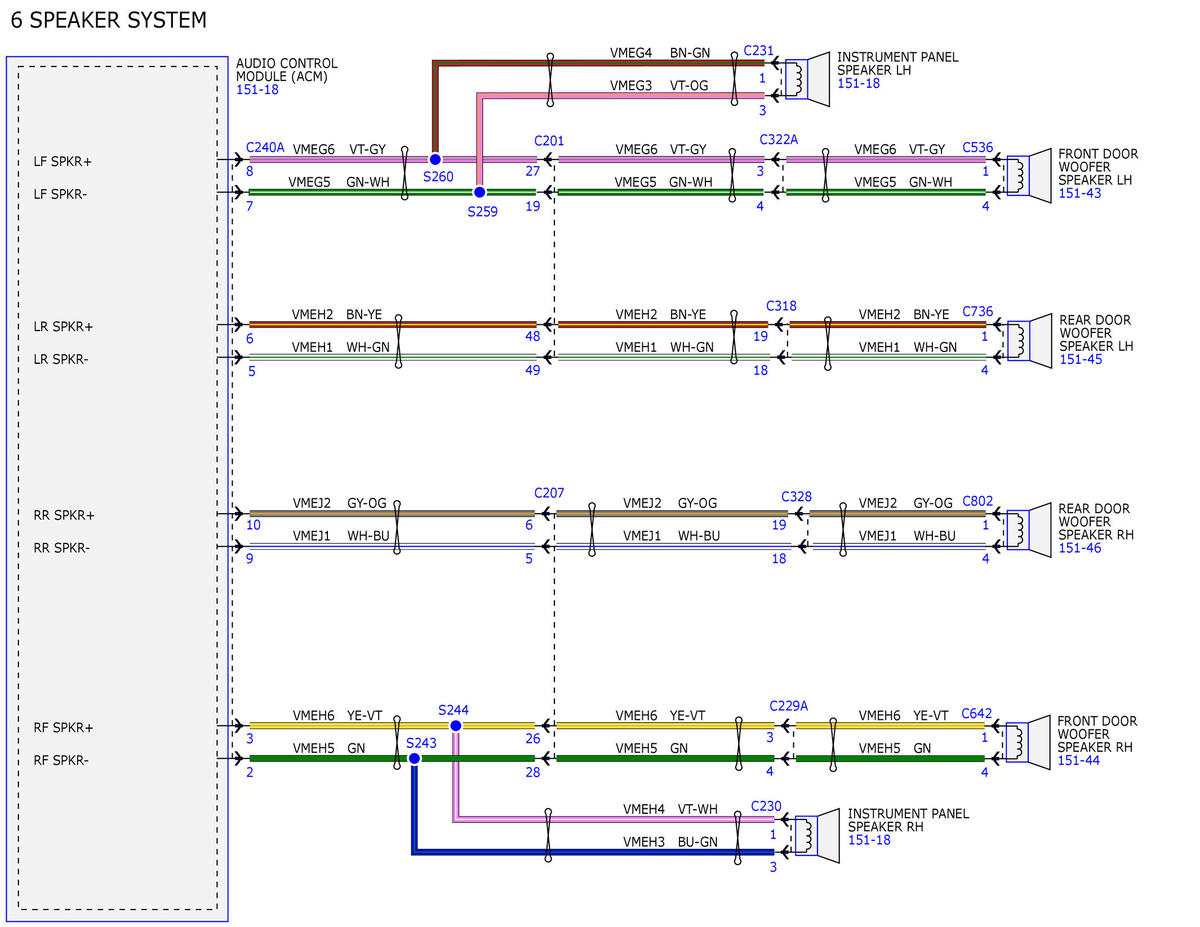

Fig 5: Audio System/Navigation Wiring Diagram (5 Of 14)
Courtesy of FORD MOTOR COMPANY

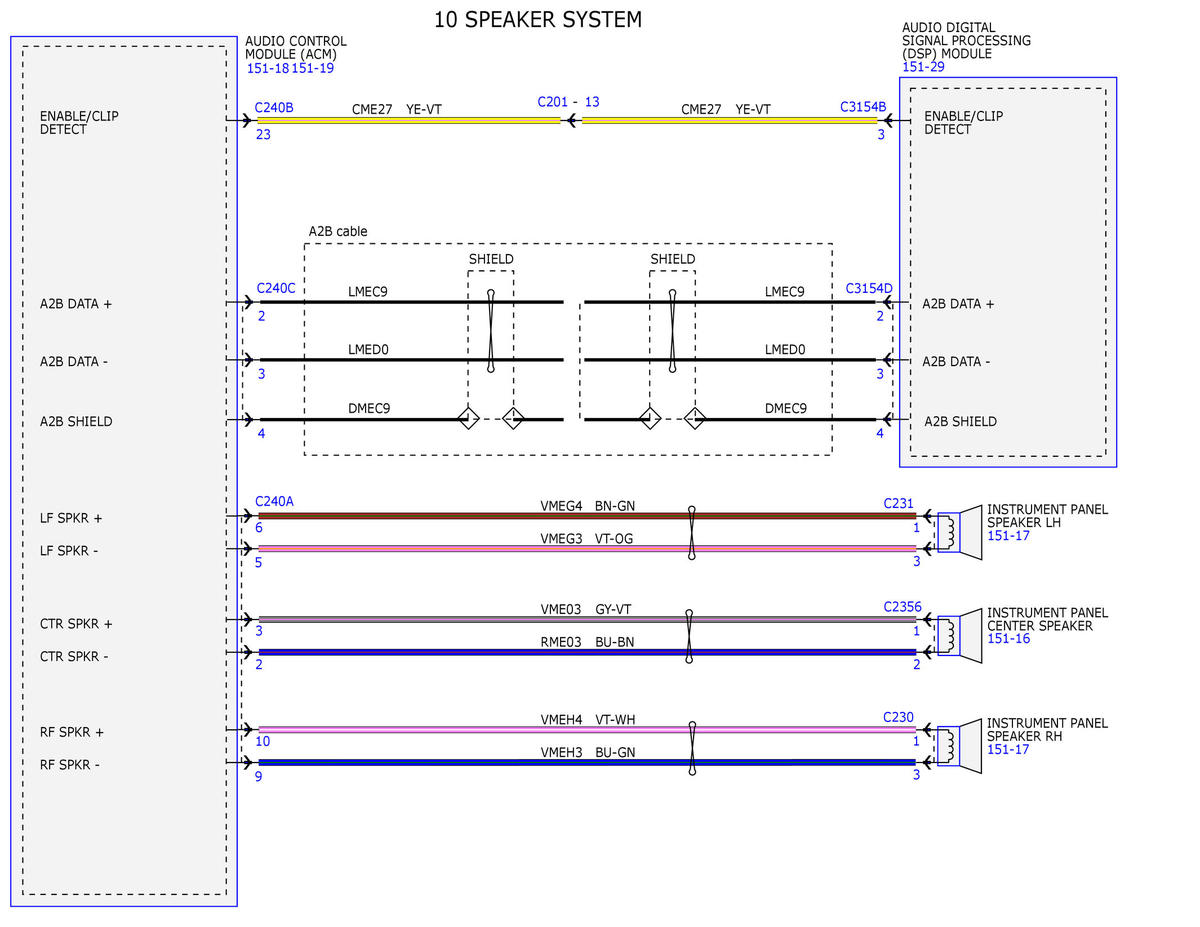

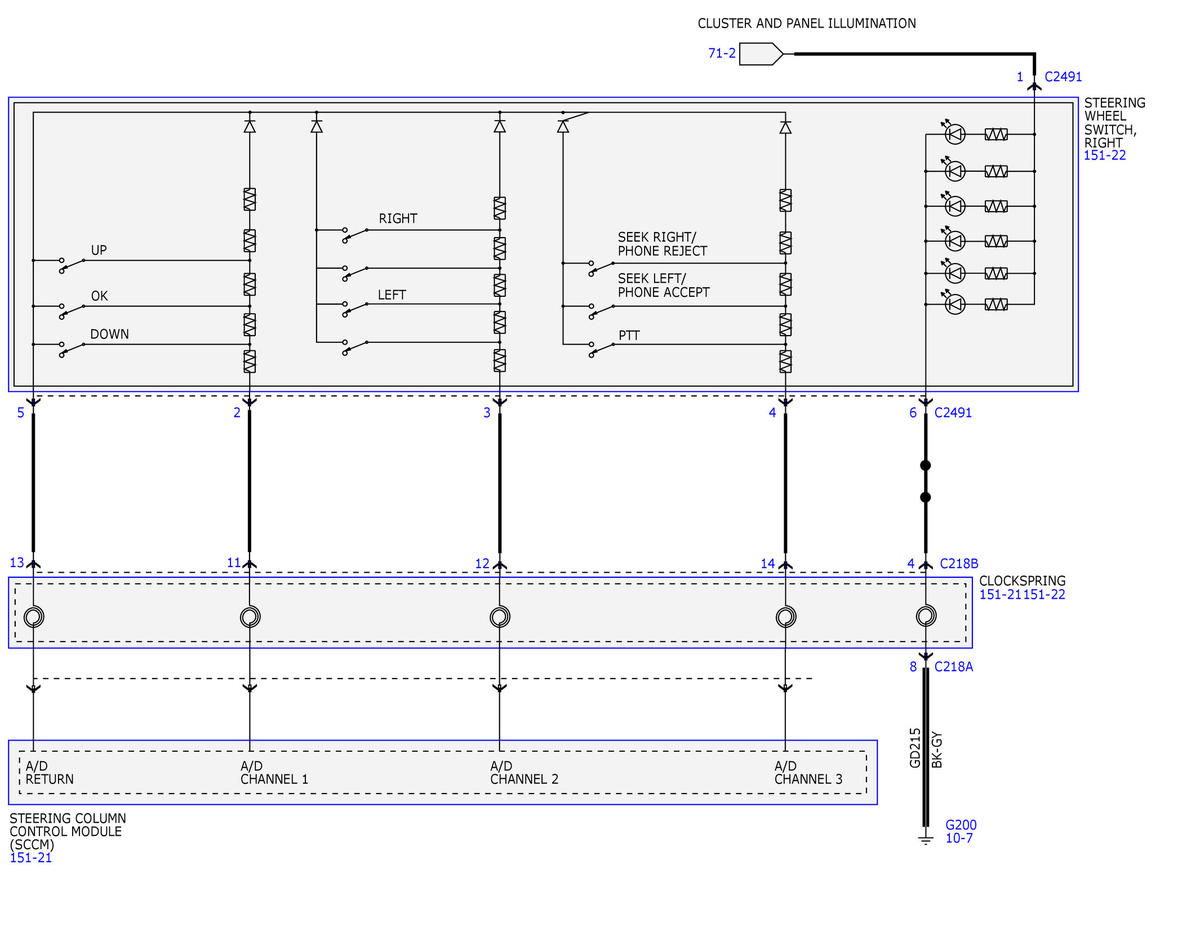

Fig 6: Audio System/Navigation Wiring Diagram (6 Of 14)
Courtesy of FORD MOTOR COMPANY

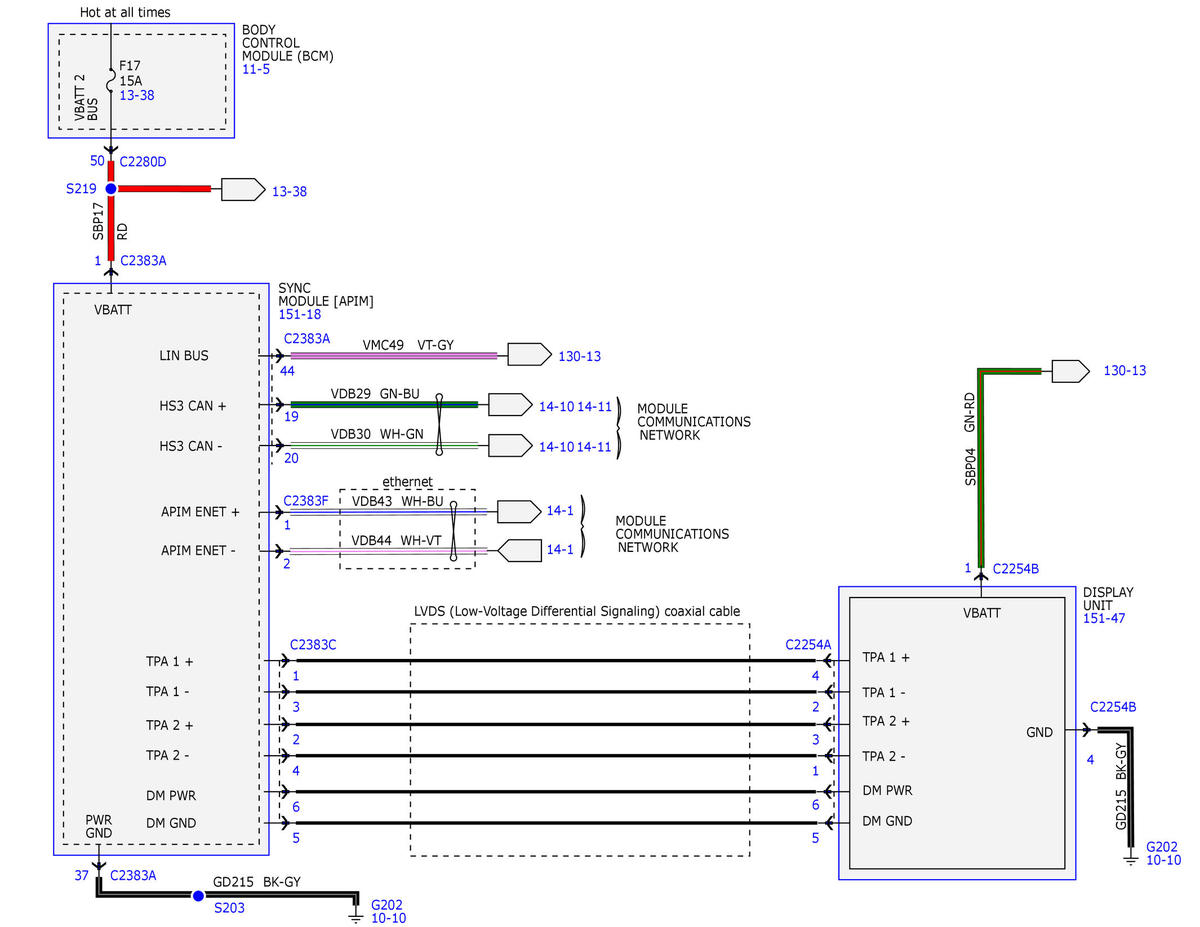

Fig 7: Audio System/Navigation Wiring Diagram (7 Of 14)
Courtesy of FORD MOTOR COMPANY

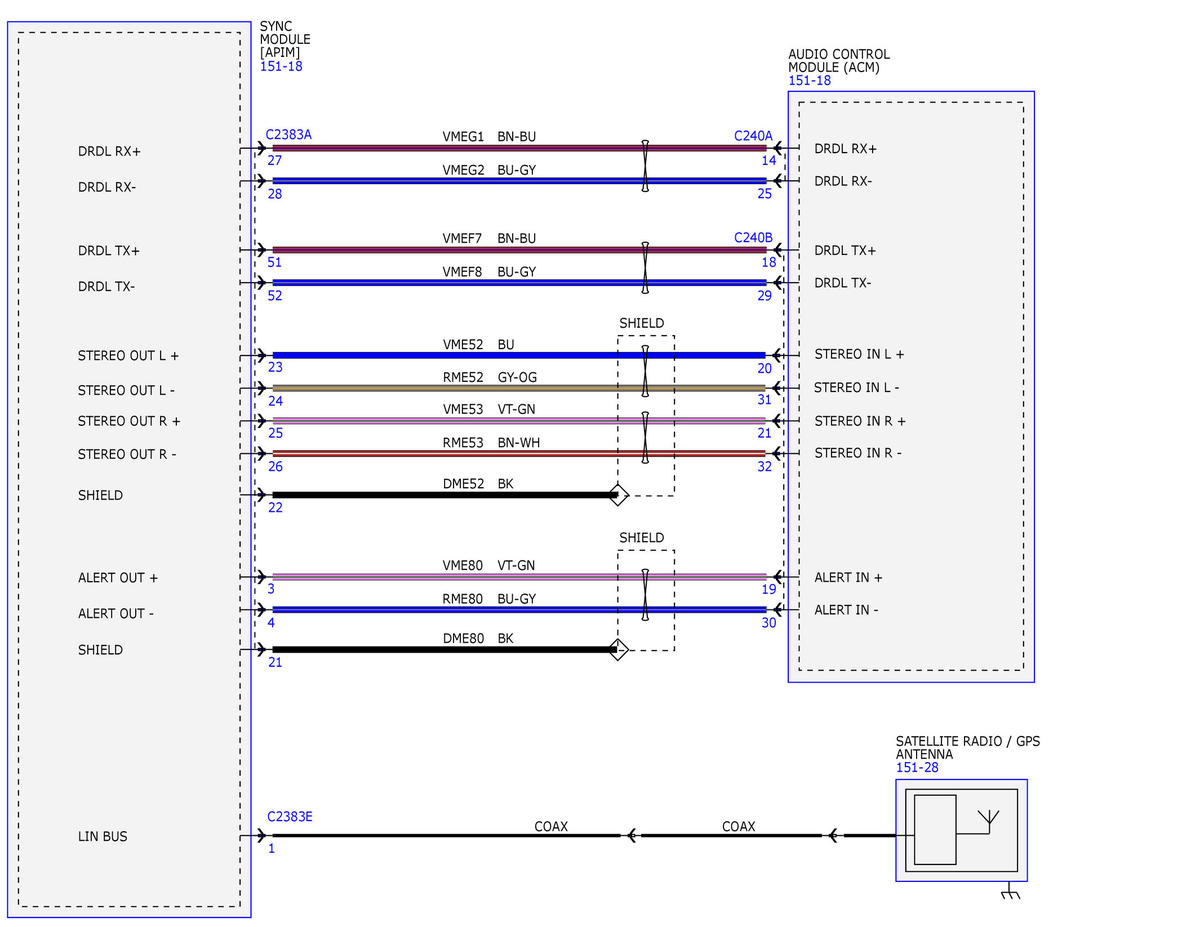

Fig 8: Audio System/Navigation Wiring Diagram (8 Of 14)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation Wiring Diagram (9 Of 14)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation Wiring Diagram (10 Of 14)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation Wiring Diagram (11 Of 14)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation Wiring Diagram (12 Of 14)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation Wiring Diagram (13 Of 14)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation Wiring Diagram (14 Of 14)
Courtesy of FORD MOTOR COMPANY
