Fuse And Relay Information

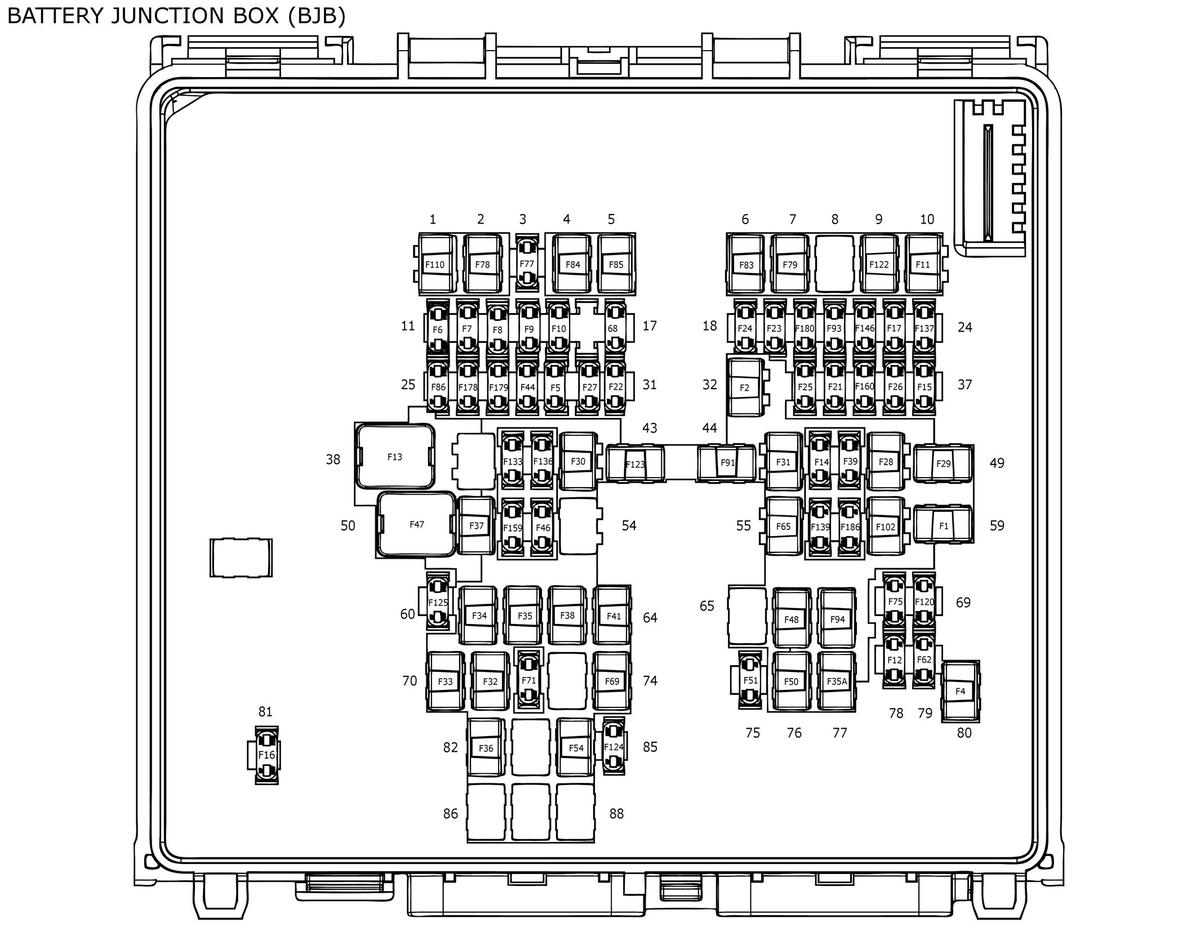

Fig 1: Battery Junction Box (BJB) Components Location
Courtesy of FORD MOTOR COMPANY

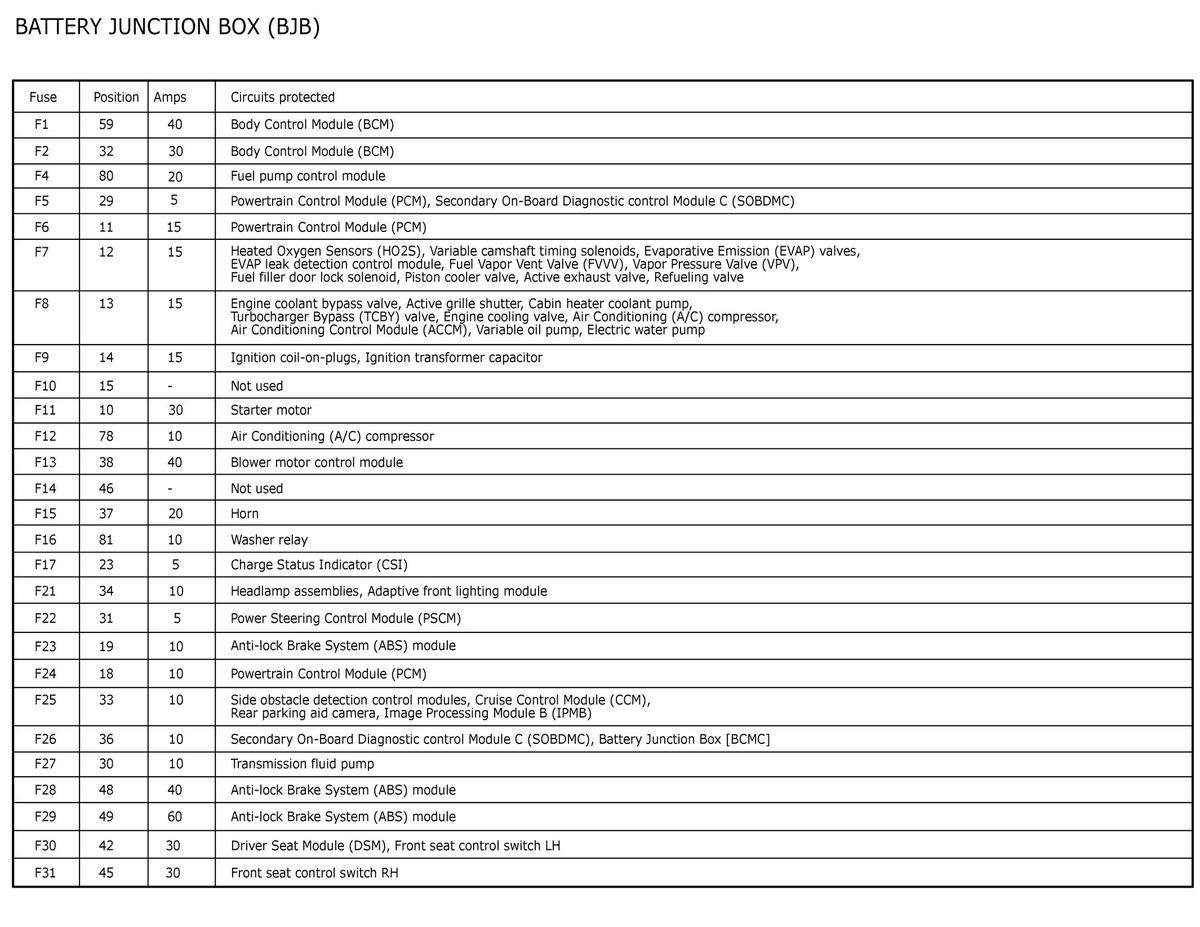

Fig 2: Battery Junction Box (BJB) Components Location Legend (Fuse F1-F31)
Courtesy of FORD MOTOR COMPANY

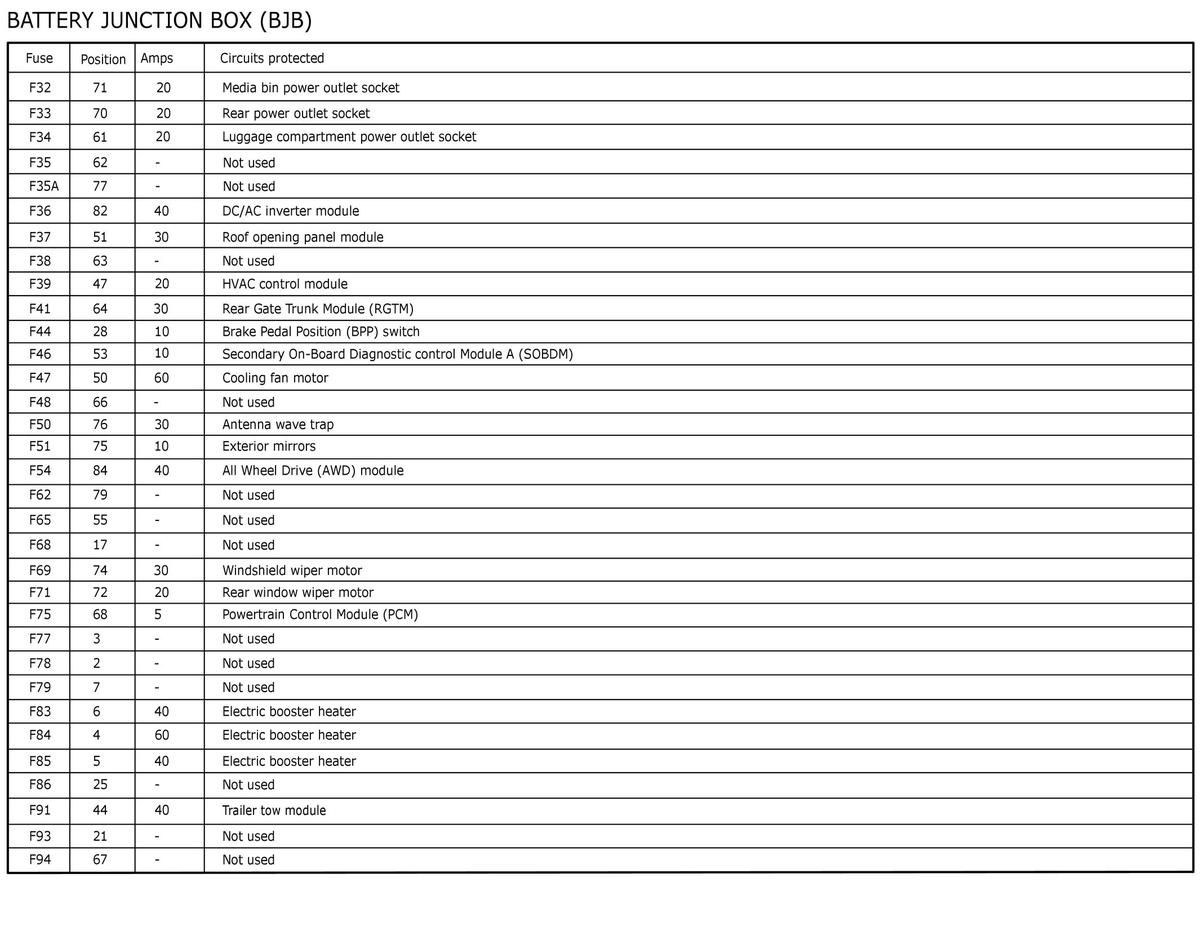

Fig 3: Battery Junction Box (BJB) Components Location Legend (Fuse F32-F94)
Courtesy of FORD MOTOR COMPANY

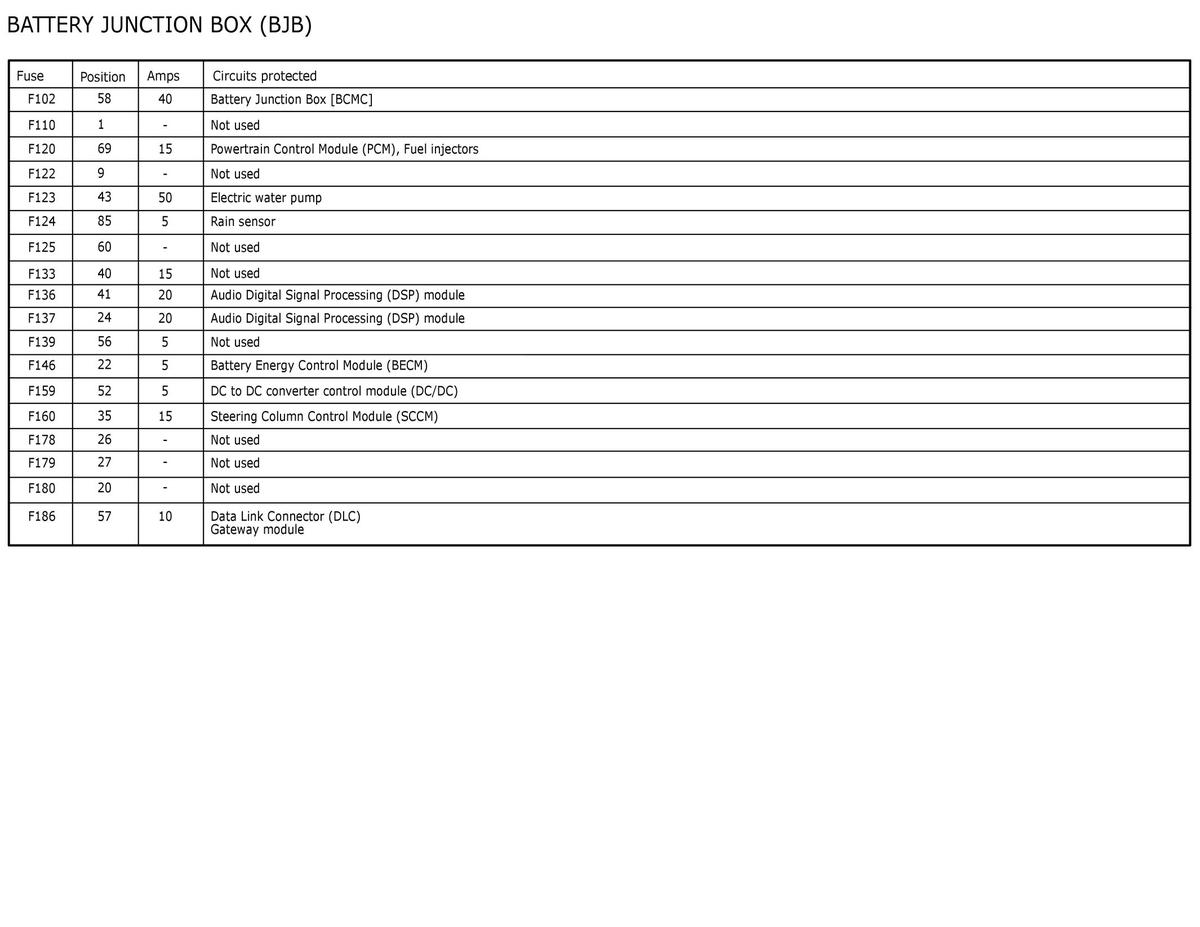

Fig 4: Battery Junction Box (BJB) Components Location Legend (Fuse F102-F186)
Courtesy of FORD MOTOR COMPANY

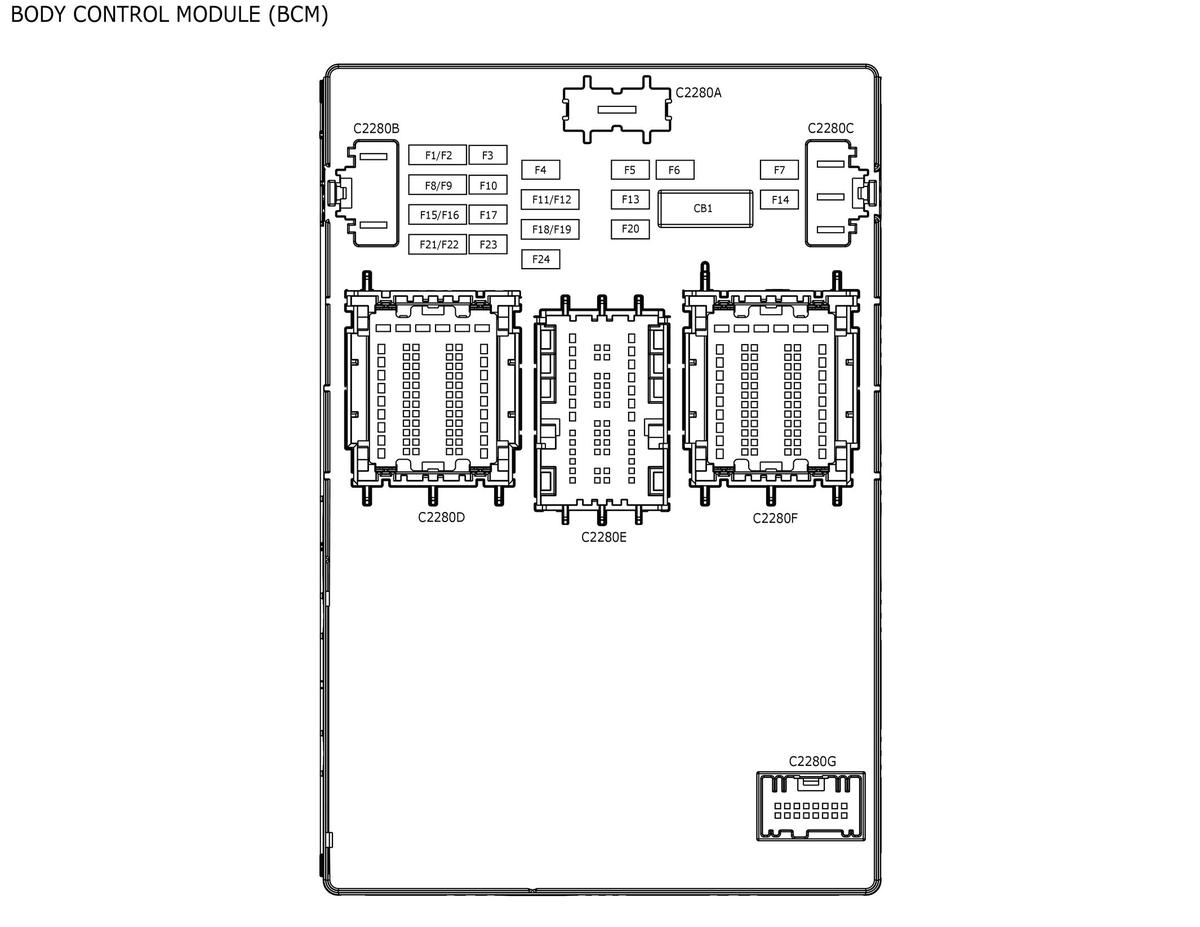

Fig 5: Body Control Module (BCM) Components Location
Courtesy of FORD MOTOR COMPANY

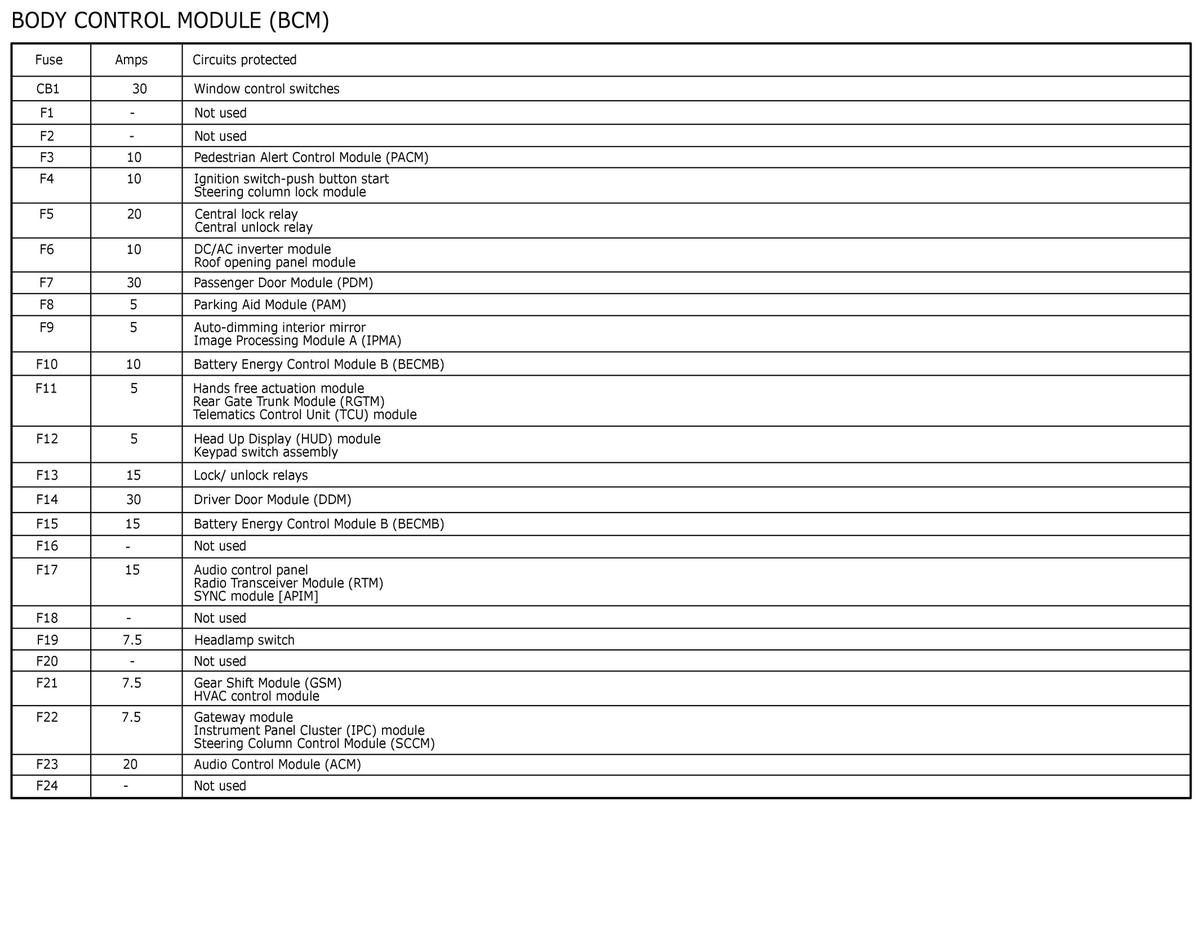

Fig 6: Body Control Module (BCM) Components Location Legend (Fuse CB1 - F24)
Courtesy of FORD MOTOR COMPANY

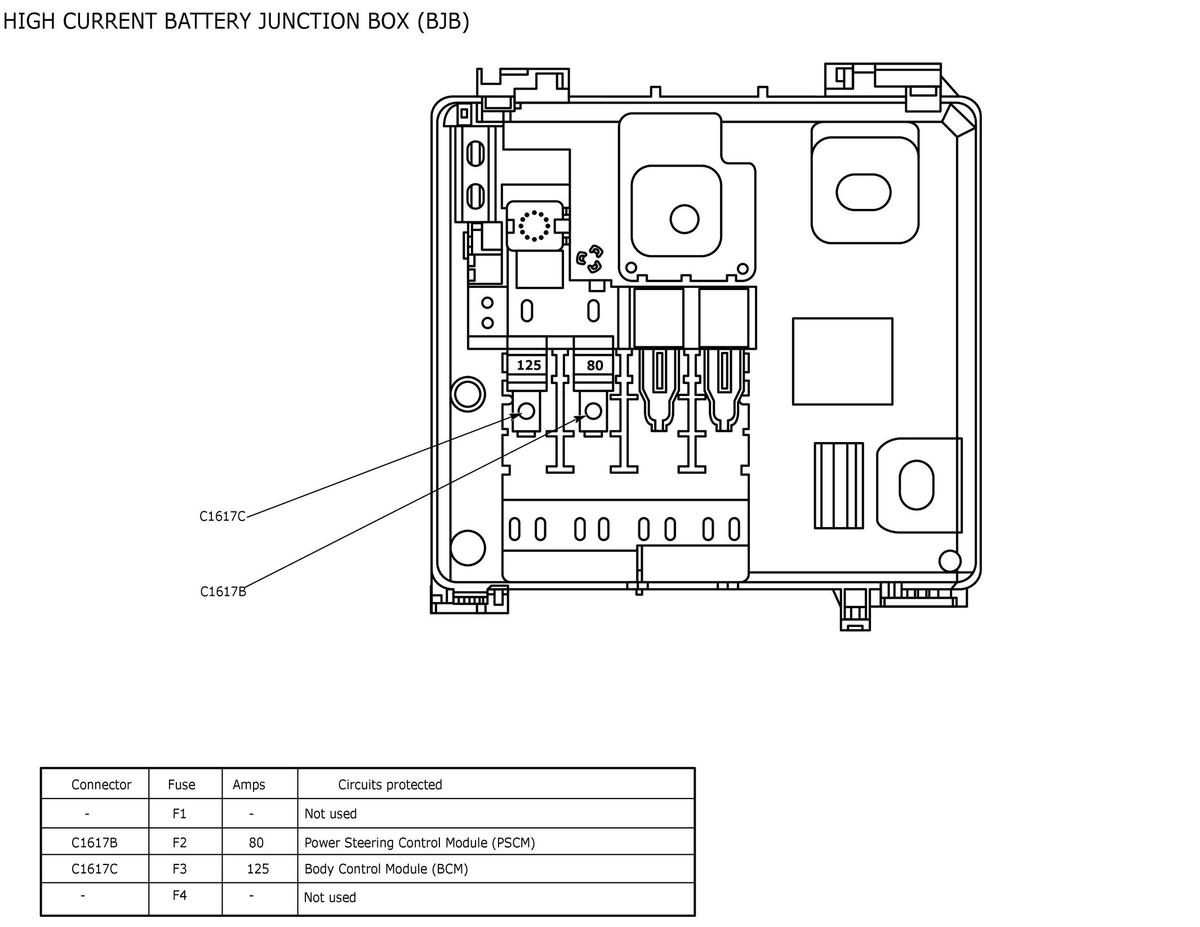

Fig 7: High Current Battery Junction Box (BJB) Components Location & Legend
Courtesy of FORD MOTOR COMPANY

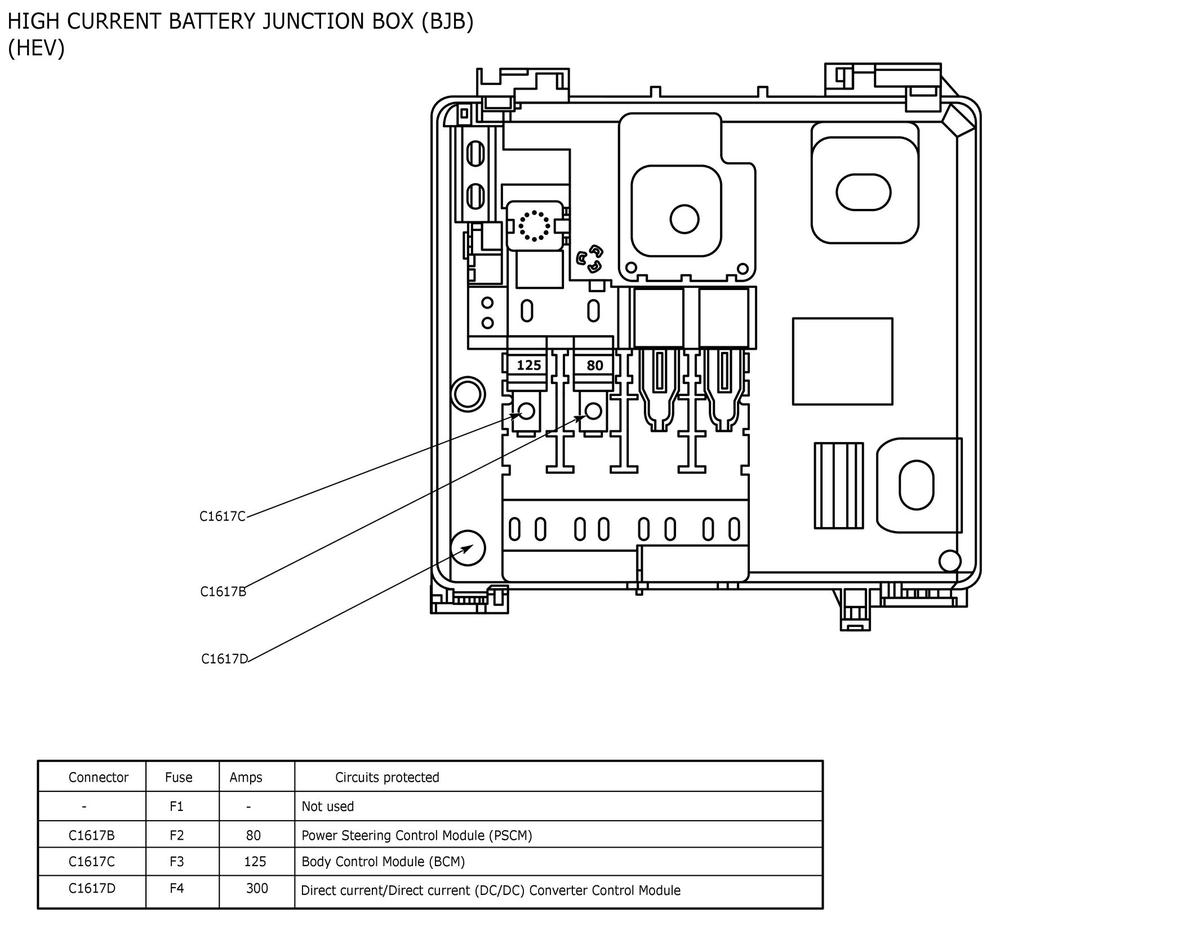

Fig 8: High Current Battery Junction Box (BJB) (HEV) Components Locations & Legend
Courtesy of FORD MOTOR COMPANY
