Front Seat Backrest: Installation
WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-
WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.

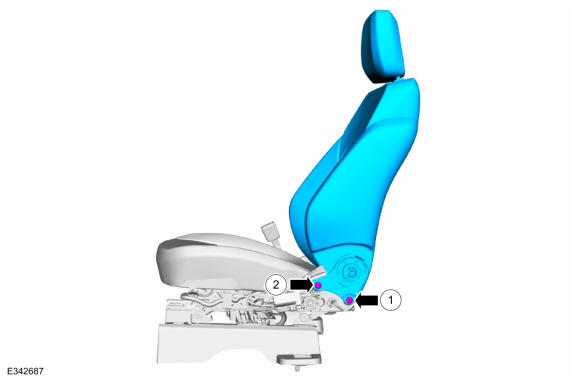

On both sides, install the front seat backrest bolts in the following sequence.
- Install the bolt.
Torque : 33 lb.ft (45 Nm)
- Install the bolt.
Torque : 33 lb.ft (45 Nm)
- Install the bolt.
