Front Head Restraint Guide Sleeve: Installation

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

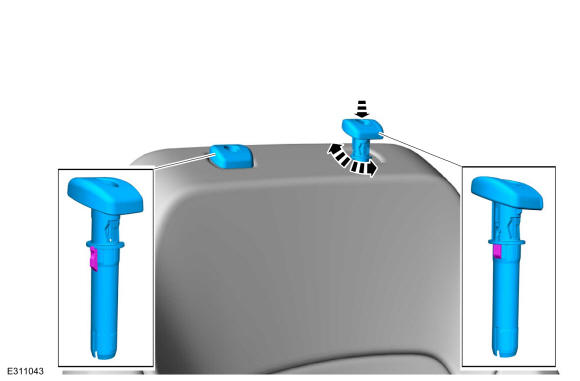

  1. NOTE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.
    NOTE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeve at the correct position may result in component failure.

    Allow the head restraint guide sleeve to slide freely through the backrest foam and backrest trim cover. Using hand pressure, twist the head restraint guide sleeve while pushing it into the backrest frame until the tab is locked into placed.

    GFD747362Courtesy of FORD MOTOR COMPANY

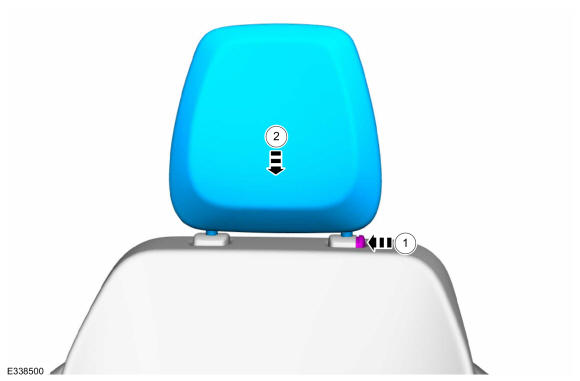

  2. Install the front head restraint.

    1. Depress the locking tab.
    2. Install the front head restraint.

GFD747363Courtesy of FORD MOTOR COMPANY
