Front Subframe: Installation

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

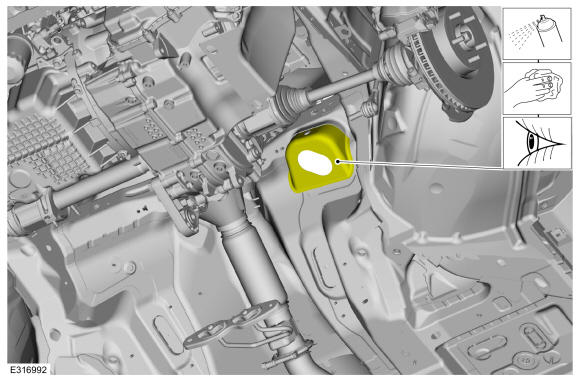

  1. NOTE: The steering column floor seal mounting surface must be cleaned using solvent before reinstallation.

    Clean and inspect the steering column floor seal mounting surface before reinstallation.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD748360Courtesy of FORD MOTOR COMPANY

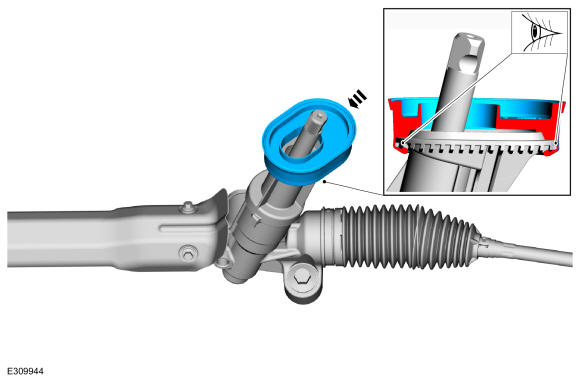

  2. NOTE: Make sure that the floor seal lip is fully wrapped around the carrier on the steering gear.

    Install the new steering column floor seal.

    GFD748361Courtesy of FORD MOTOR COMPANY

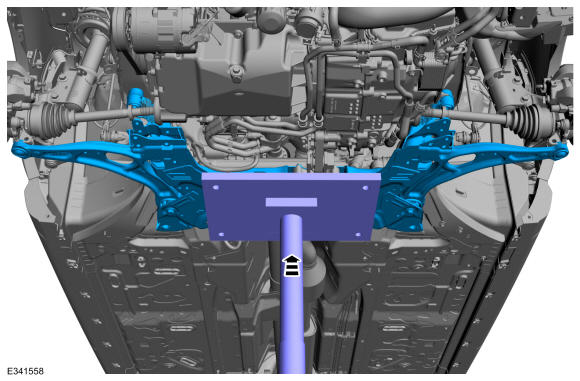

  3. Partially raise the subframe and position it to the vehicle.Use the General Equipment: Transmission Jack
    GFD748362Courtesy of FORD MOTOR COMPANY

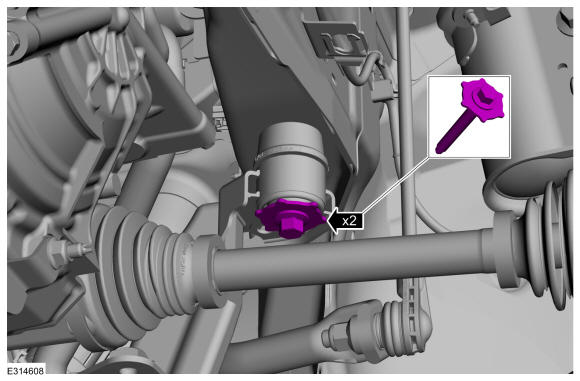

  4. On both sidesInstall the new forward subframe bolts finger tight.
    GFD748363Courtesy of FORD MOTOR COMPANY

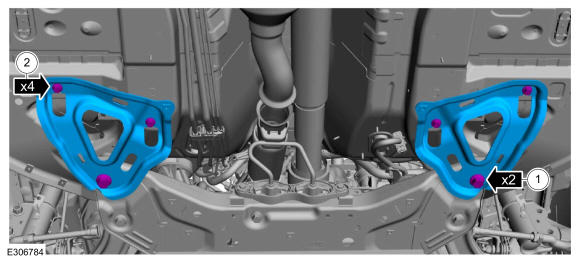

    1. Install the subframe brackets and the new rearward subframe bolts finger tight.
    2. Install the new subframe bracket bolts finger tight.
    GFD748364Courtesy of FORD MOTOR COMPANY

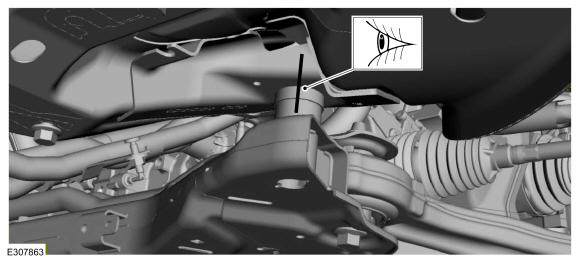

  5. NOTE: Rear mounting location shown.

    On both sidesAlign index-mark made during removal.

    GFD748365Courtesy of FORD MOTOR COMPANY

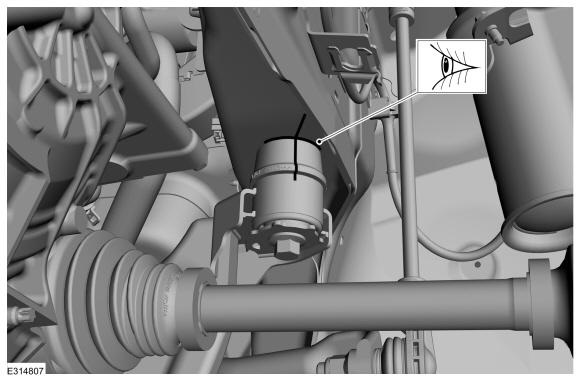

  6. NOTE: Front mounting location shown.

    On both sidesAlign index-mark made during removal.

    GFD748366Courtesy of FORD MOTOR COMPANY
  7. On both sidesTighten the forward subframe bolts.

    Torque: 85 lb.ft (115 Nm)

    GFD748363Courtesy of FORD MOTOR COMPANY

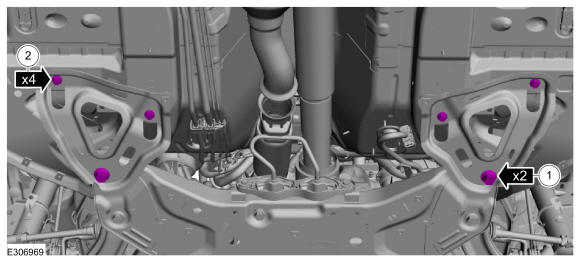

    1. Tighten the bolts.

      Torque:Stage 1: 159 lb.ft (215 Nm)Stage 2: 120deg.

    2. Tighten the bolts.

      Torque: 46 lb.ft (63 Nm)

    GFD748367Courtesy of FORD MOTOR COMPANY

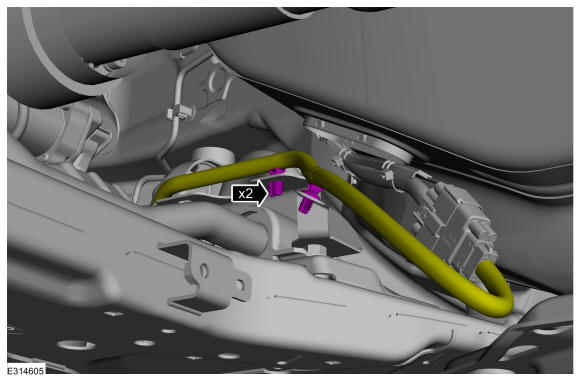

  8. Clip the wire harness retainers.
    GFD748352Courtesy of FORD MOTOR COMPANY

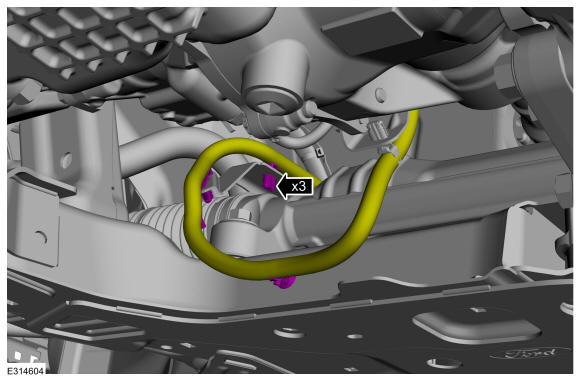

  9. Clip the wire harness retainers.
    GFD748351Courtesy of FORD MOTOR COMPANY

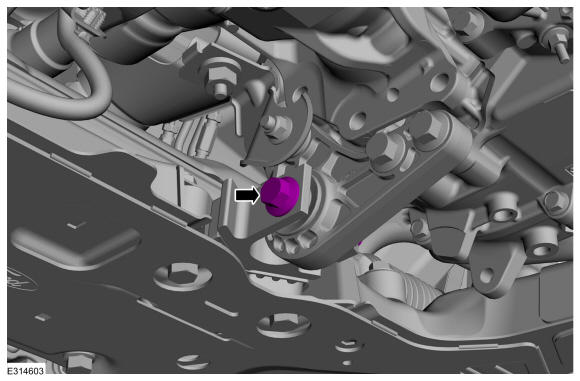

  10. NOTE: 2.0L GTDI shown, others similar.

    Install the new roll restrictor bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD748368Courtesy of FORD MOTOR COMPANY

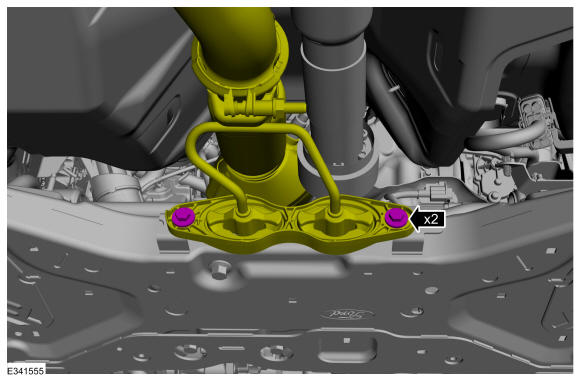

  11. Install the exhaust support bracket bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD748349Courtesy of FORD MOTOR COMPANY

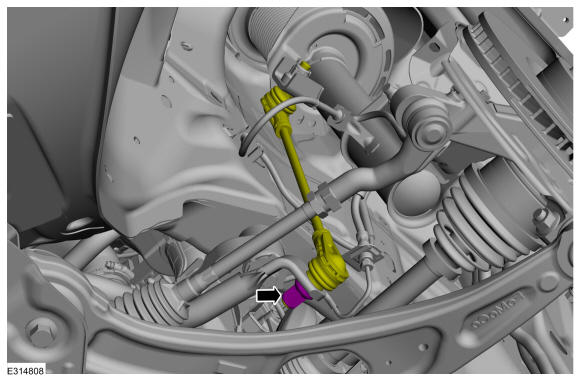

  12. On both sides.Connect the lower ball joint to the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque: 81 lb.ft (110 Nm)

    GFD748369Courtesy of FORD MOTOR COMPANY
  13. NOTE: Make sure that the ball joint ball does not rotate.

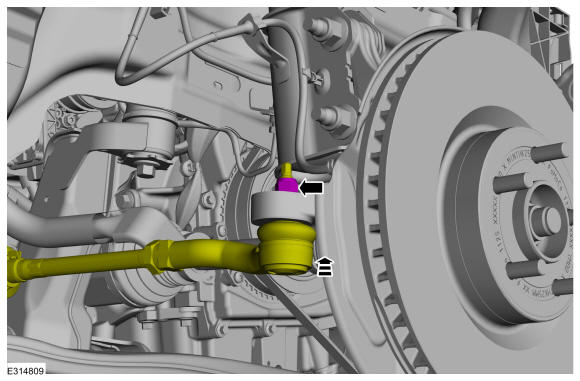

    On both sides.Connect the tie rod end to the wheel knuckle and install the new tie rod end nut.

    Torque: 35 lb.ft (48 Nm)

    GFD748370Courtesy of FORD MOTOR COMPANY
  14. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
    NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

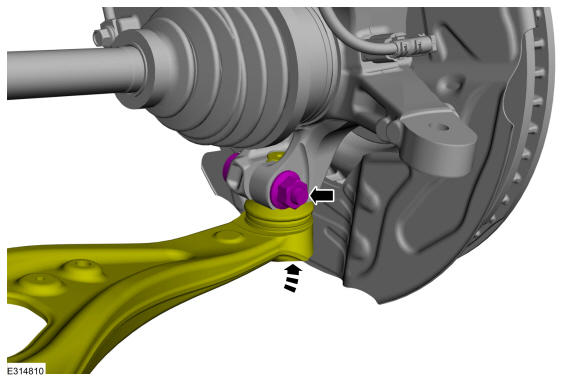

    On both sides.Position the stabilizer bar links and install the new stabilizer bar link lower nut.

    Torque: 85 lb.ft (115 Nm)

    GFD748371Courtesy of FORD MOTOR COMPANY

    2.0L EcoBoost (177kW/240PS) - MI4

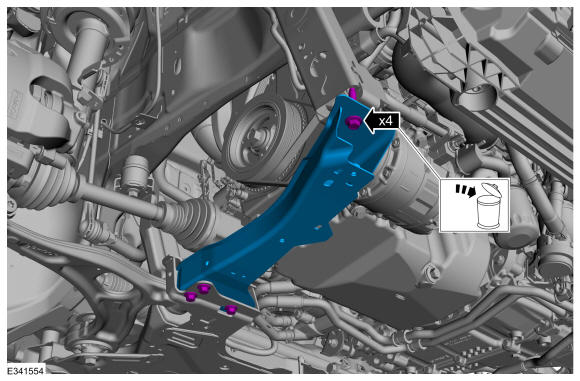

  15. Install the front outer side member with new bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD748344Courtesy of FORD MOTOR COMPANY

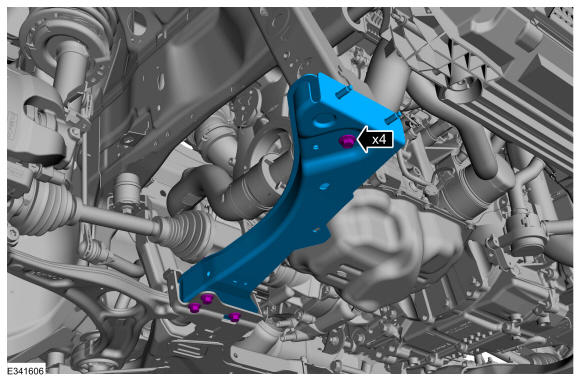

    1.5L EcoBoost (132kW/180PS) - I3 (Y1)

  16. On both sides.Install the front outer side member with new bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD748372Courtesy of FORD MOTOR COMPANY

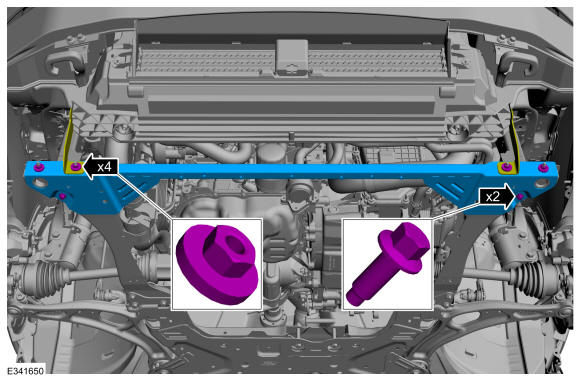

  17. Install the front cross member and the fasteners.

    Torque:nut: 22 lb.ft (30 Nm)bolt: 22 lb.ft (30 Nm)

    GFD748342Courtesy of FORD MOTOR COMPANY

    All vehicles

  18. Install the front bumper cover. Refer to: Front Bumper Cover .

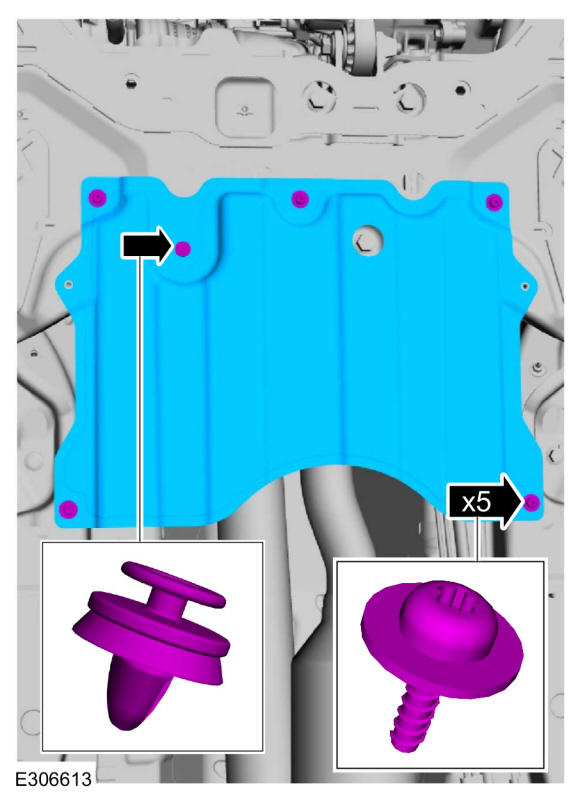

  19. Install the underbody shield and the retainers.

    Torque: 22 lb.in (2.5 Nm)

    GFD748341Courtesy of FORD MOTOR COMPANY

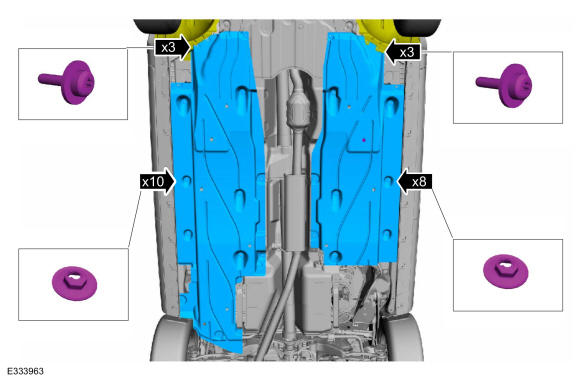

  20. Install the underbody shields and the retainers.

    Torque: 22 lb.in (2.5 Nm)

    GFD748340Courtesy of FORD MOTOR COMPANY

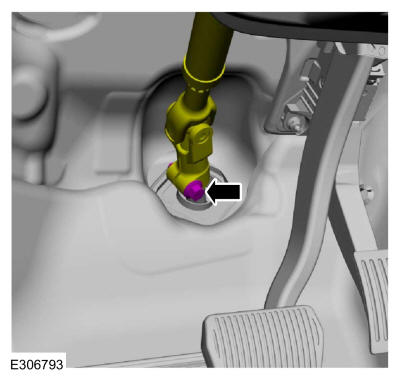

  21. Position the steering shaft coupler and install the new steering shaft coupler bolt.

    Torque: 46 lb.ft (63 Nm)

    GFD748373Courtesy of FORD MOTOR COMPANY

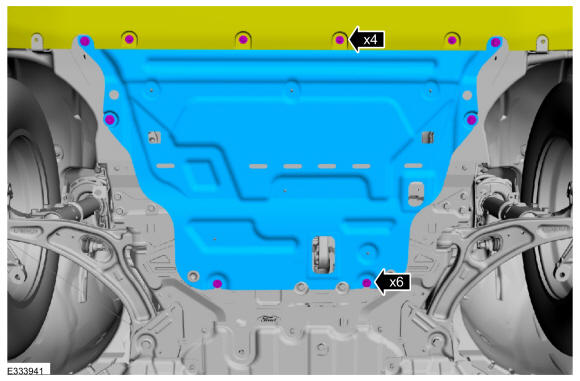

  22. If equippedInstall the fasteners and the underbody shields.

    Torque: 13 lb.in (1.5 Nm)

    GFD748339Courtesy of FORD MOTOR COMPANY

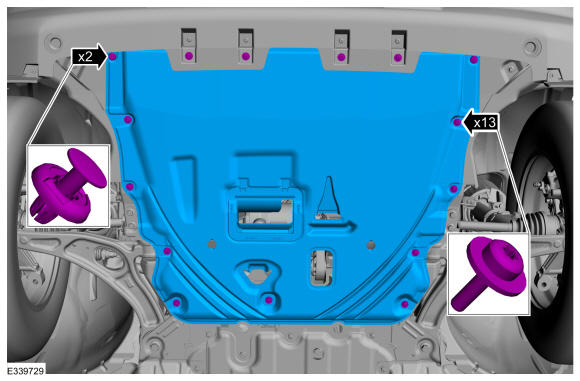

  23. If equippedRemove the fasteners and the underbody shields.

    Torque: 13 lb.in (1.5 Nm)

    GFD748338Courtesy of FORD MOTOR COMPANY
  24. Install the wheels and tires. Refer to: Wheel and Tire .

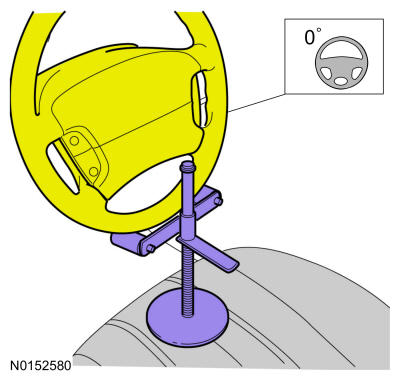

  25. Remove the holding device.
    GFD748374Courtesy of FORD MOTOR COMPANY
  26. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  27. Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
