Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.

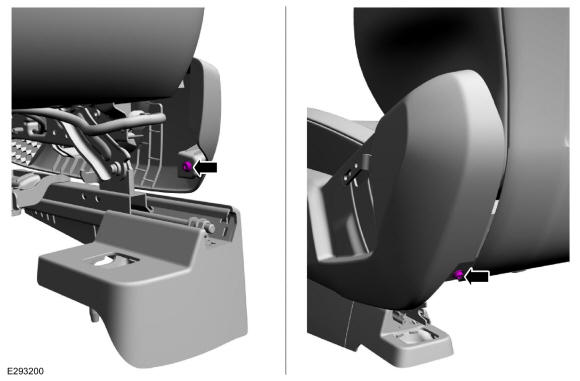

  1. Remove the front seat side shield screws.
    GFD675042Courtesy of FORD MOTOR COMPANY

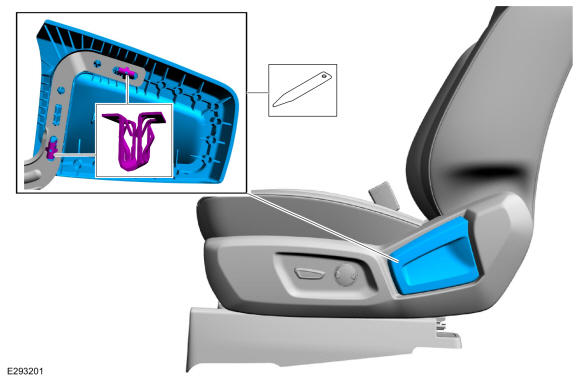

  2. Release the retainers and remove the front seat recline handle cover.
    GFD675043Courtesy of FORD MOTOR COMPANY

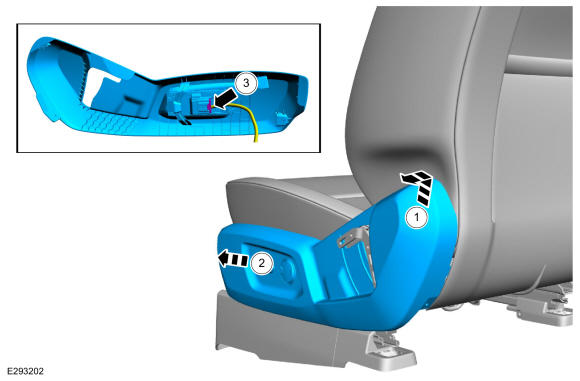

  3. Remove the front seat side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD675044Courtesy of FORD MOTOR COMPANY

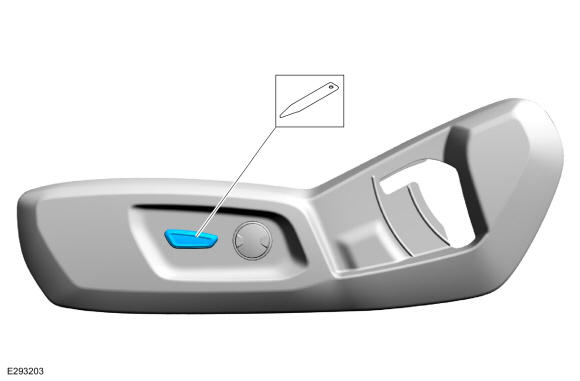

  4. Remove the front seat control switch knob. Use the General Equipment: Interior Trim Remover
    GFD675045Courtesy of FORD MOTOR COMPANY

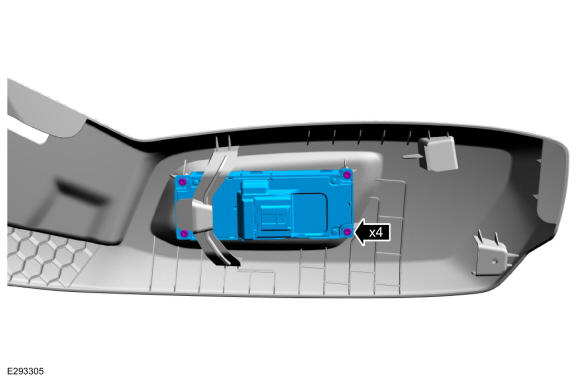

  5. Remove the screws and the front seat control switch.
GFD675046Courtesy of FORD MOTOR COMPANY
