Steering Column: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.

NOTE: Removal steps in this procedure may contain installation details.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
NOTE: This step is only necessary when installing a new component.

Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .
NOTE: This step is only necessary when installing a new component.

If equipped. Remove the PATS transceiver. Refer to: Passive Anti-Theft System (PATS) Transceiver .
NOTE: This step is only necessary when installing a new component.

If equipped. Remove the ignition switch. Refer to: Ignition Switch .
Remove the steering column shrouds. Refer to: Steering Column Shrouds .
NOTE: Make sure that the steering wheel does not rotate or damage to the clockspring may occur.

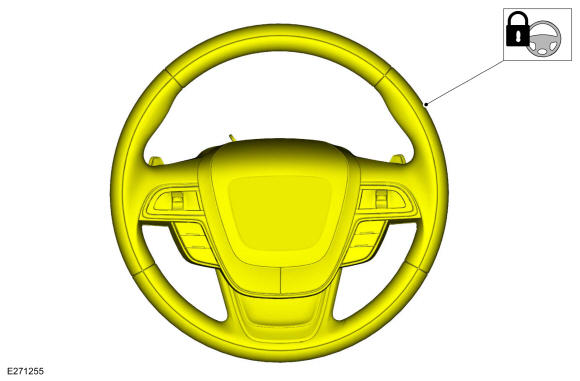

Secure the steering wheel.

Courtesy of FORD MOTOR COMPANY

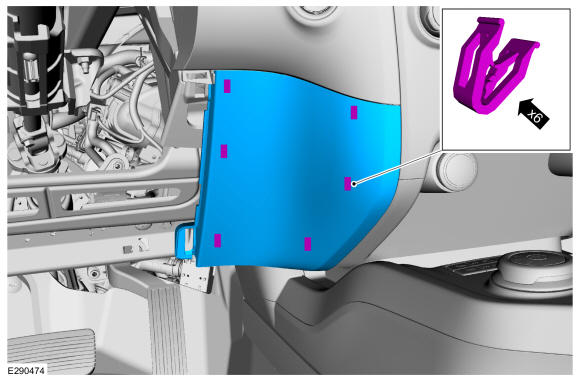

Remove the LH center stack trim panel.

Courtesy of FORD MOTOR COMPANY

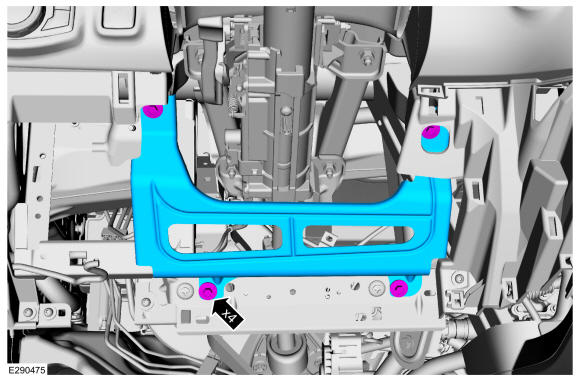

Remove the steering column opening reinforcement panel.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

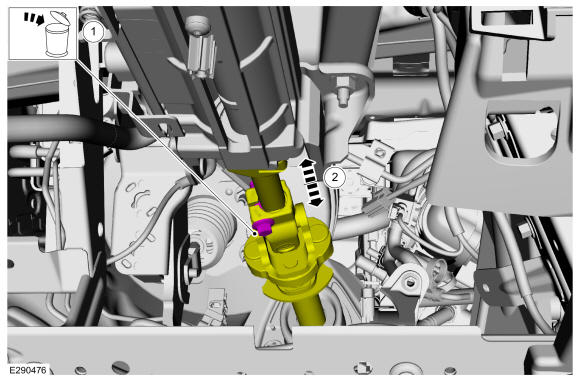

Disconnect the steering column shaft.
1. Remove and discard the steering column shaft coupler bolt.
  Torque: 21 lb.ft (28 Nm)
2. Separate the steering column from the upper steering column shaft coupler.
Courtesy of FORD MOTOR COMPANY

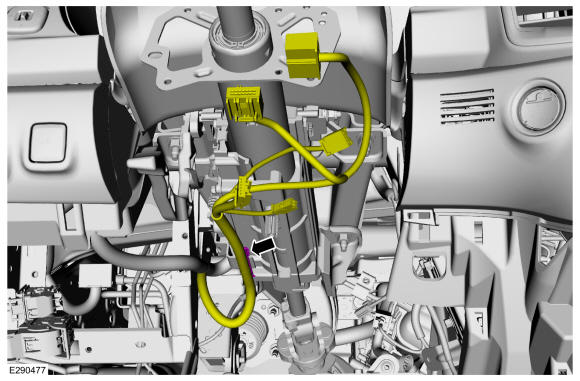

Detach the steering column wiring harness and position aside.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

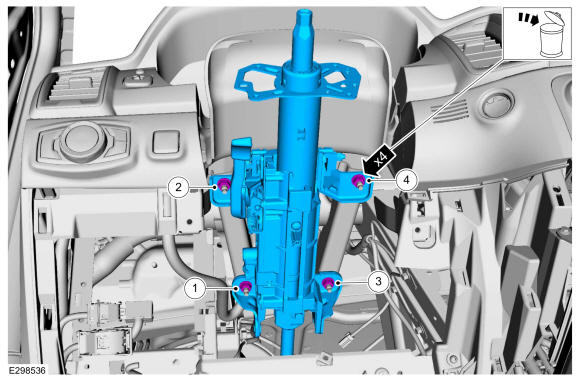

Remove and discard the retainers and remove the steering column.

Torque: Tighten following the sequence shown in illustration: 133 lb.in (15 Nm)

Fig 1: Steering Column Tightening Sequence
