Passenger Door Module (PDM): Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH (left-hand) side DDM (driver door module) shown below. RH (right-hand) side PDM (passenger door module) similar.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the PDM following the on-screen instructions.
Remove RH front door trim panel. Refer to: Front Door Trim Panel .

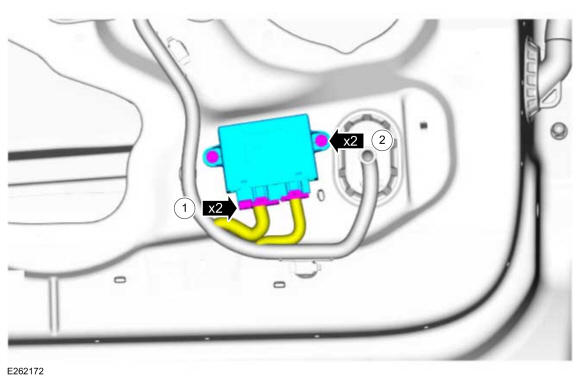

1. Disconnect the electrical connectors.
2. Remove the retainers and the PDM.
