Ford
>>
2023
>>
E-Transit Van Cargo Extended
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Component Harness Location Views
>>
Component Location Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

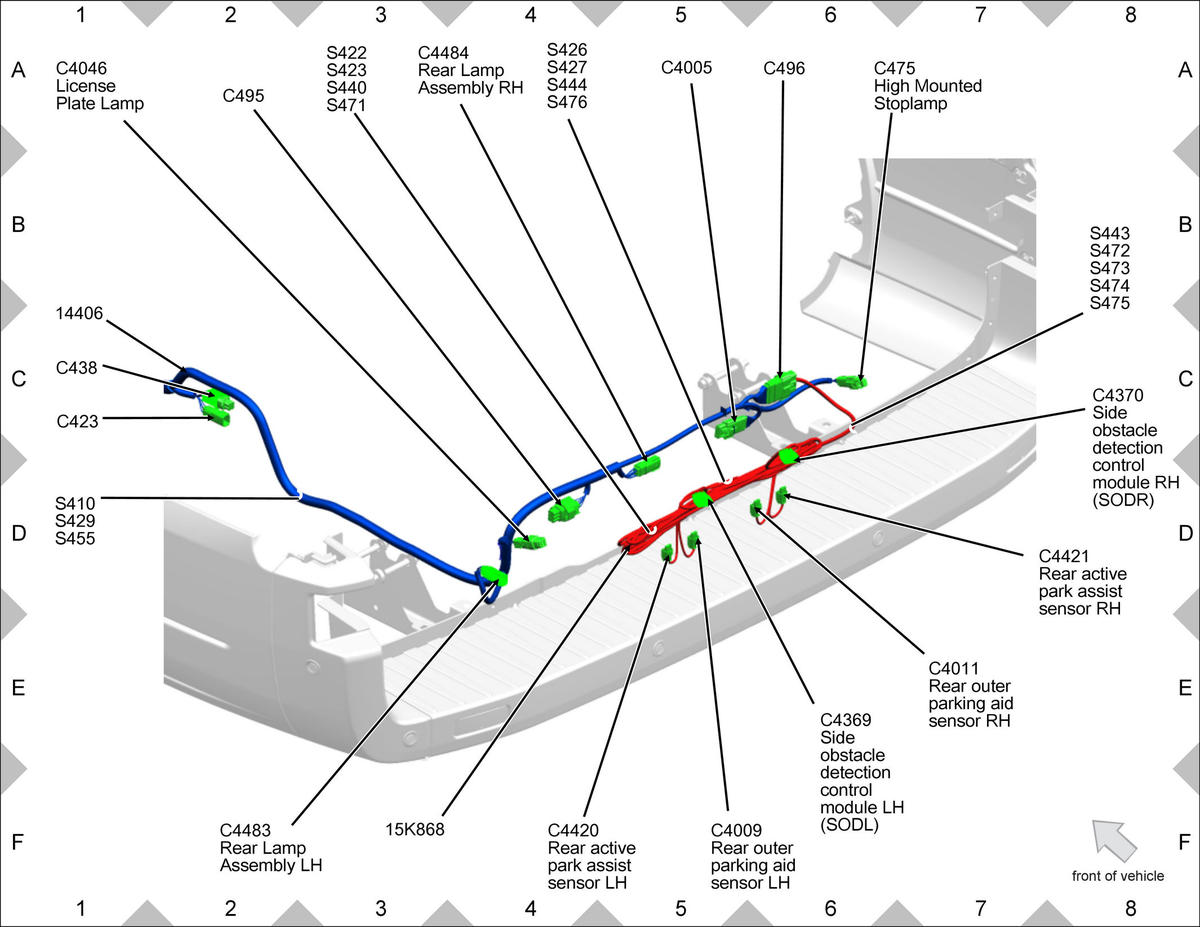

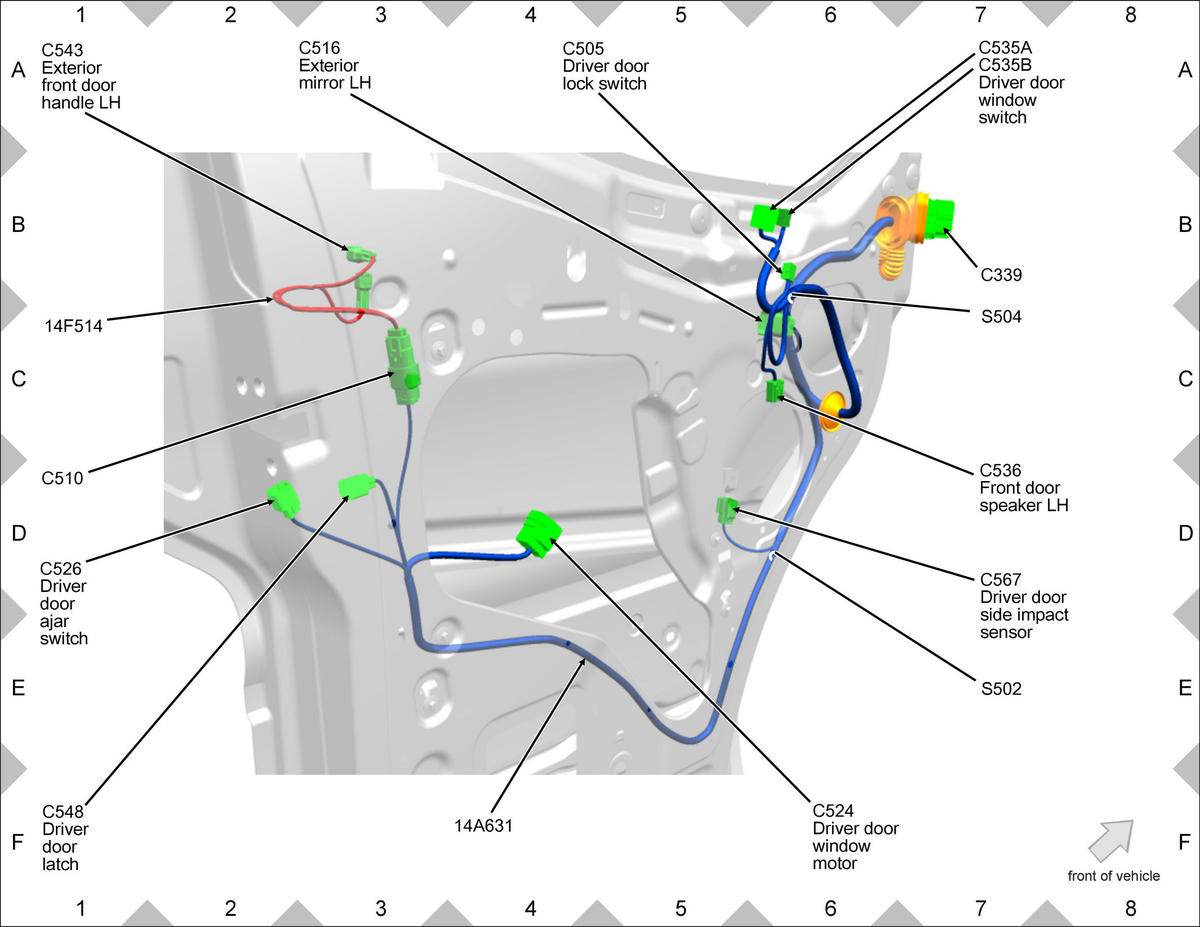

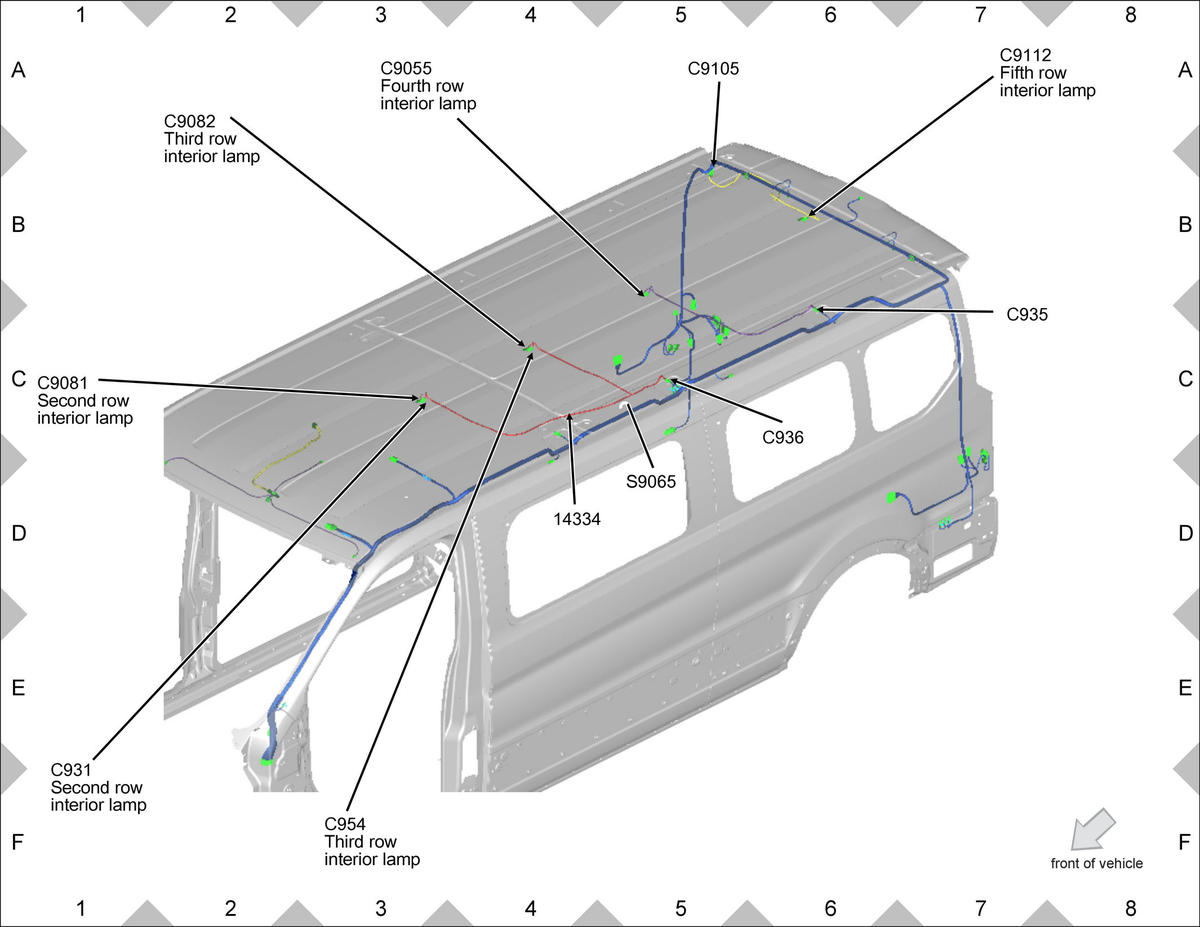

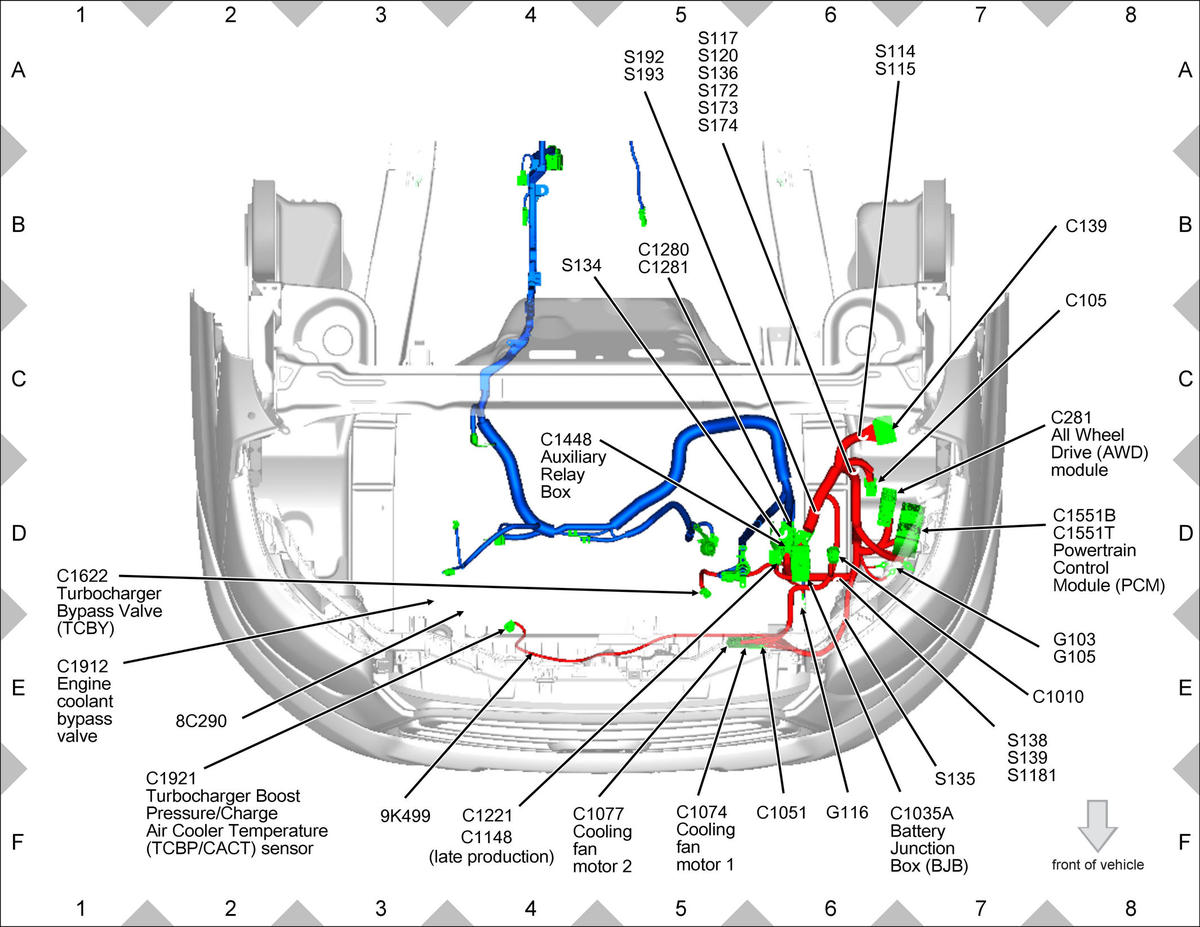

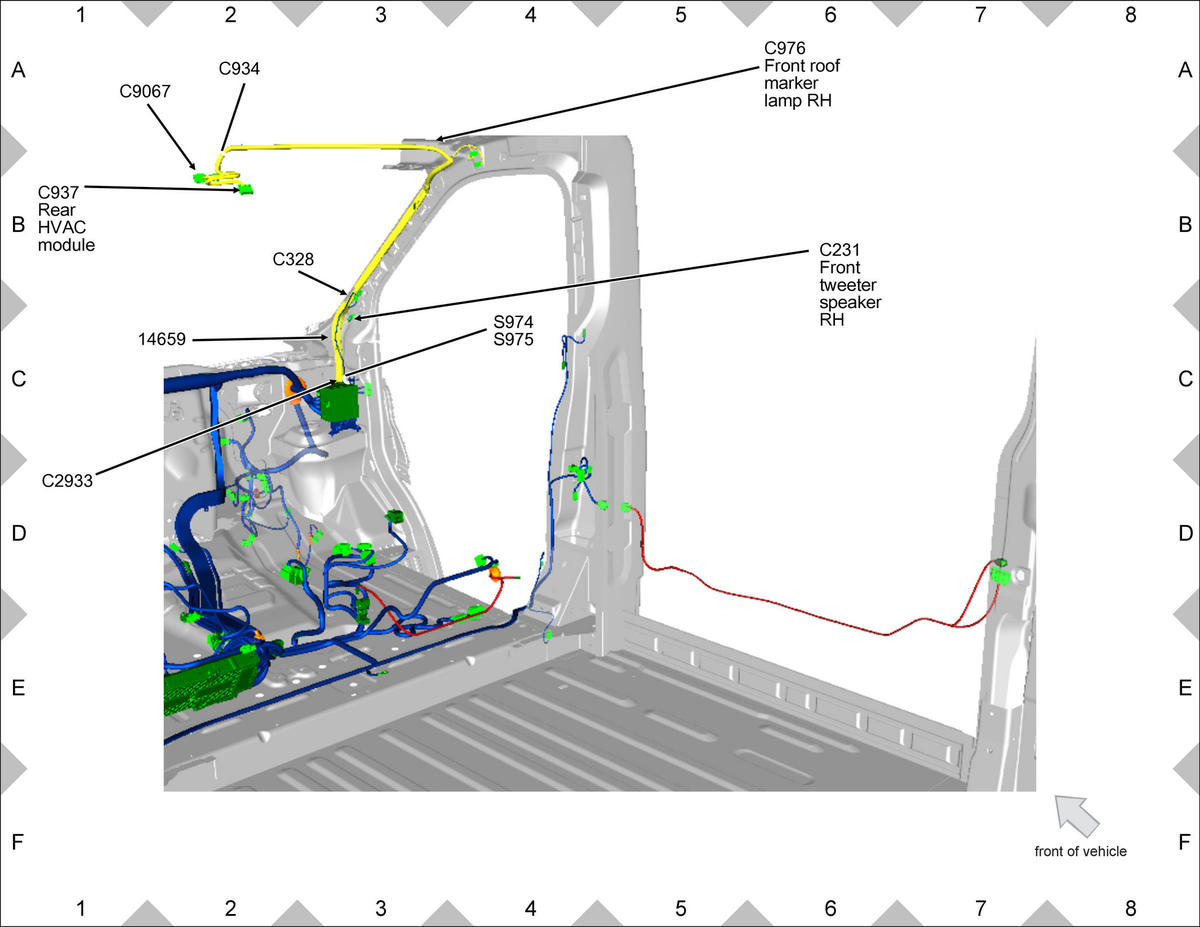

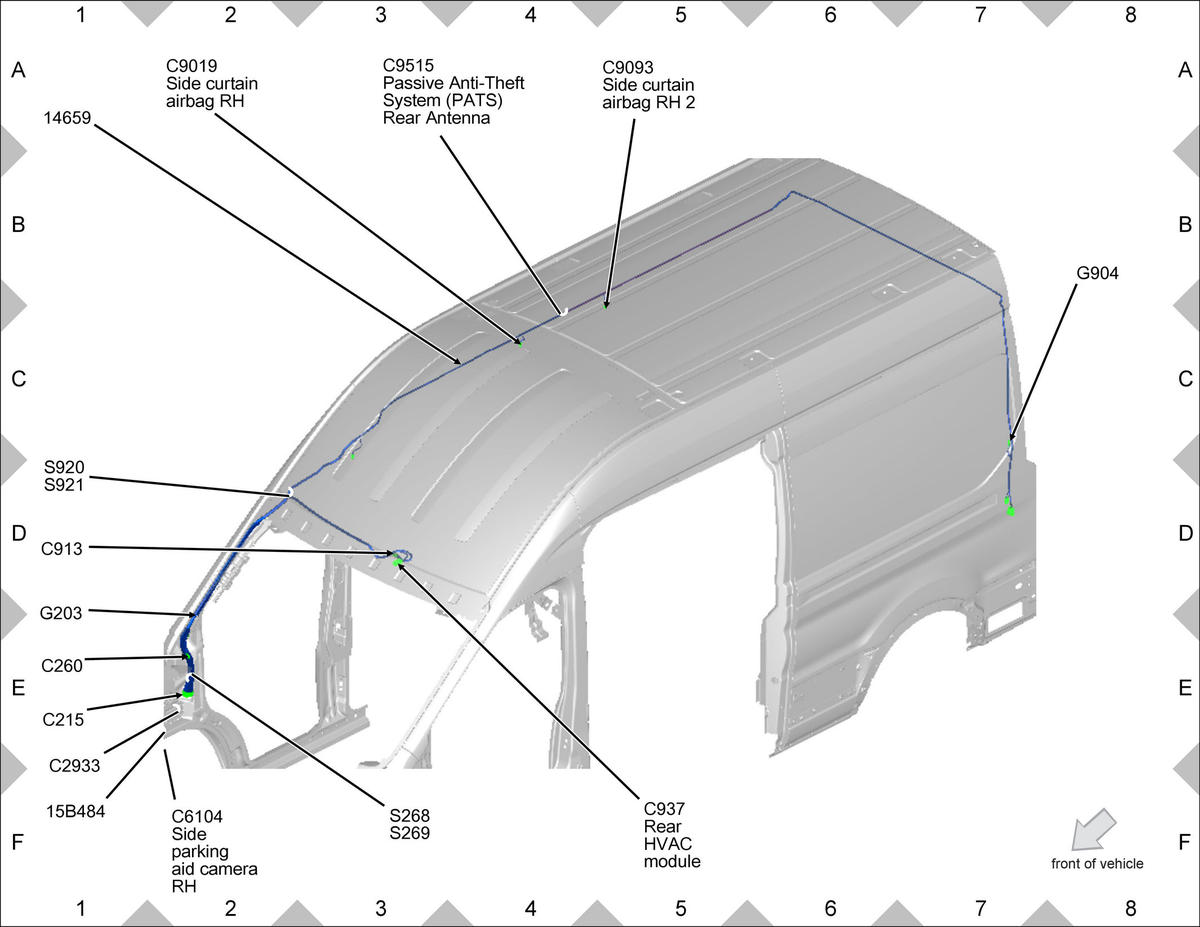

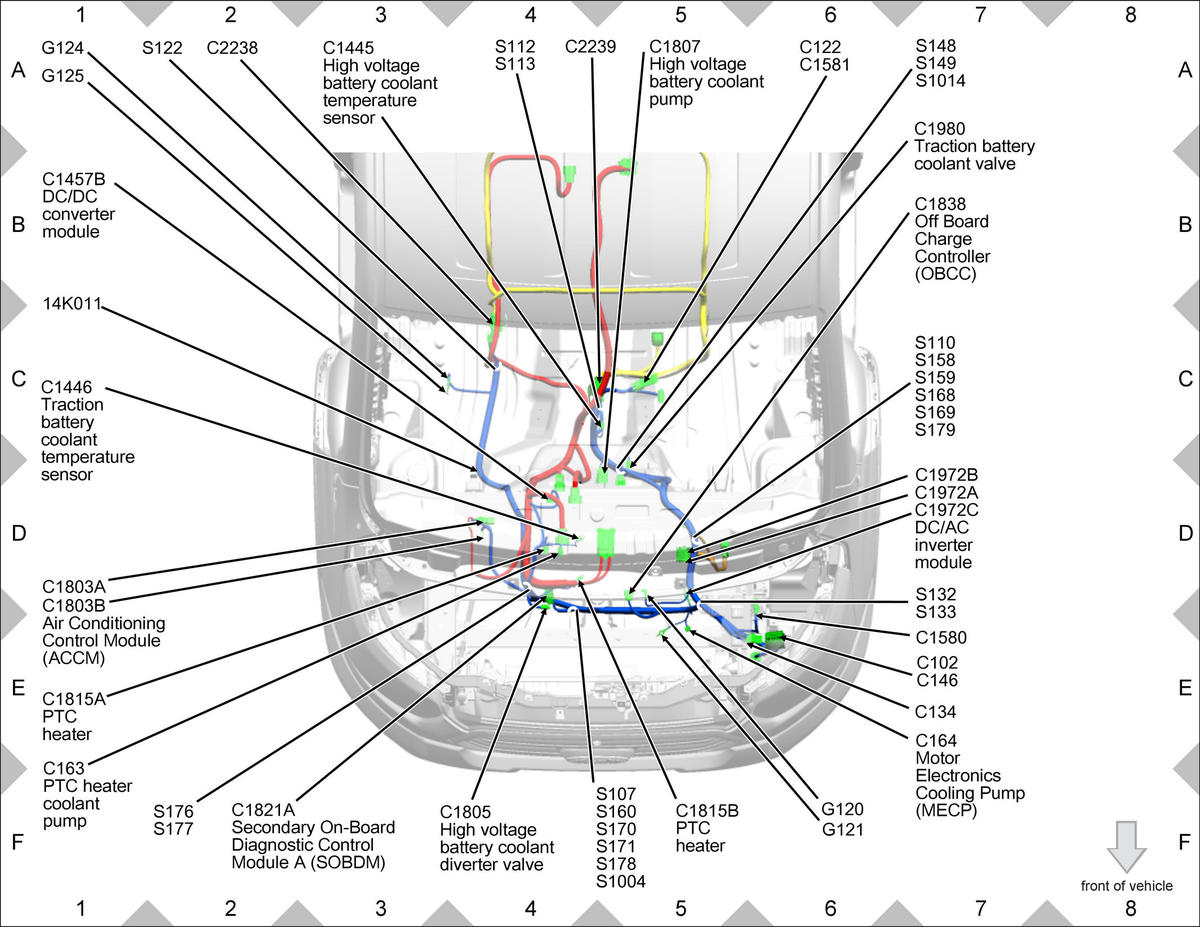

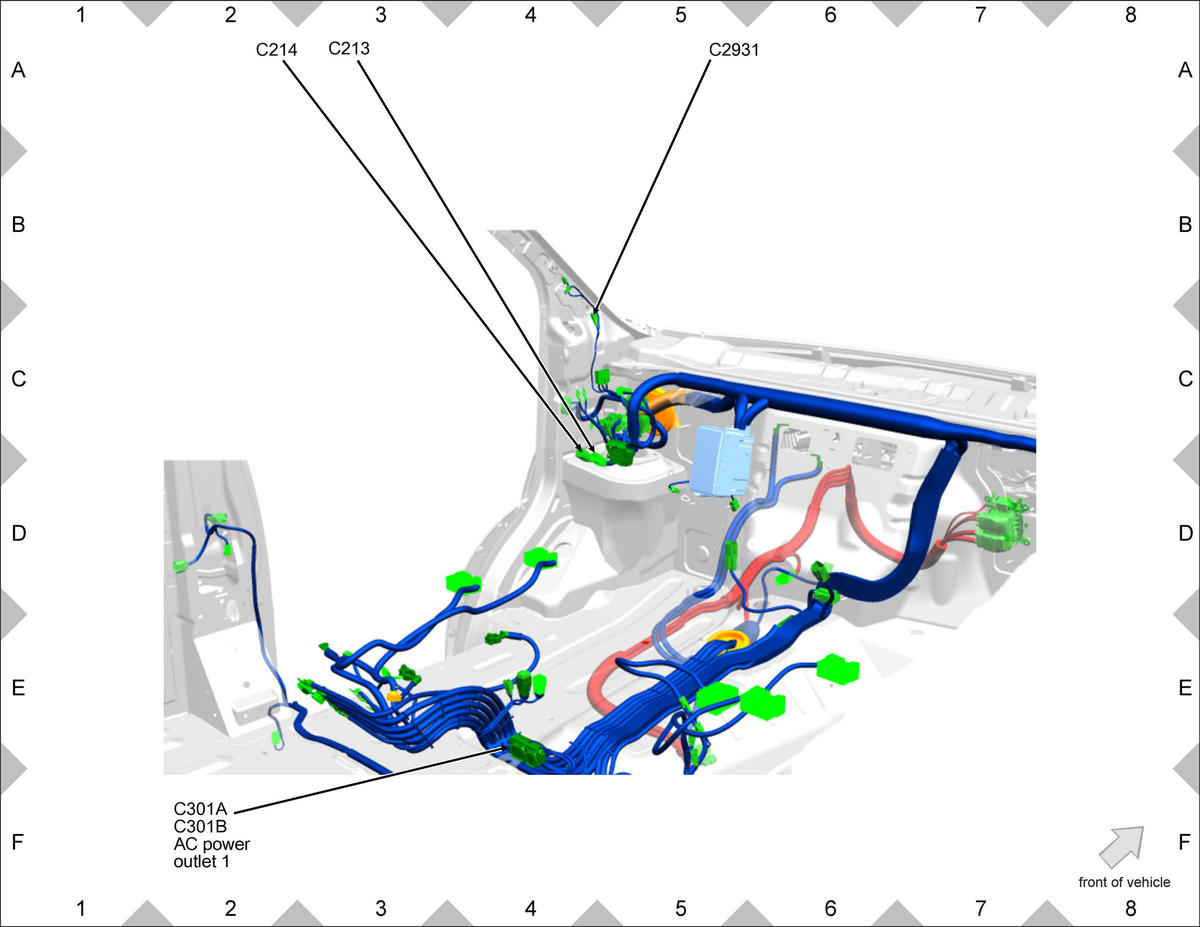

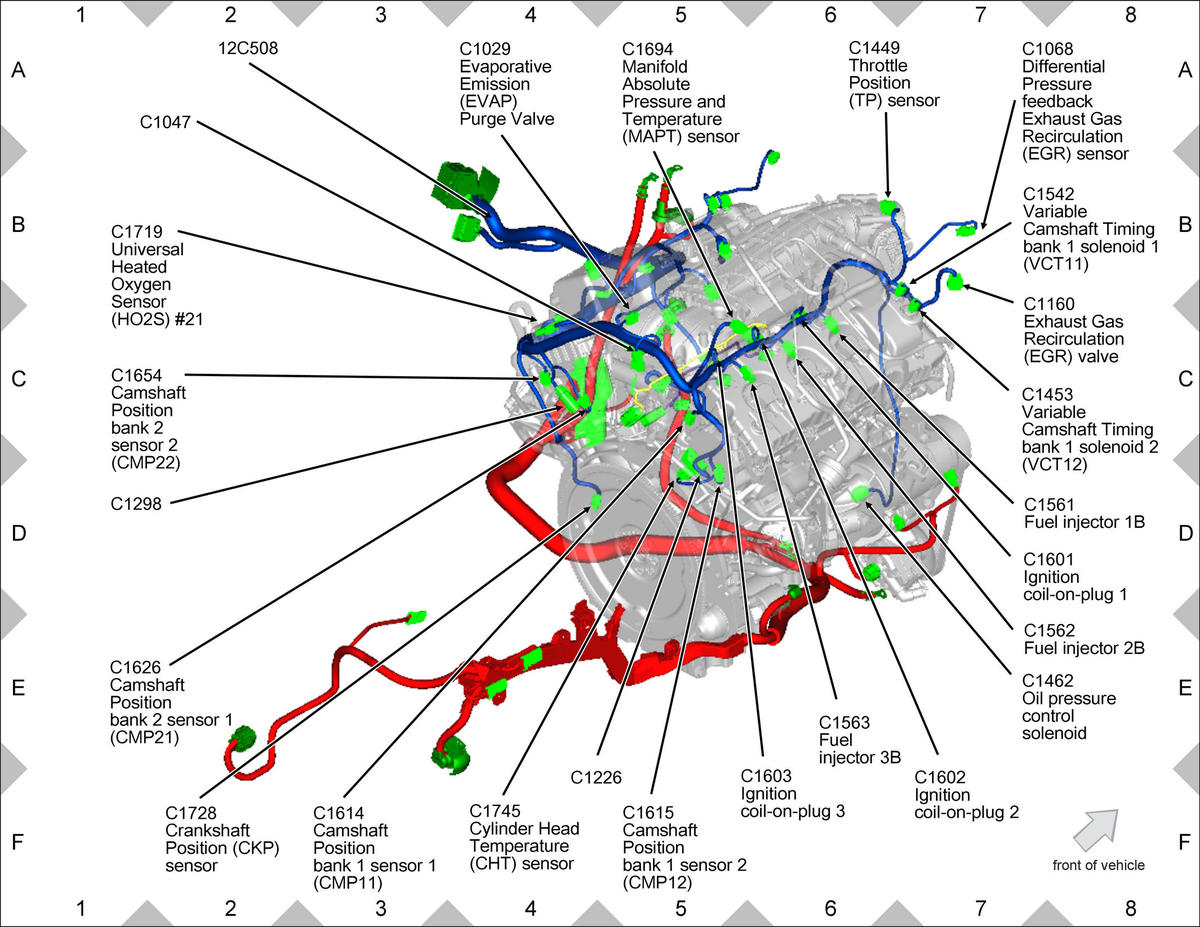

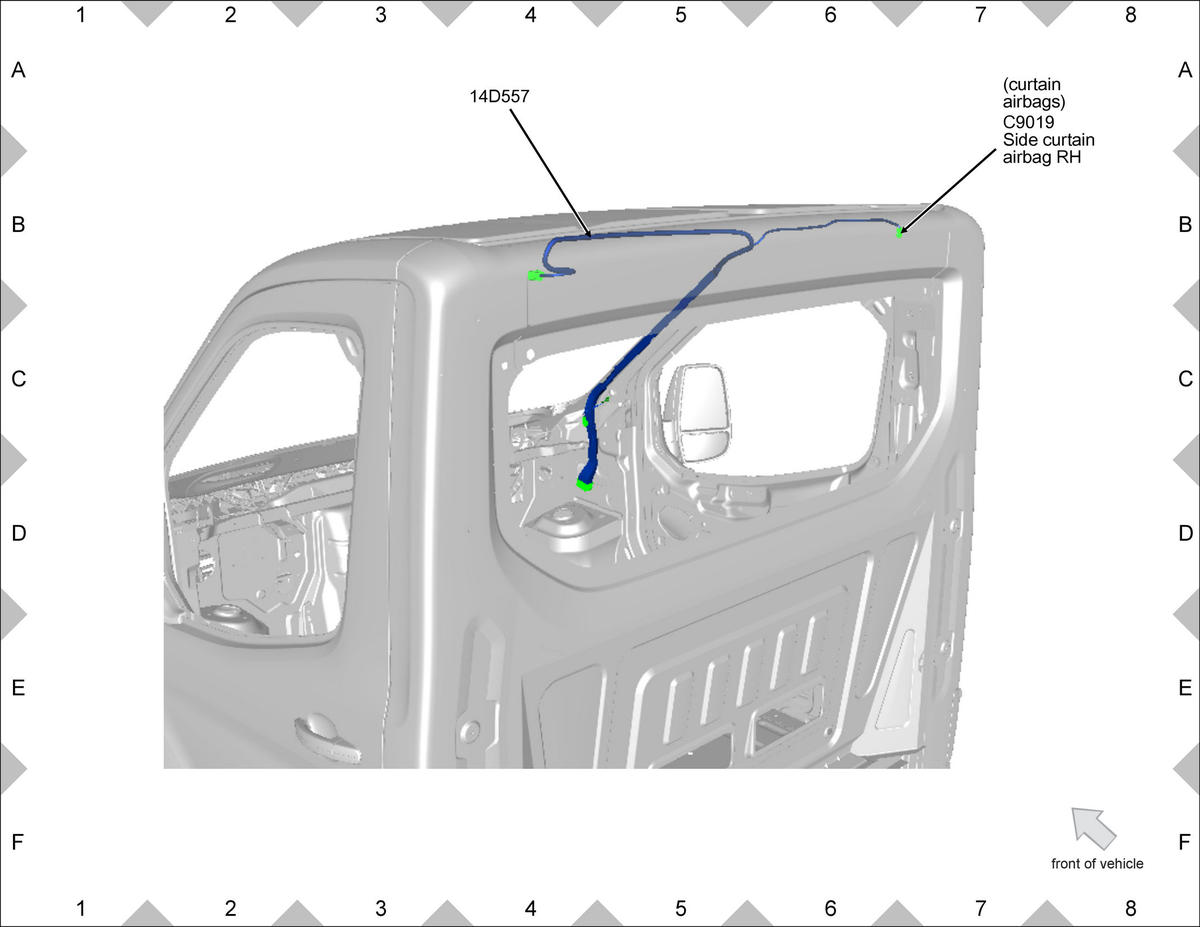

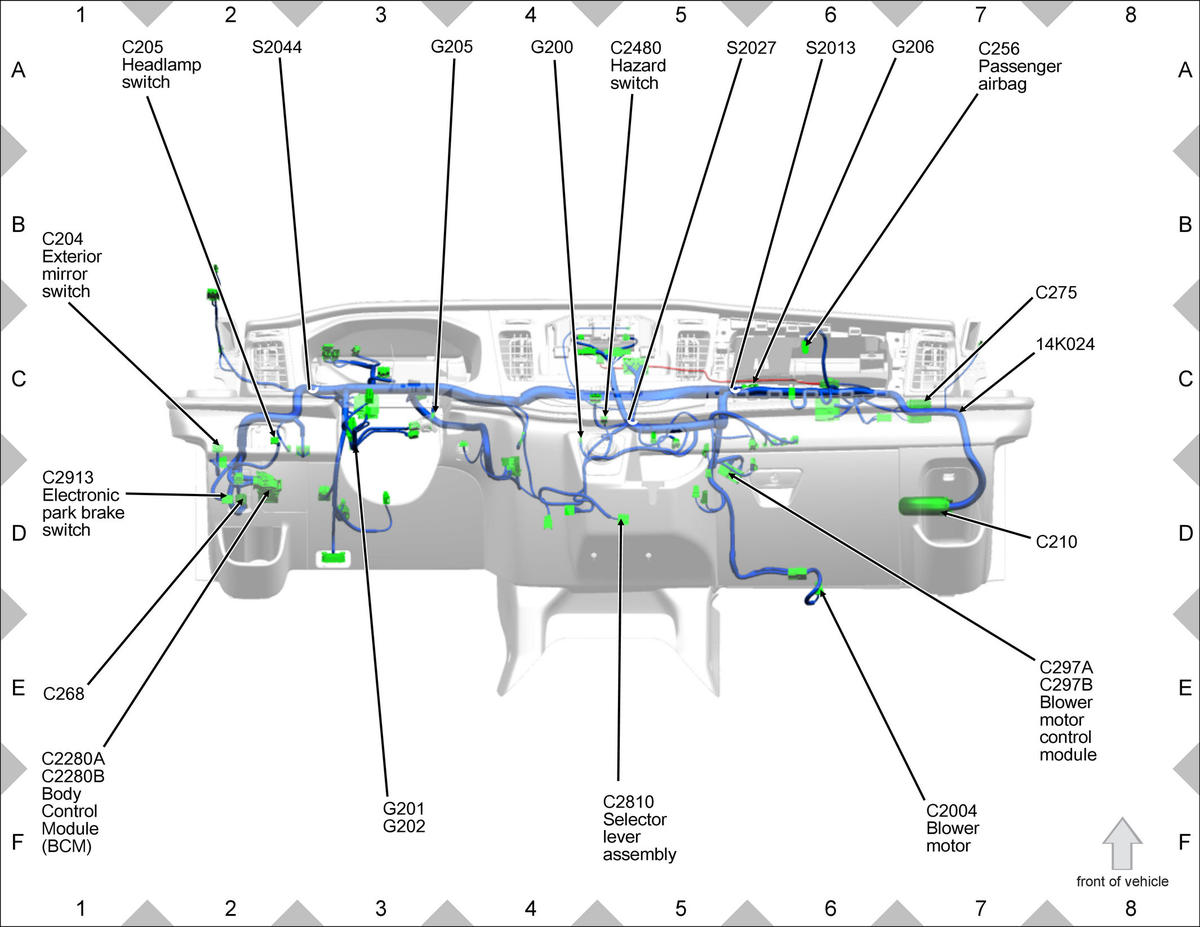

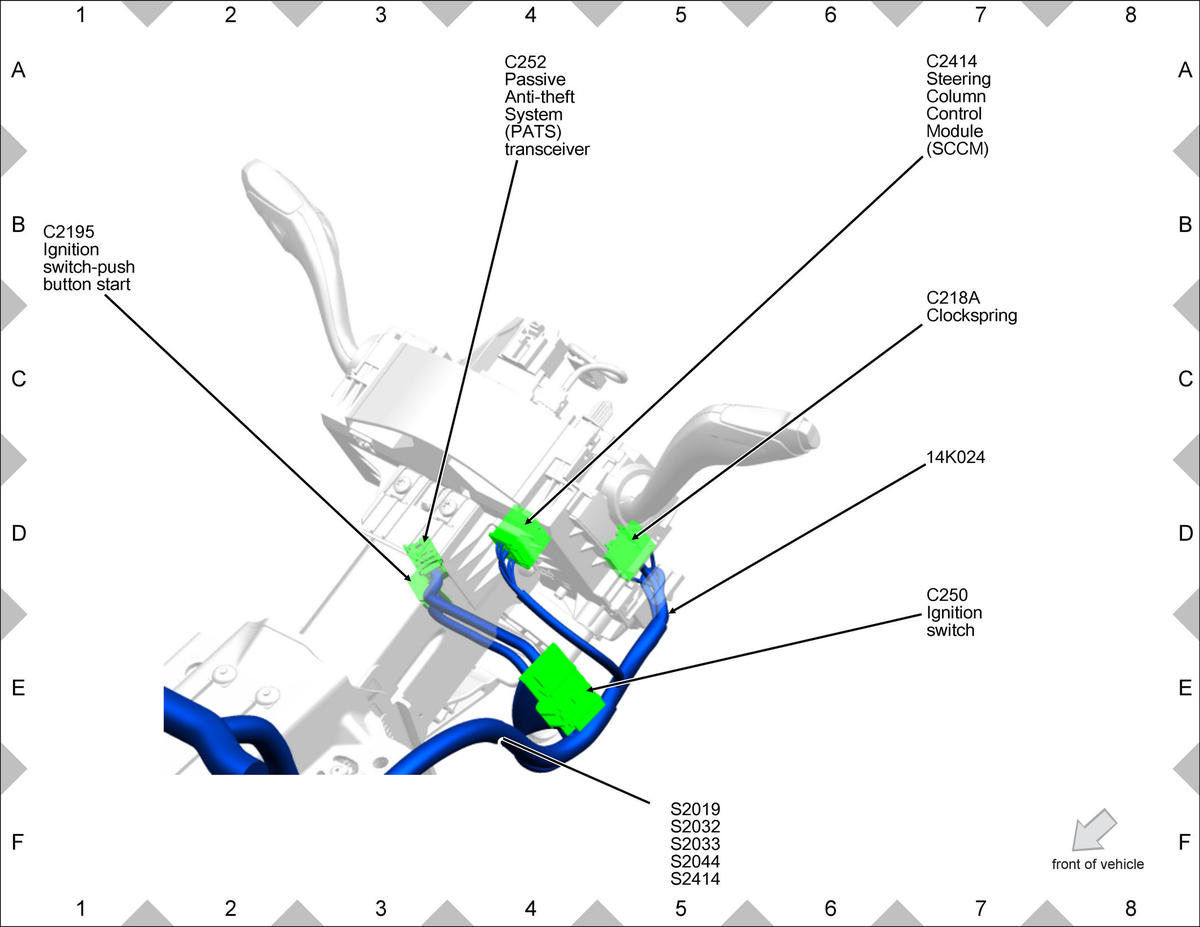

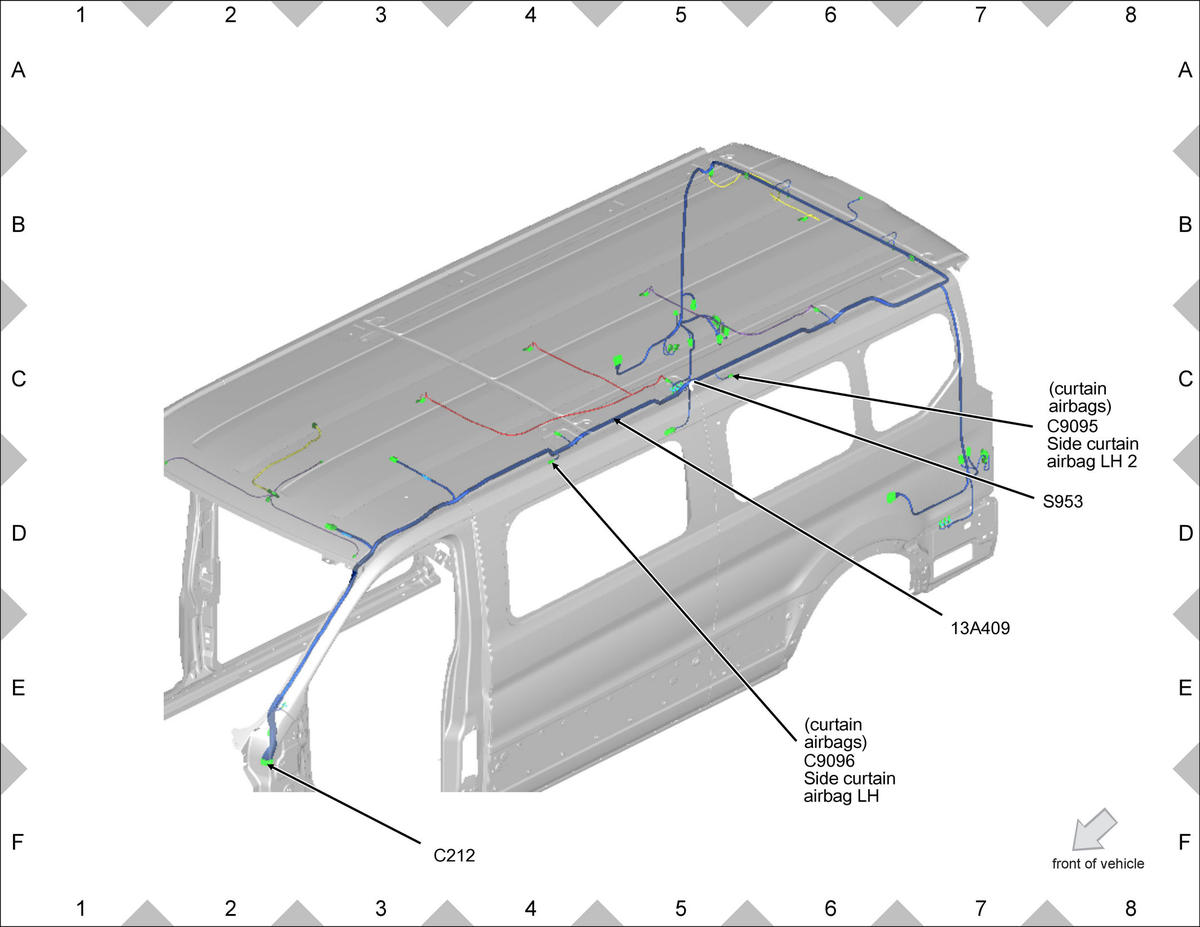

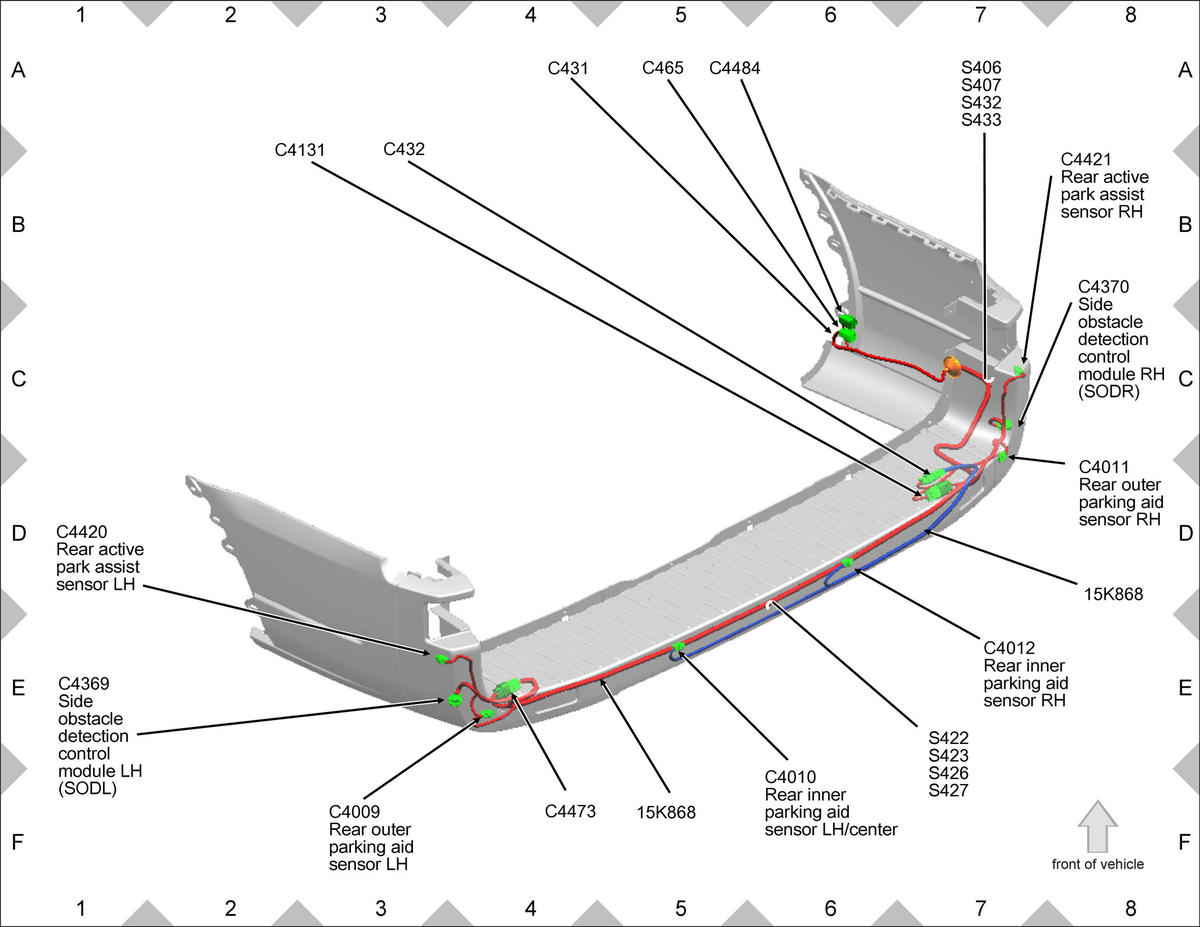

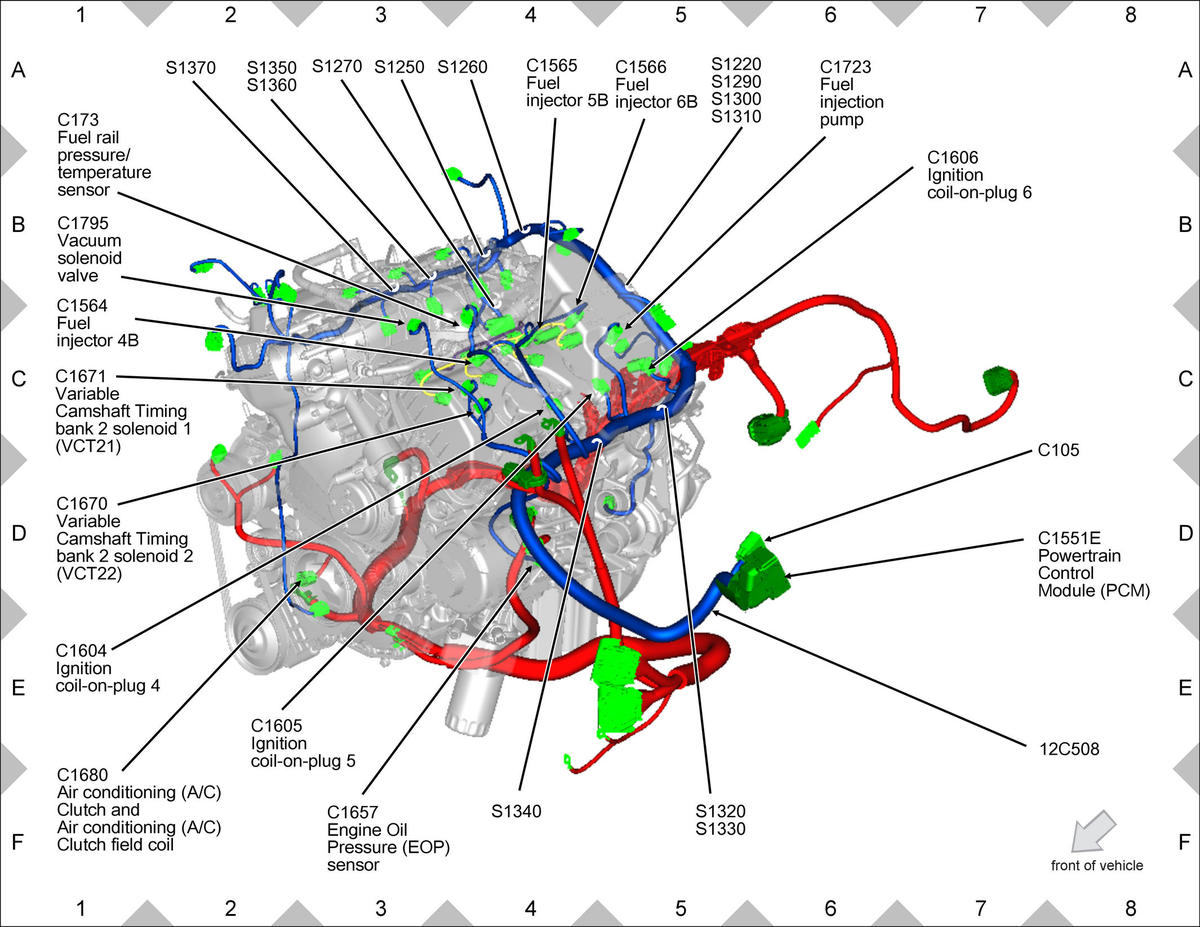

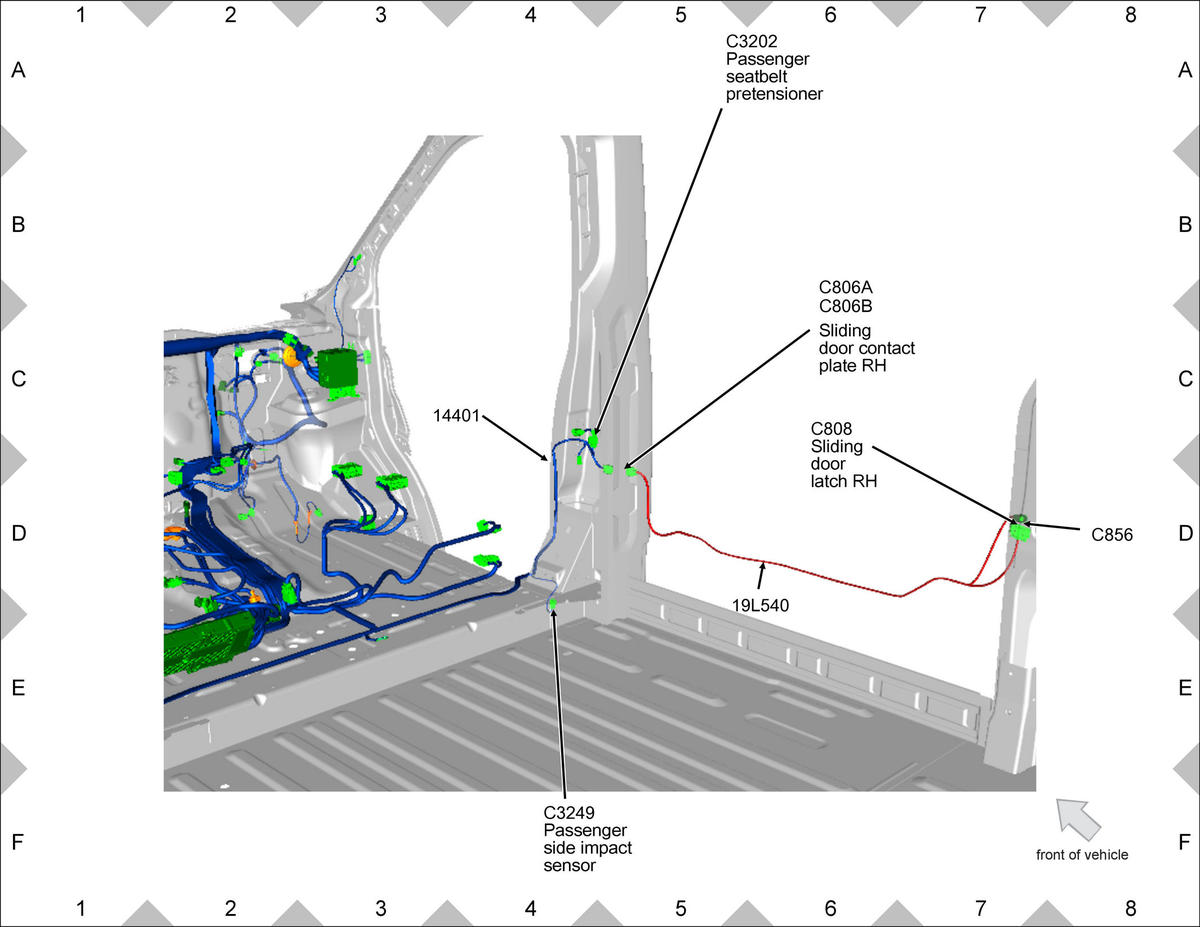

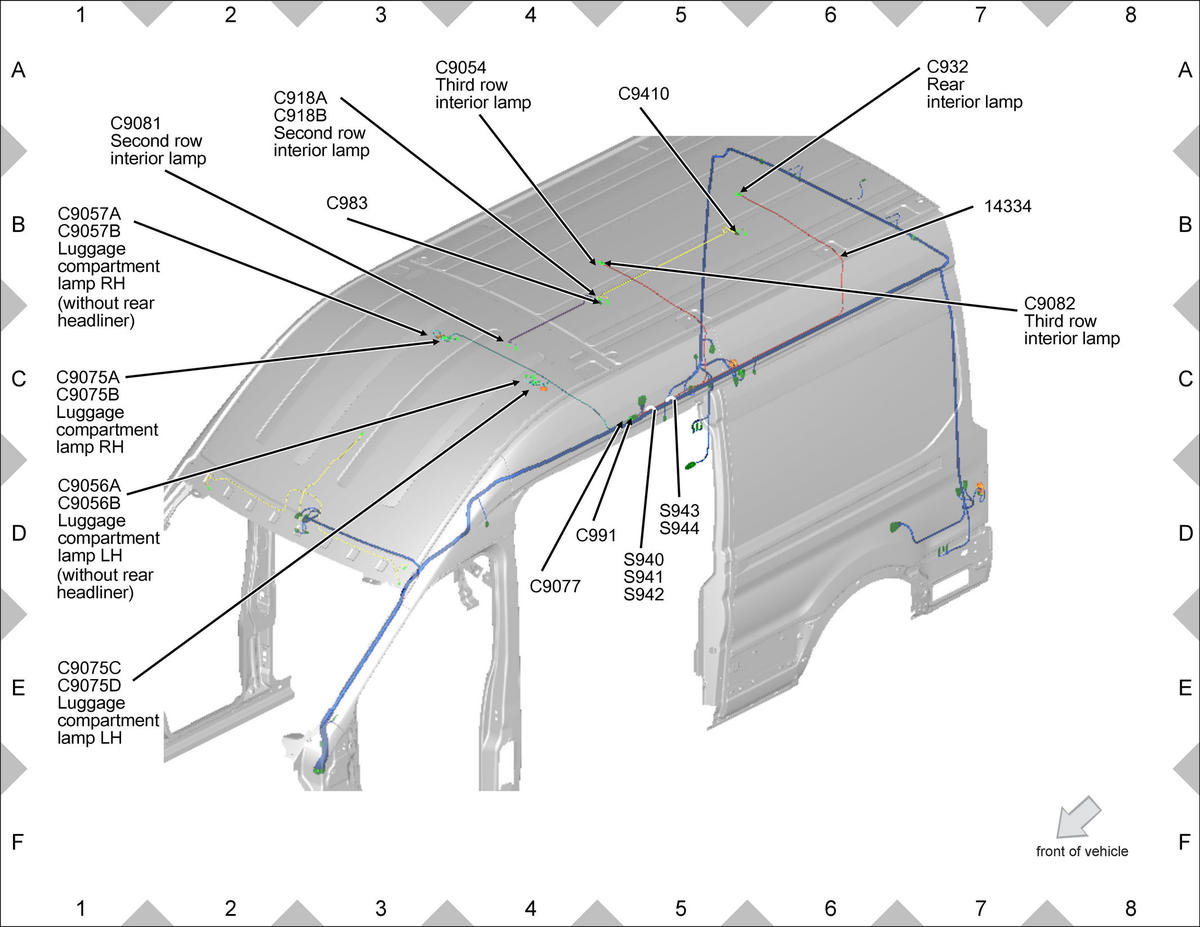

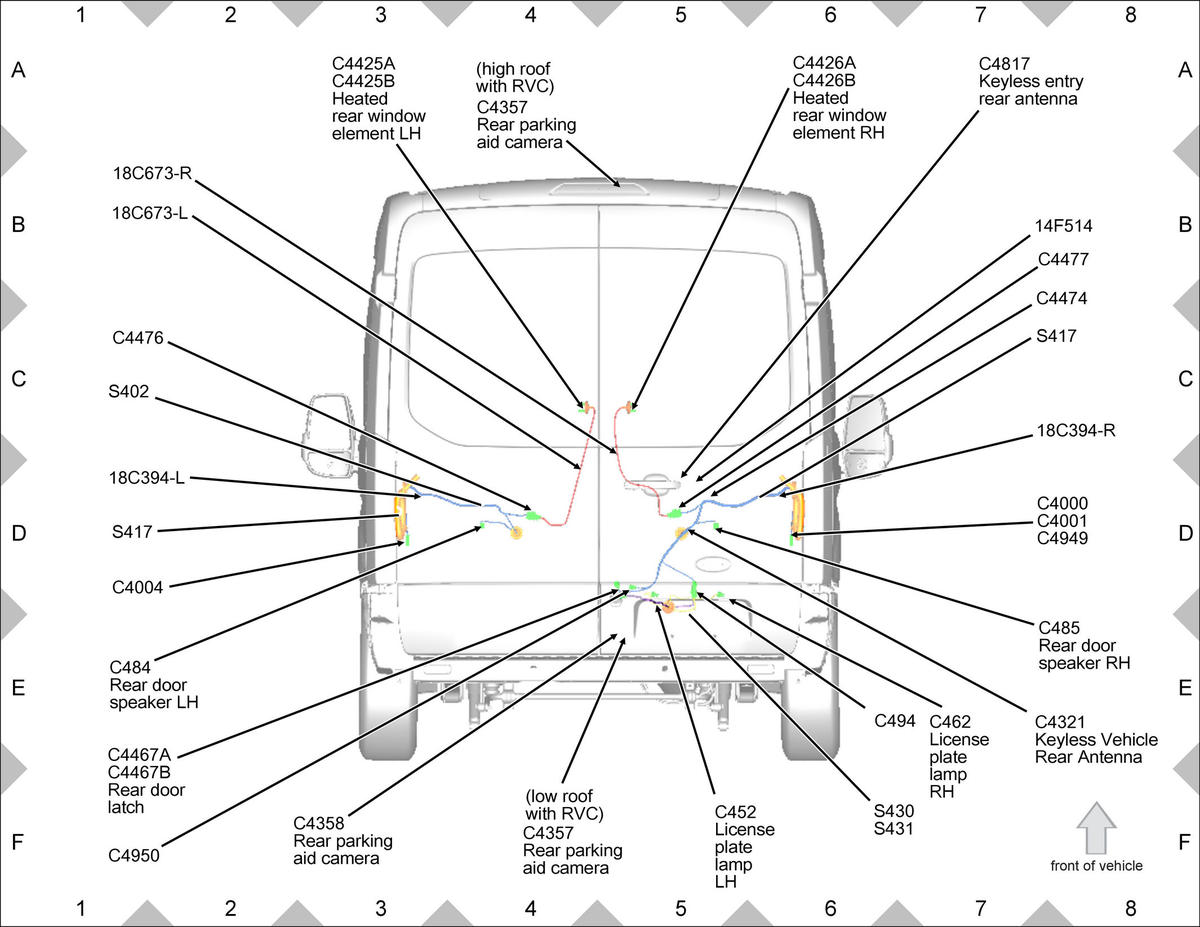

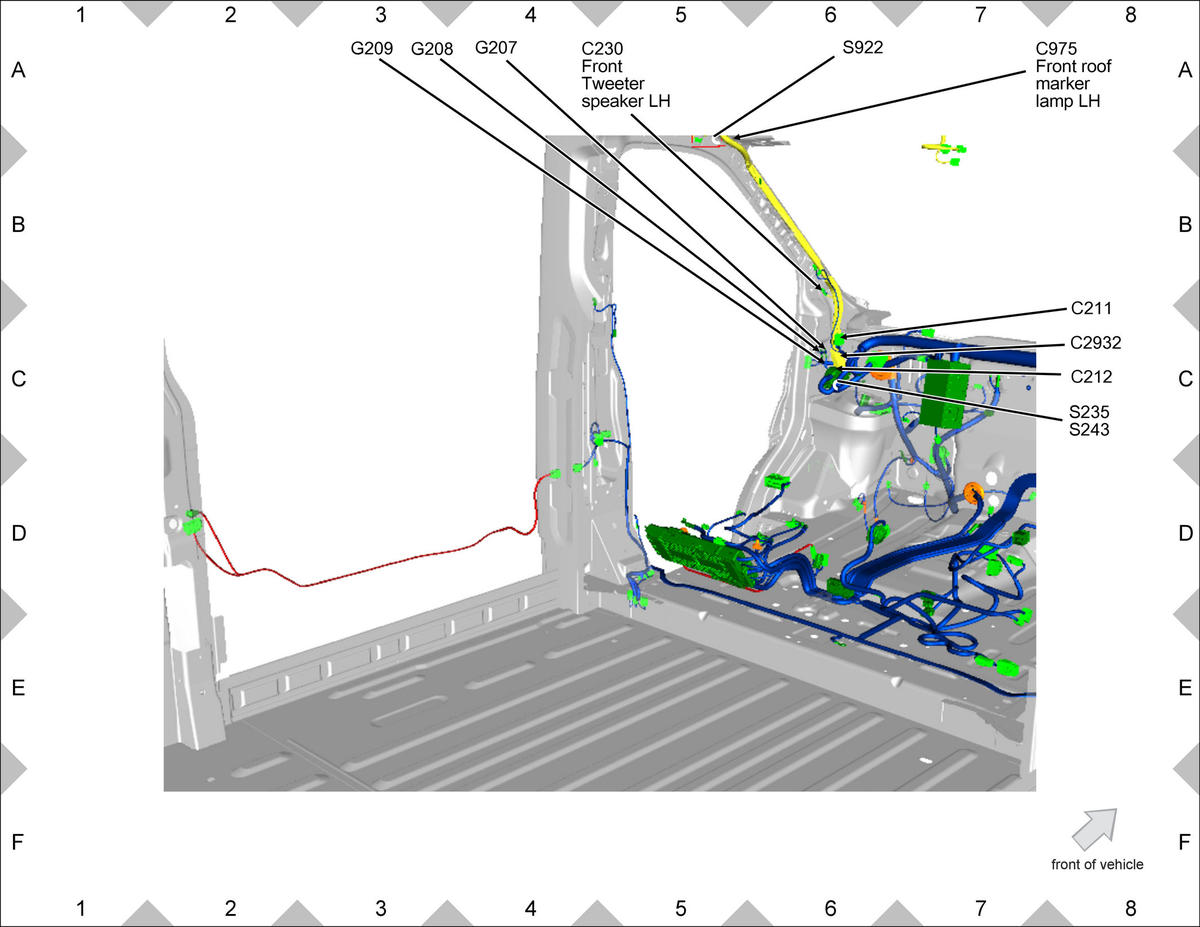

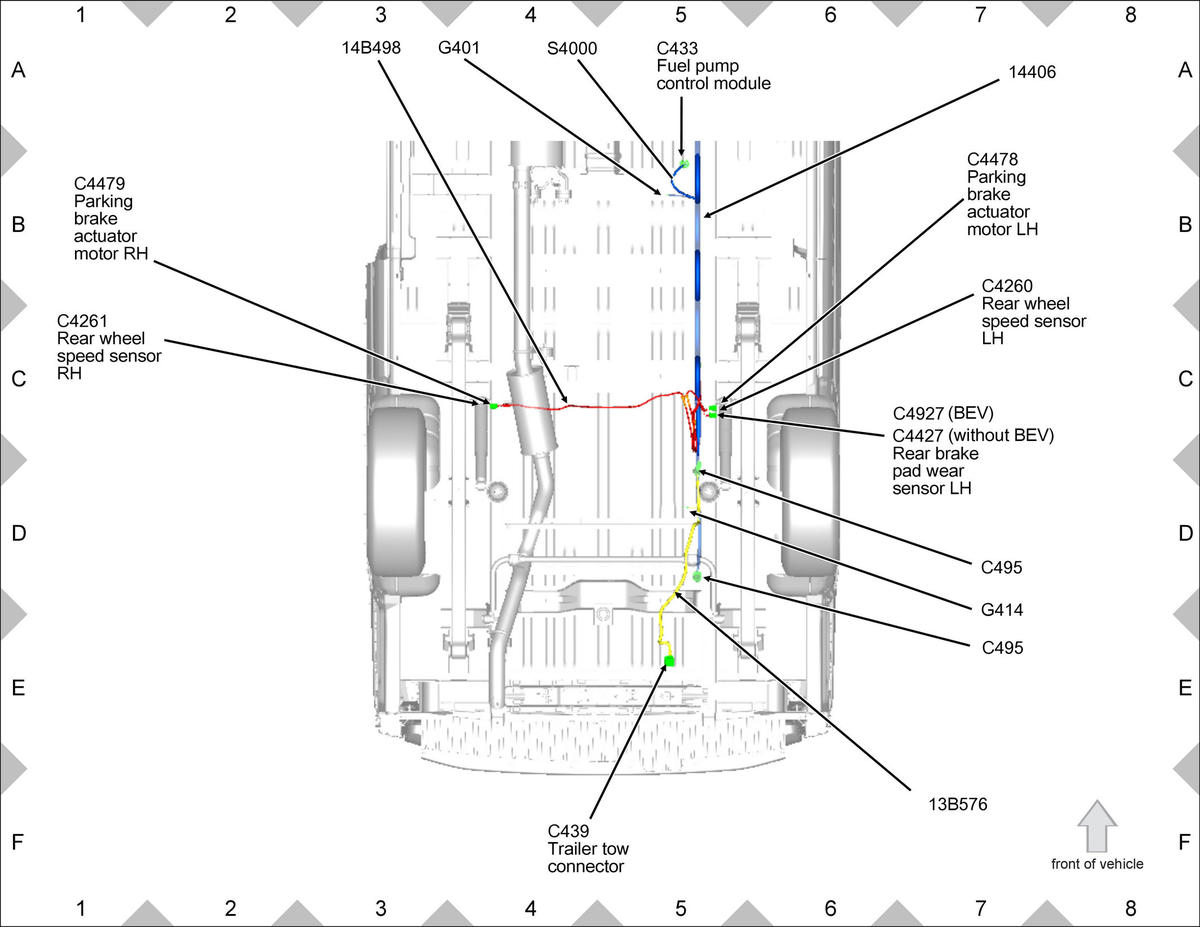

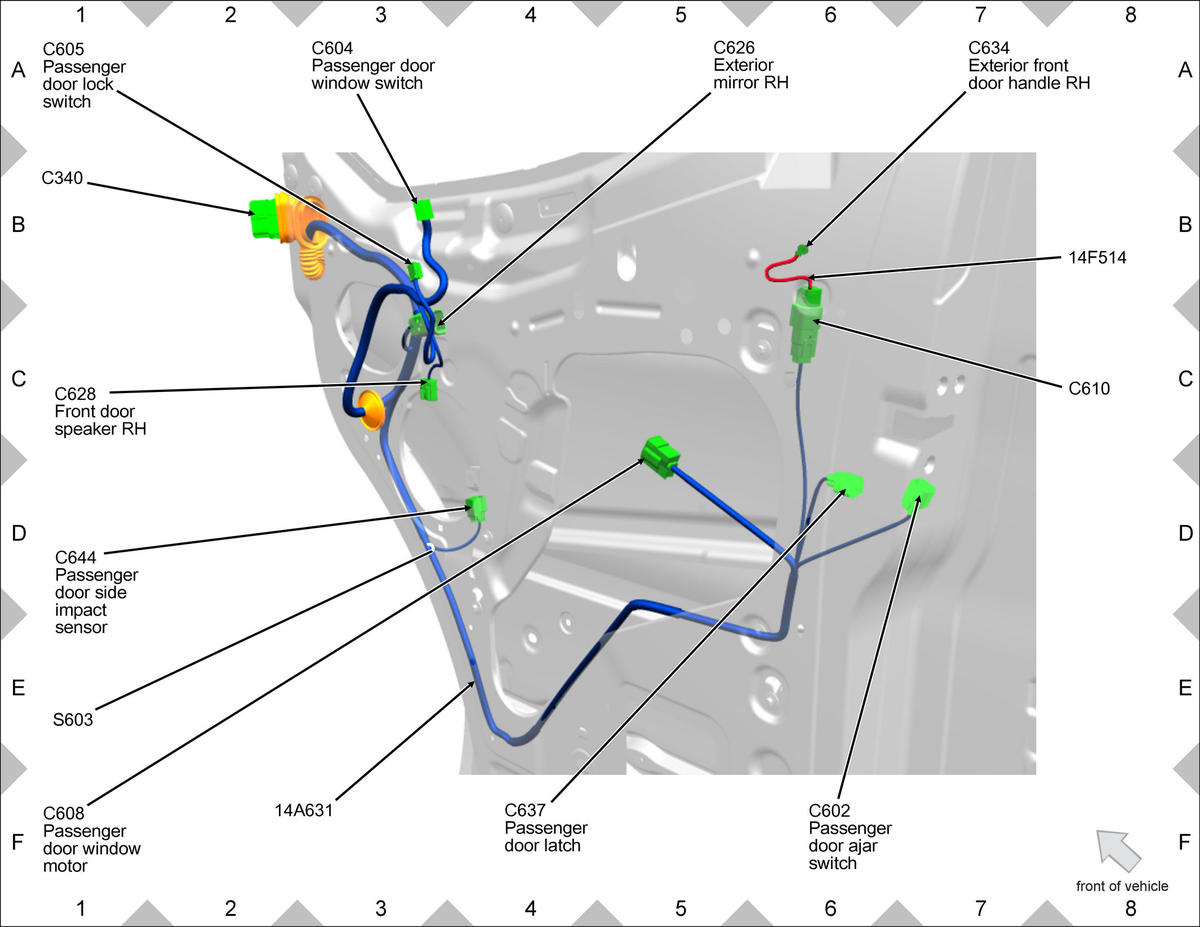

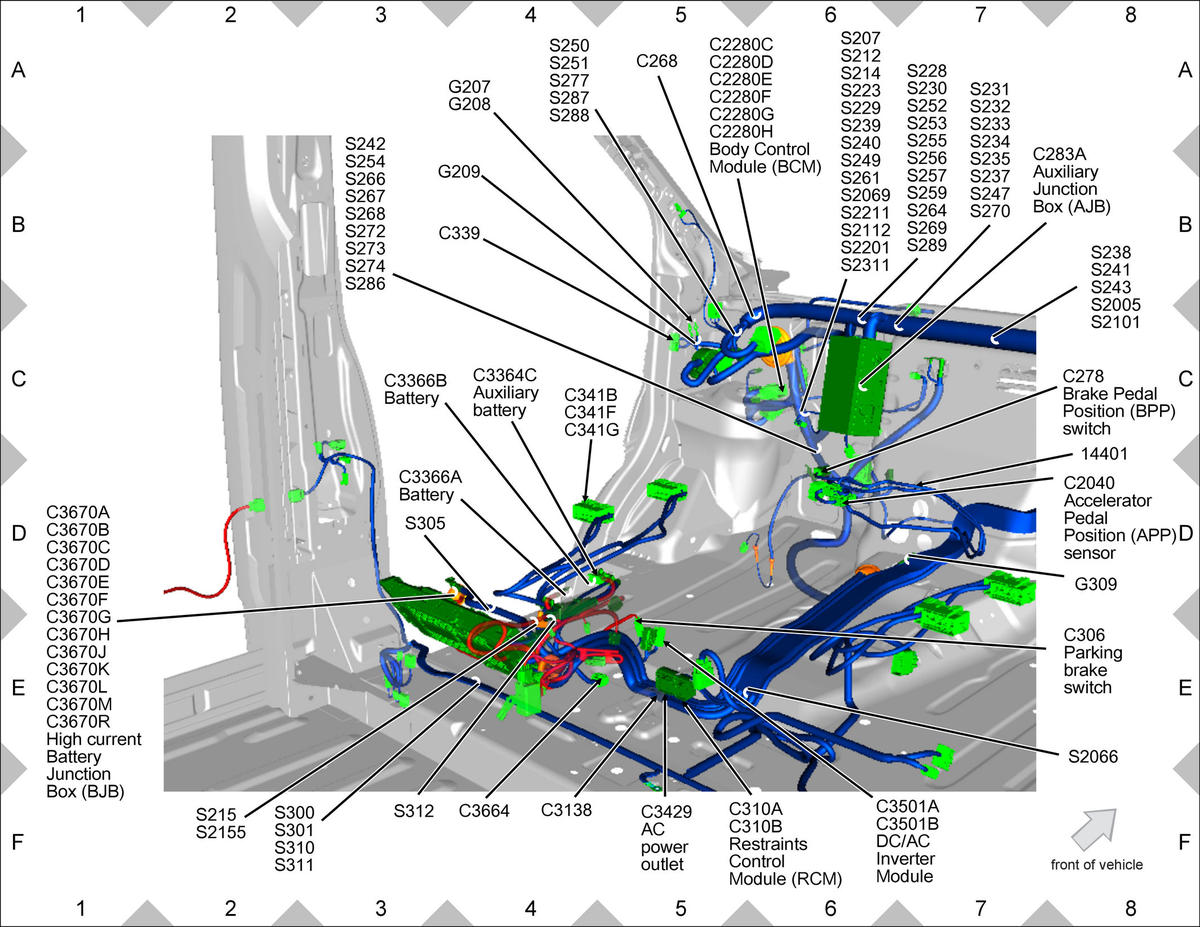

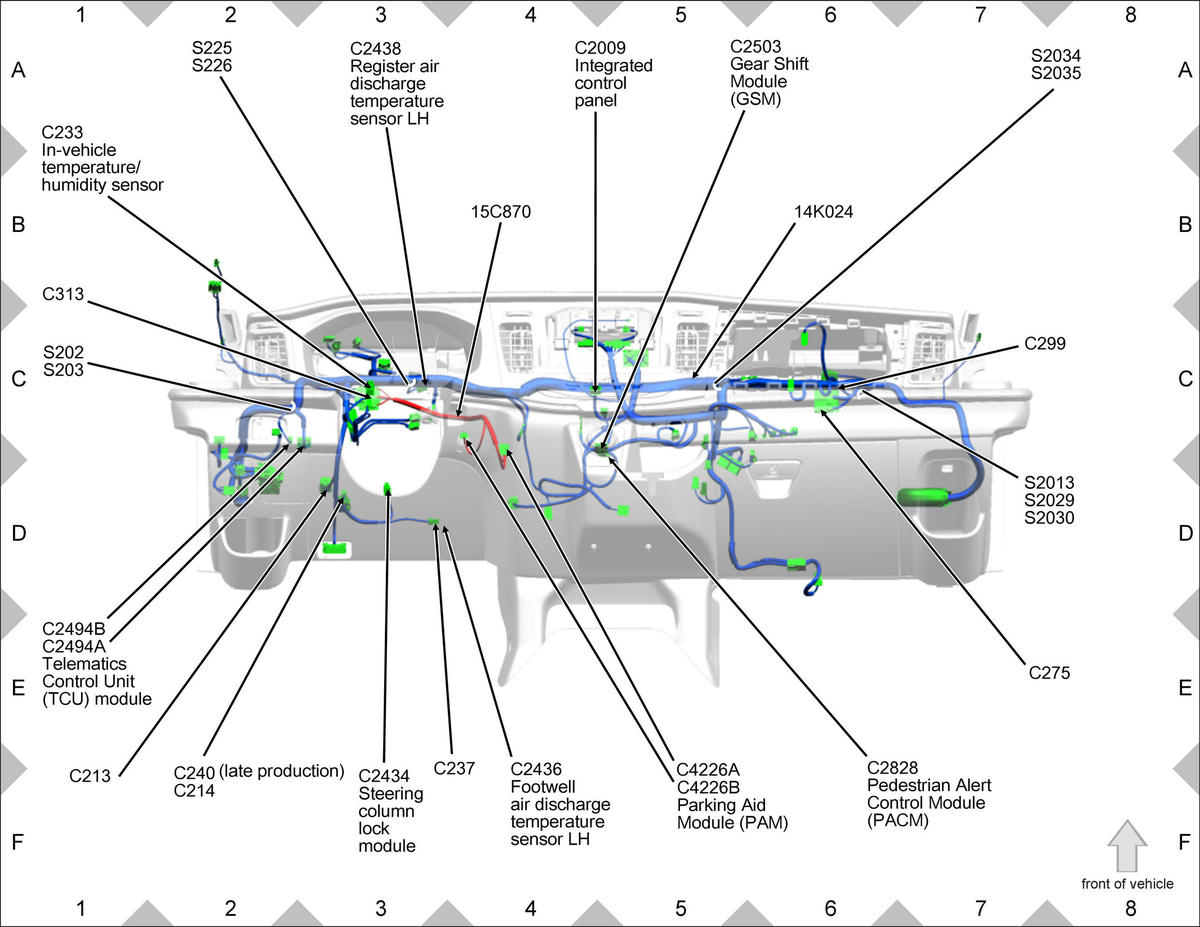

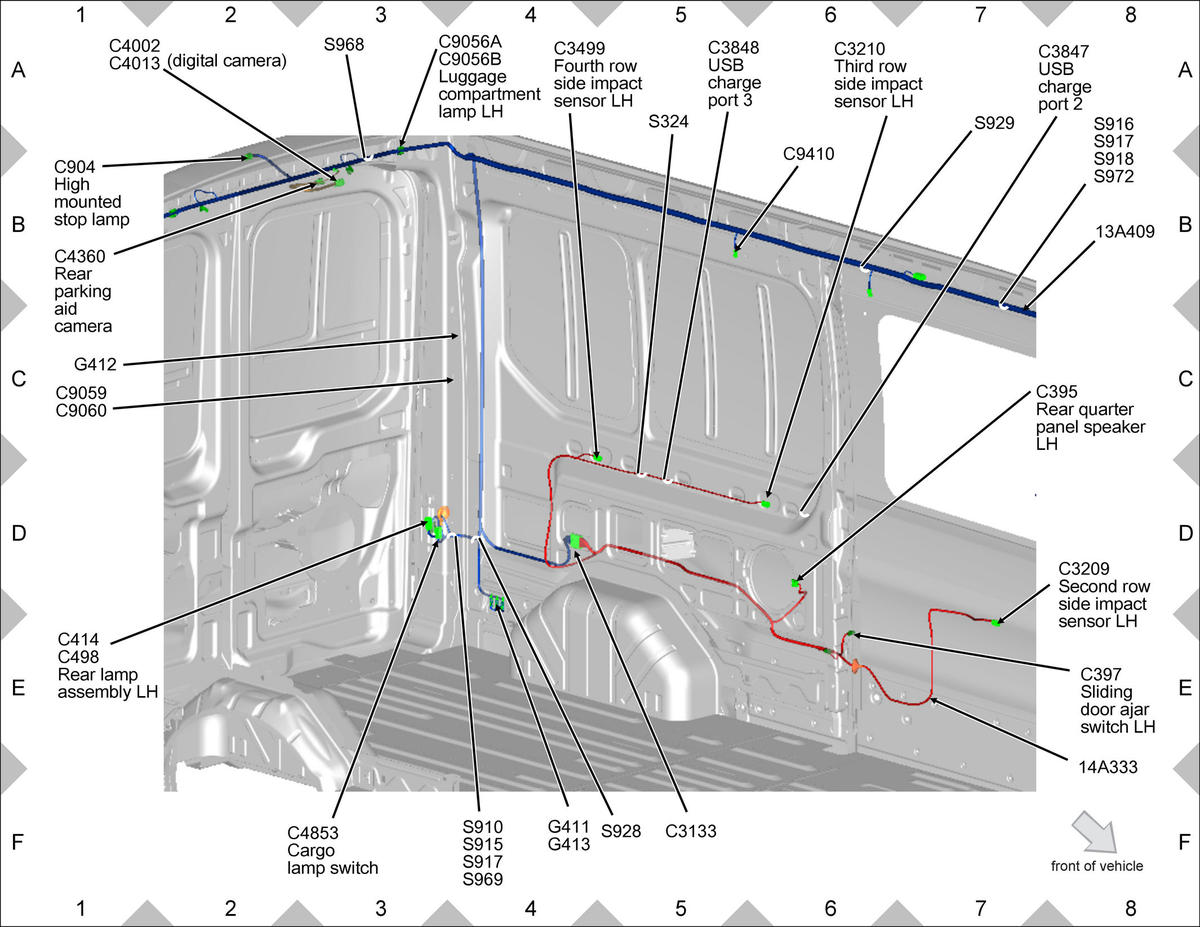

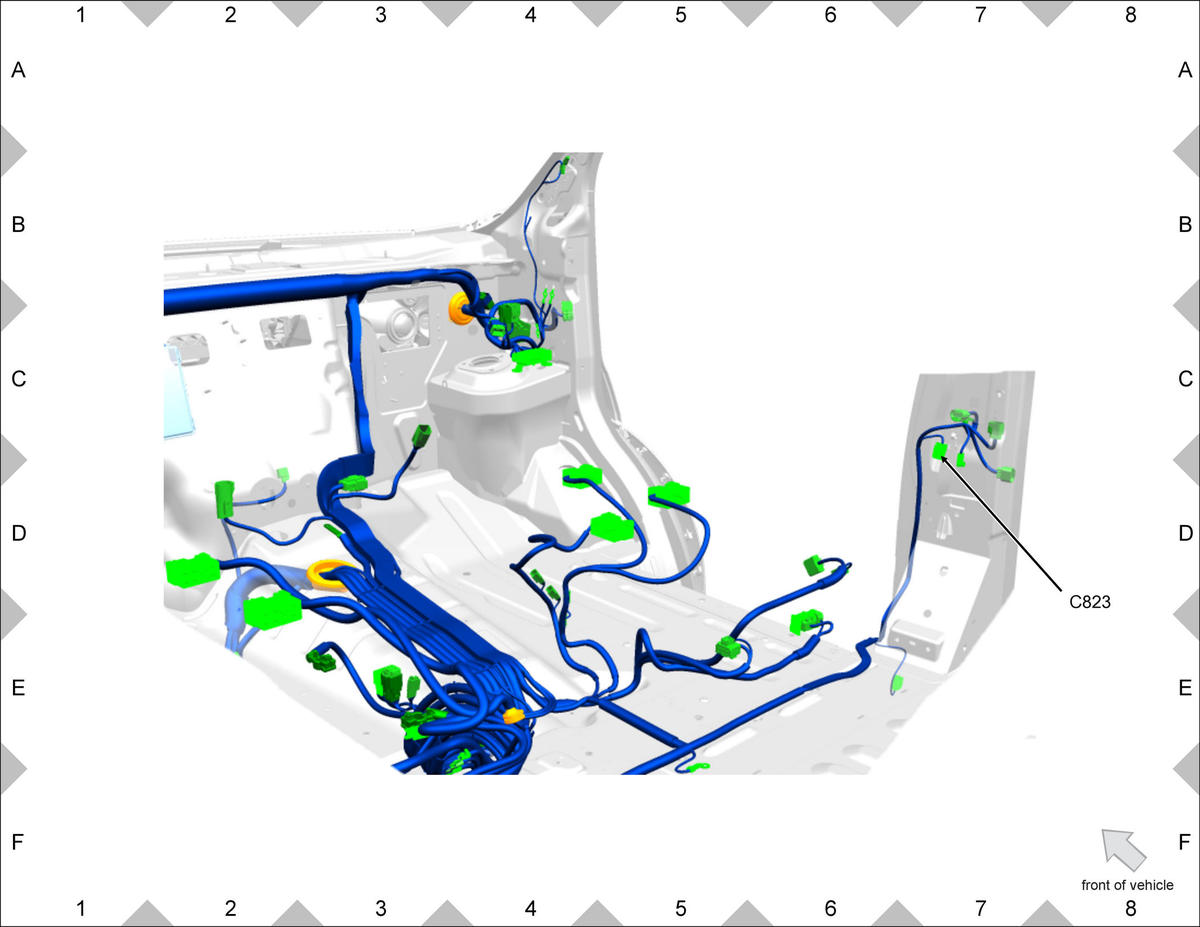

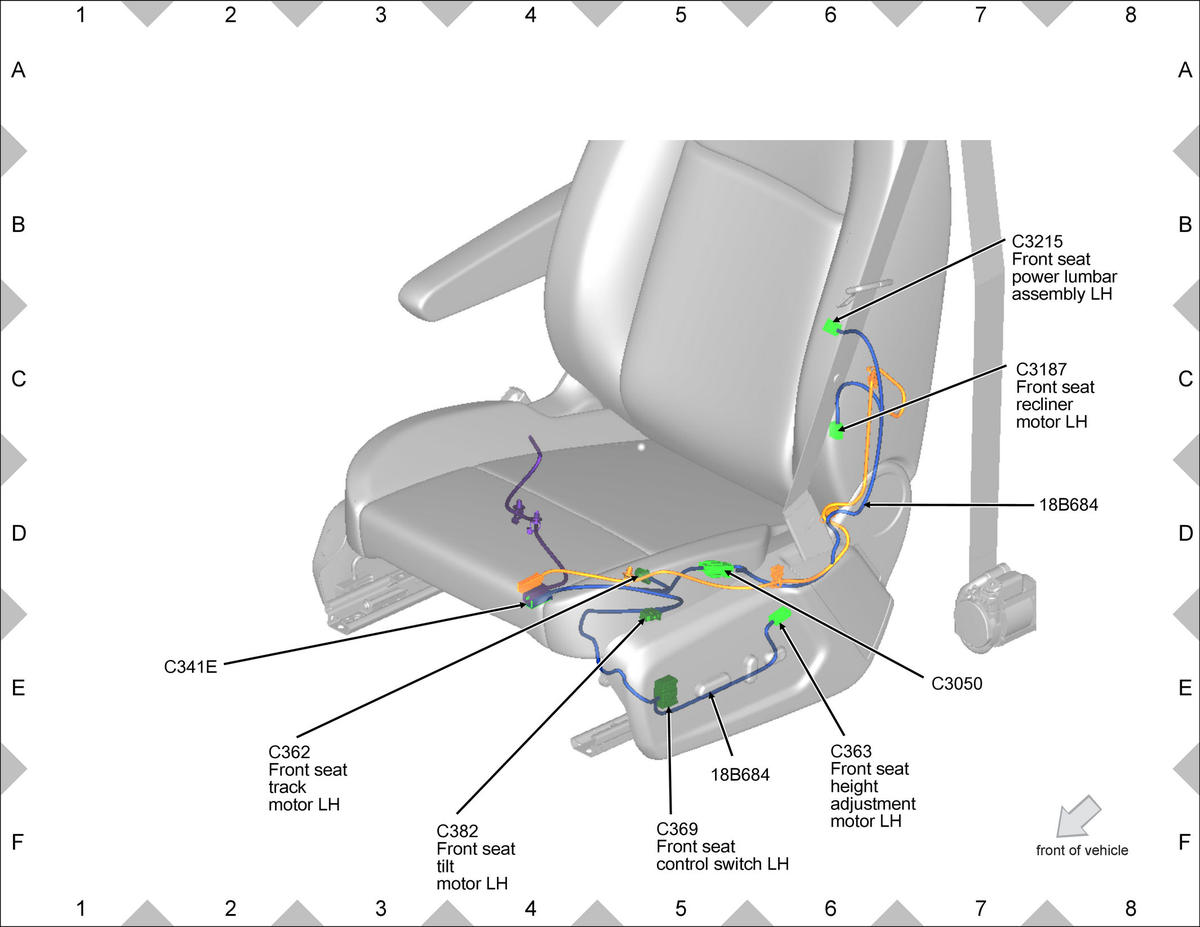

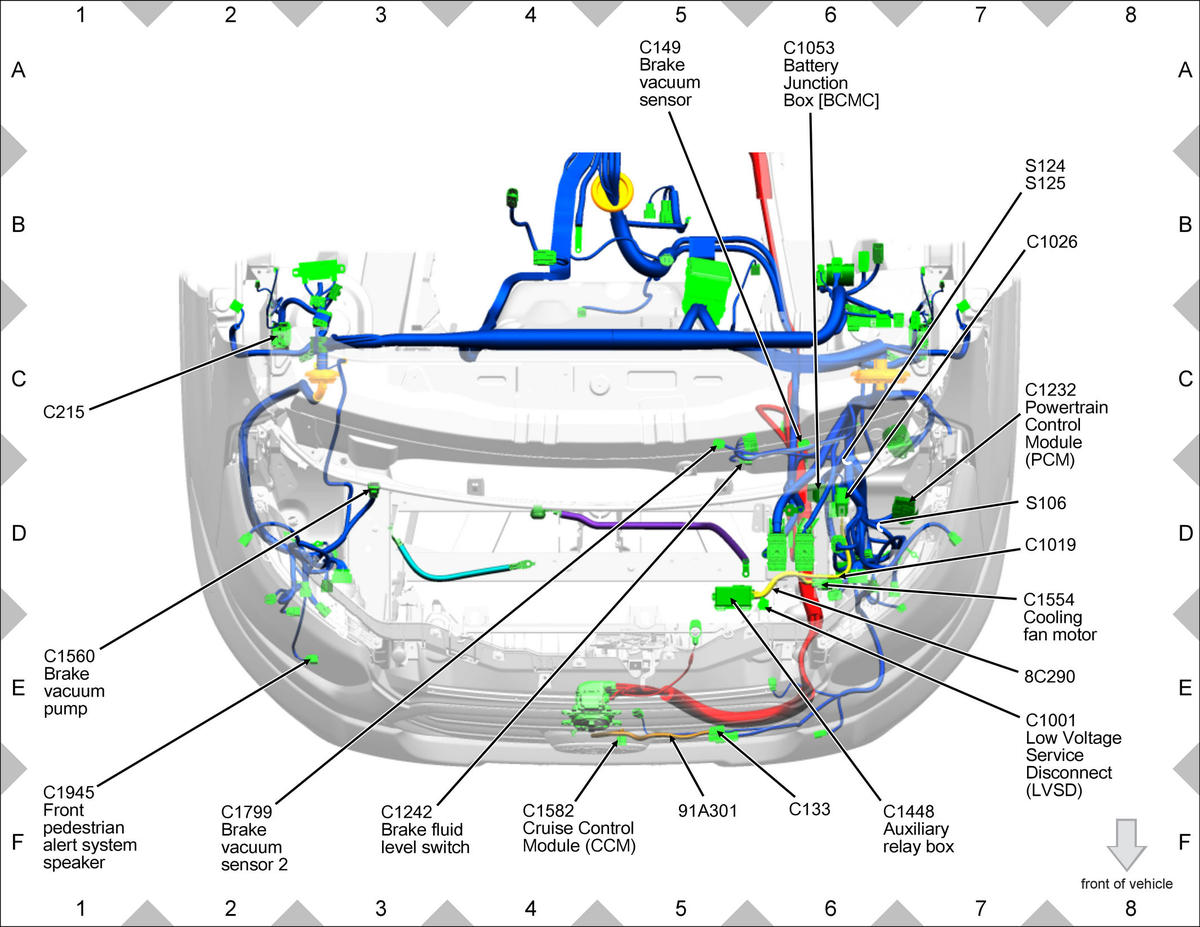

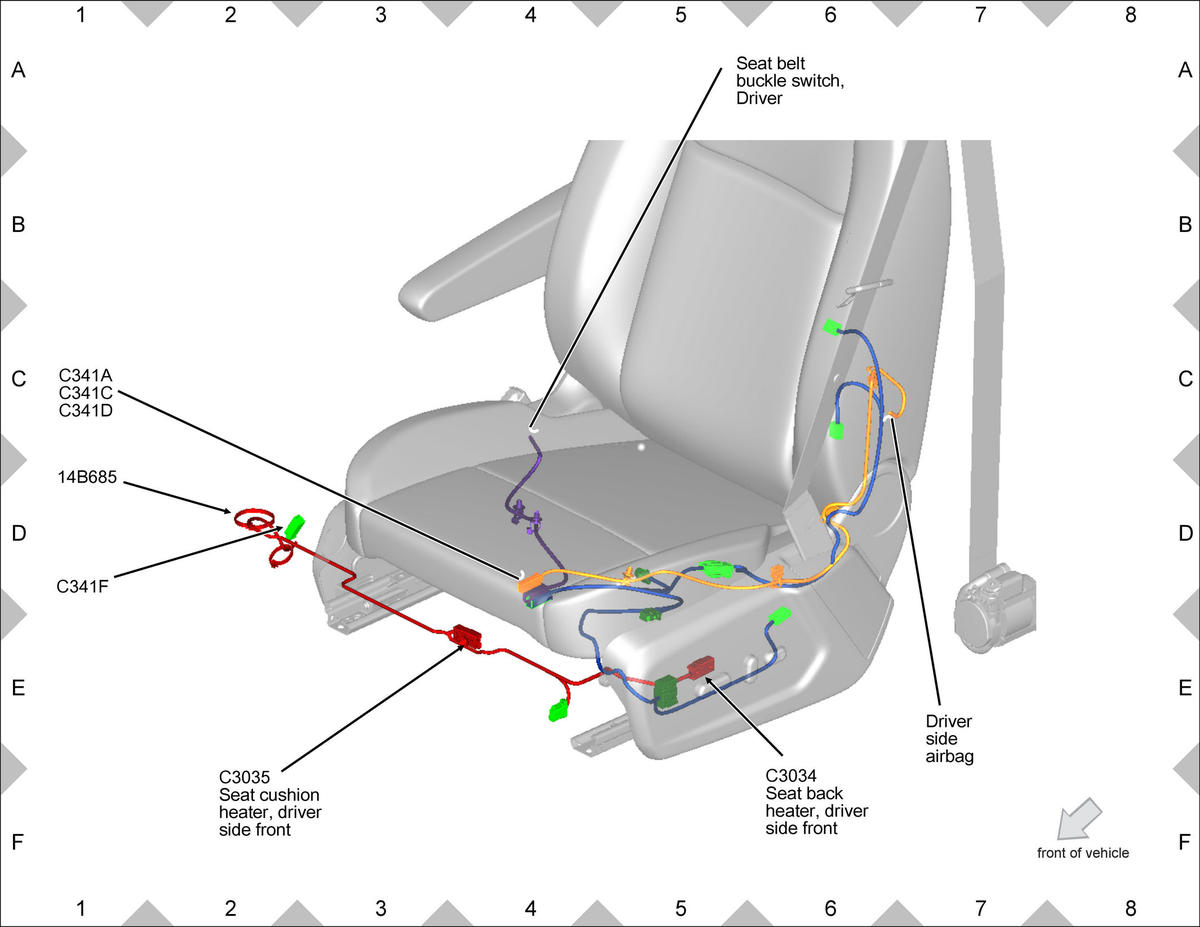

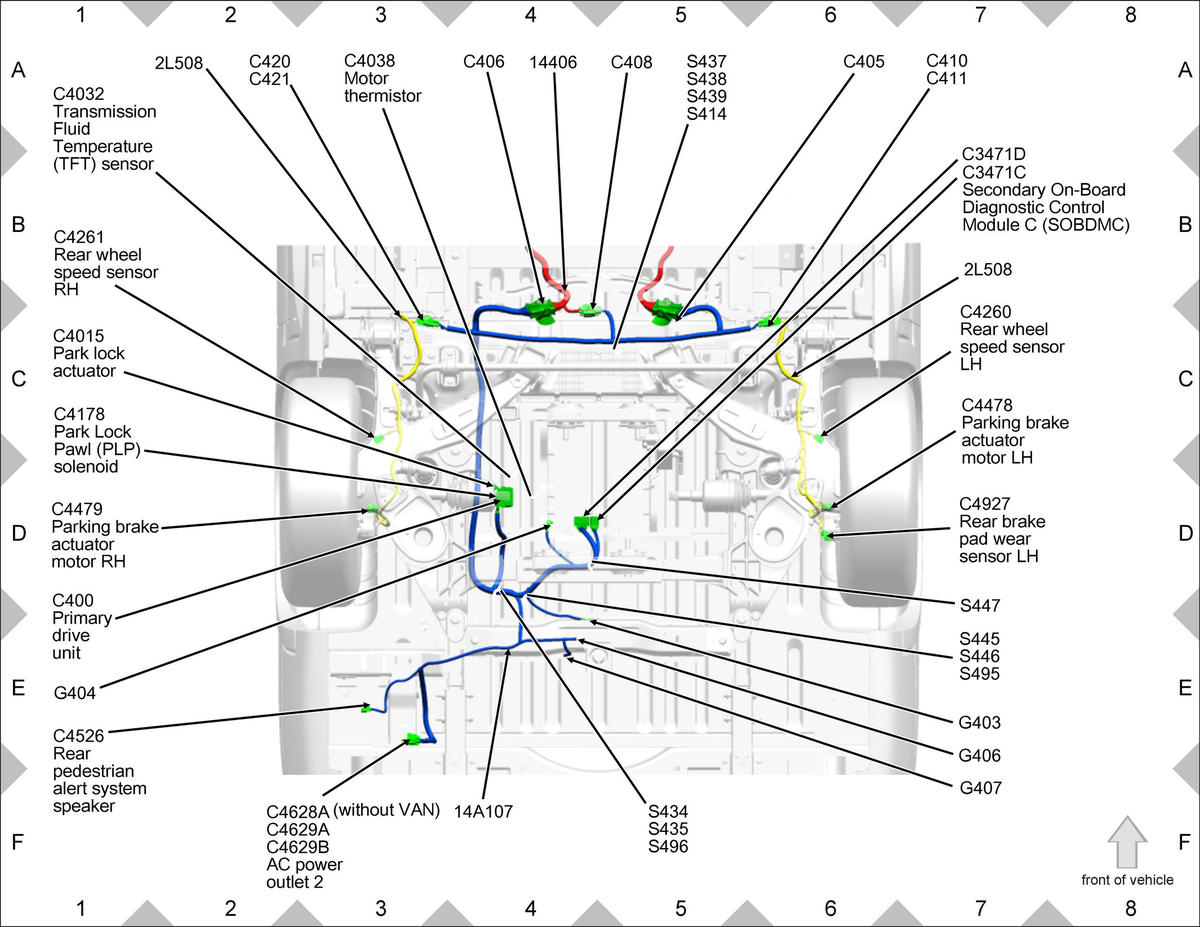

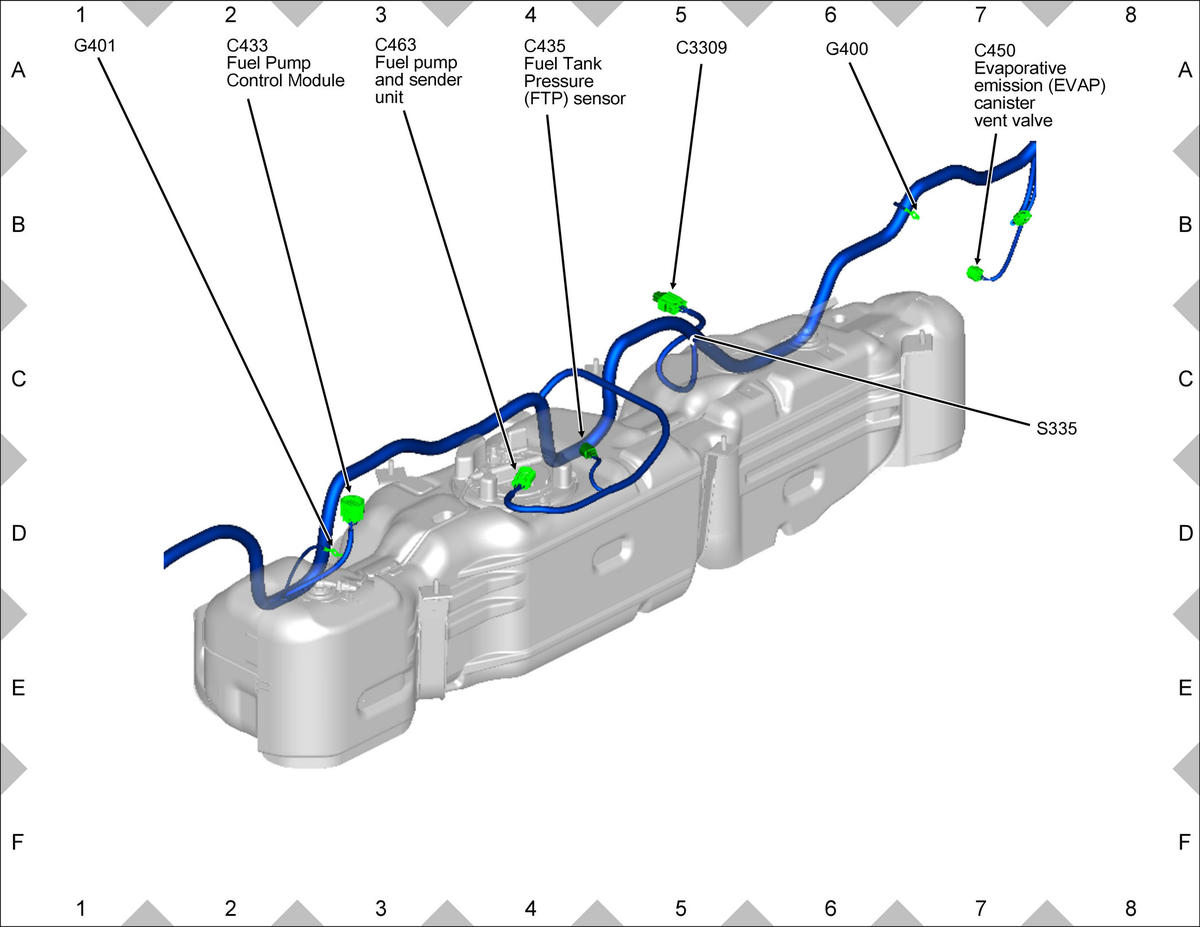

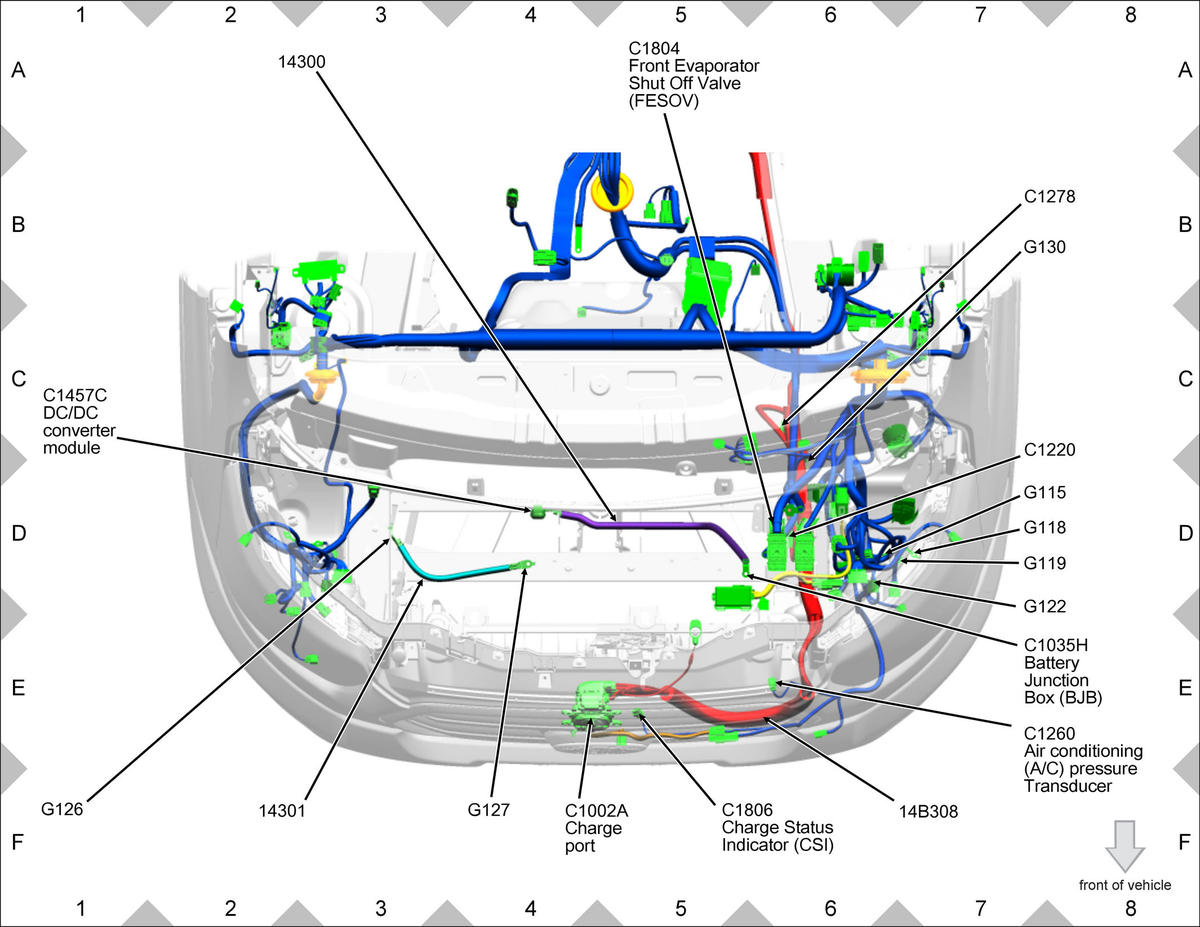

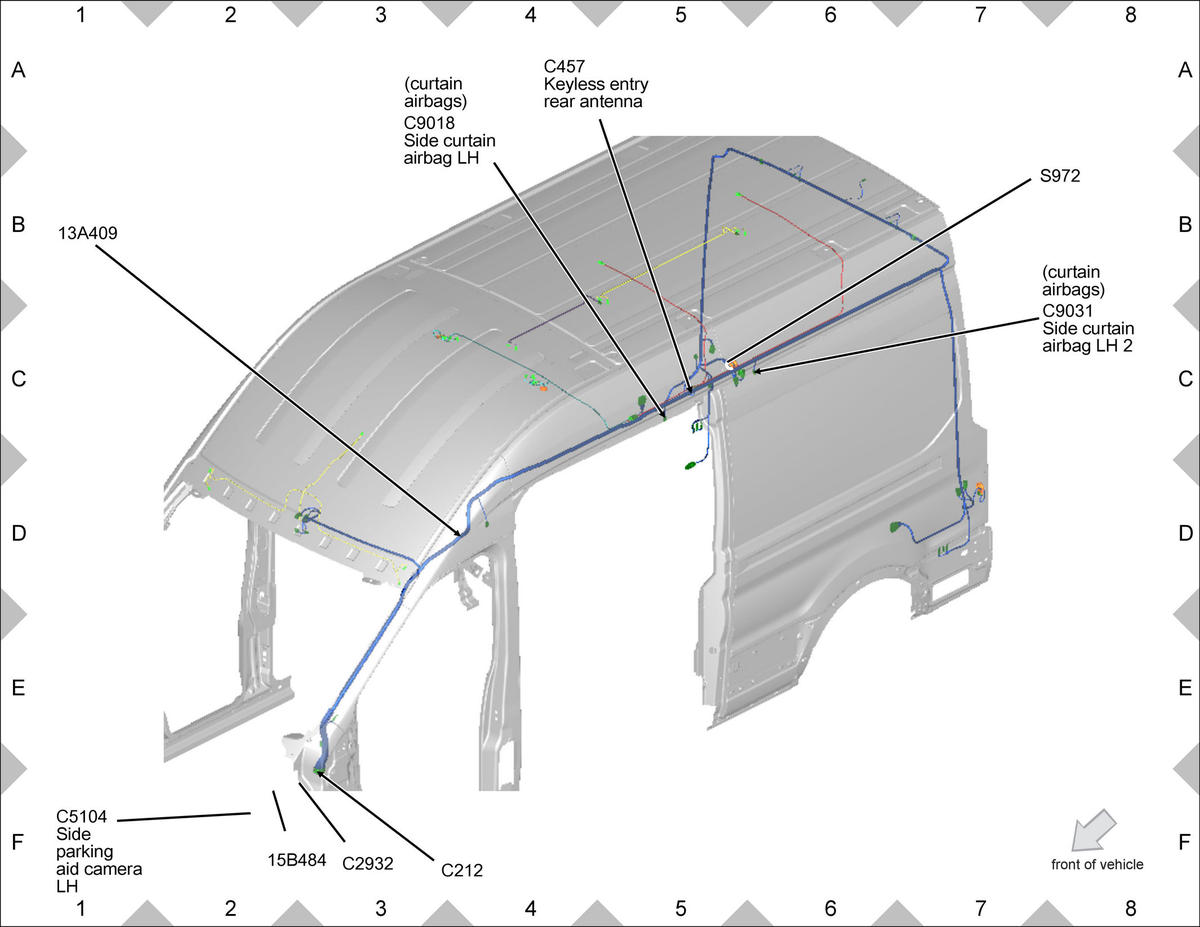

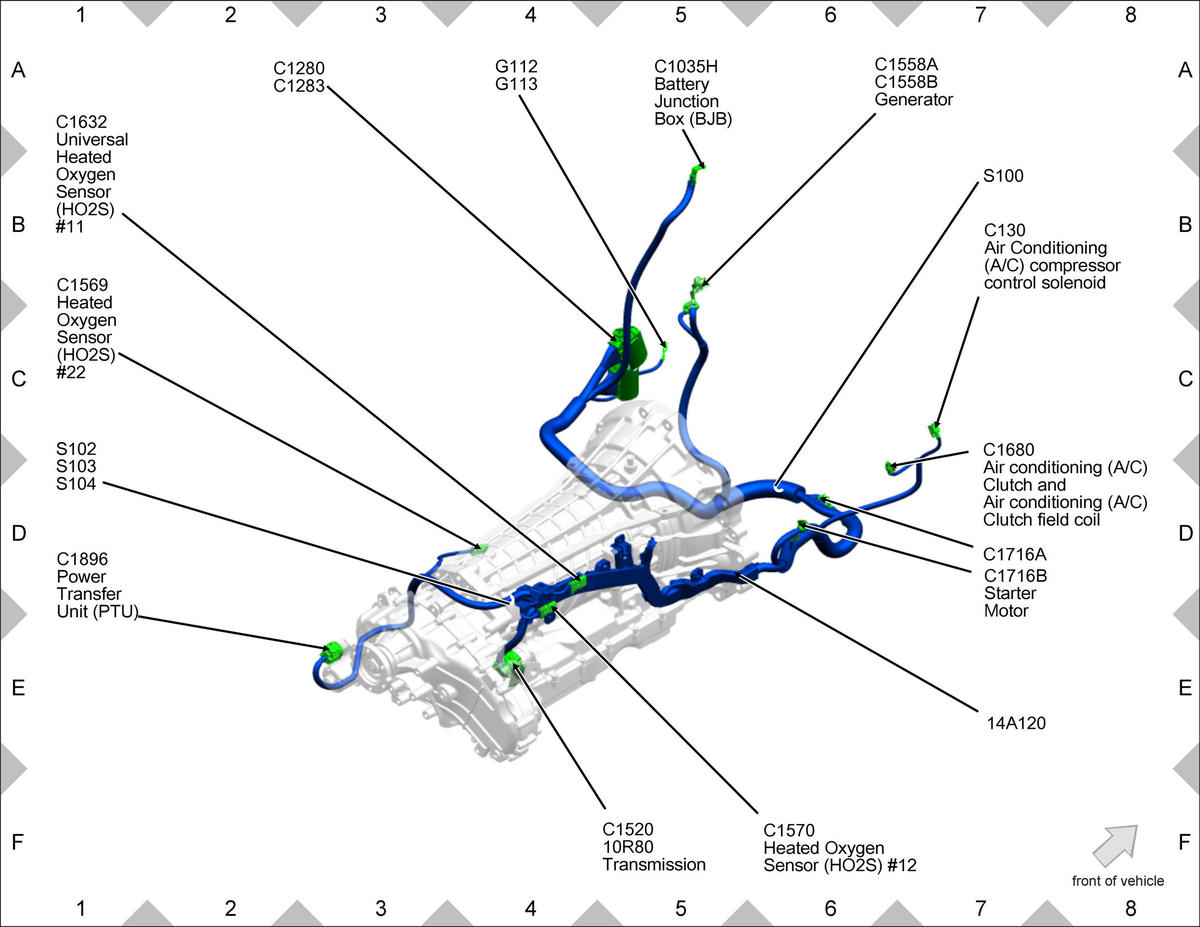

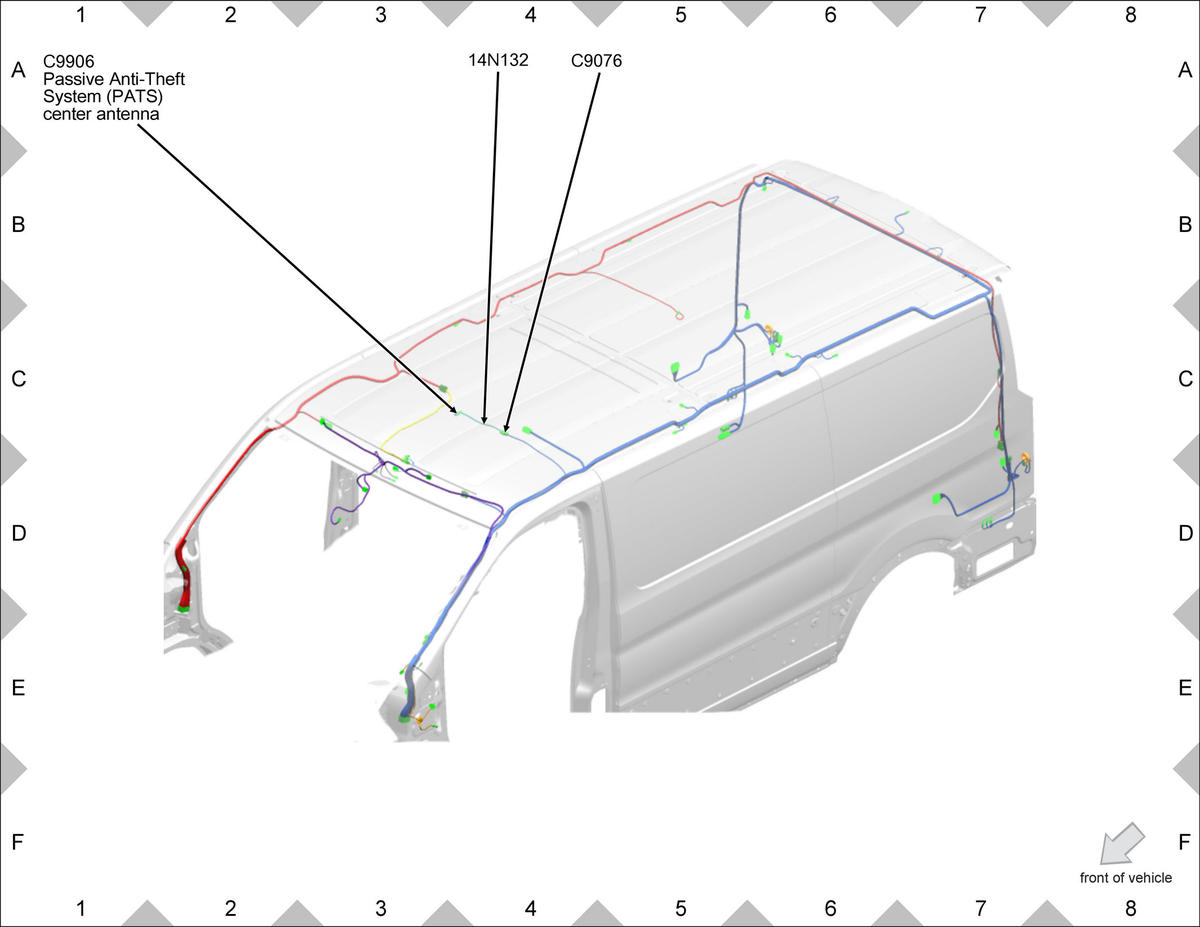

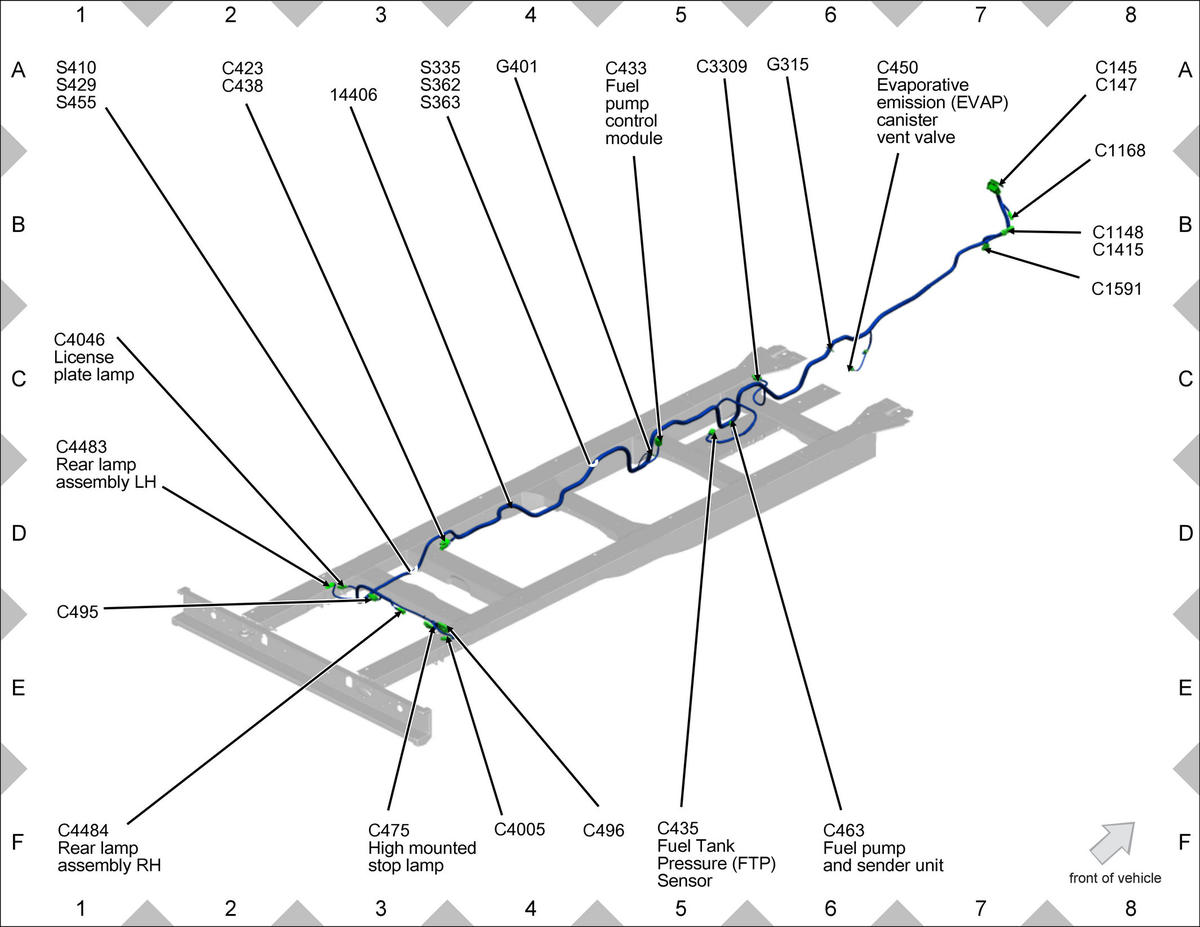

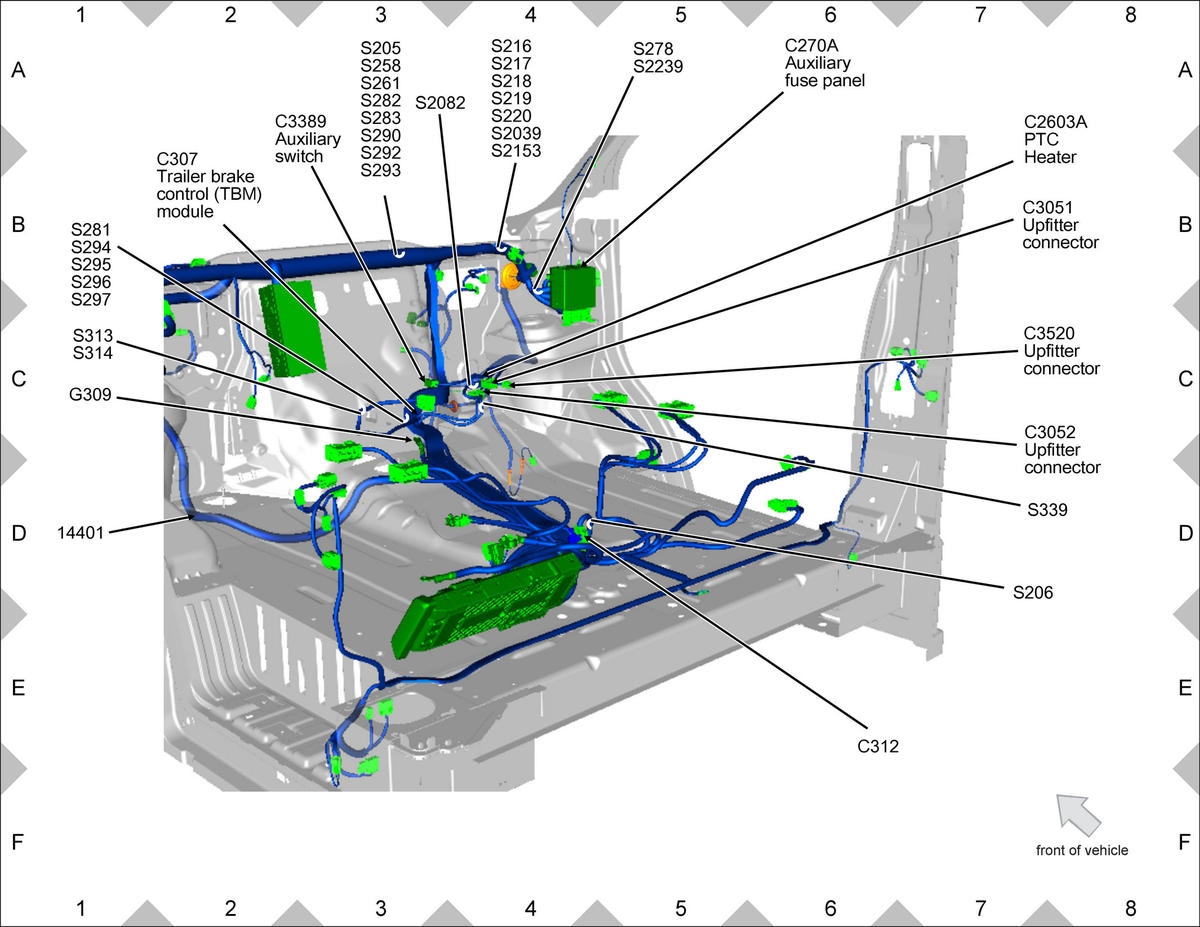

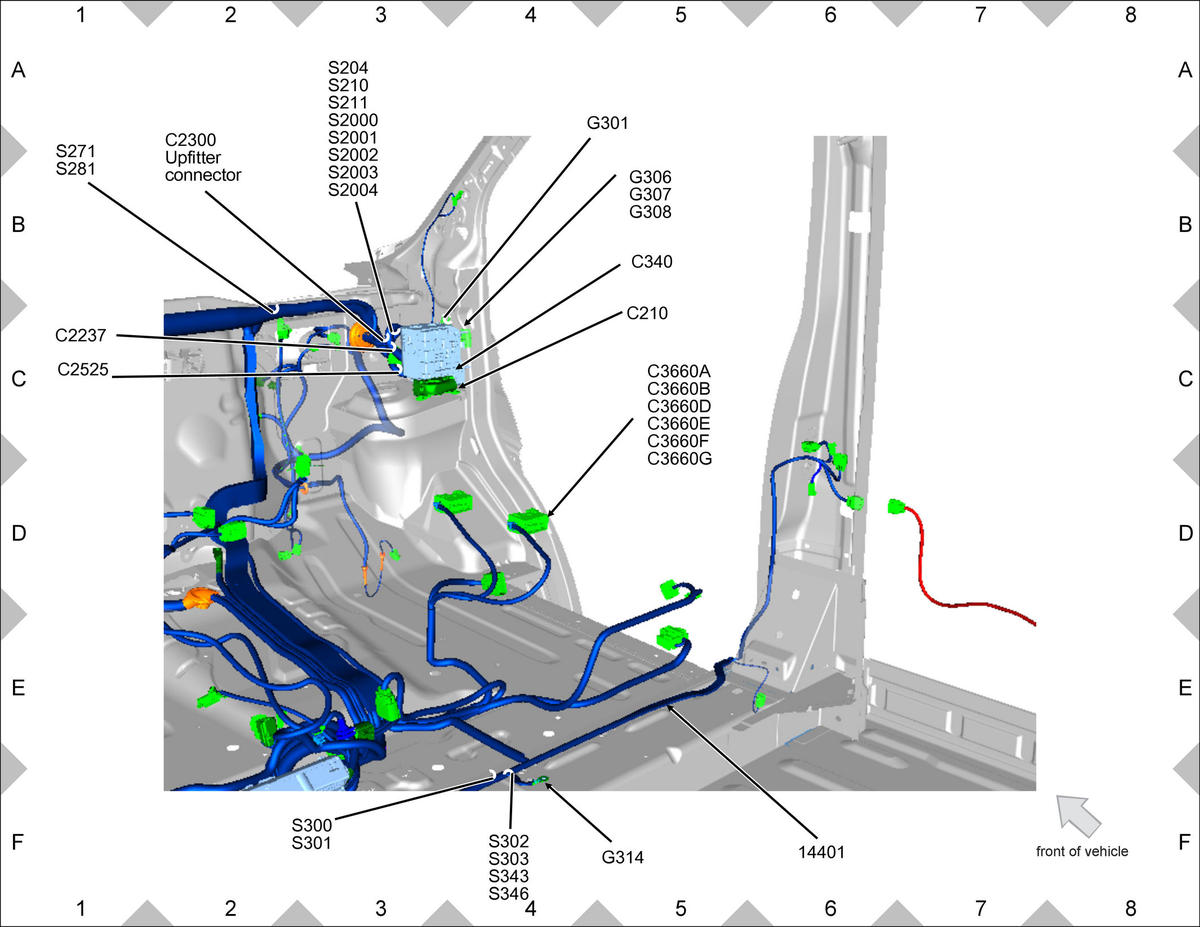

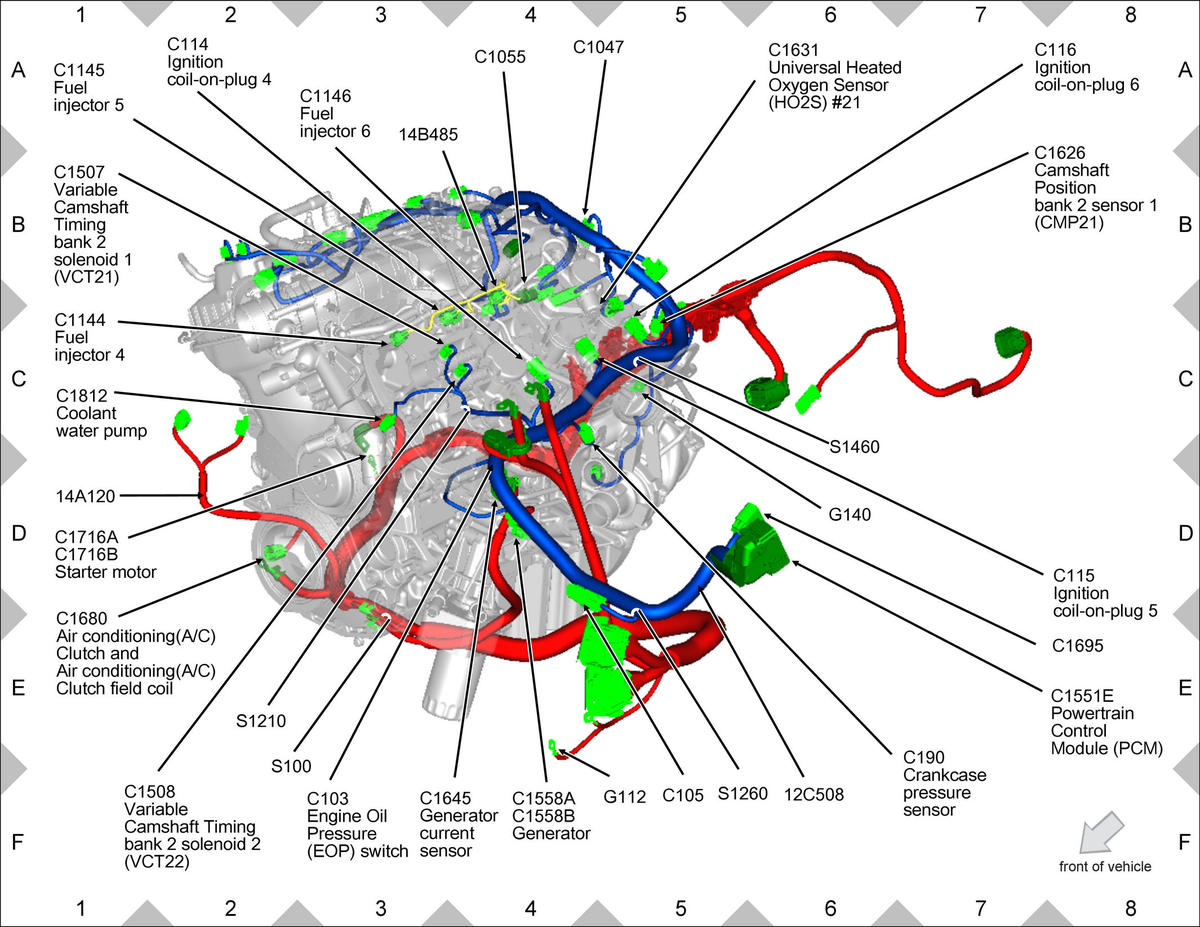

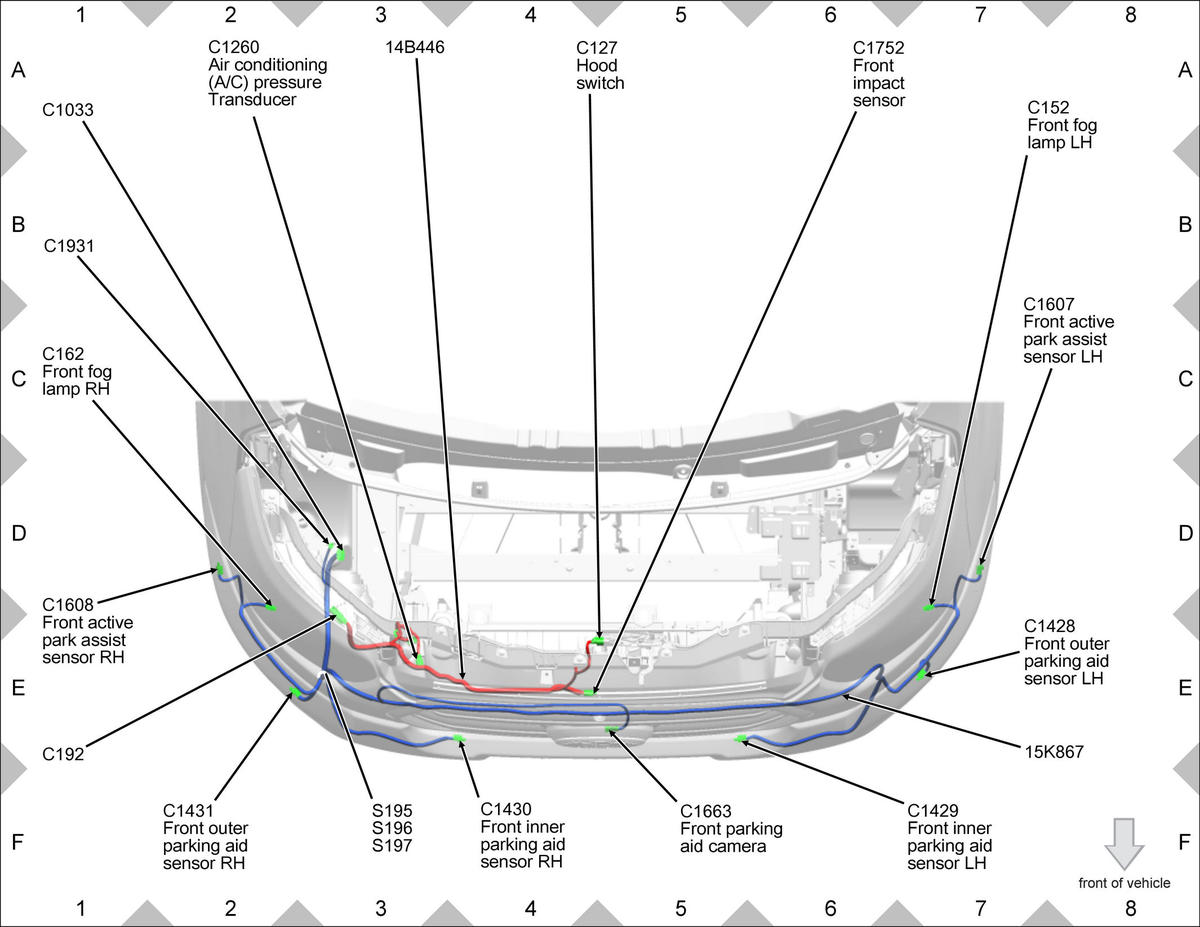

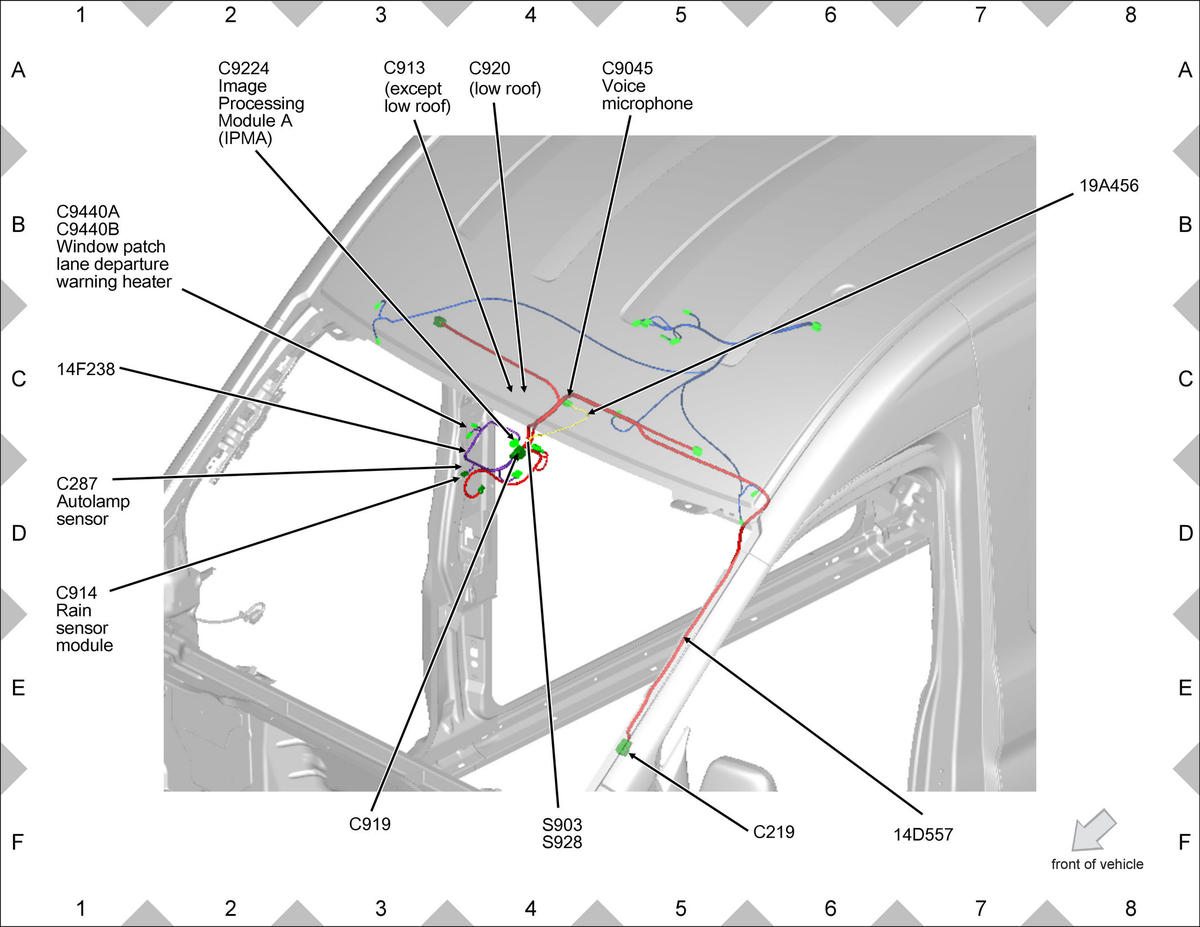

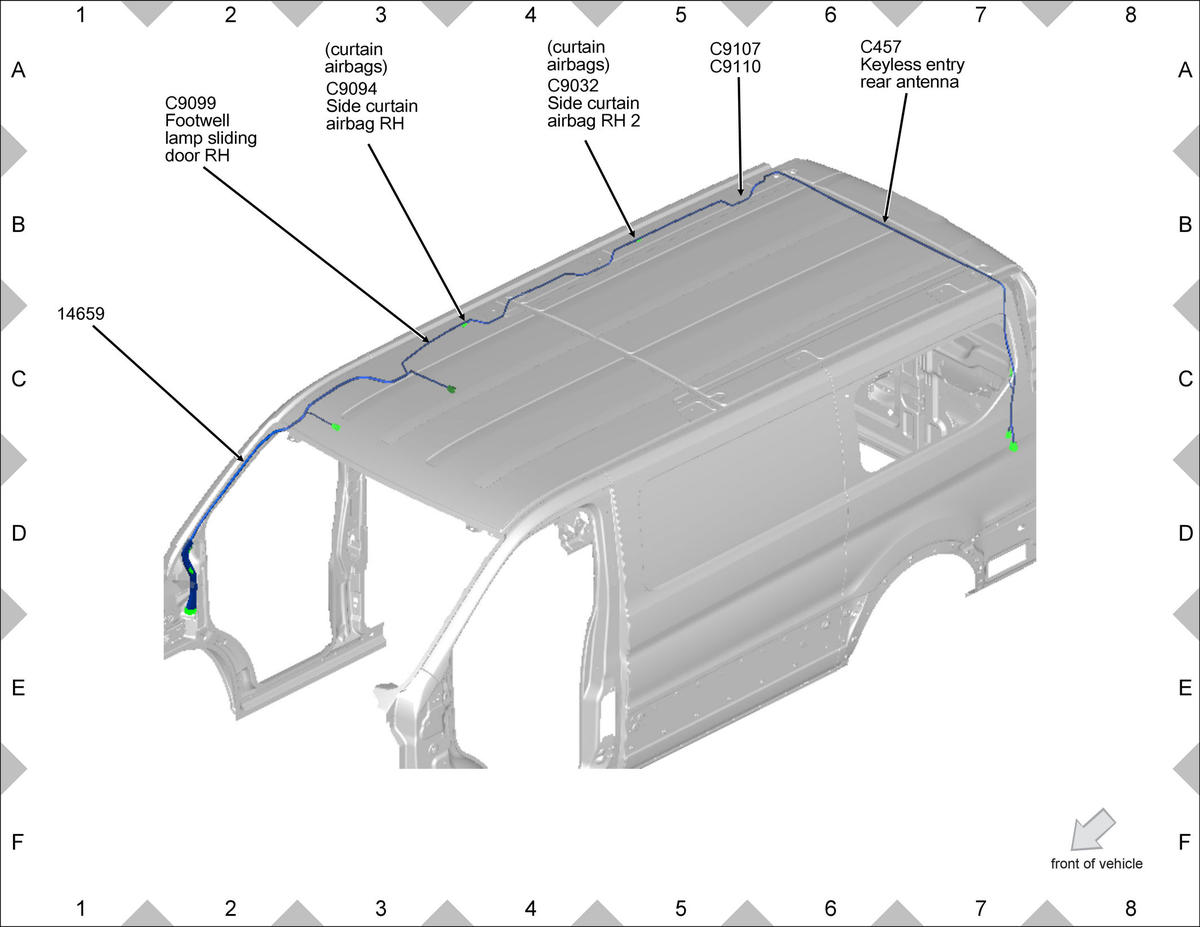

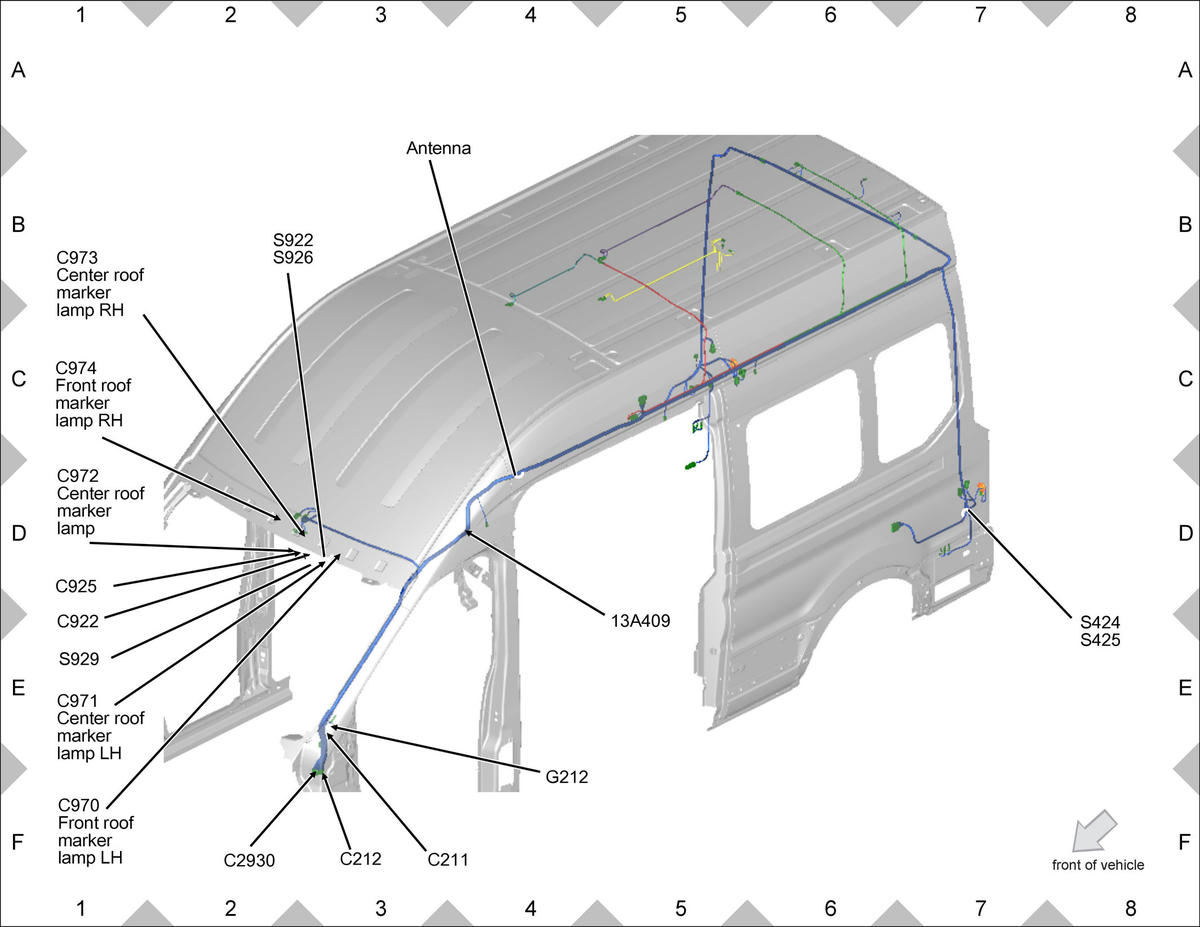

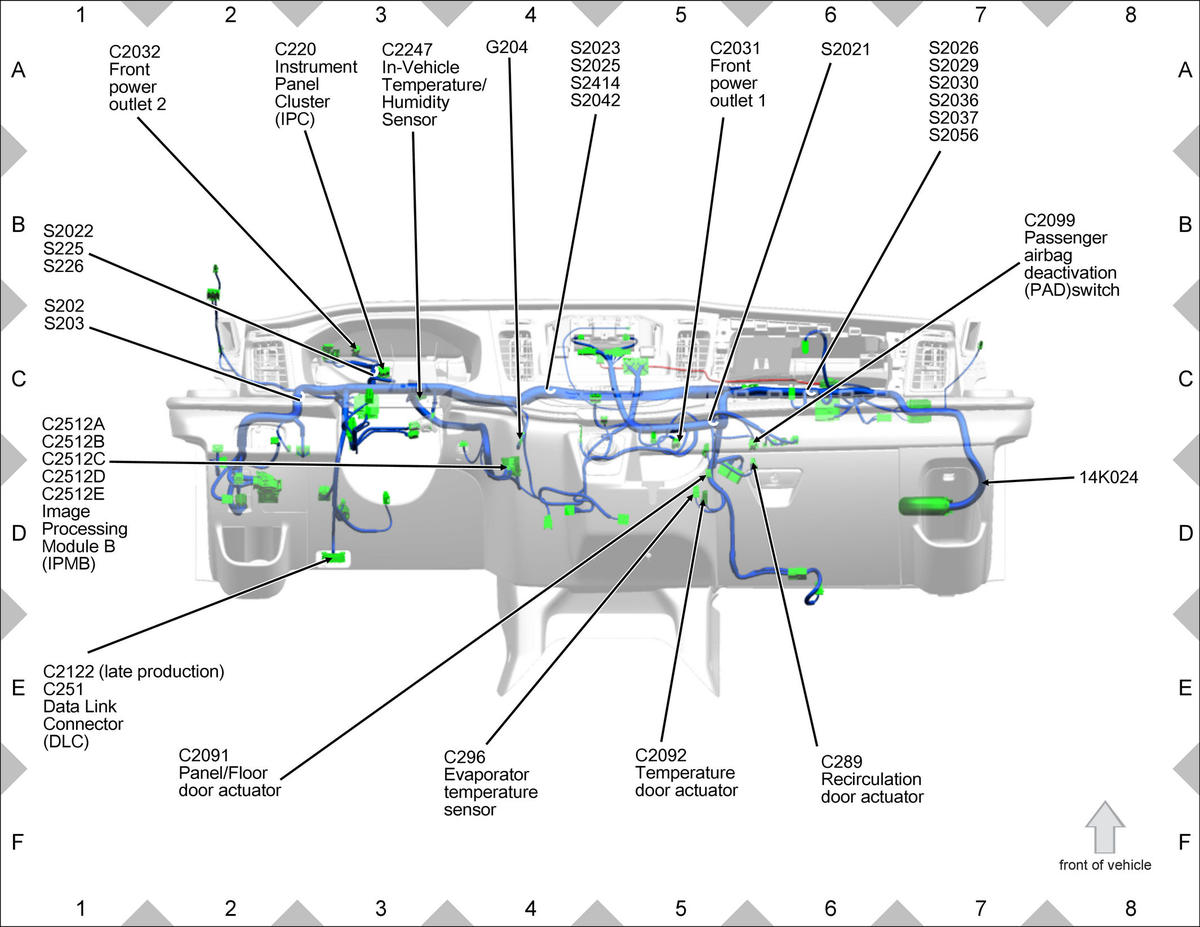

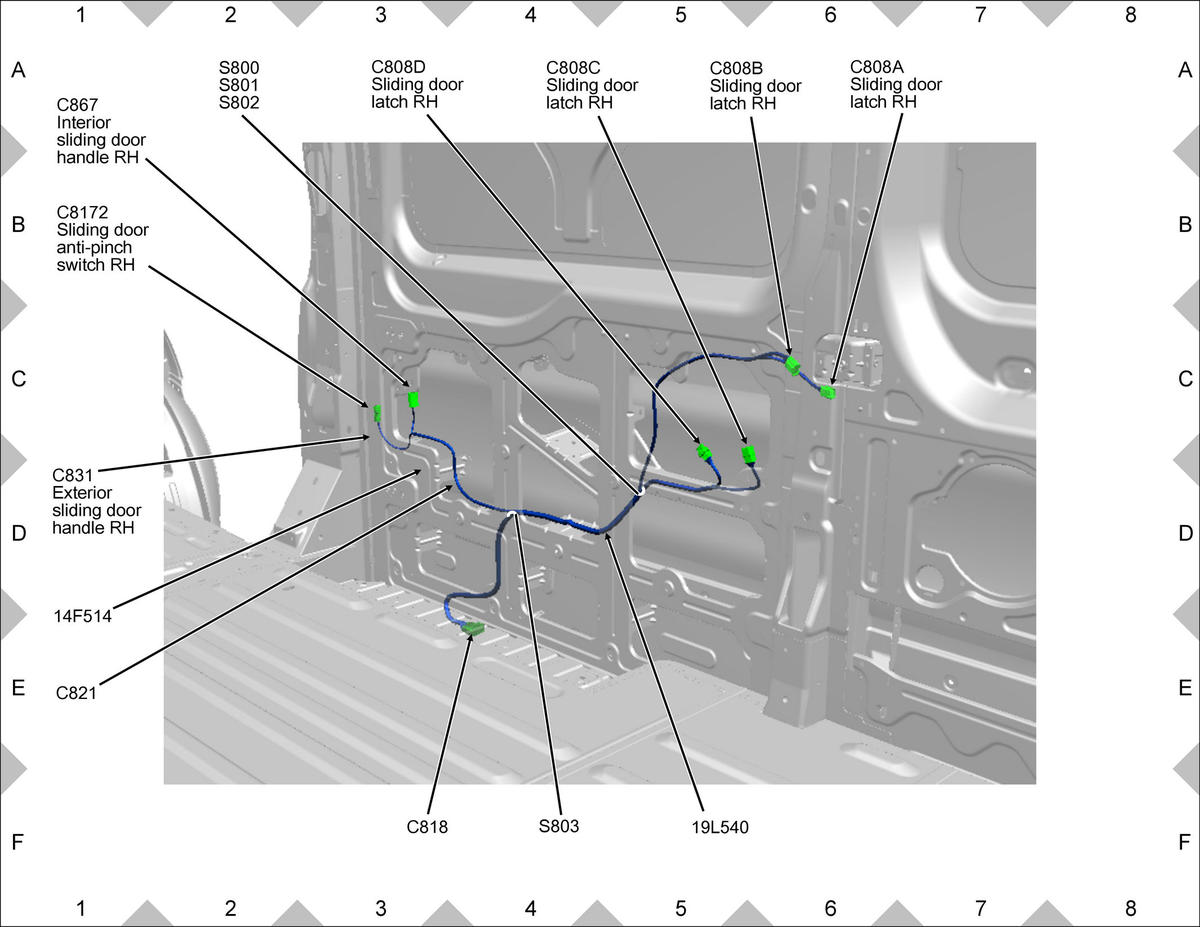

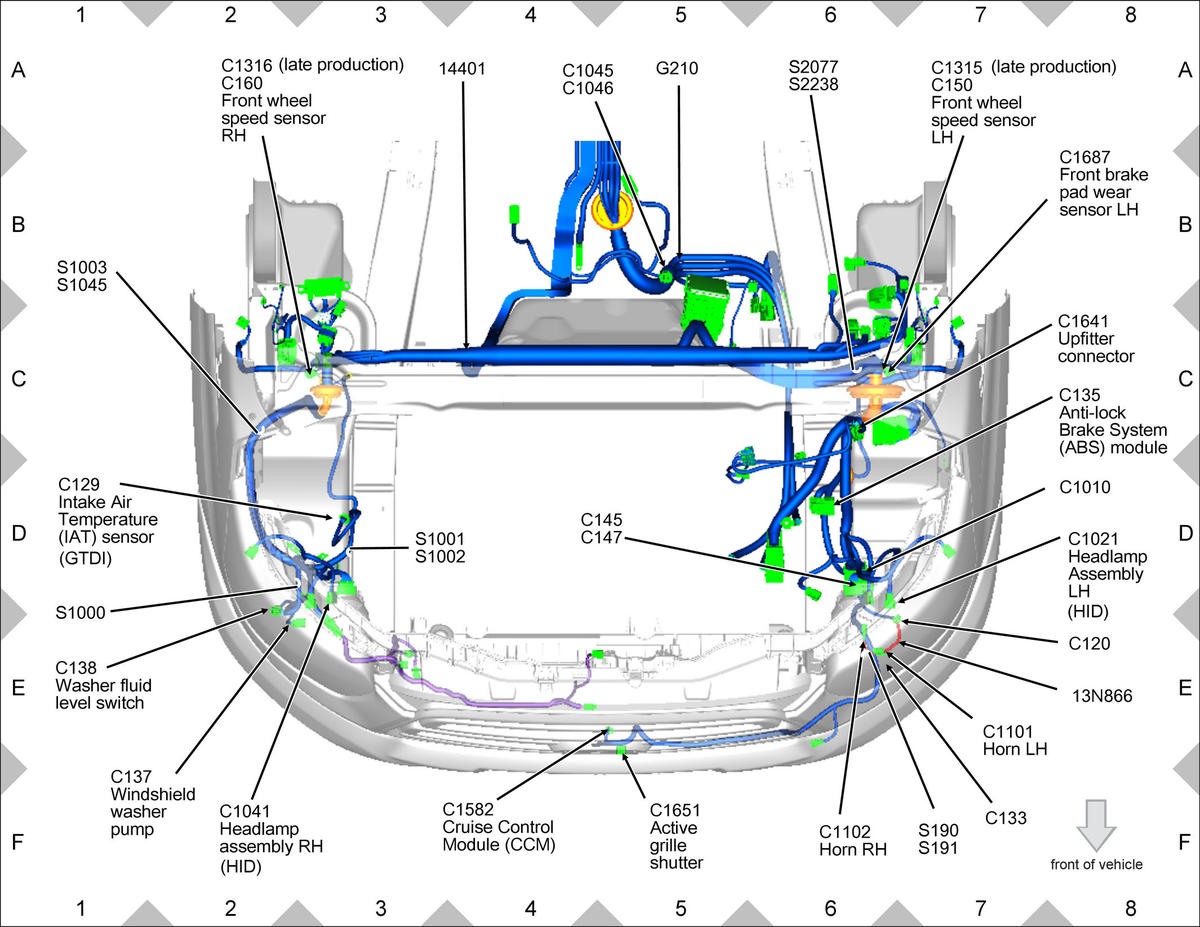

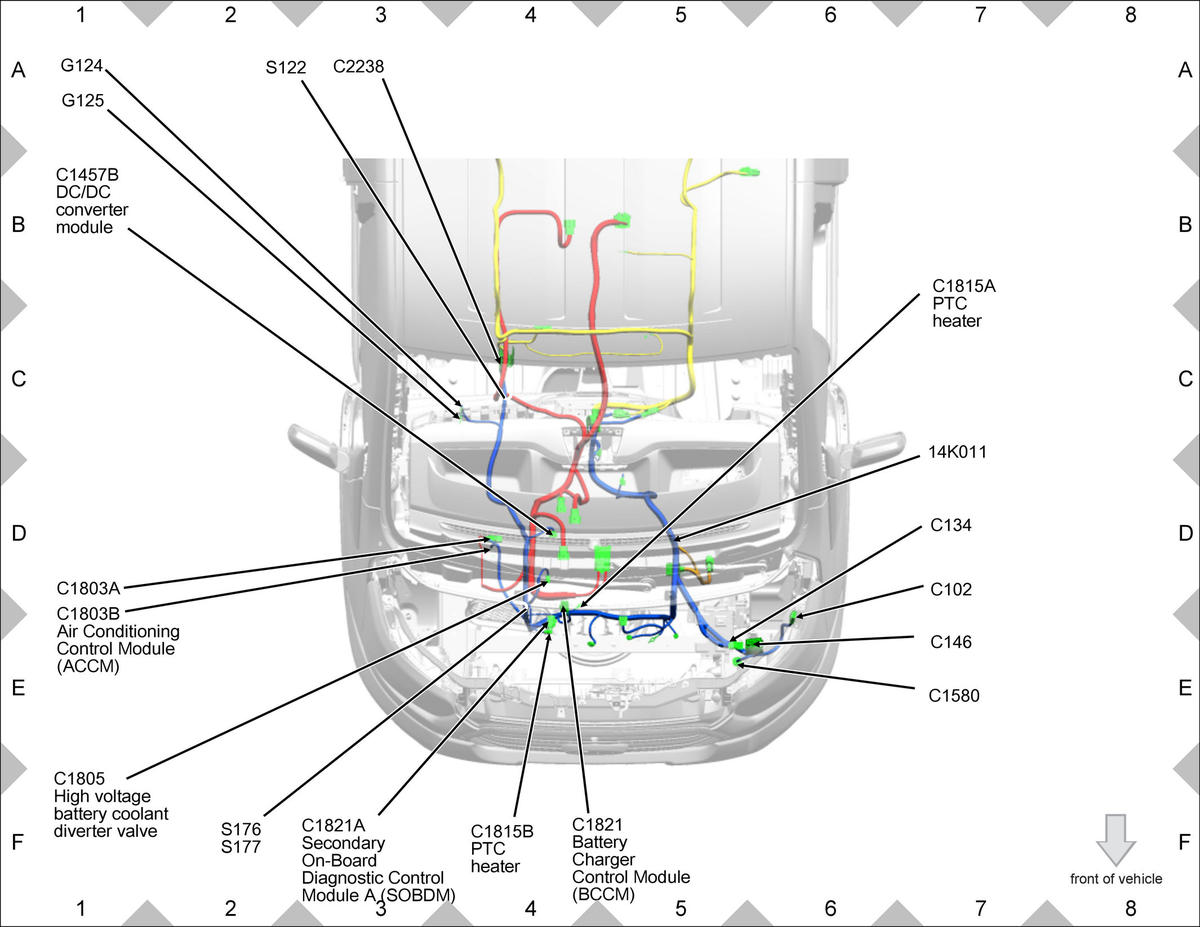

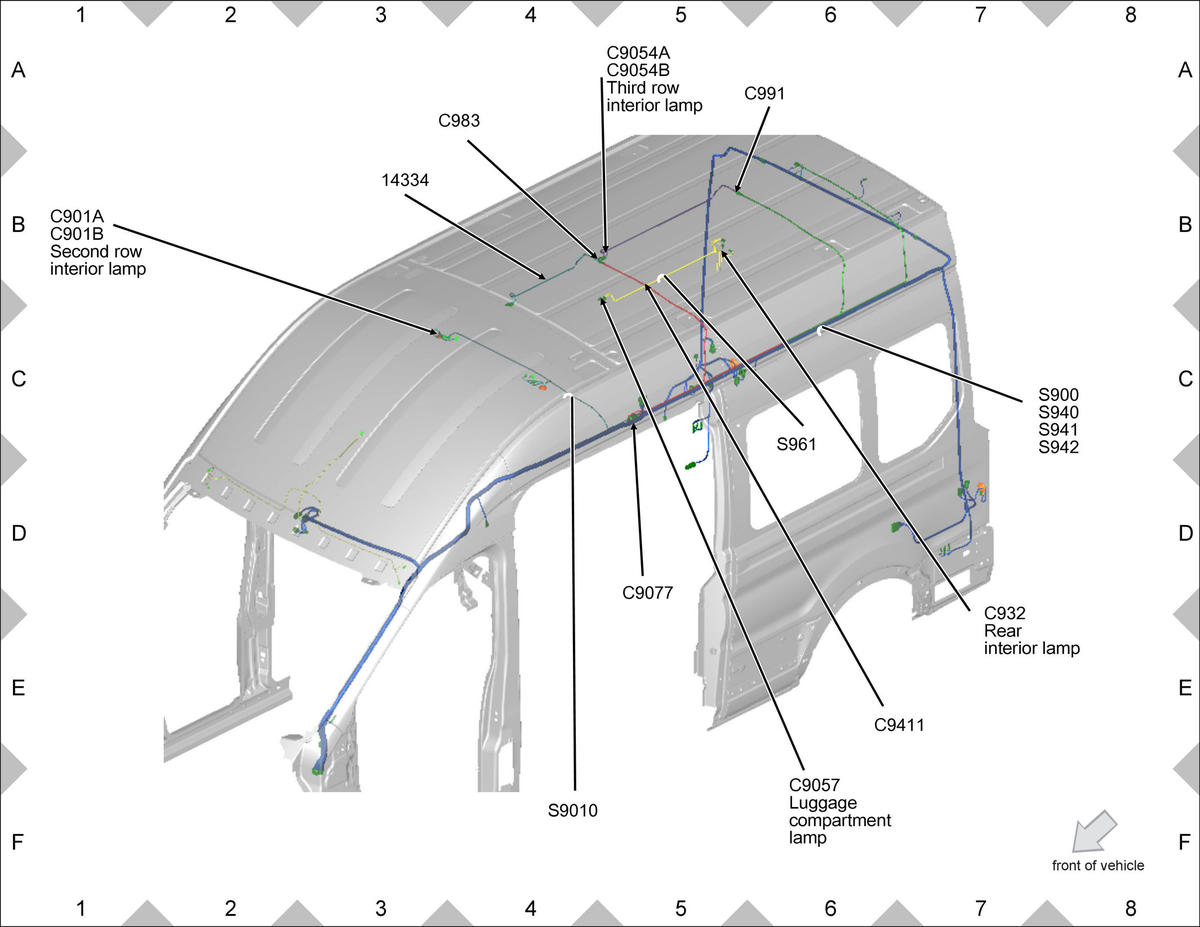

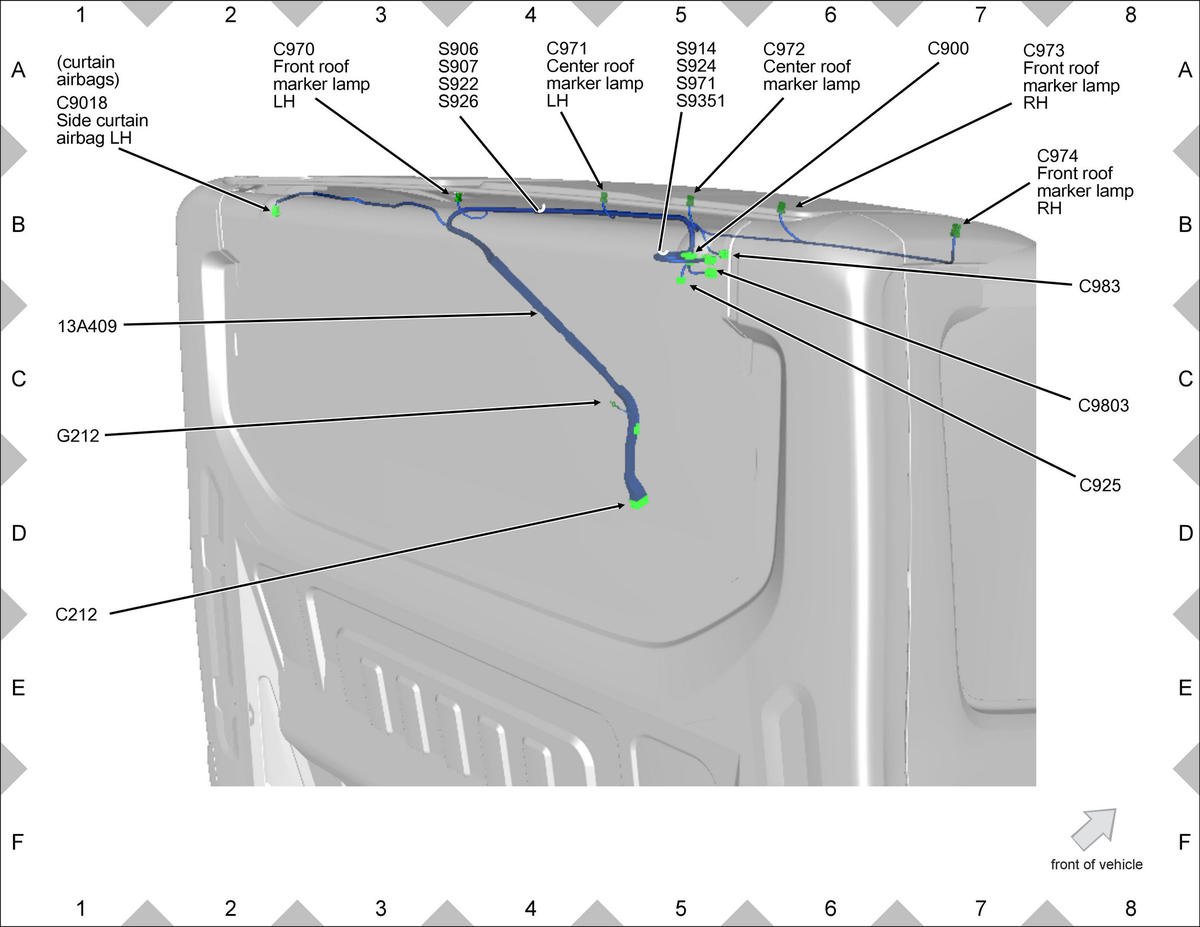

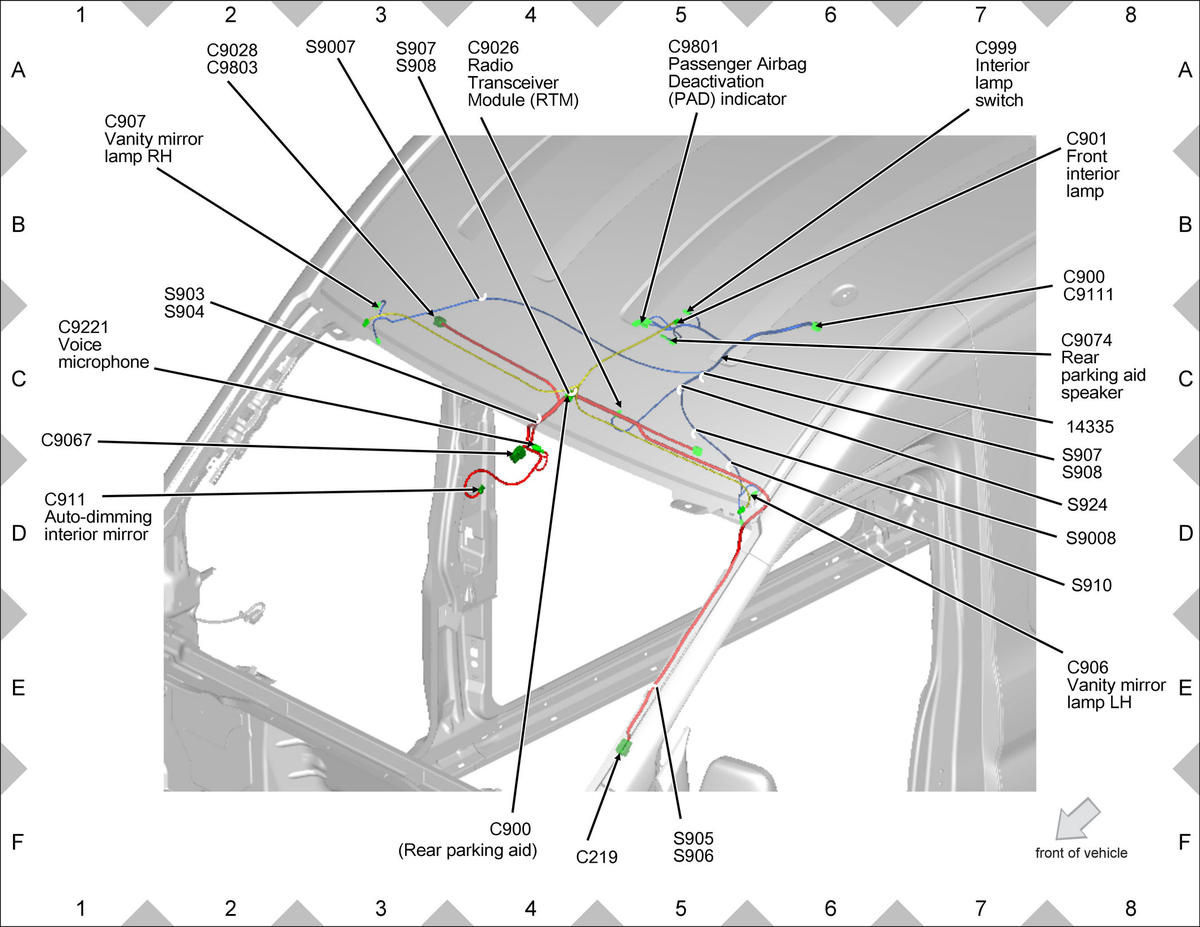

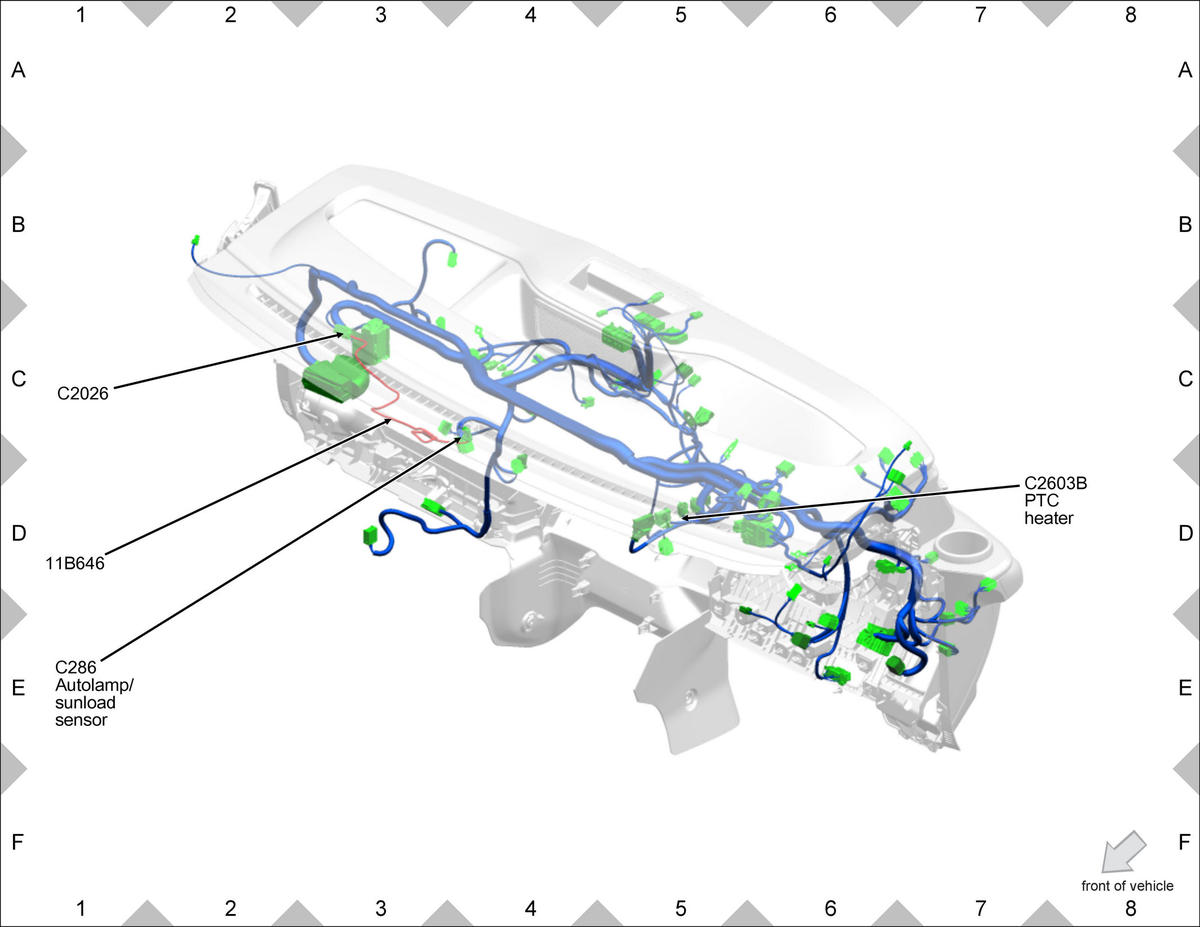

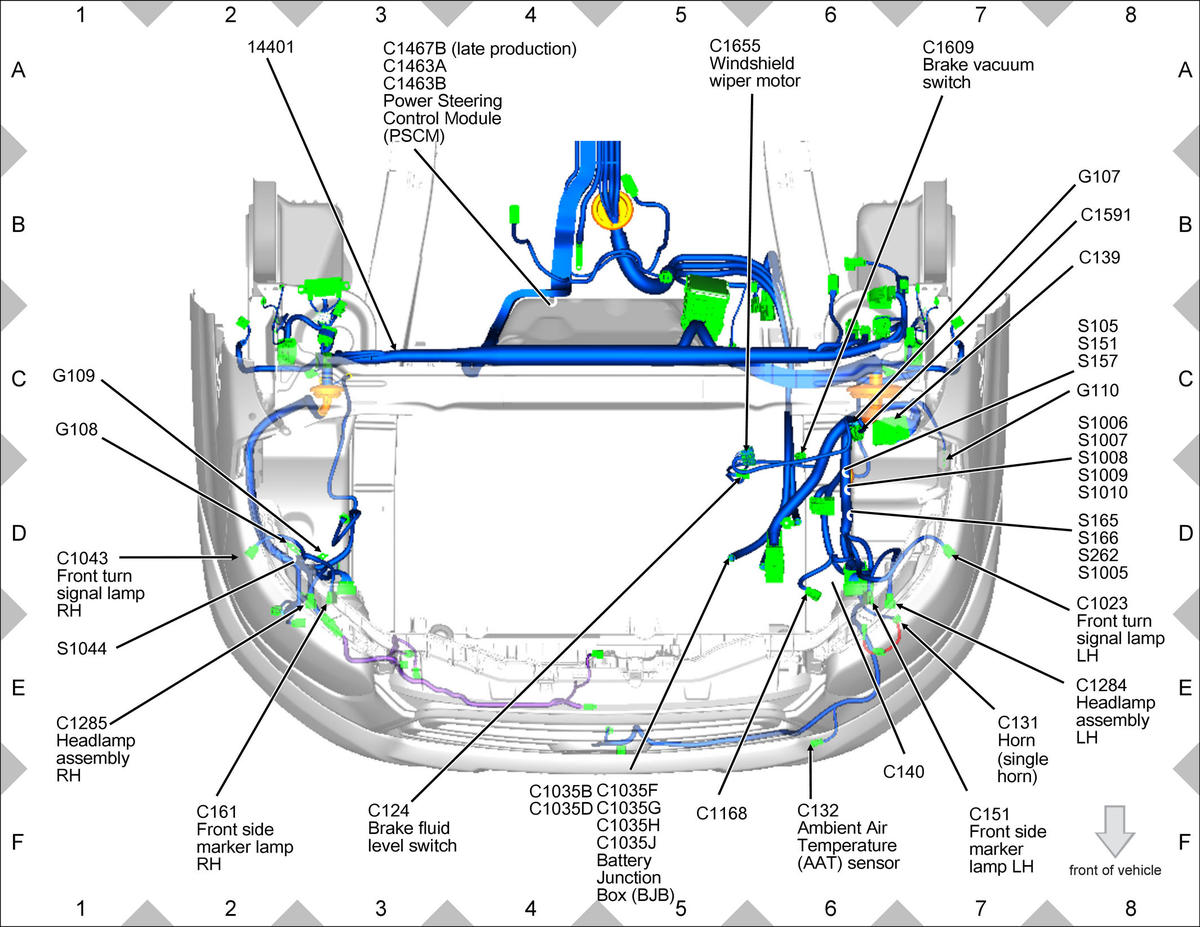

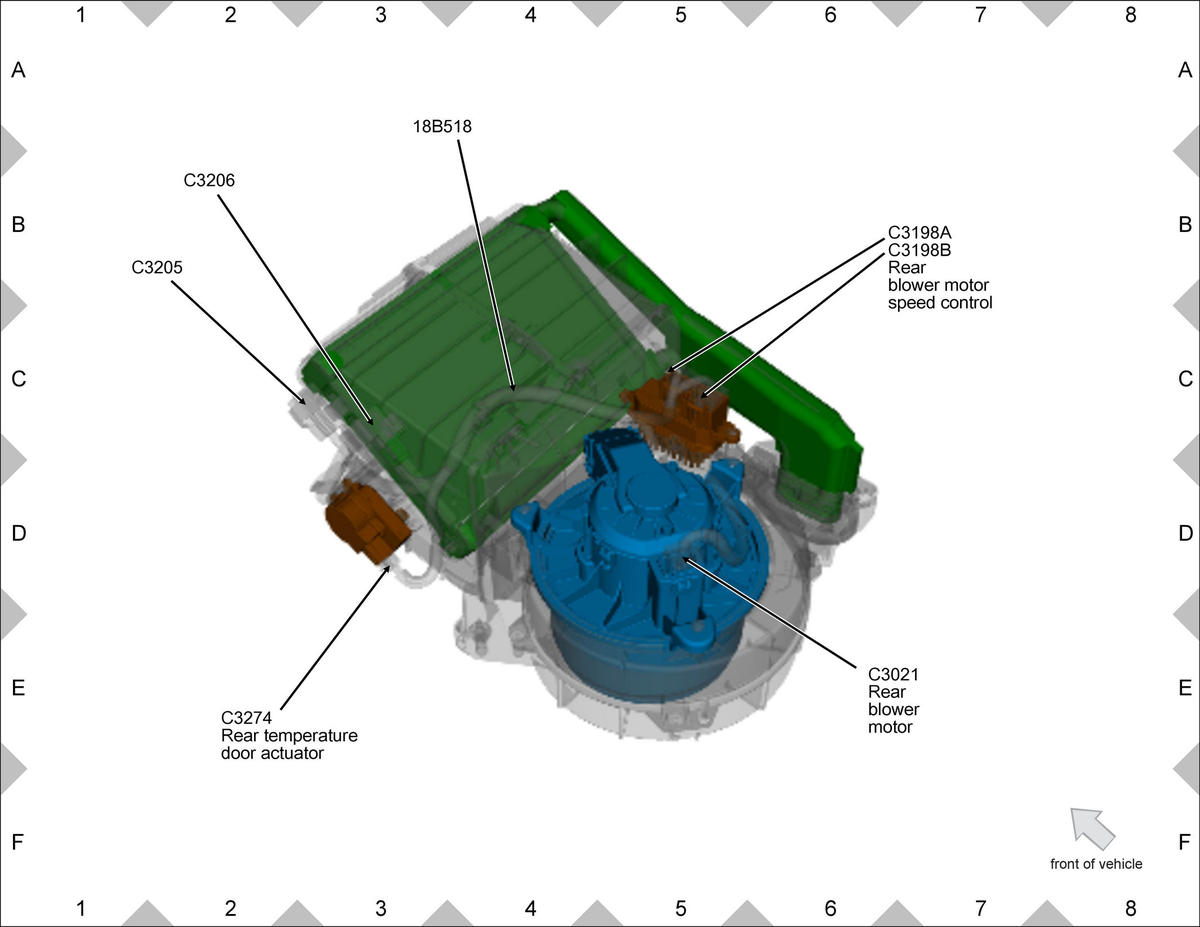

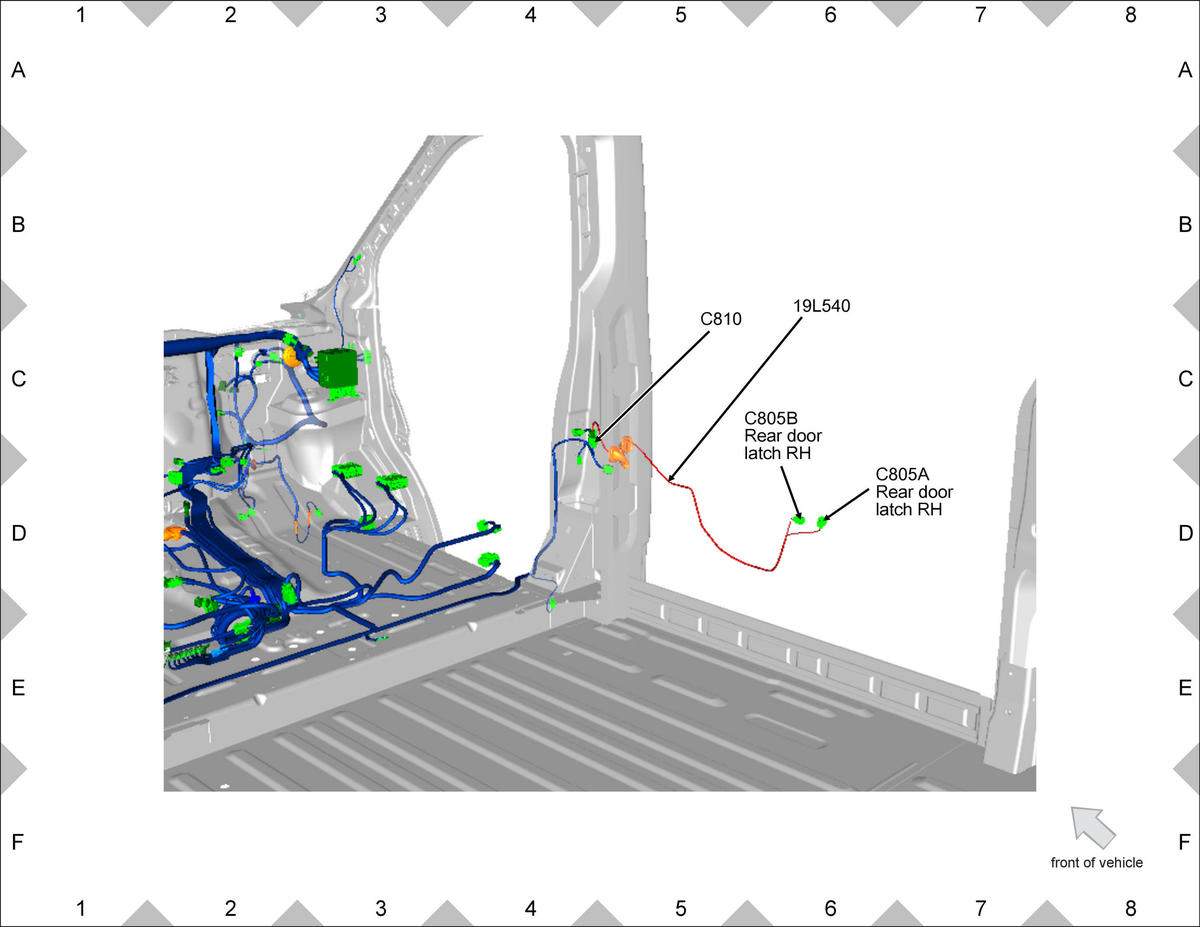

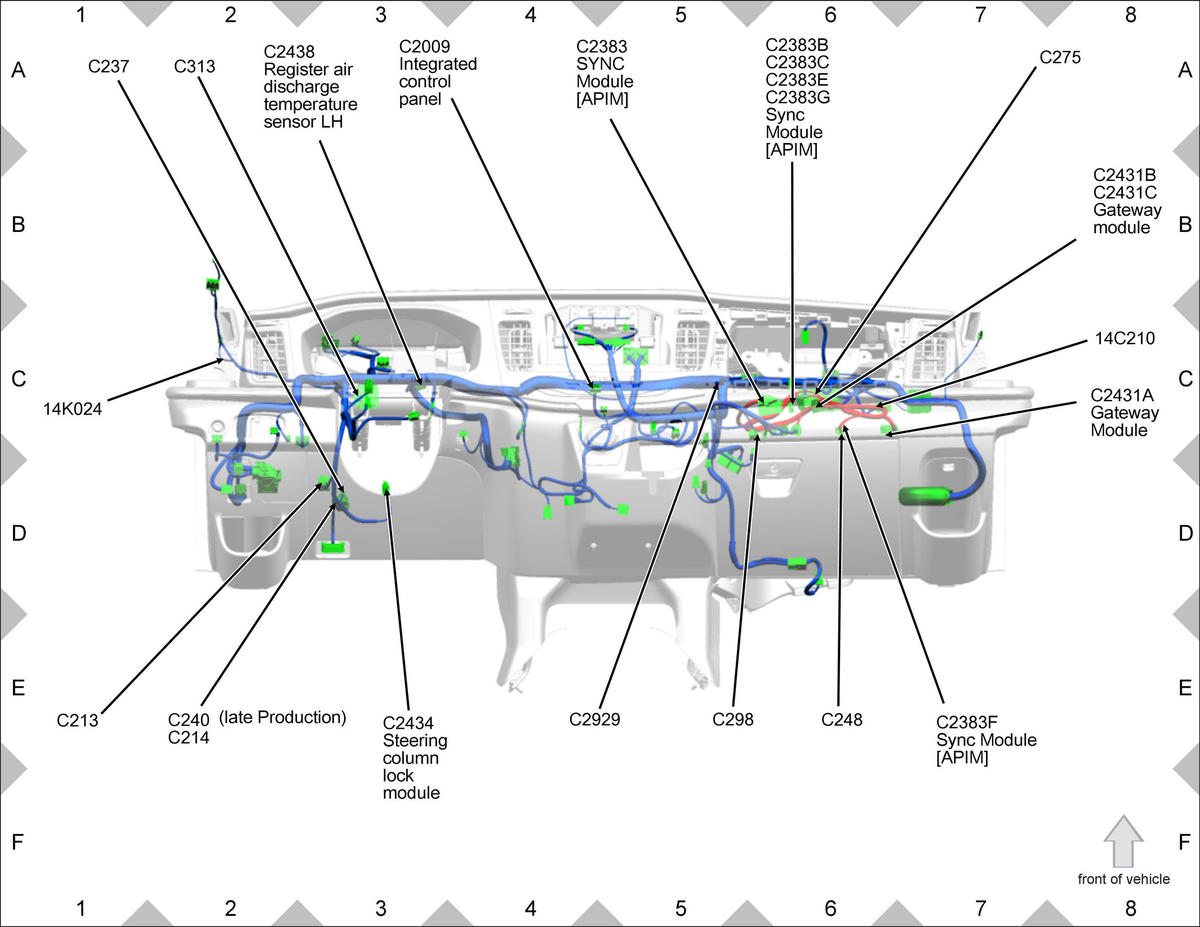

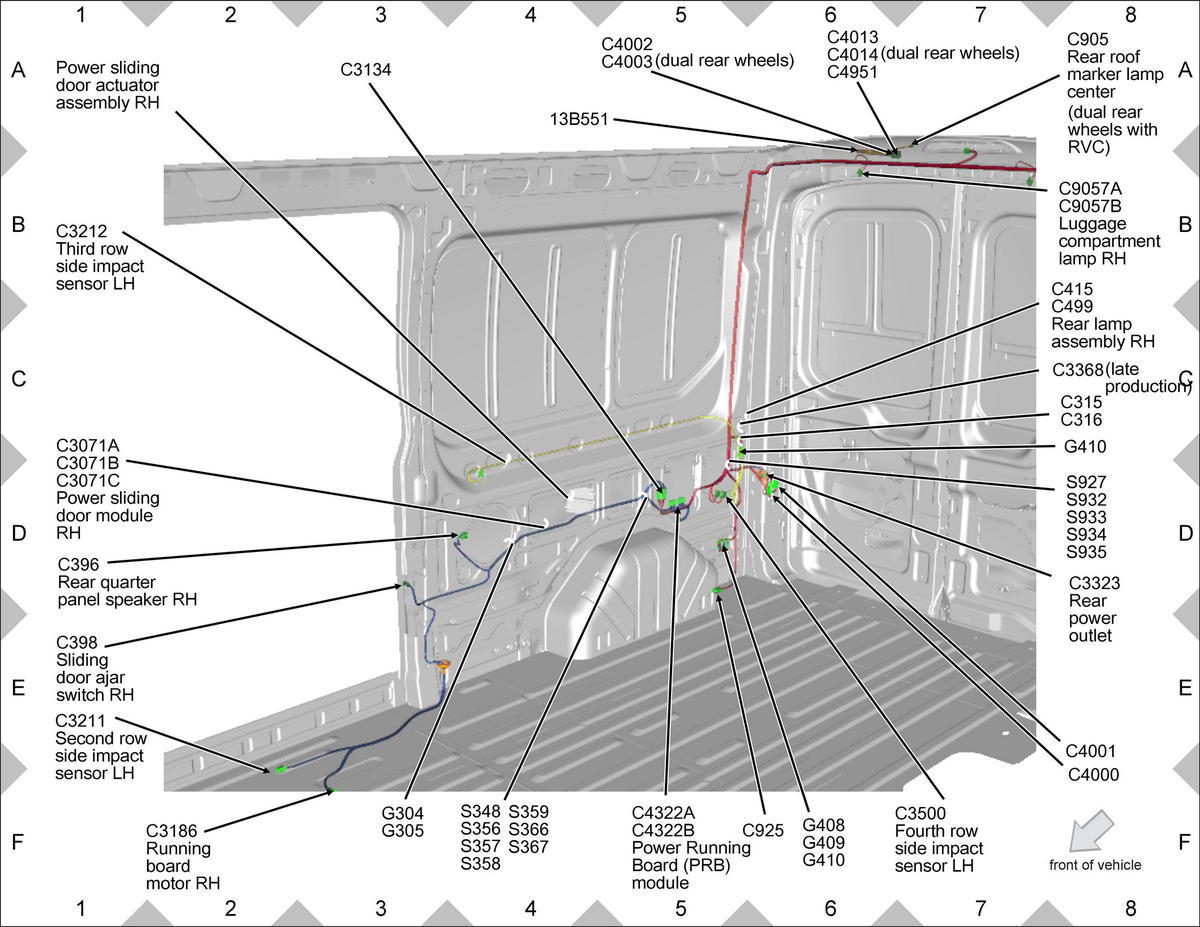

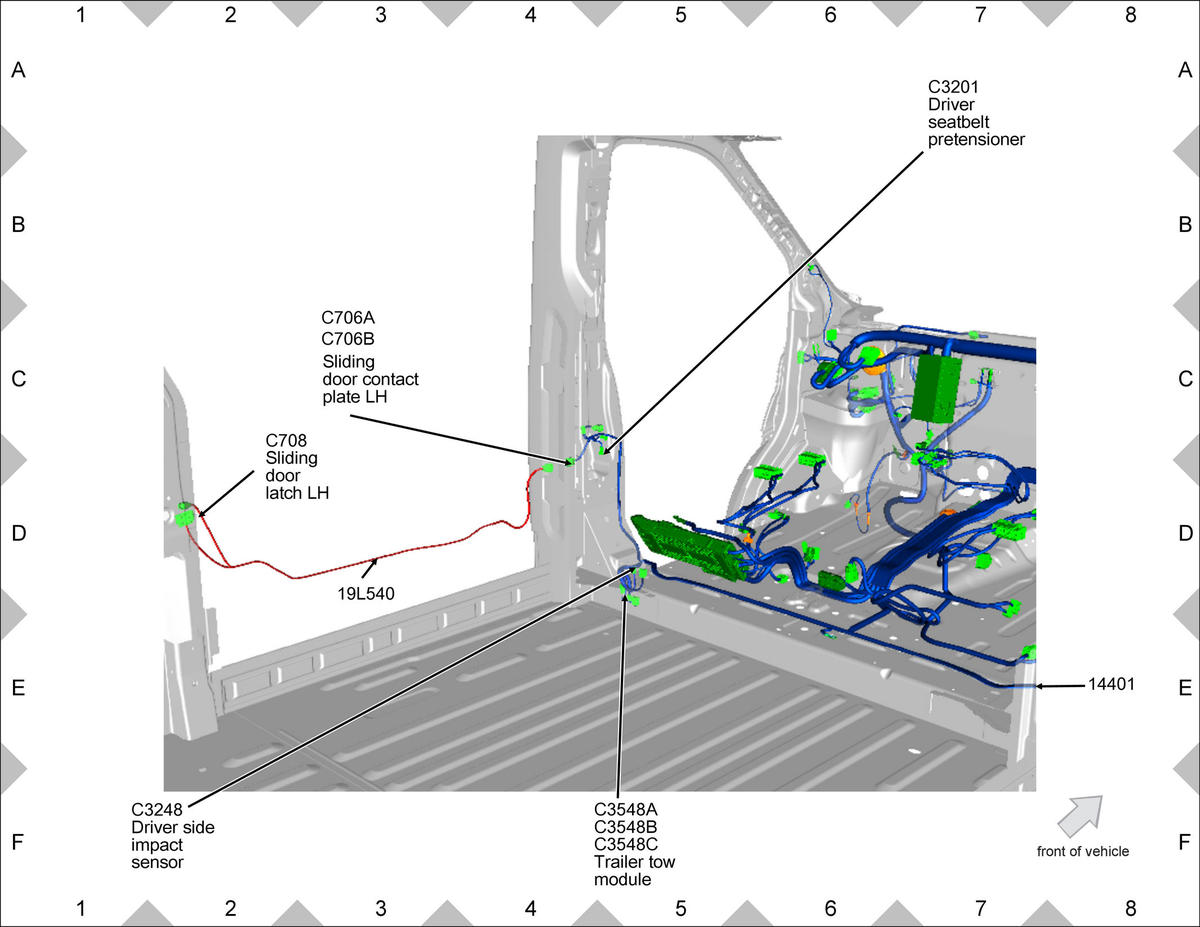

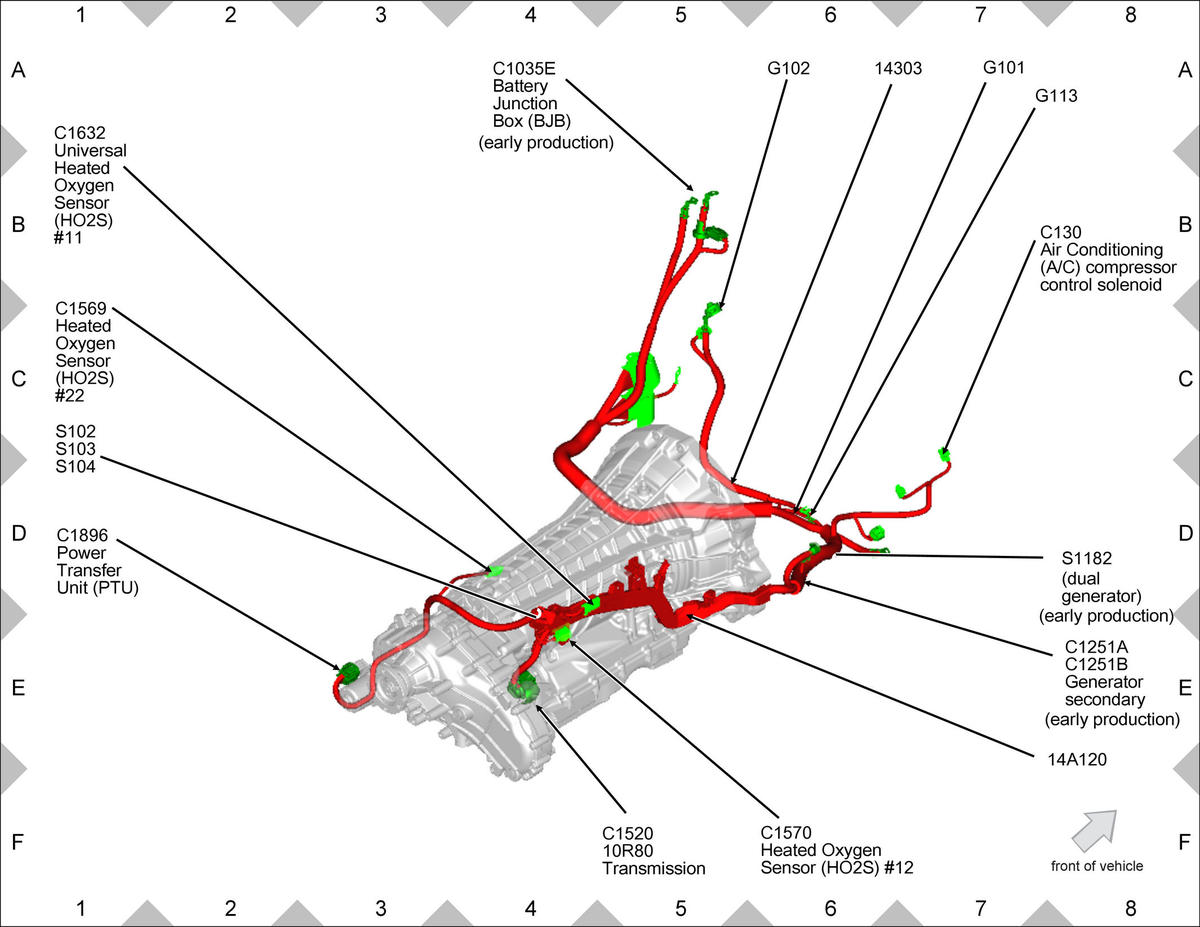

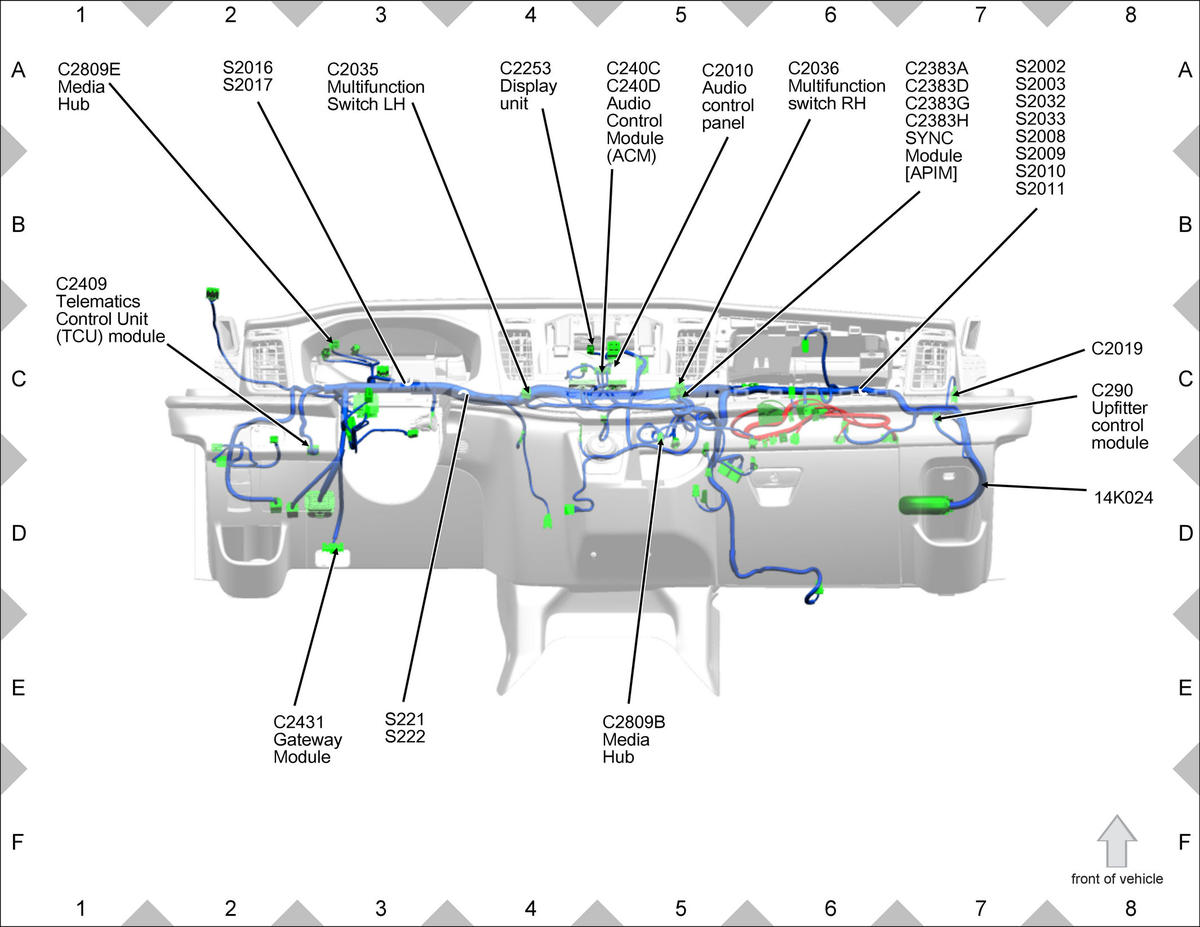

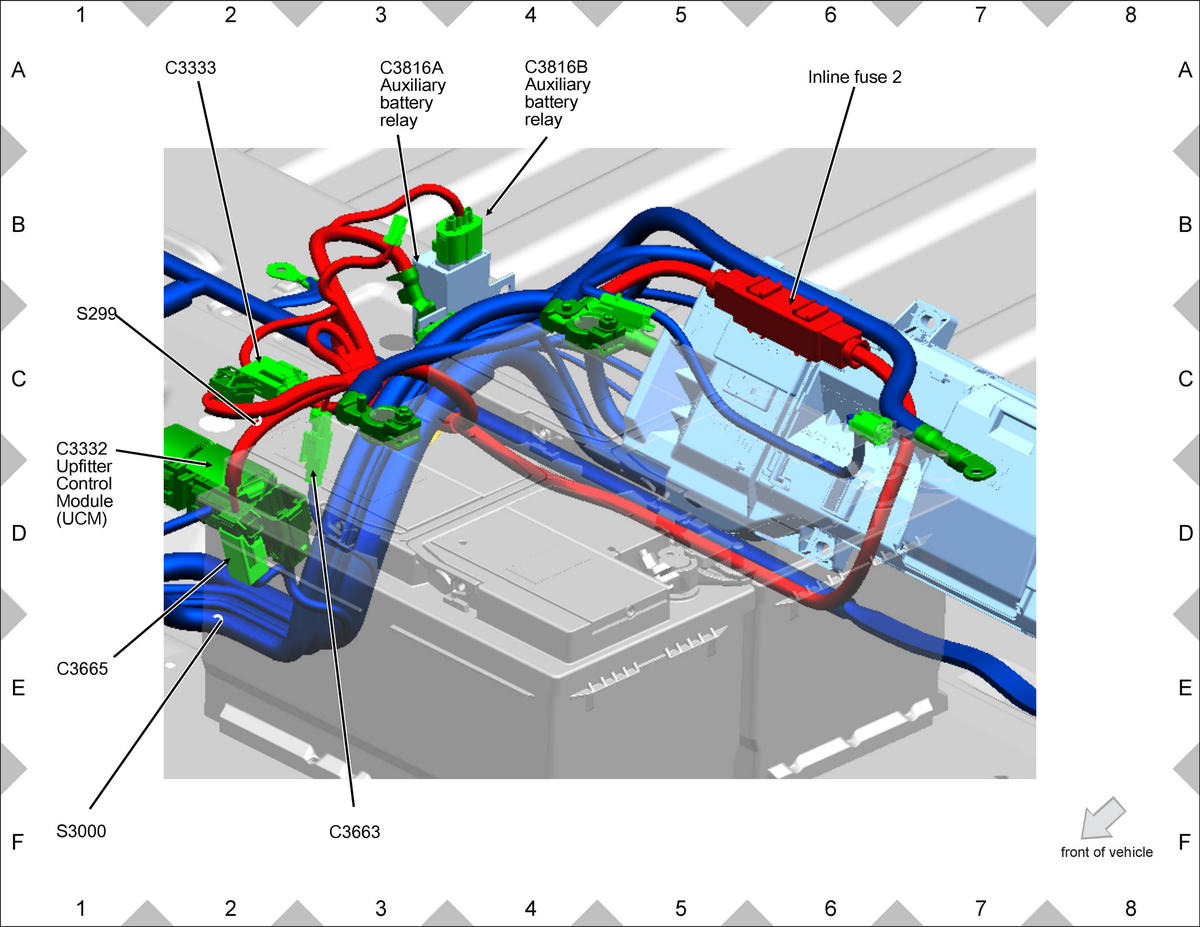

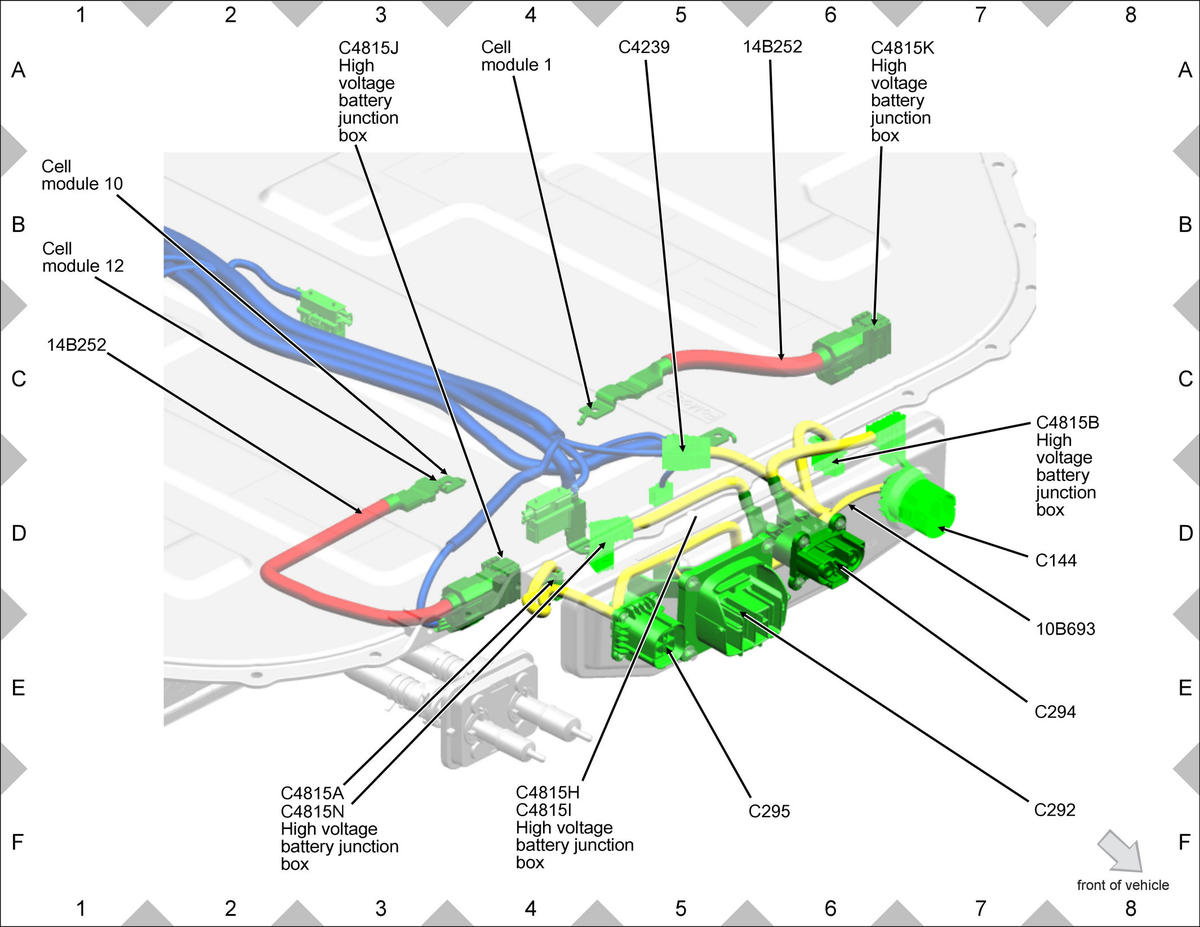

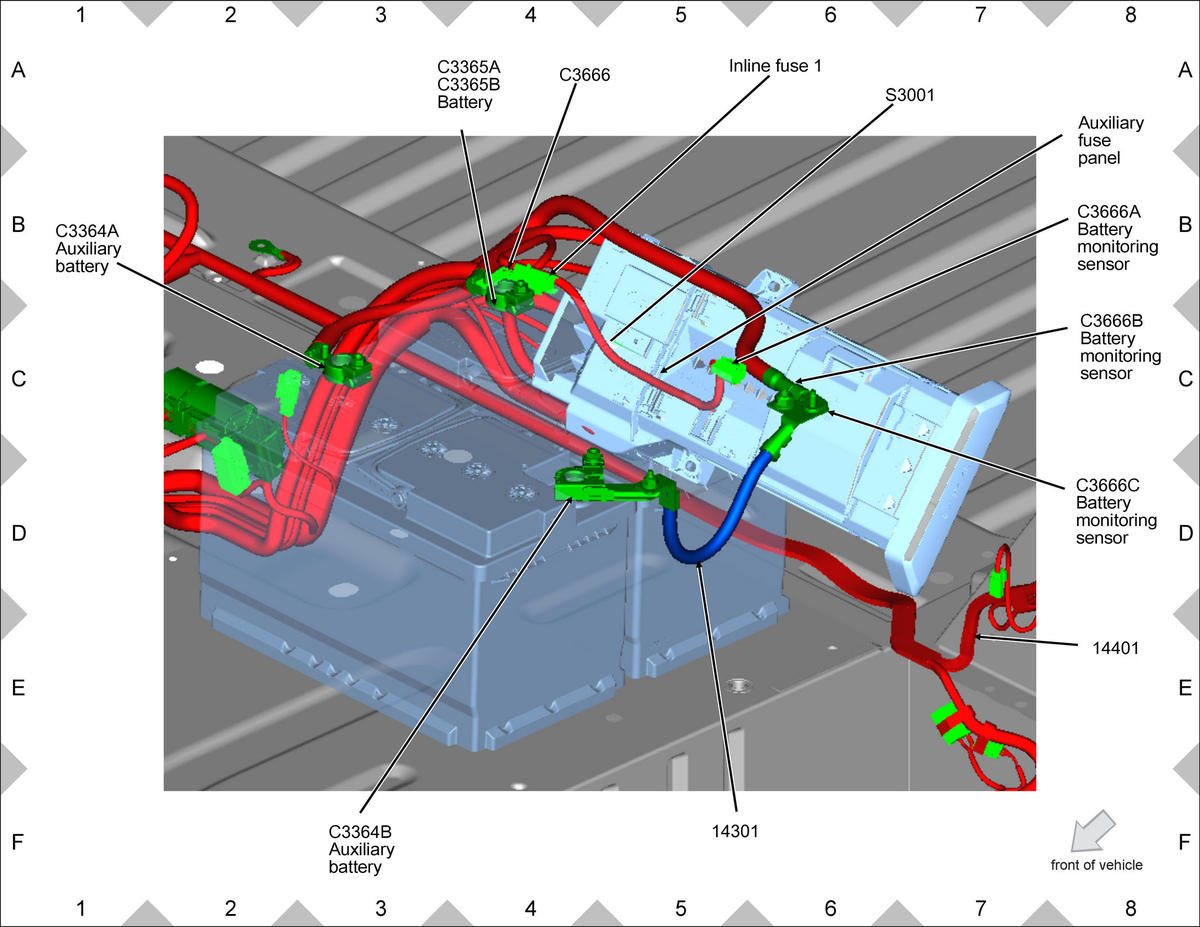

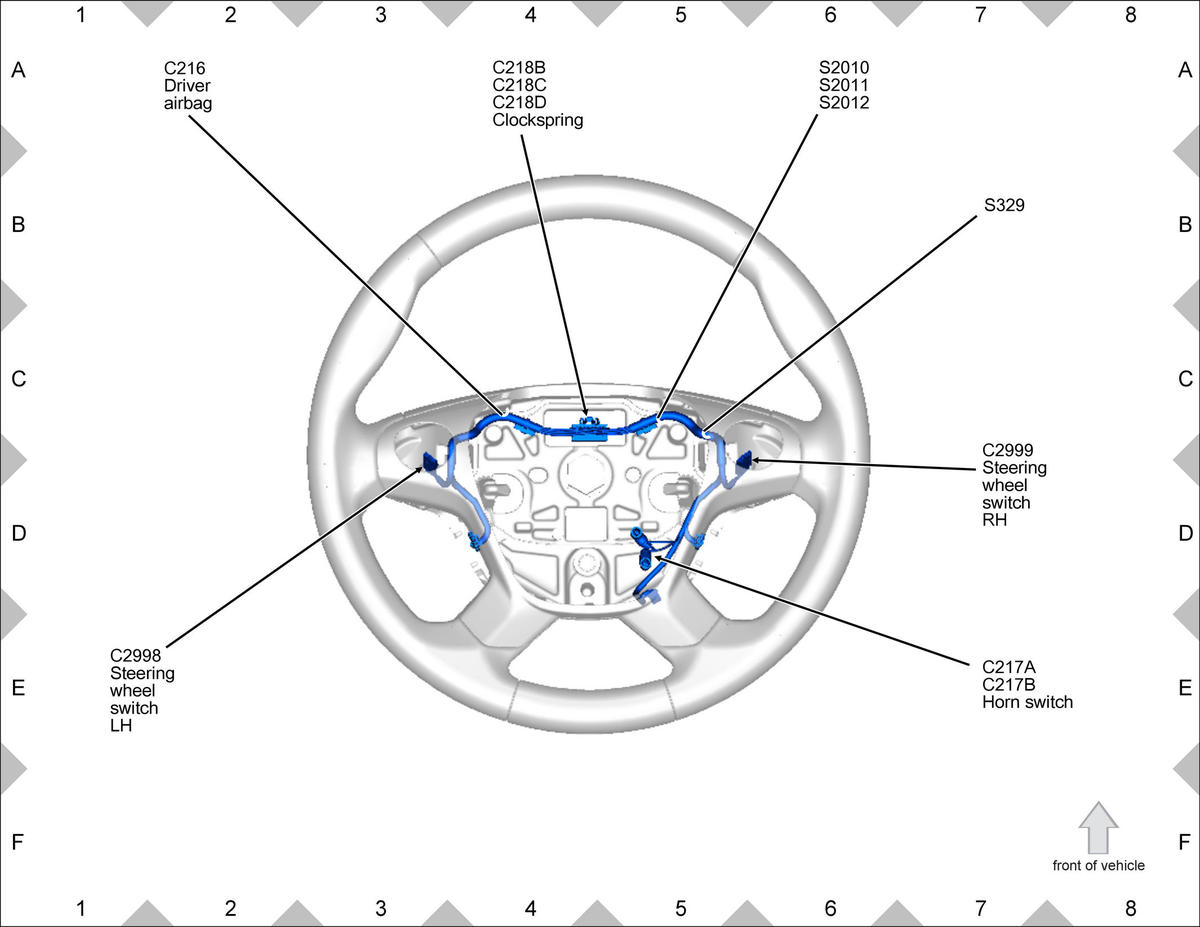

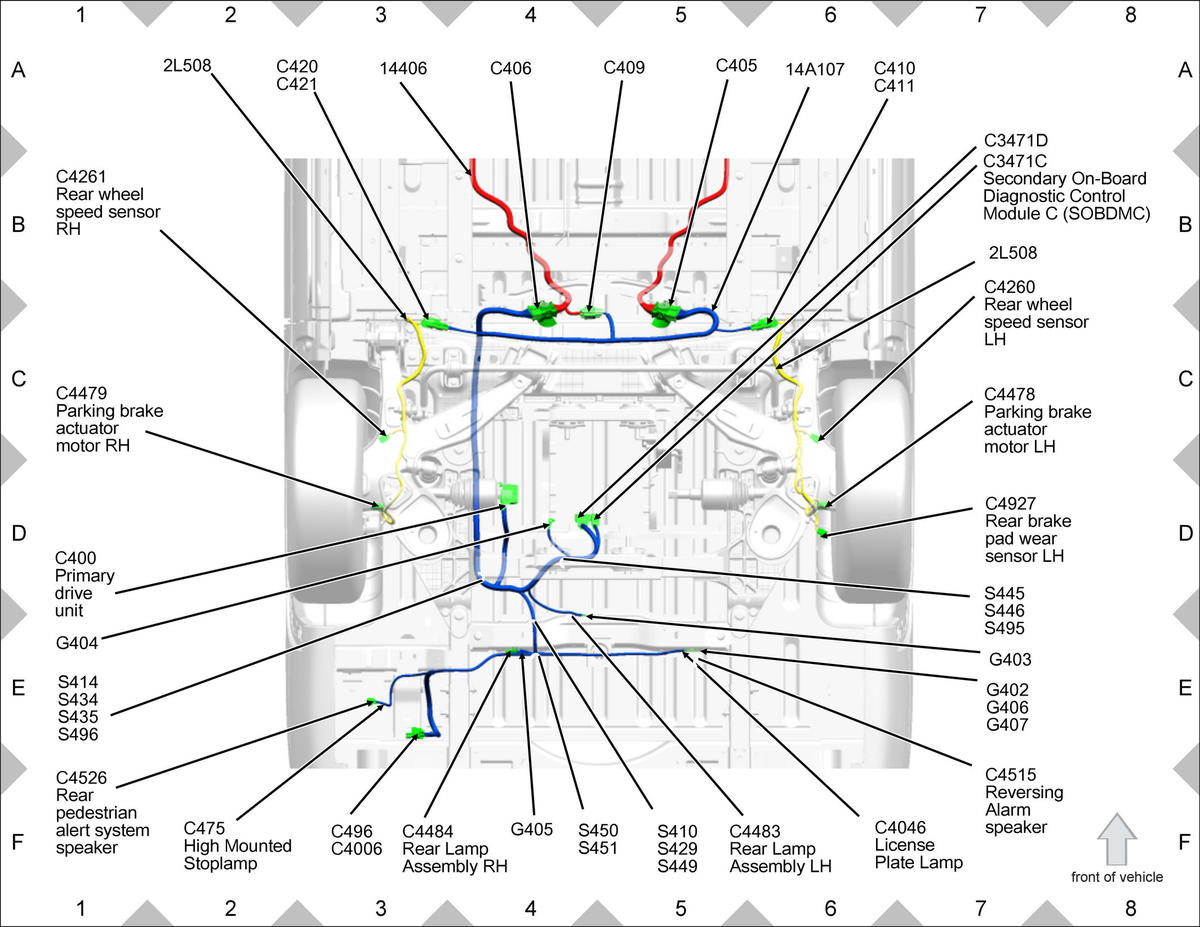

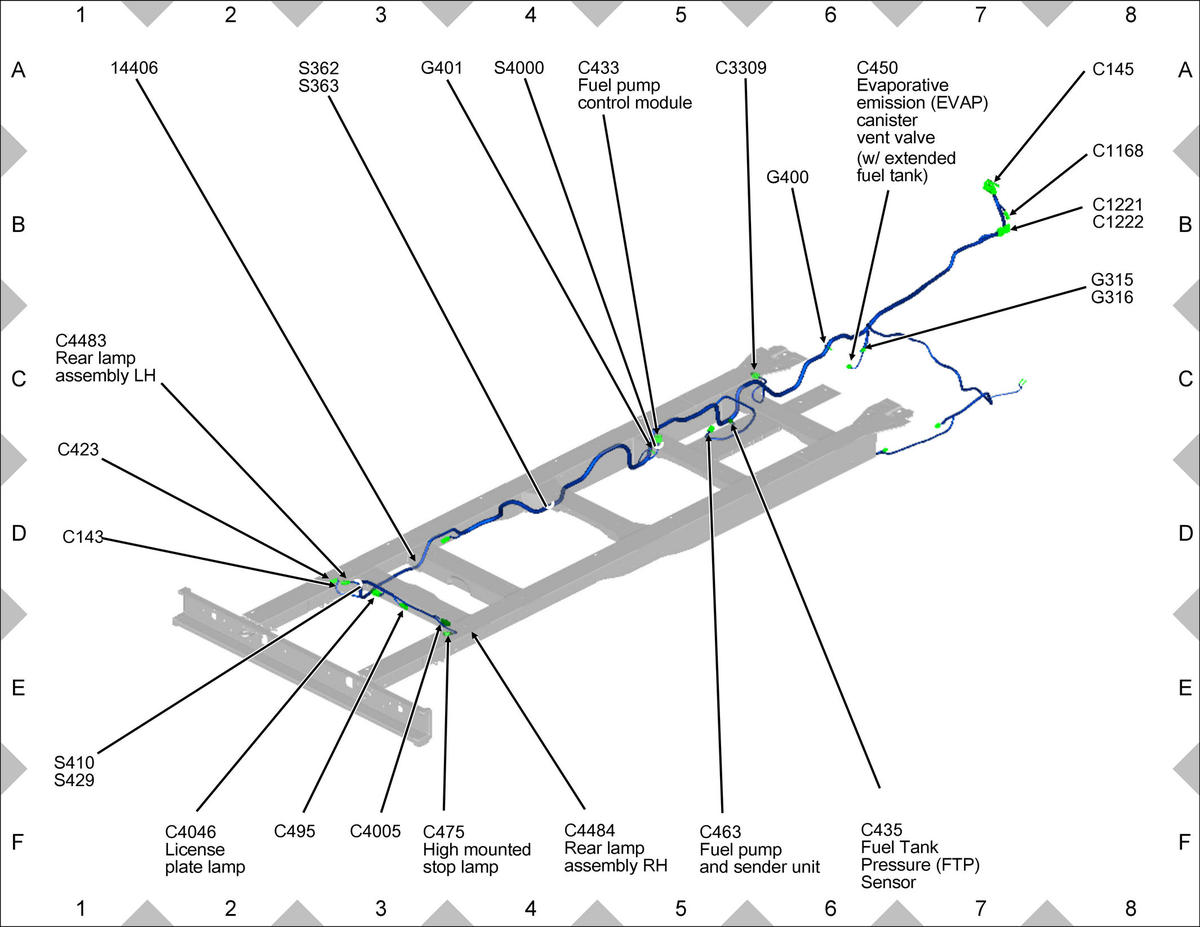

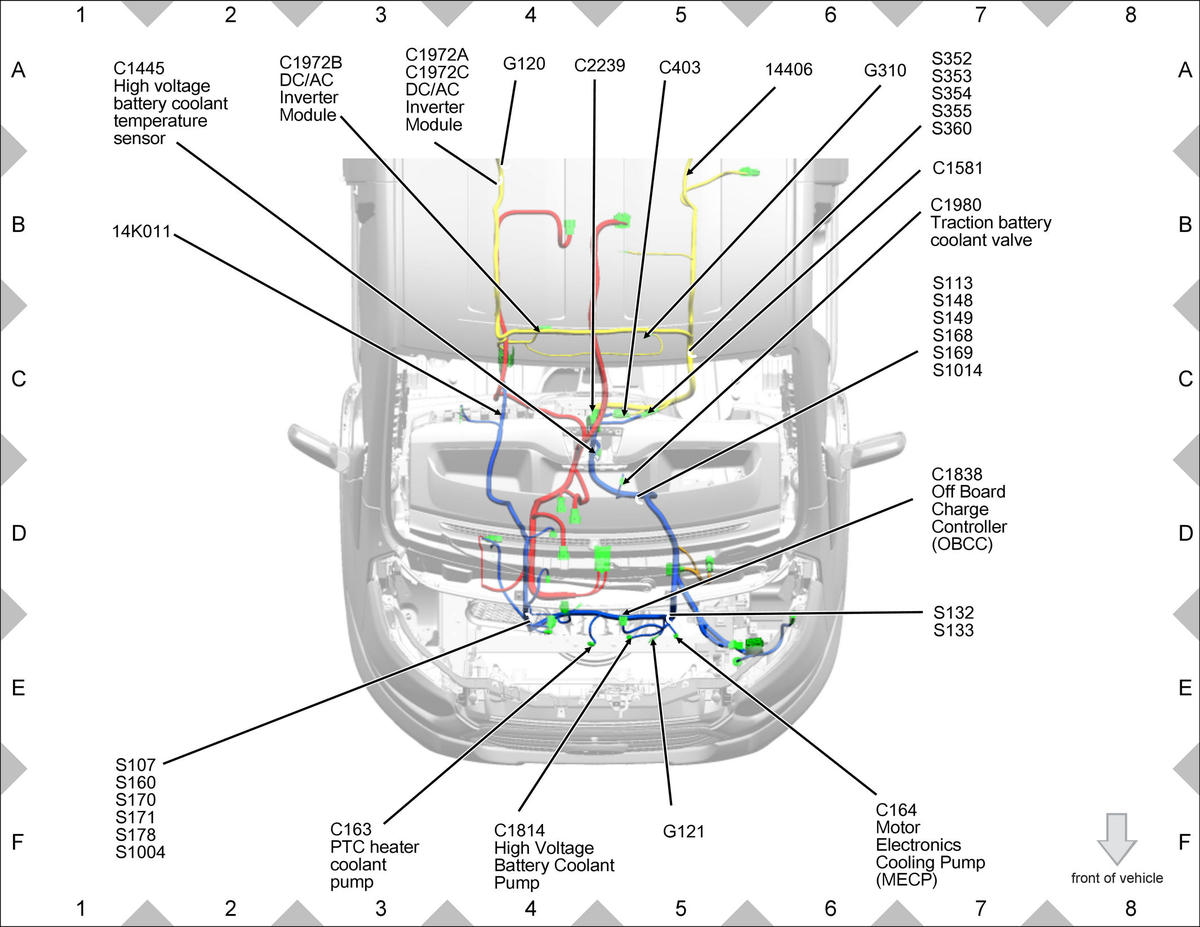

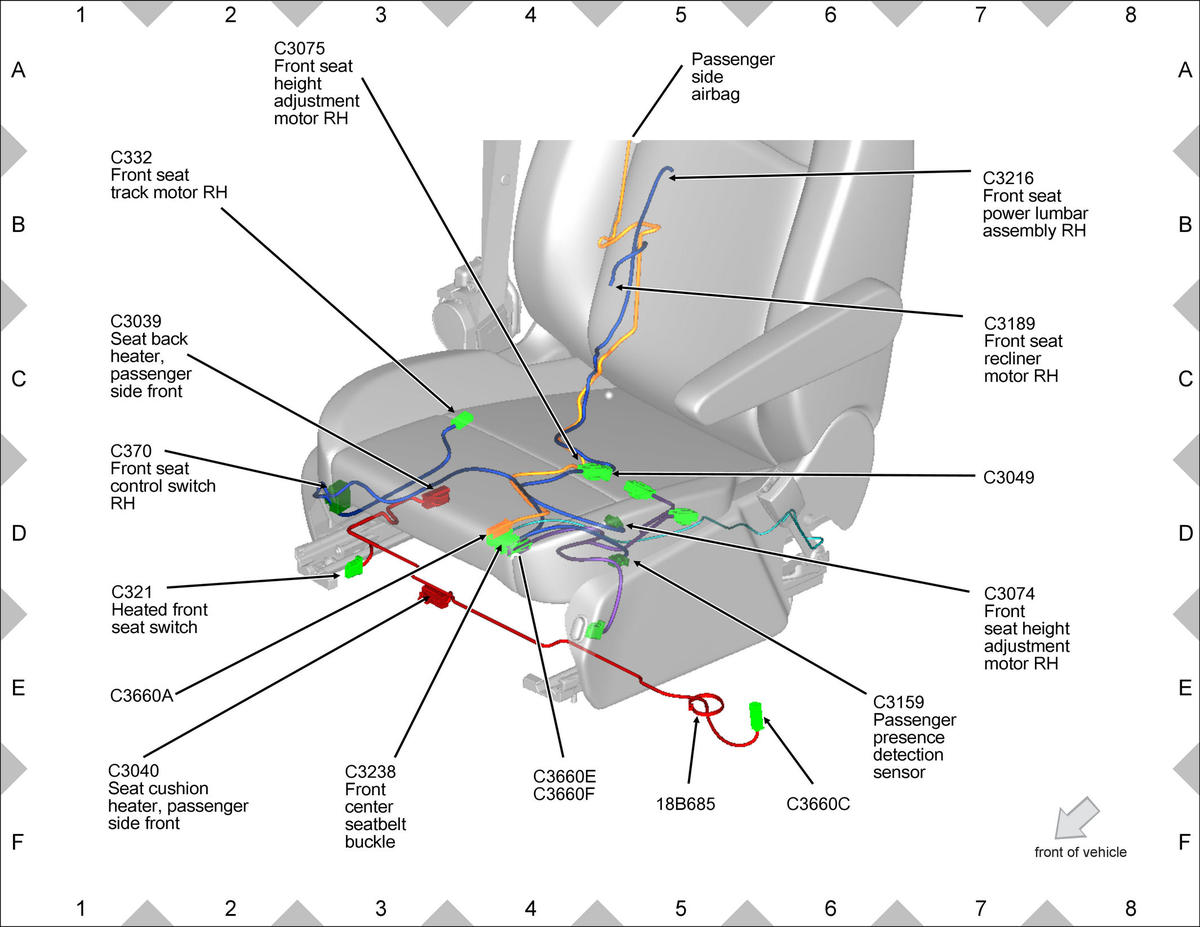

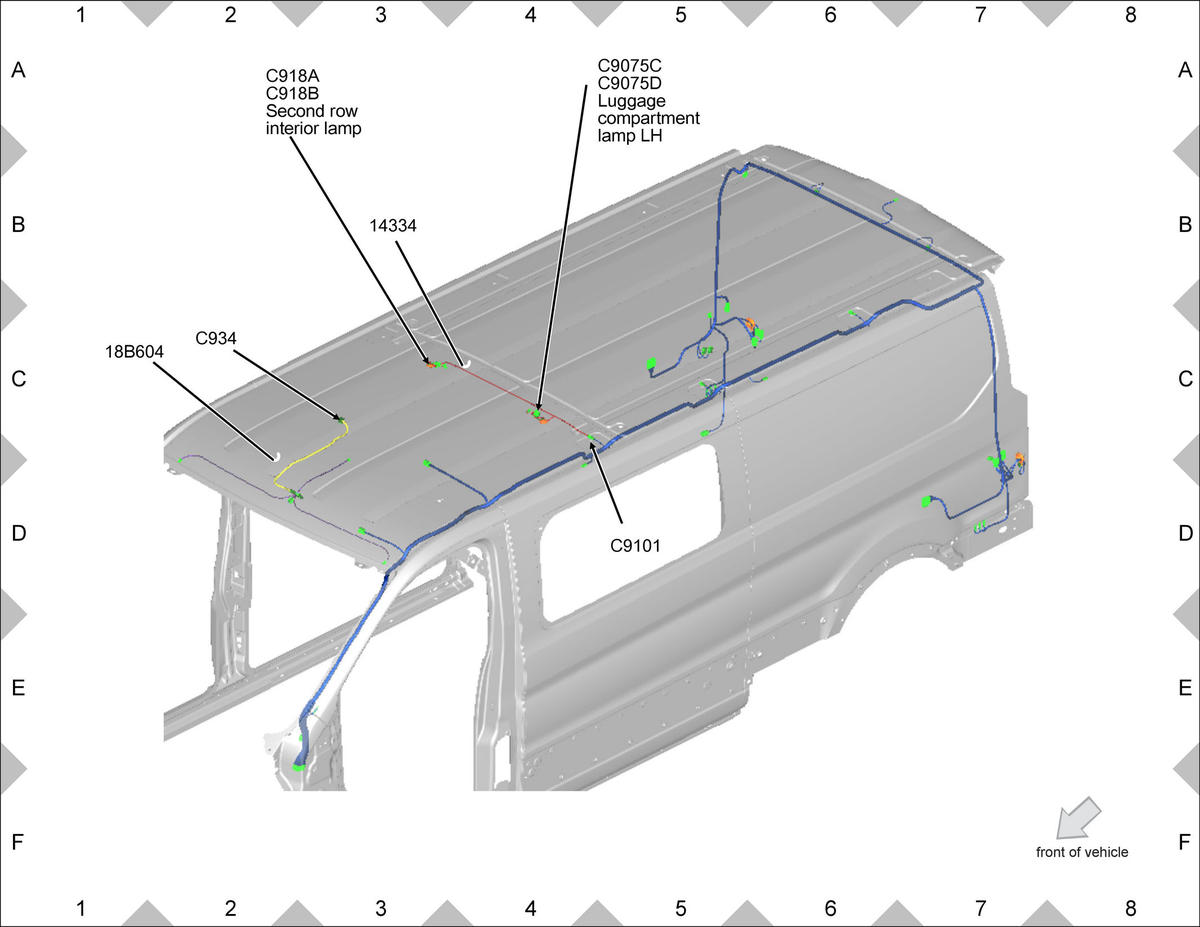

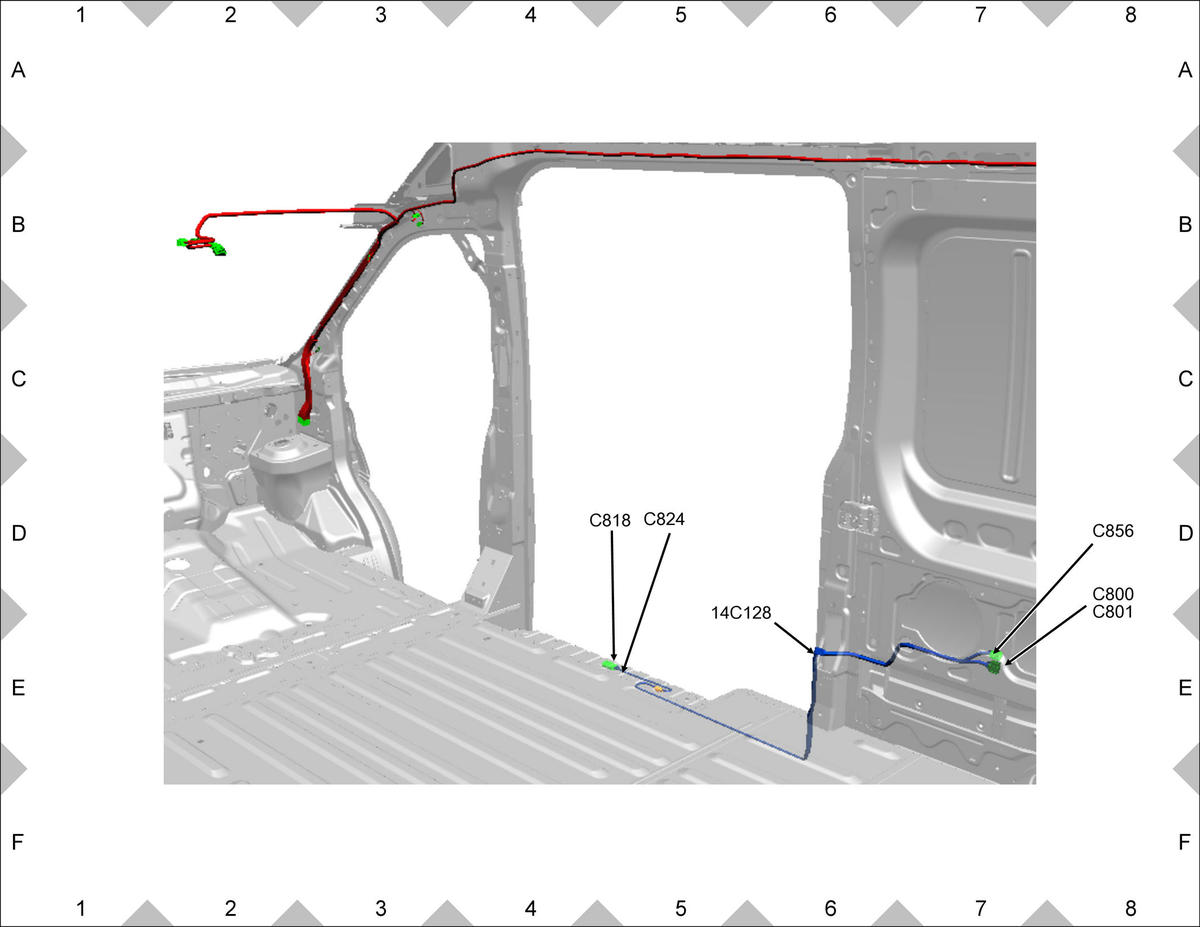

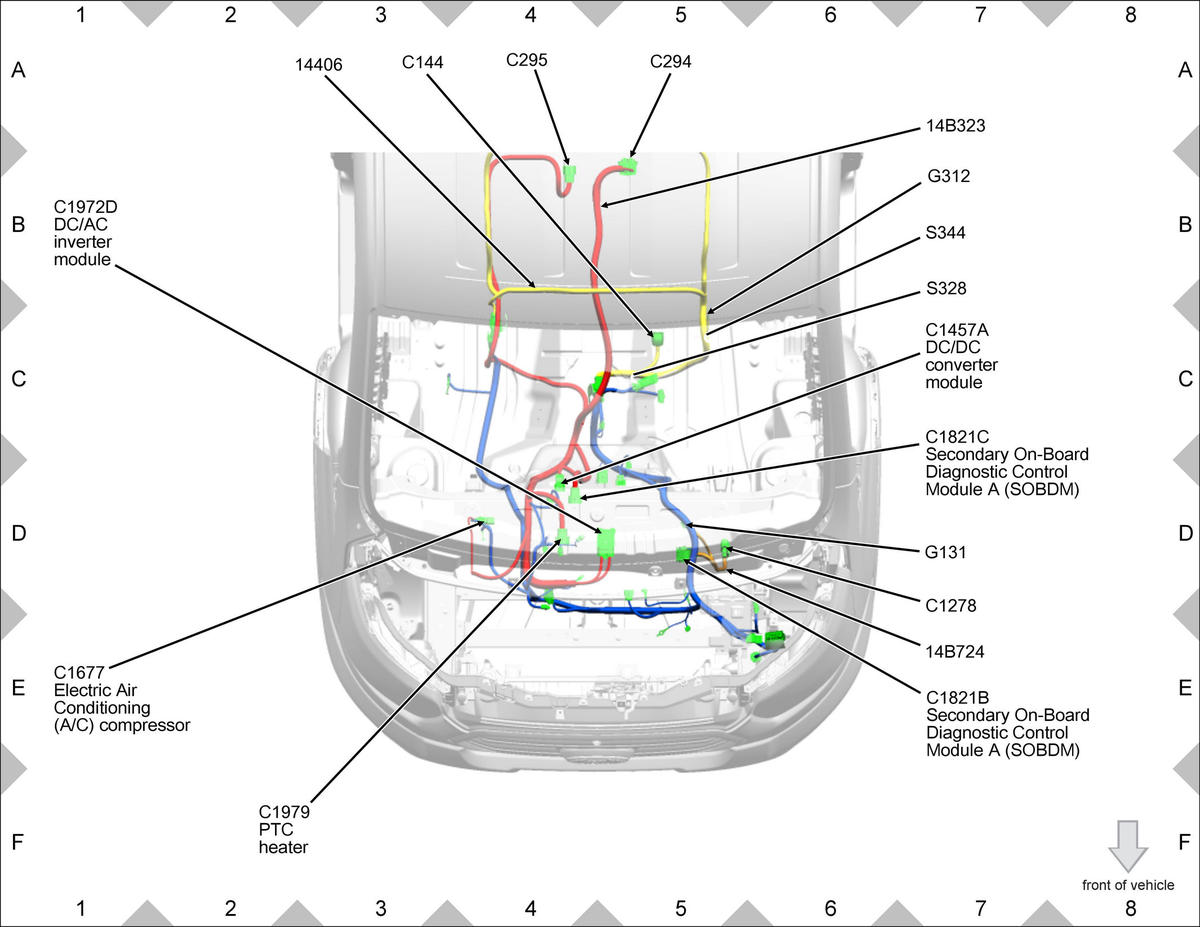

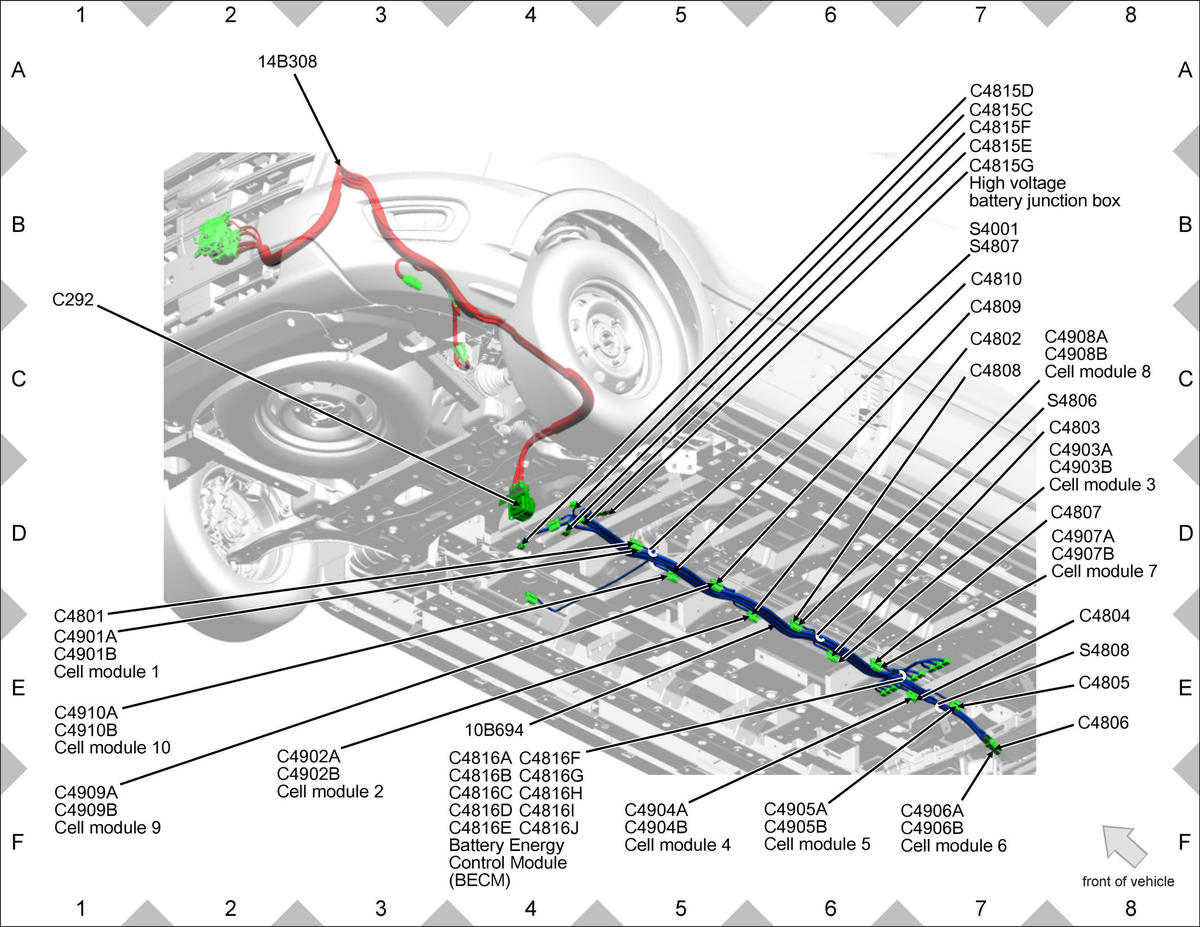

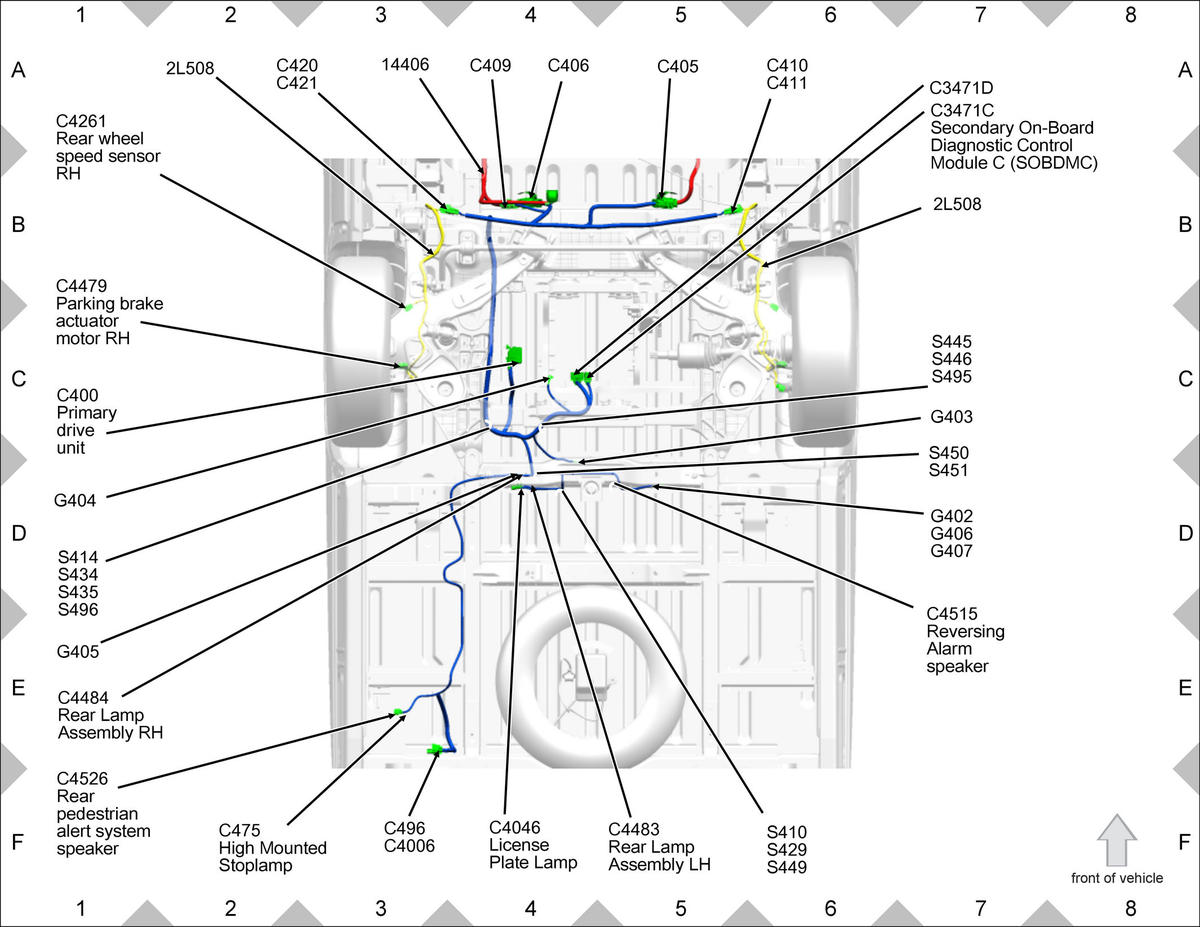

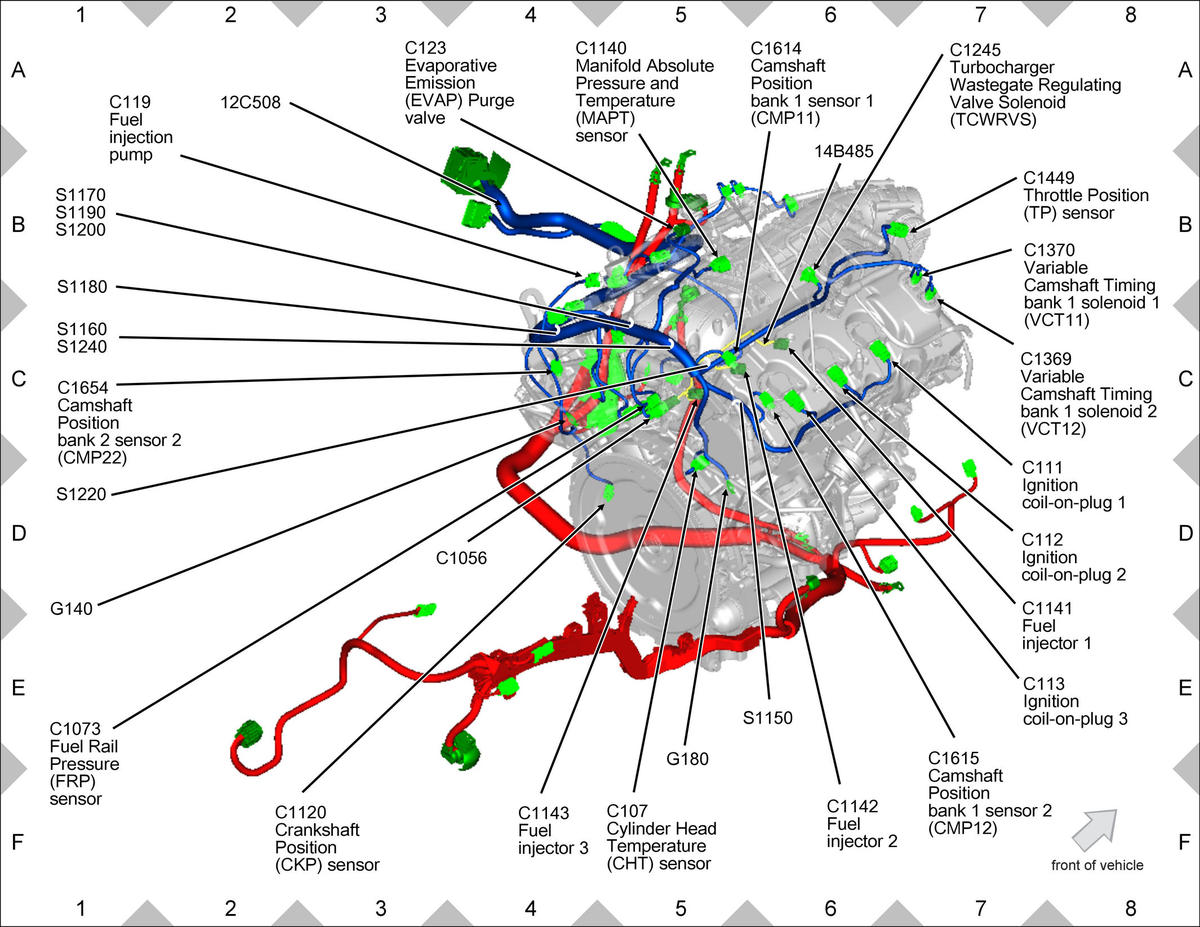

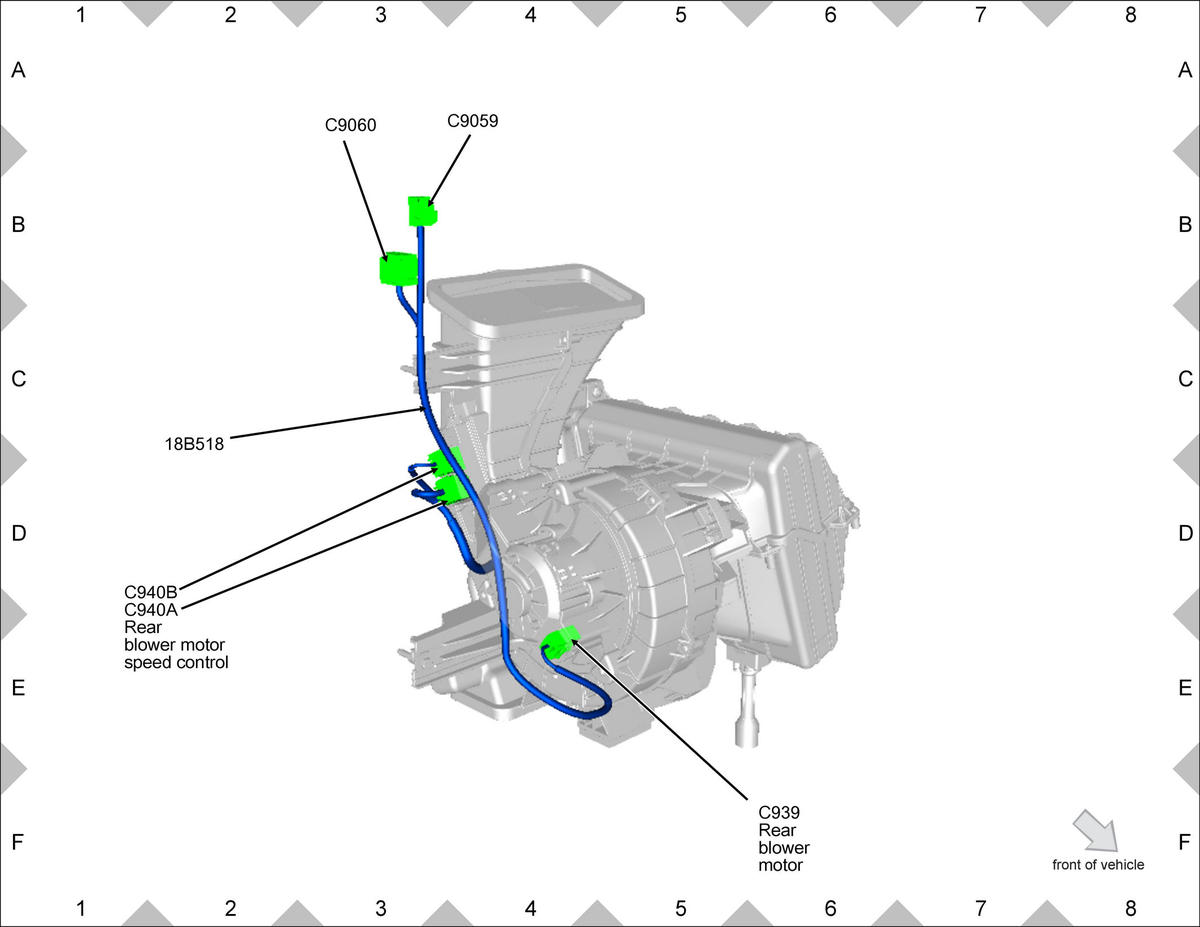

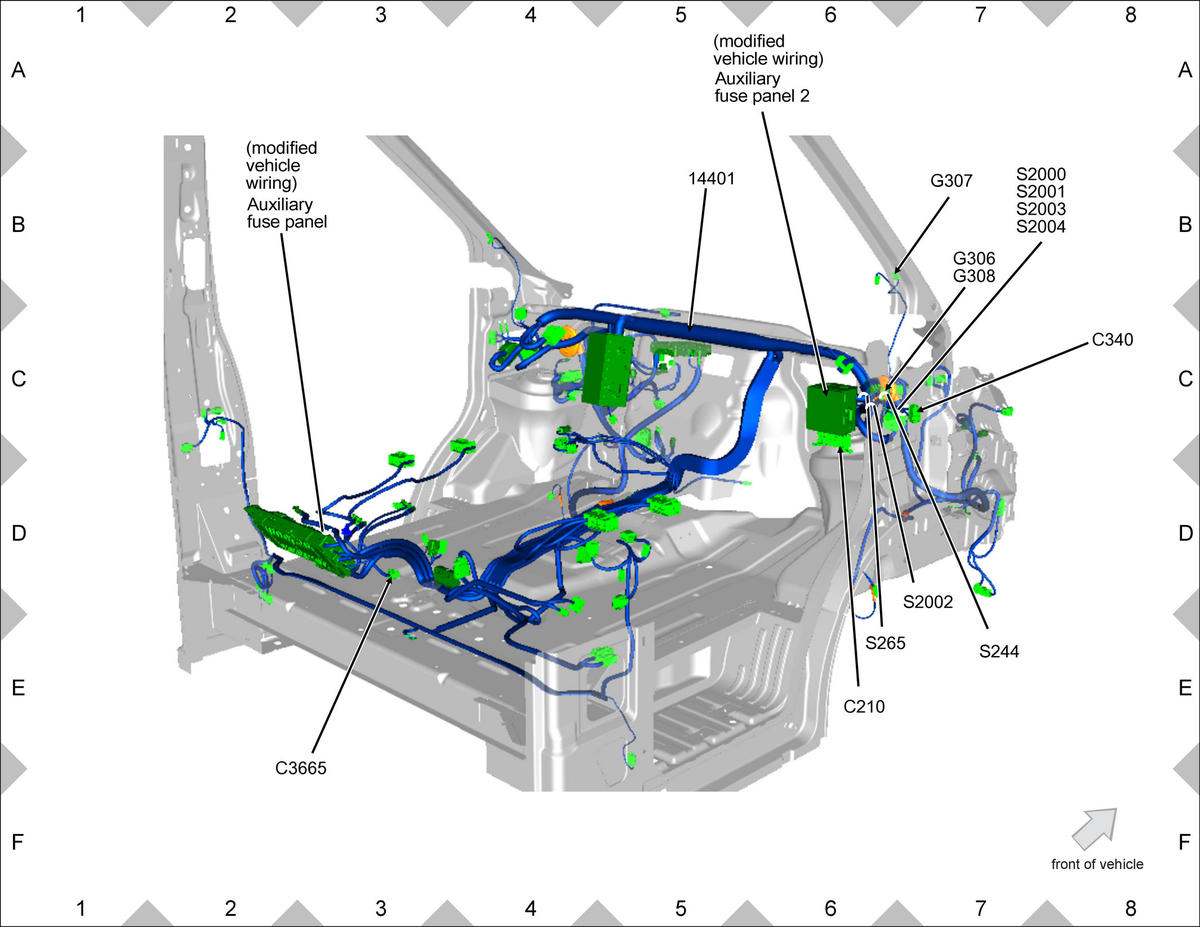

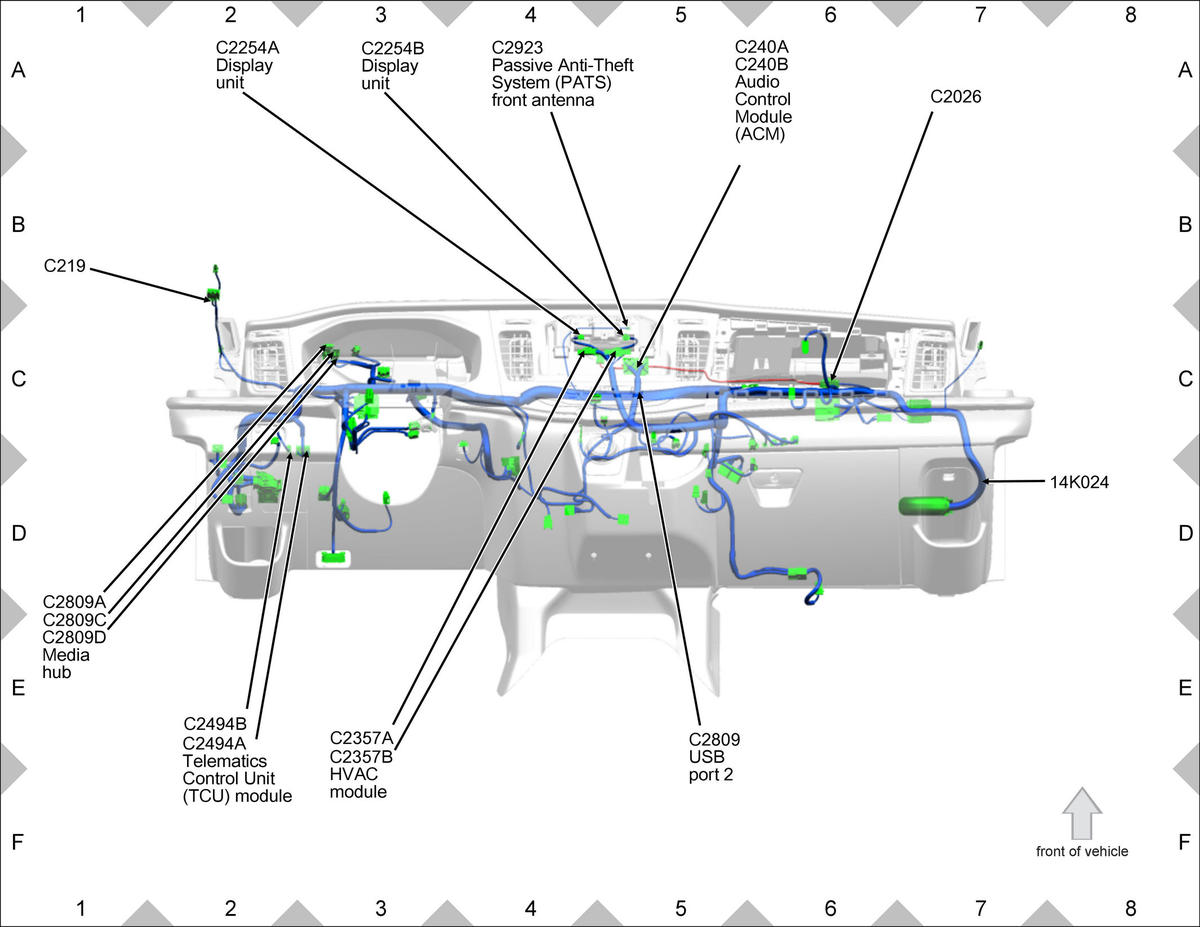

Component Location Views
