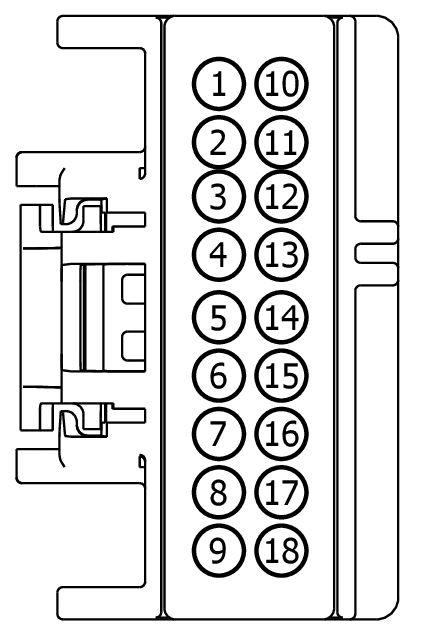

Connector End View C4808C - Lighting/Siren Control Module
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4808C | LIGHTING/SIREN CONTROL MODULE | 14A073 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AAB | Not Available | |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CAP09 (WH-BN) | 22 | #N/A | 97BG-14421-AAB | ||||
| 2 | CAP08 (WH-OG) | 22 | #N/A | 97BG-14421-AAB | ||||
| 3 | CLF20 (GY-BU) | 16 | #N/A | 2L1T-14421-CA | ||||
| 4 | VAP24 (WH) | 16 | #N/A | 2L1T-14421-CA | ||||
| 5 | * (BU) | 22 | #N/A | 2L1T-14421-CA | ||||
| 6 | VAP07 (GN-VT) | 22 | SIREN 1 + | 2L1T-14421-CA | ||||
| 7 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 2L1T-14421-CA | ||||
| 8 | CAP09 (WH-BU) | 22 | #N/A | 2L1T-14421-CA | ||||
| 9 | * (VT) | 22 | #N/A | 2L1T-14421-CA | ||||
| 10 | * (WH-RD) | 22 | #N/A | 2L1T-14421-CA | ||||
| 11 | * (WH-YE) | 22 | #N/A | 2L1T-14421-CA | ||||
| 12 | * (OG) | 22 | #N/A | 2L1T-14421-CA | ||||
| 13 | * (YE) | 22 | #N/A | 2L1T-14421-CA | ||||
| 14 | * (BU) | 22 | #N/A | 2L1T-14421-CA | ||||
| 15 | RAP07 (BU-WH) | 22 | SIREN - POLICE - | 2L1T-14421-CA | ||||
| 16 | CBB54 (VT-OG) | 22 | FUSE - 54 OR CIRCUIT BREAKER | 2L1T-14421-CA | ||||
| 17 | * (GY) | 22 | #N/A | 2L1T-14421-CA | ||||
| 18 | * (GN) | 22 | #N/A | 2L1T-14421-CA | ||||

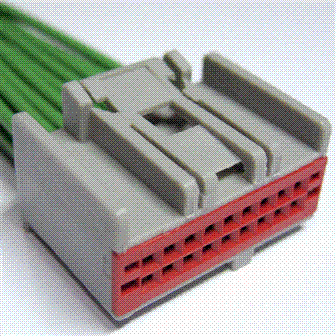

Available Pigtail Kits
Pigtail Kit Part Number WPT-1148
Service Part Number:
3U2Z-14S411-HKB
Gauge:
18
Pin material:
Silver
Cavities:
18
Vehicle Uses:
- Module - Tire Pressure
- Radio
