Image Processing Module A (IPMA): Removal

  1. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel
  2. Disconnect the IPMA electrical connectors.
    GFD610244Courtesy of FORD MOTOR COMPANY

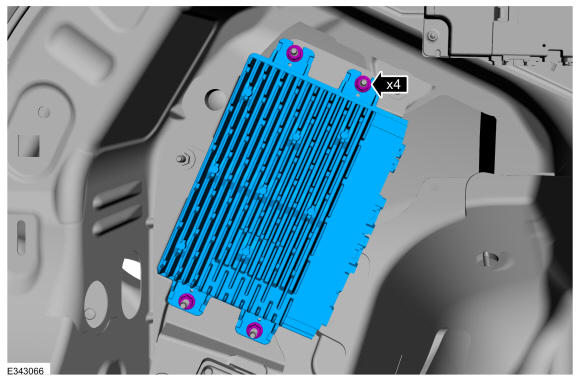

  3. Remove the nuts and IPMA.

    Torque: 53 lb.in (6 Nm)

GFD610245Courtesy of FORD MOTOR COMPANY
