Cruise Control Module (CCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .
NOTE: Follow the unique instructions or graphics for this step in the installation.

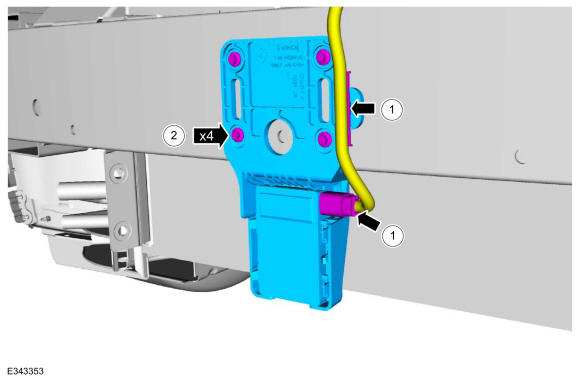

Remove the CCM and bracket.
1. Detach the wire harness retainer and disconnect the CCM wiring connector.
2. Remove the screws and the CCM and bracket.

Courtesy of FORD MOTOR COMPANY
