Ride Height Measurement

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

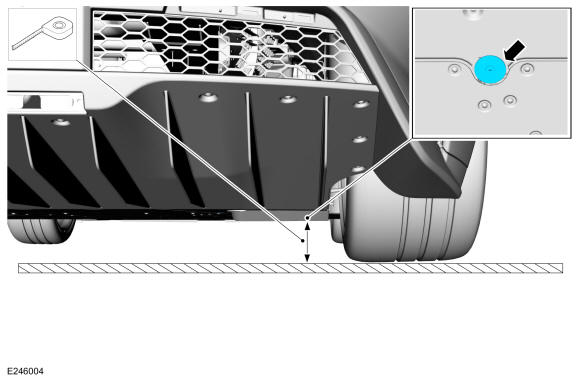

Ride Height Measurement -- Front

Measure the distance between the flat level surface and the front lifting pad.

Courtesy of FORD MOTOR COMPANY

Ride Height Measurement -- Rear
Measure the distance between the flat level surface and the rear lifting pad.

Courtesy of FORD MOTOR COMPANY
Check and if necessary adjust ride height. Refer to: Specifications .
