System Operation

WARNING: This page is about a different variant/trim than selected.

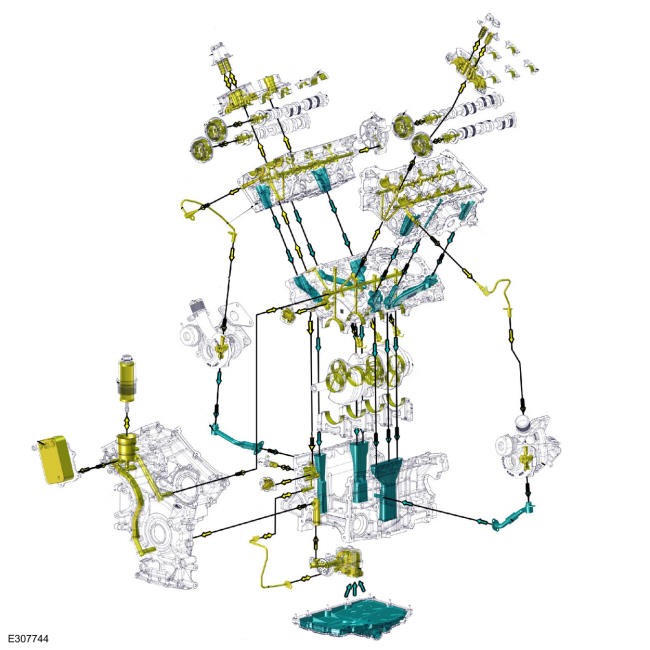

Oil Flow

GFD511055Courtesy of FORD MOTOR COMPANY
Item Description
Yellow High pressure oil
Blue Oil return low pressure
