Third Row Seat Backrest Cover: Removal

NOTE: LH (left hand) shown, RH (right hand) similar.

Remove the third row seat backrest. Refer to: Third Row Seat Backrest .

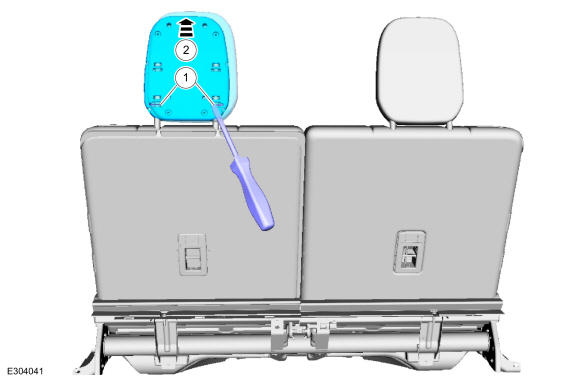

1. Release the spring tension. Use the General Equipment: Flat-Bladed Screwdriver
2. Remove the third row head restraint pad.
Courtesy of FORD MOTOR COMPANY

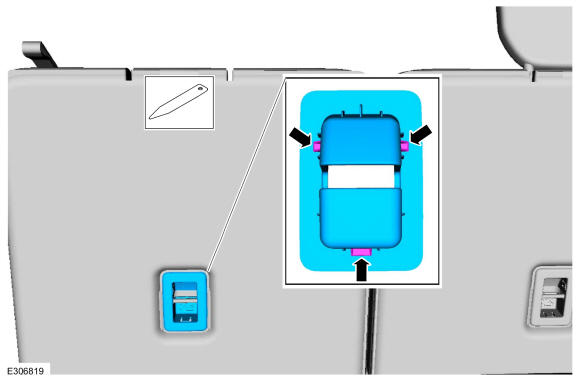

Release the tabs and remove the manual head restraint release handle bezel.

Courtesy of FORD MOTOR COMPANY

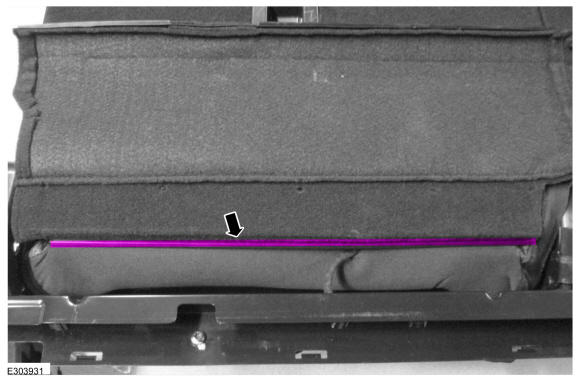

Detach the J-clip from the third row seat frame.

Courtesy of FORD MOTOR COMPANY

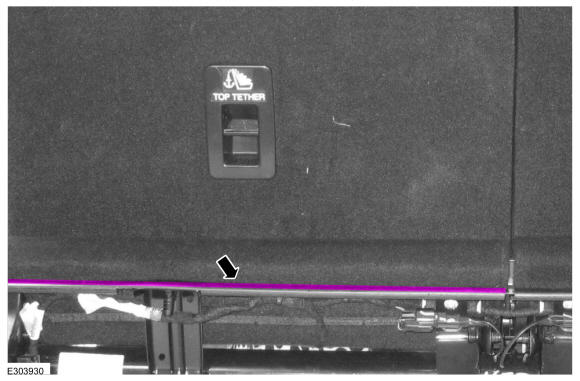

Release the third row seat backrest cover J-clip.

Courtesy of FORD MOTOR COMPANY

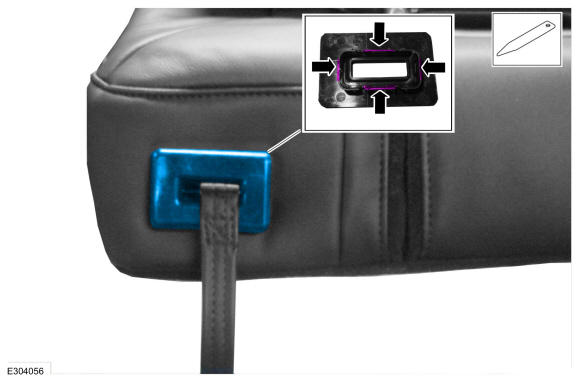

Release the tabs and remove the child safety seat tether anchor bezel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the backrest foam.

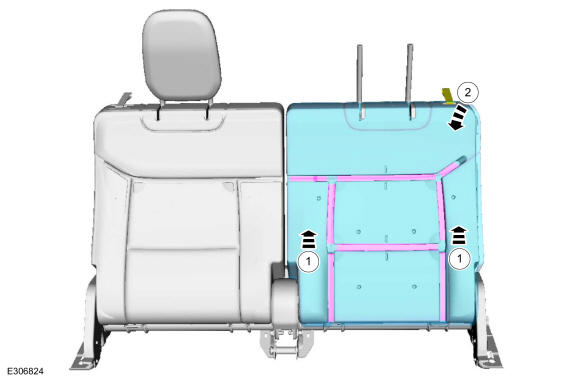

Remove the third row seat backrest cover.
1. Roll the backrest cover up while detaching the hook-and-loop strips.
2. Route the manual head restraint release strap through the backrest cover.

Courtesy of FORD MOTOR COMPANY
