Power Steering Controls

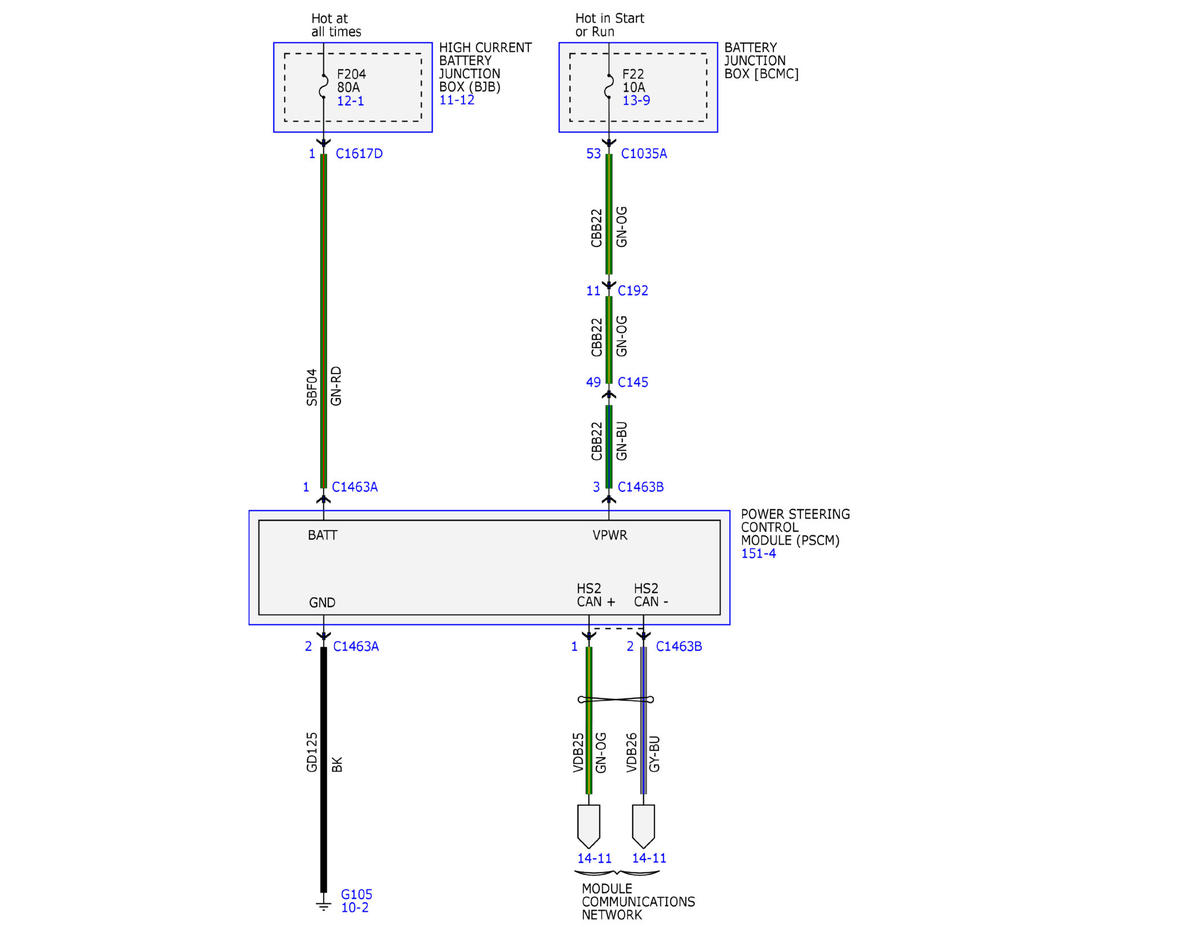

Fig 1: Power Steering Controls System Wiring Diagrams
Courtesy of FORD MOTOR COMPANY
