Power Distribution

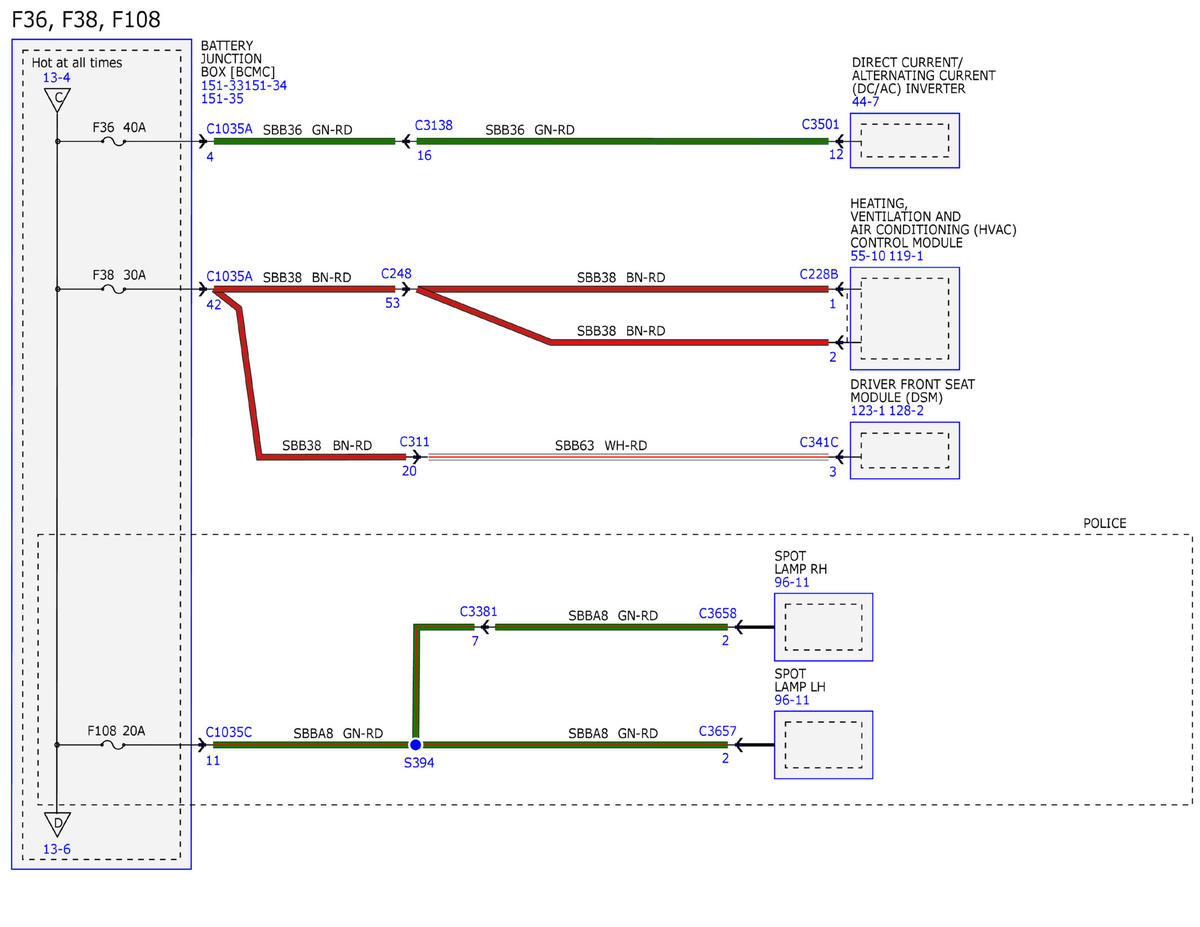

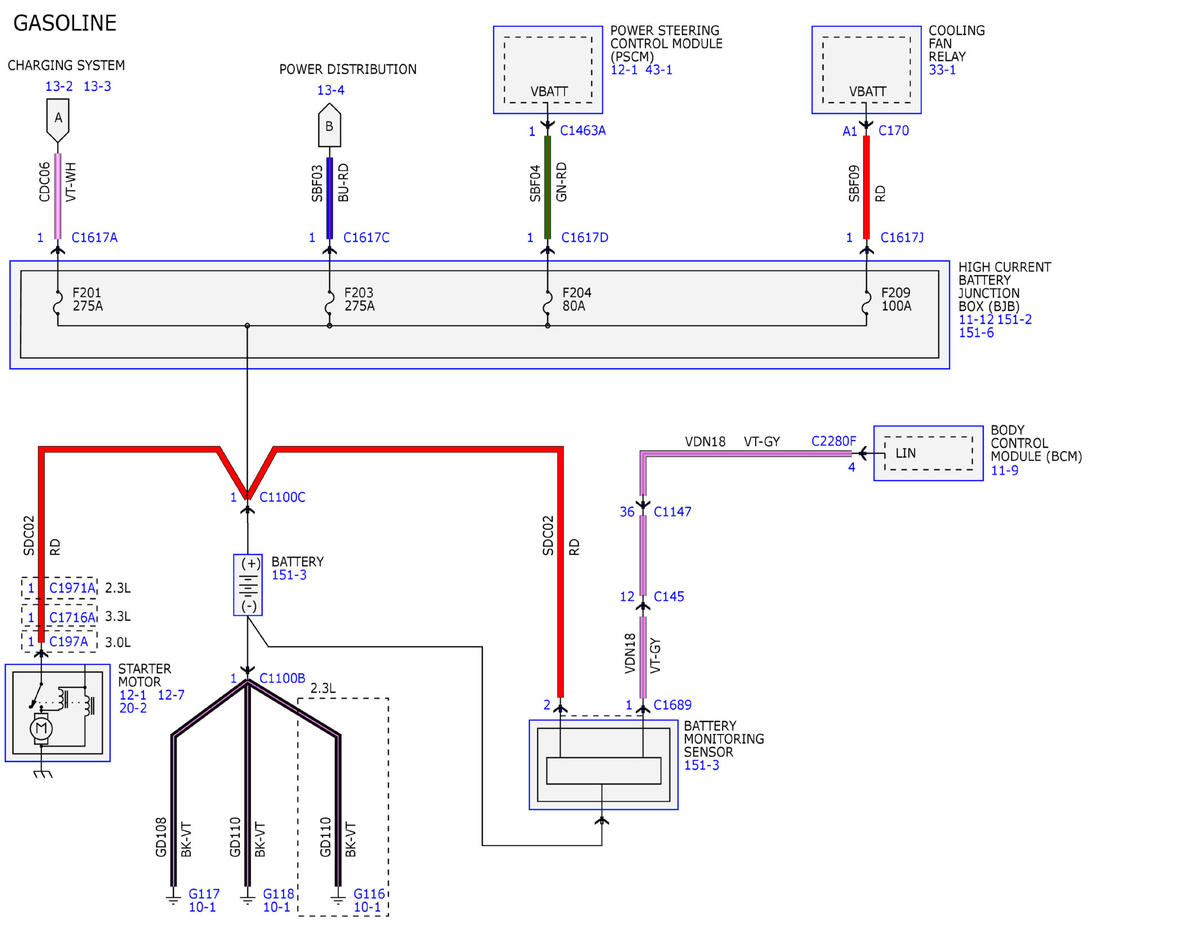

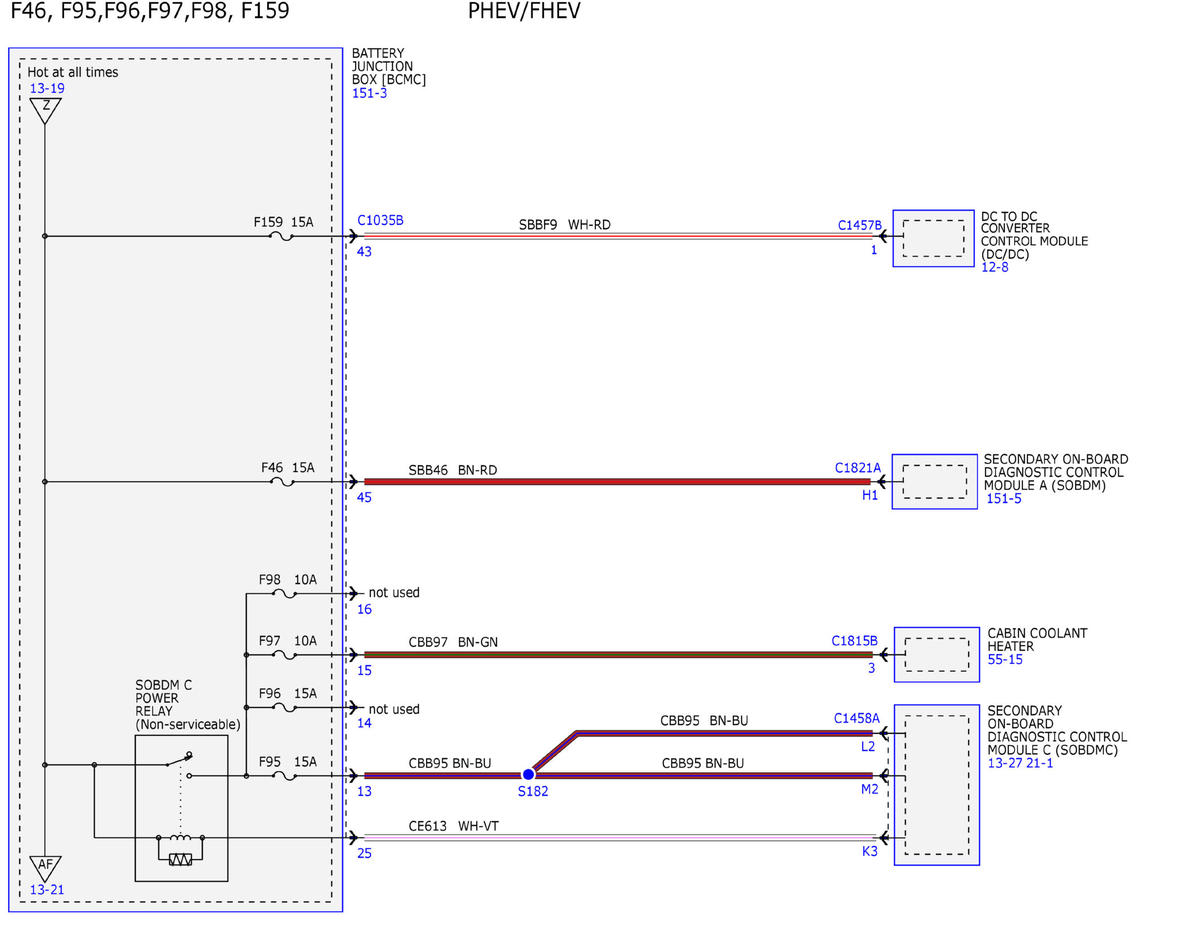

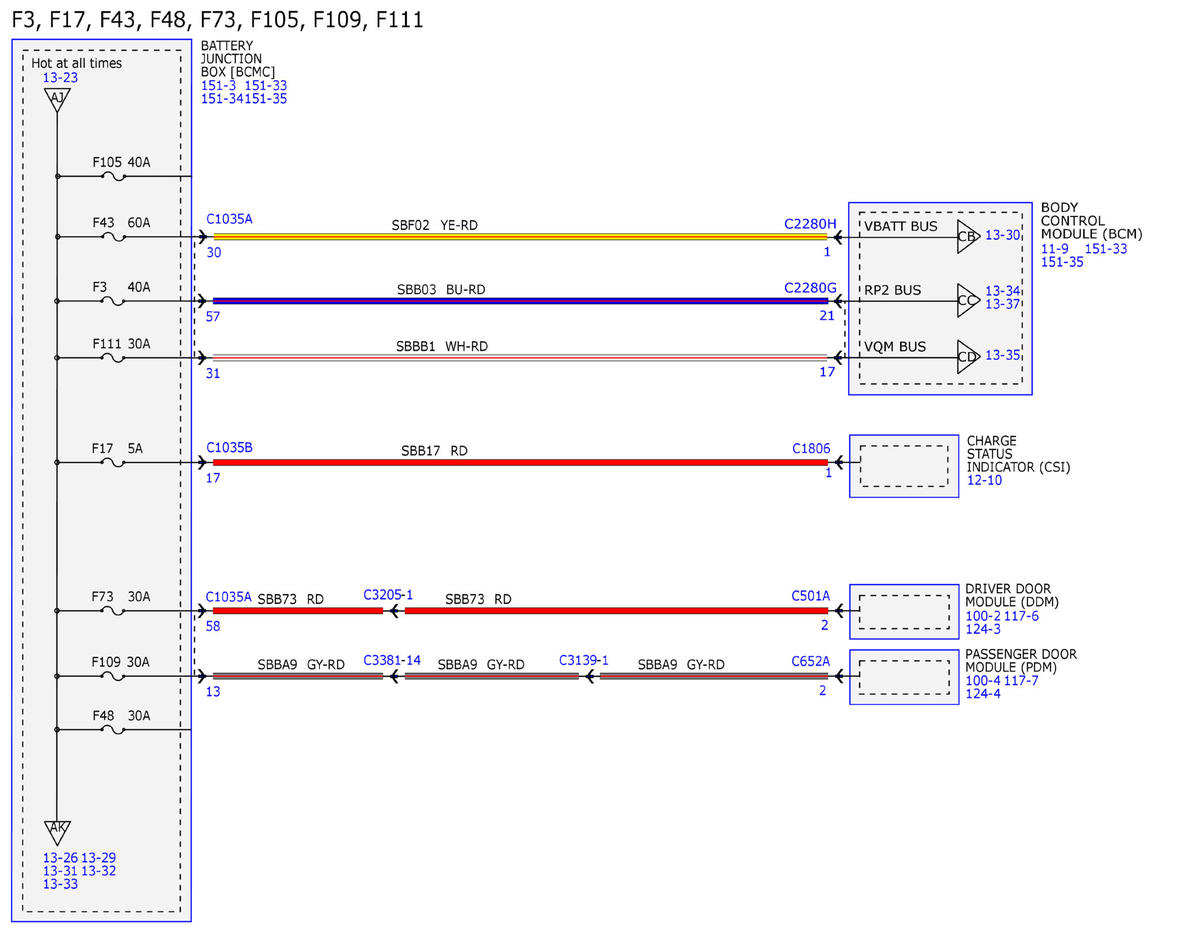

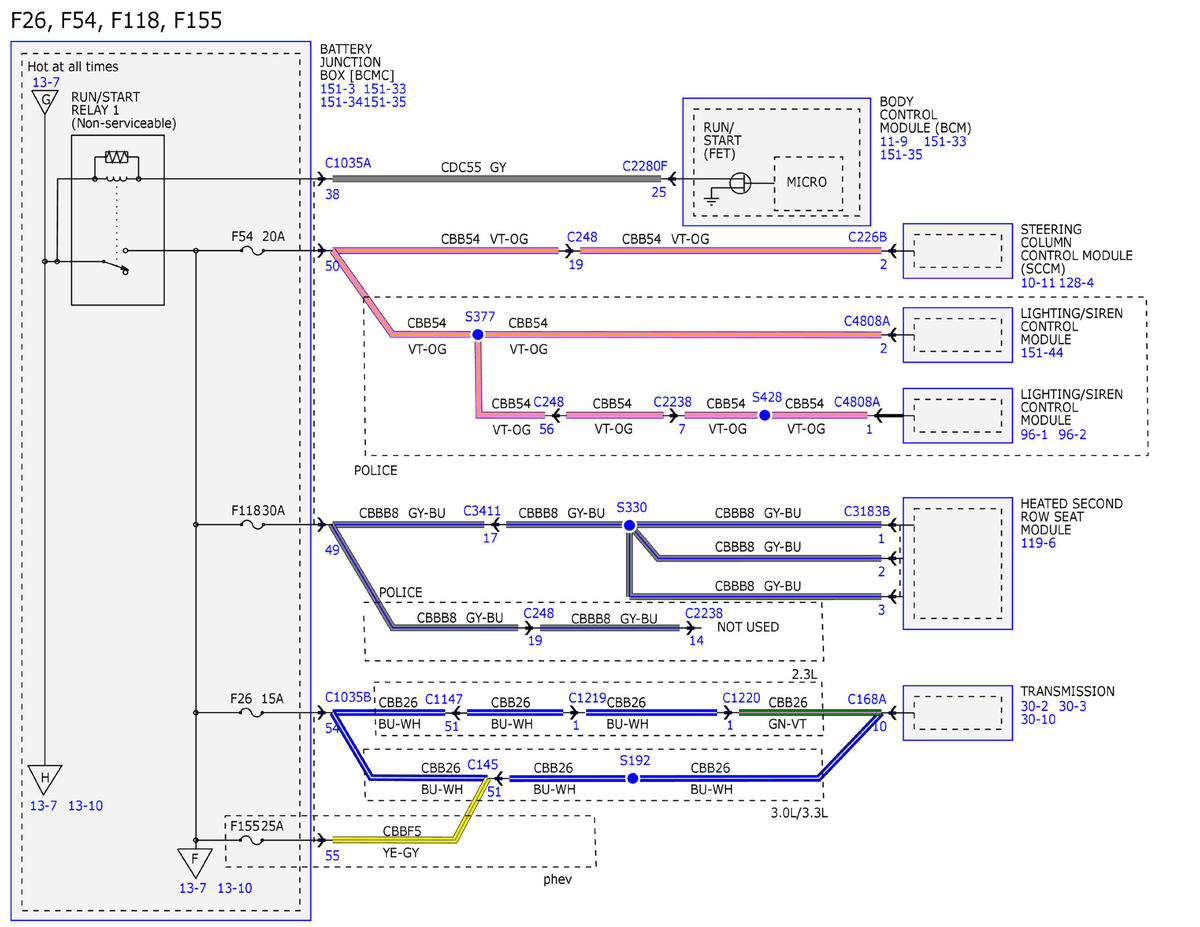

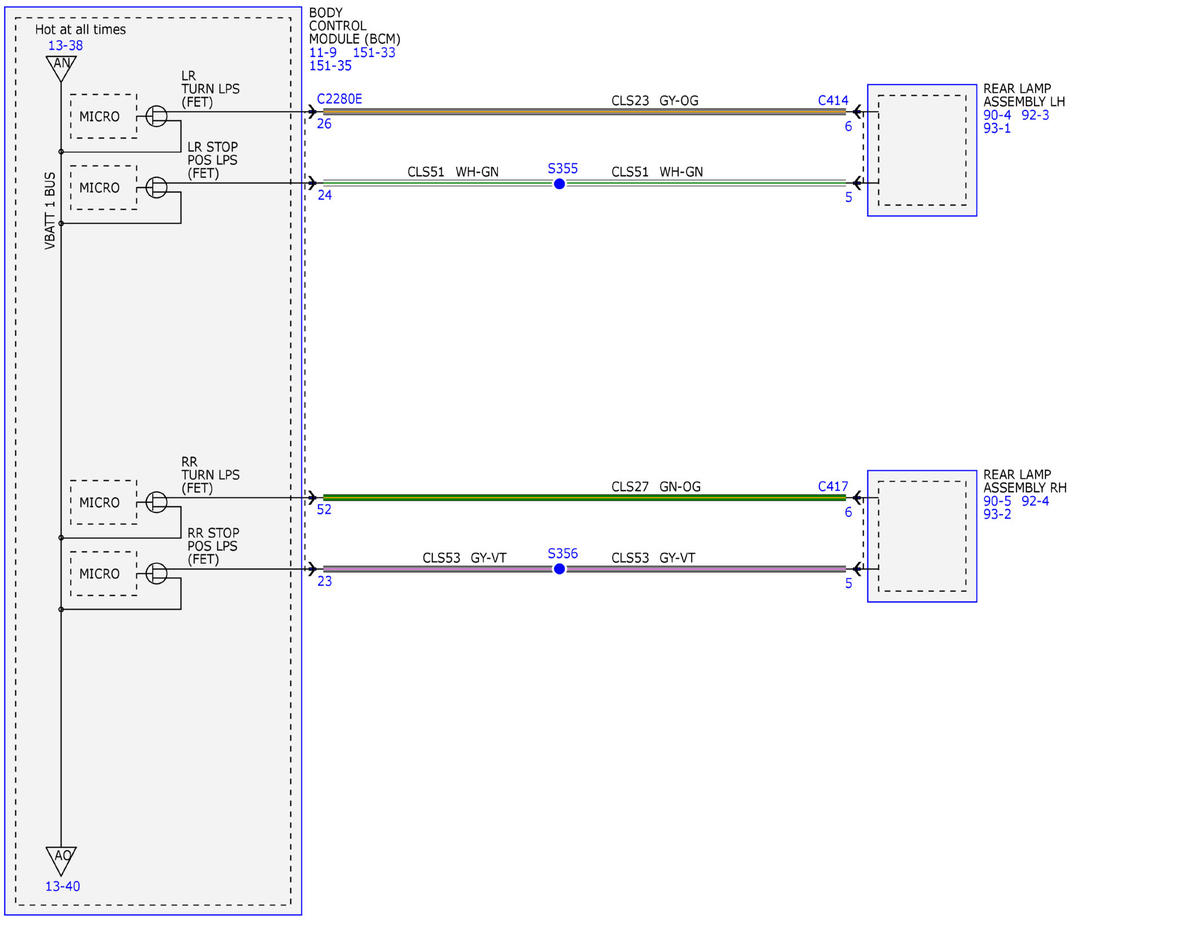

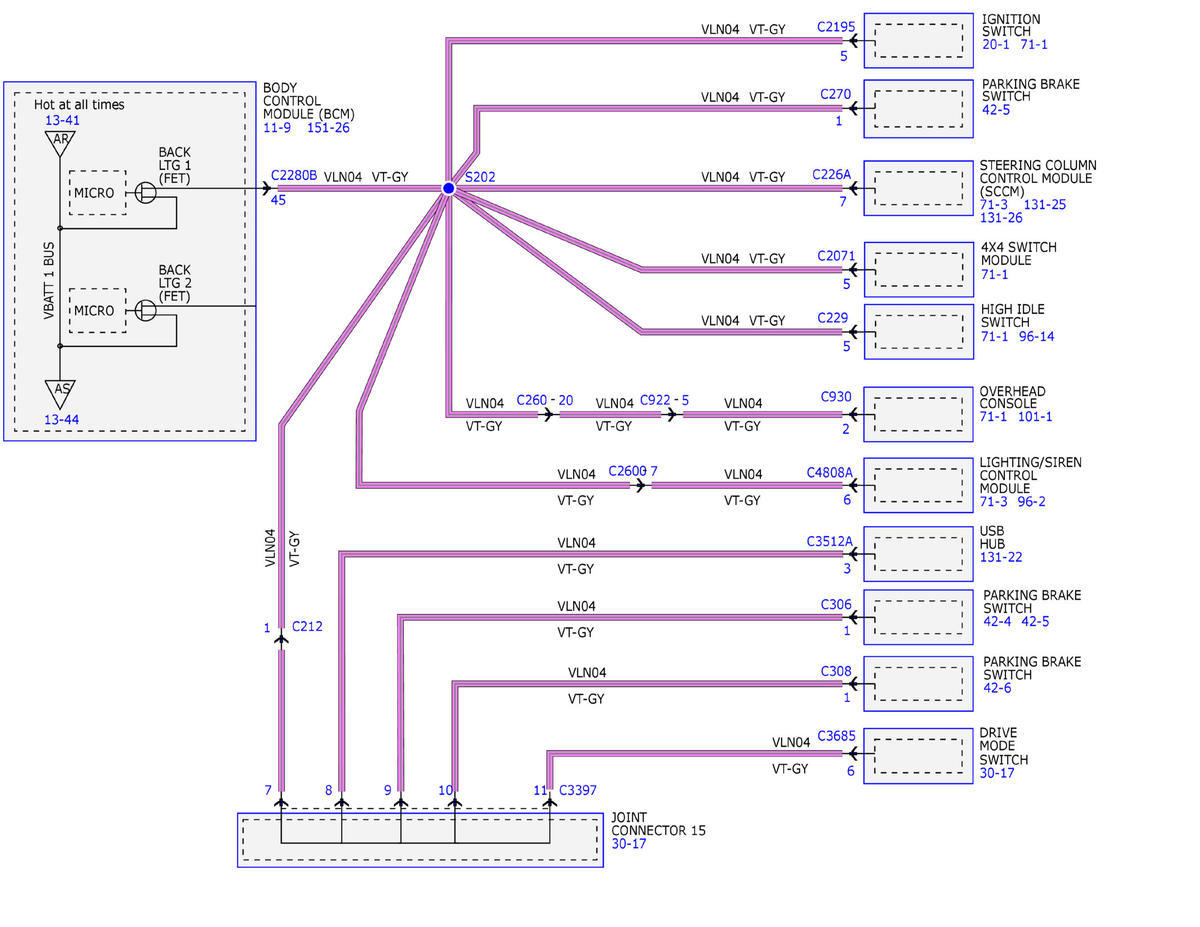

Fig 1: Power Distribution System Wiring Diagrams (1 Of 54)
Courtesy of FORD MOTOR COMPANY

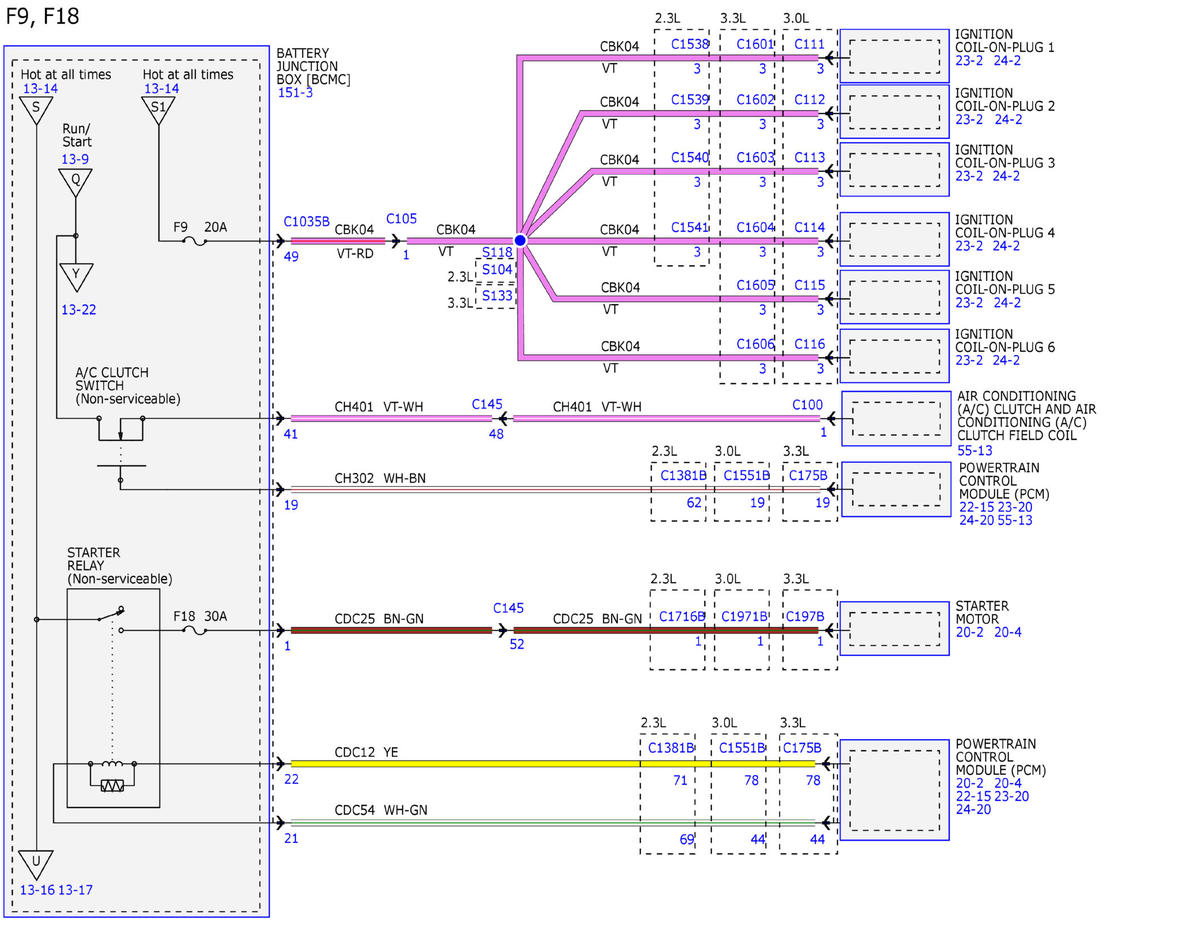

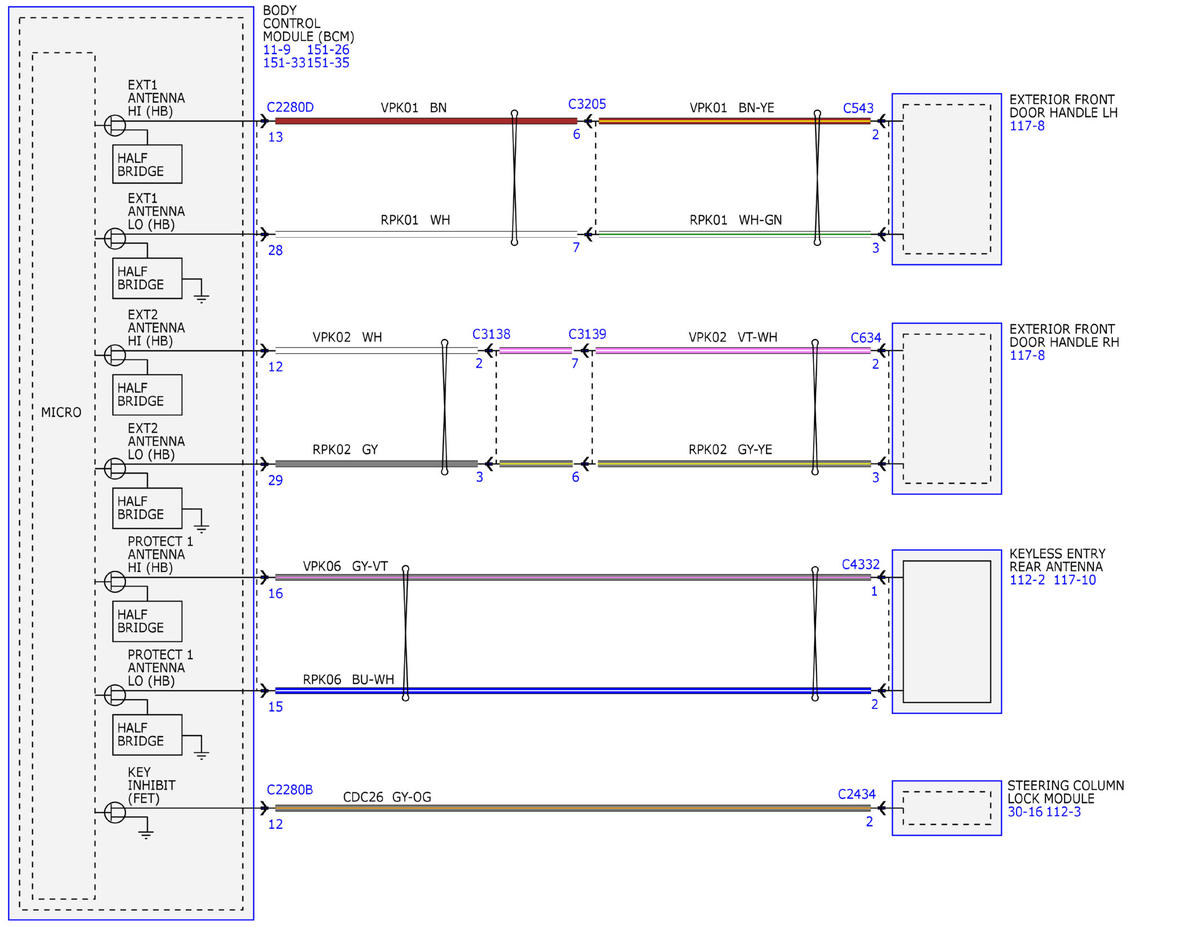

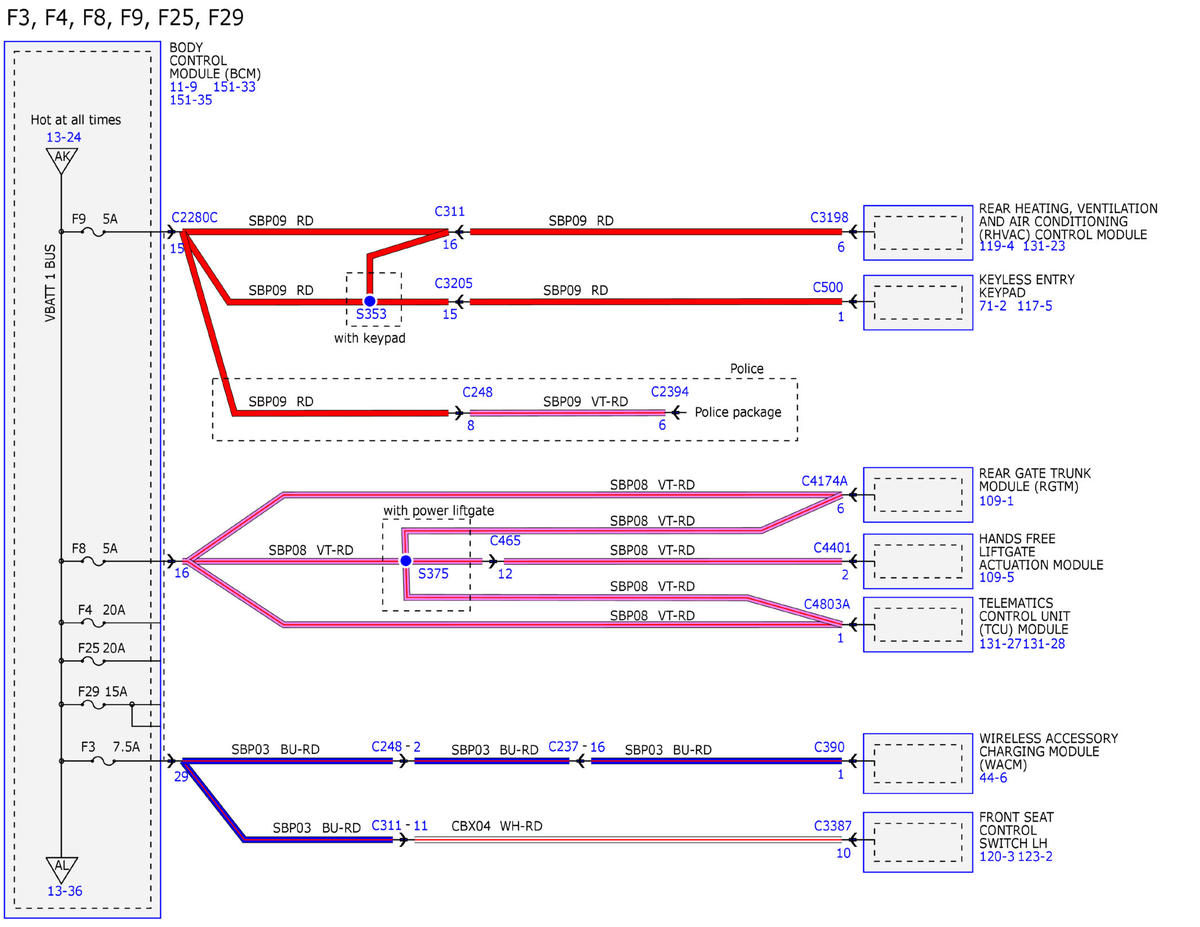

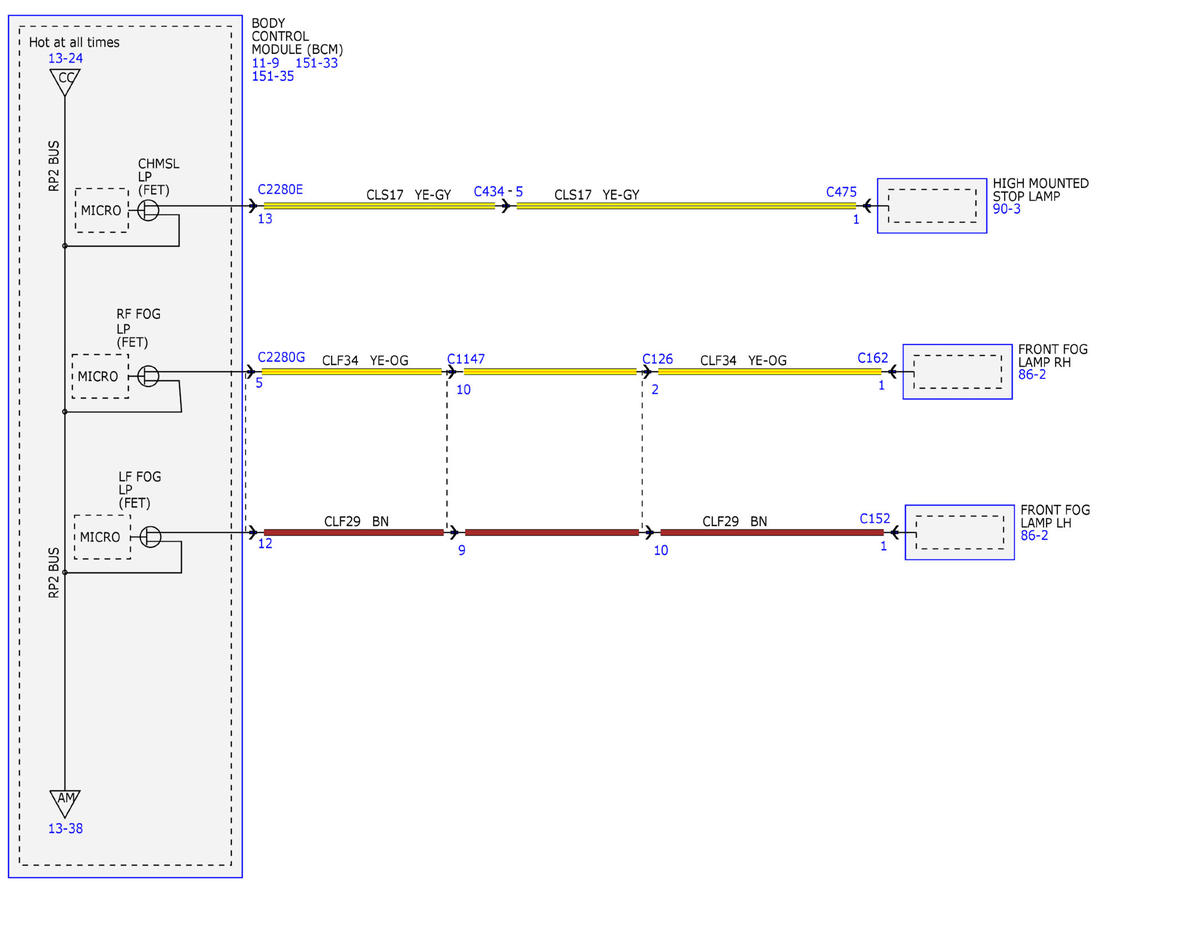

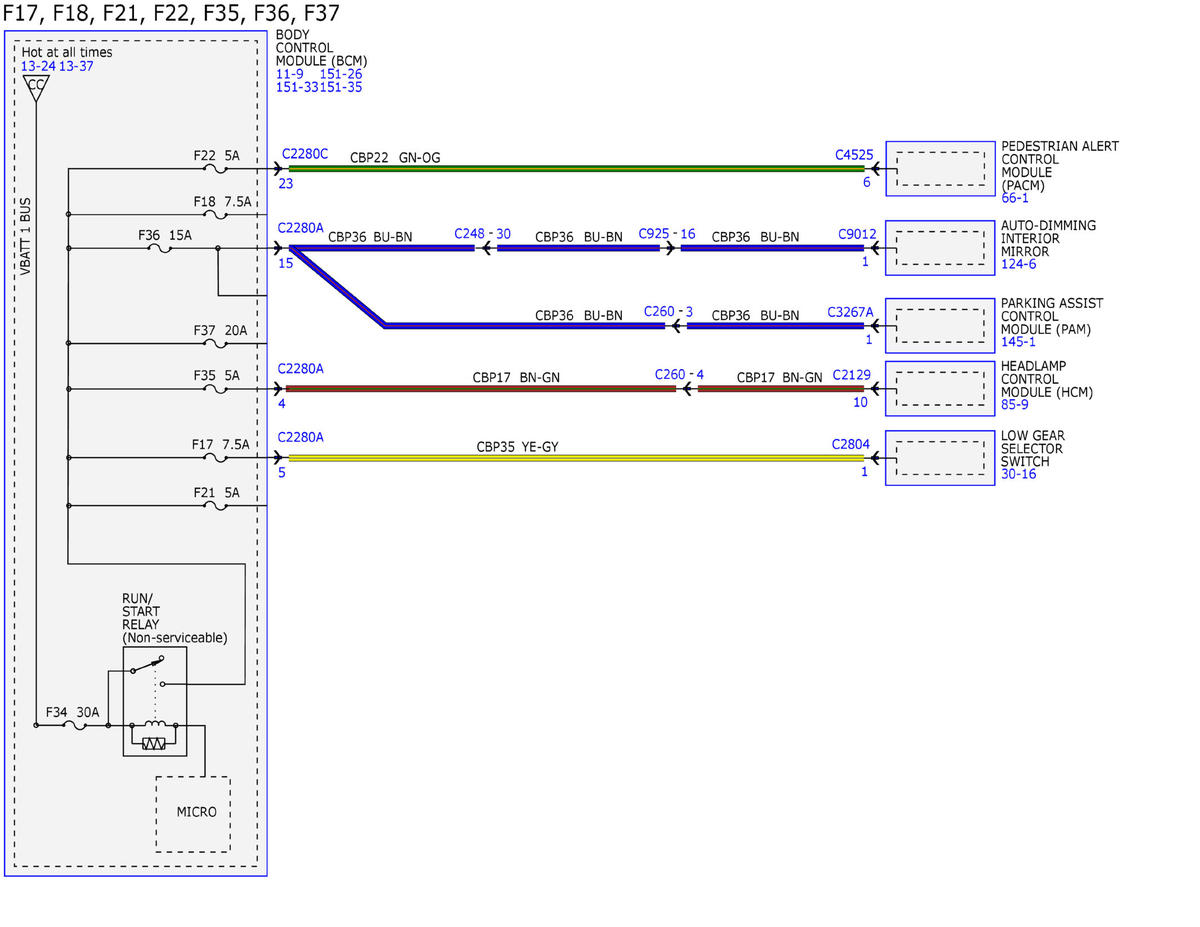

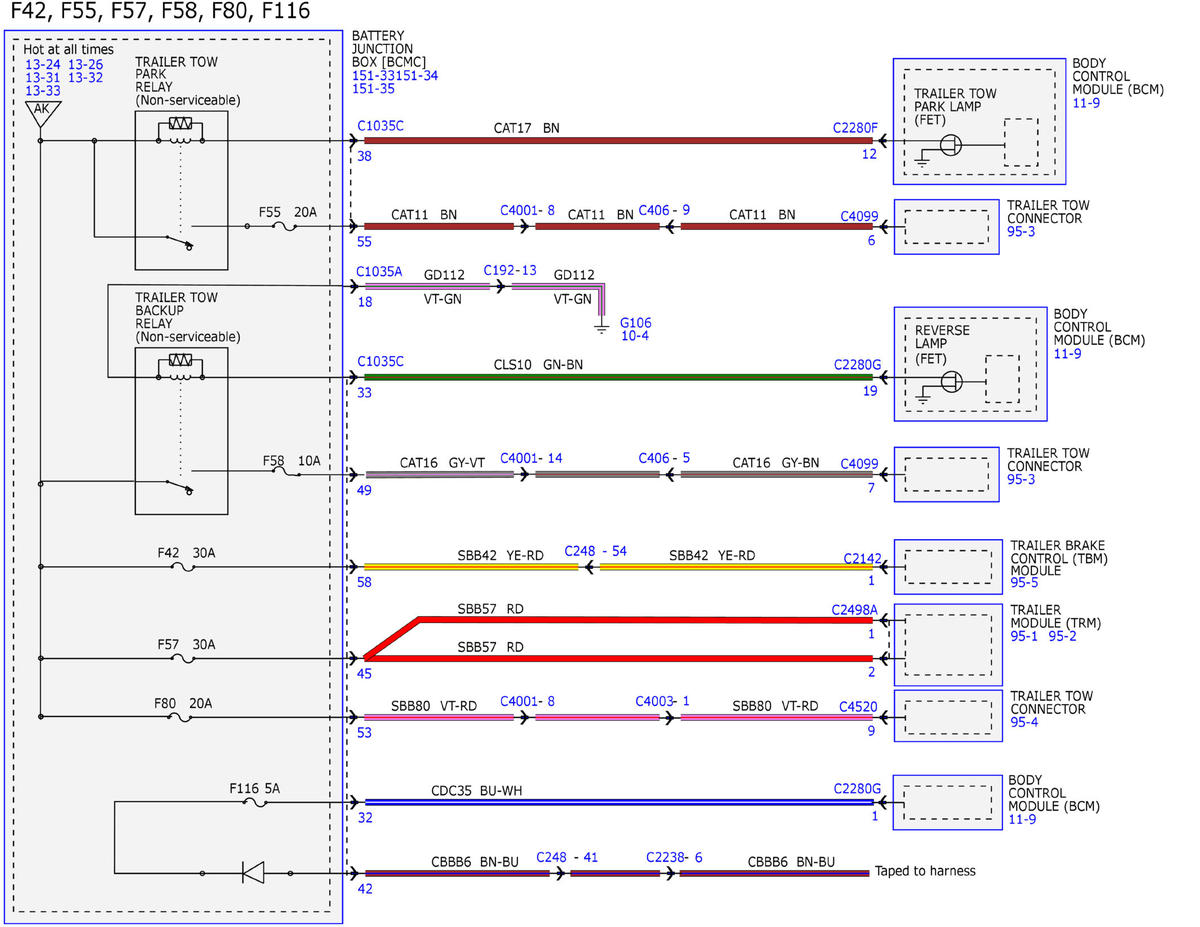

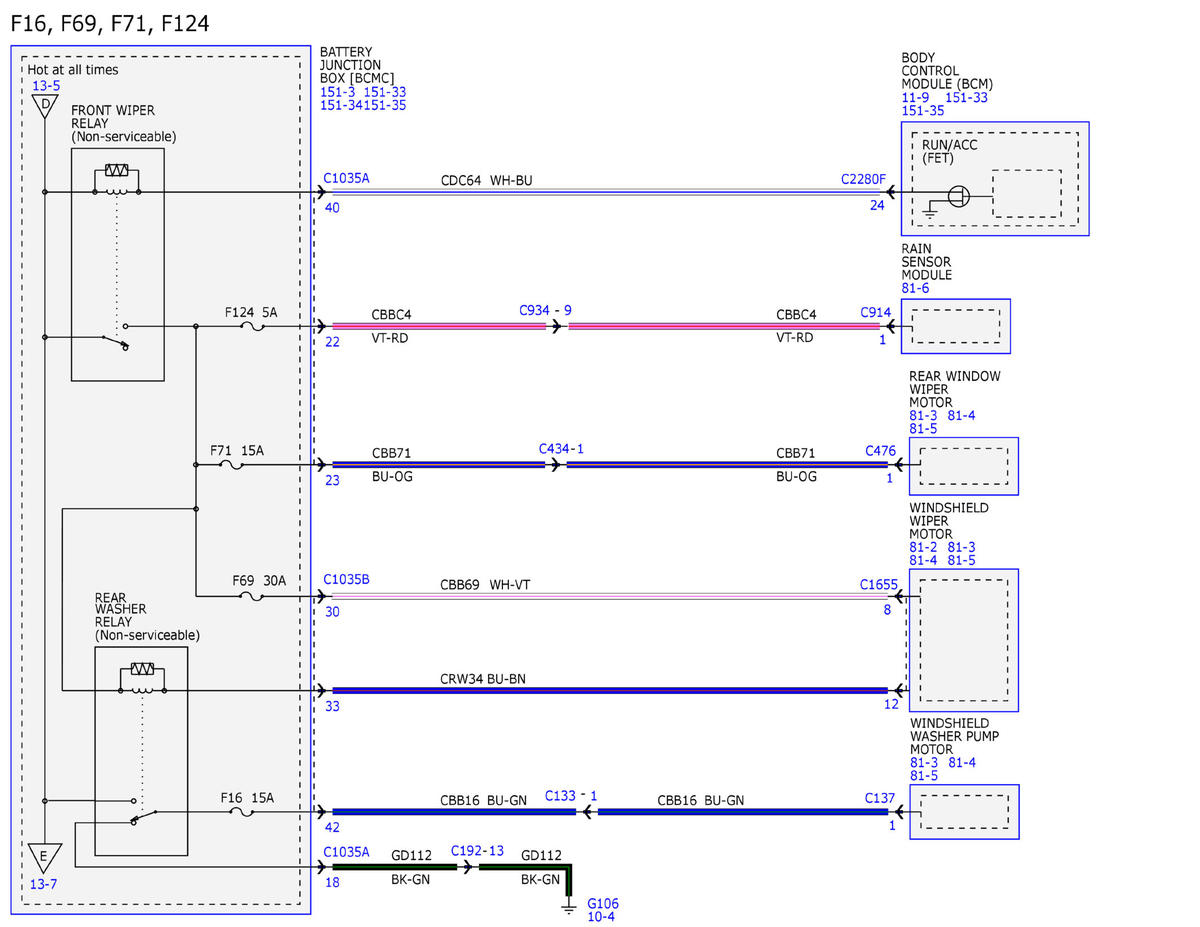

Fig 2: Power Distribution System Wiring Diagrams (2 Of 54)
Courtesy of FORD MOTOR COMPANY

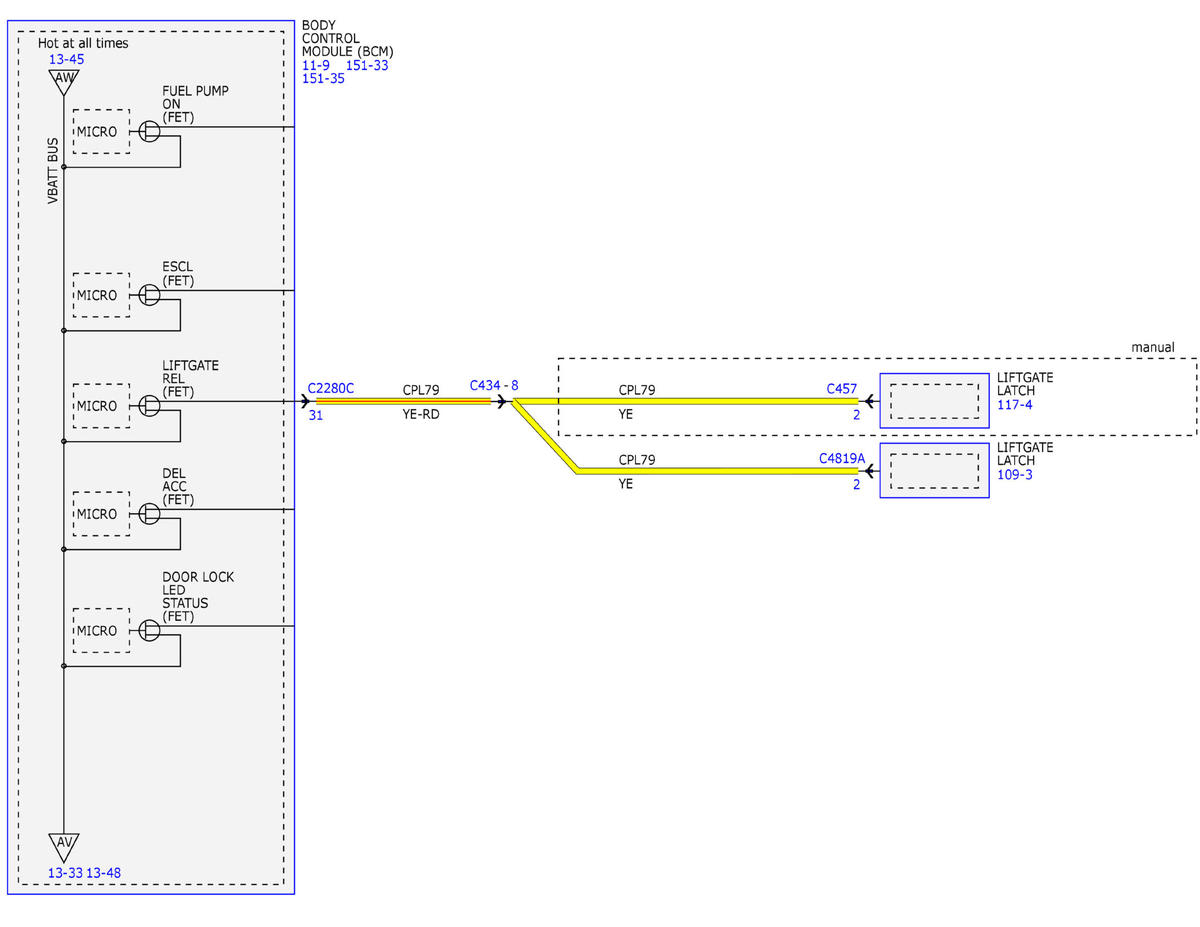

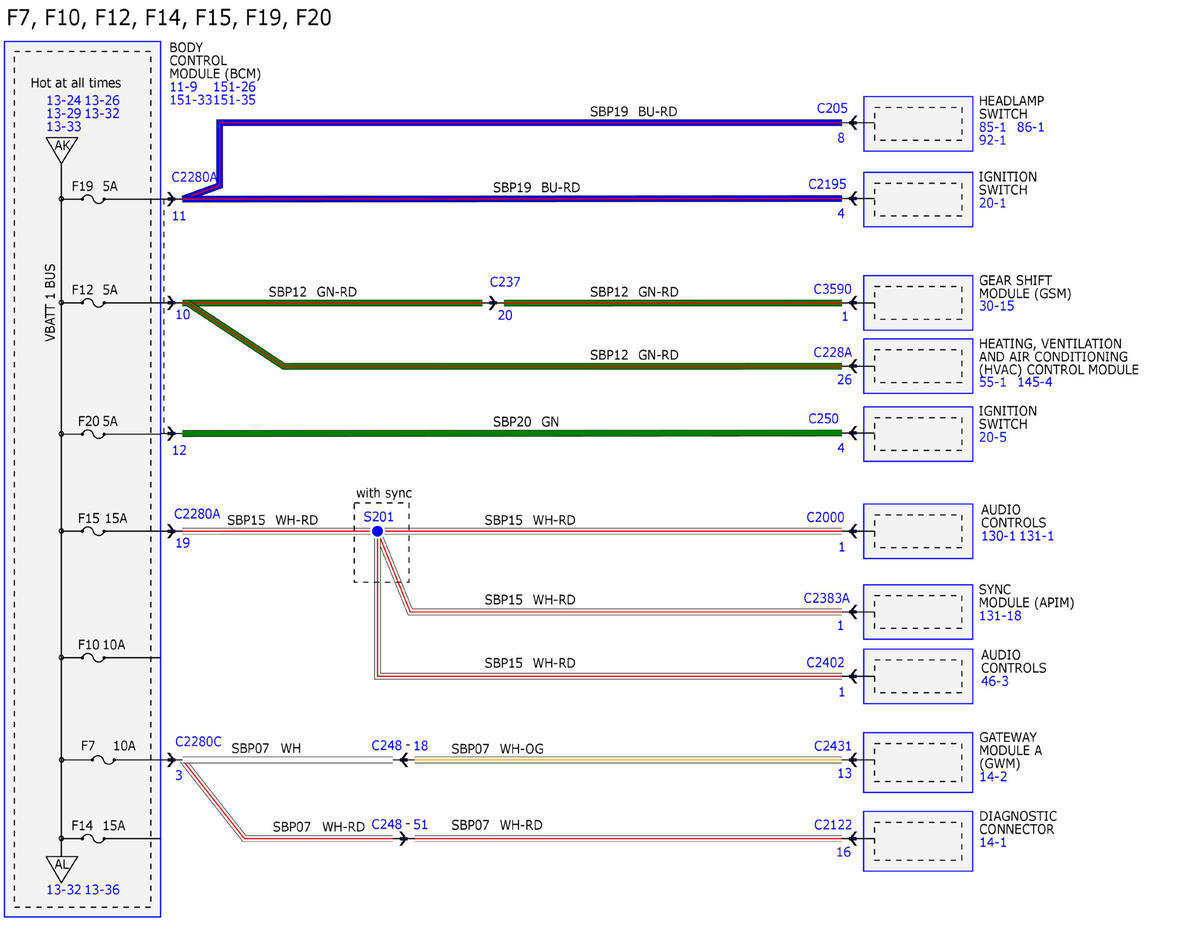

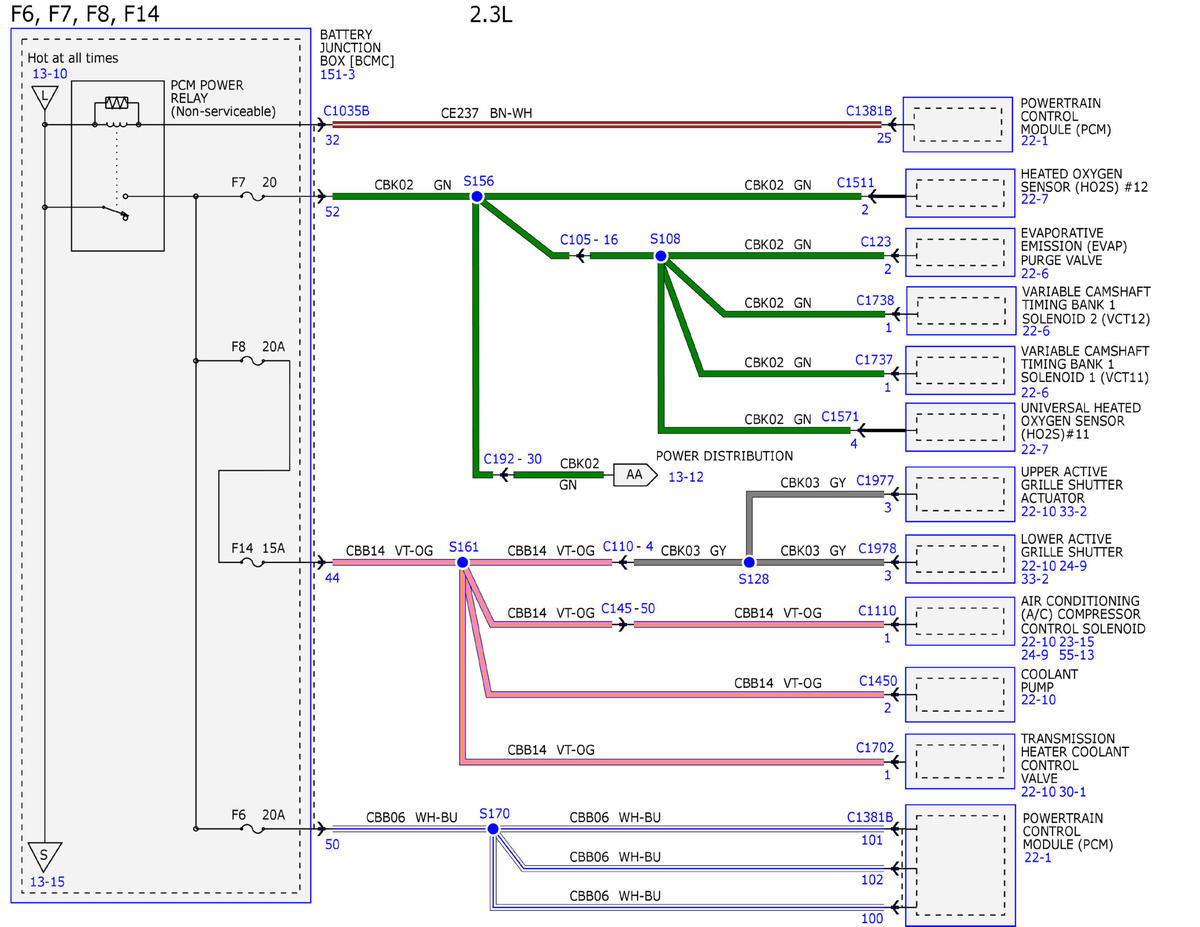

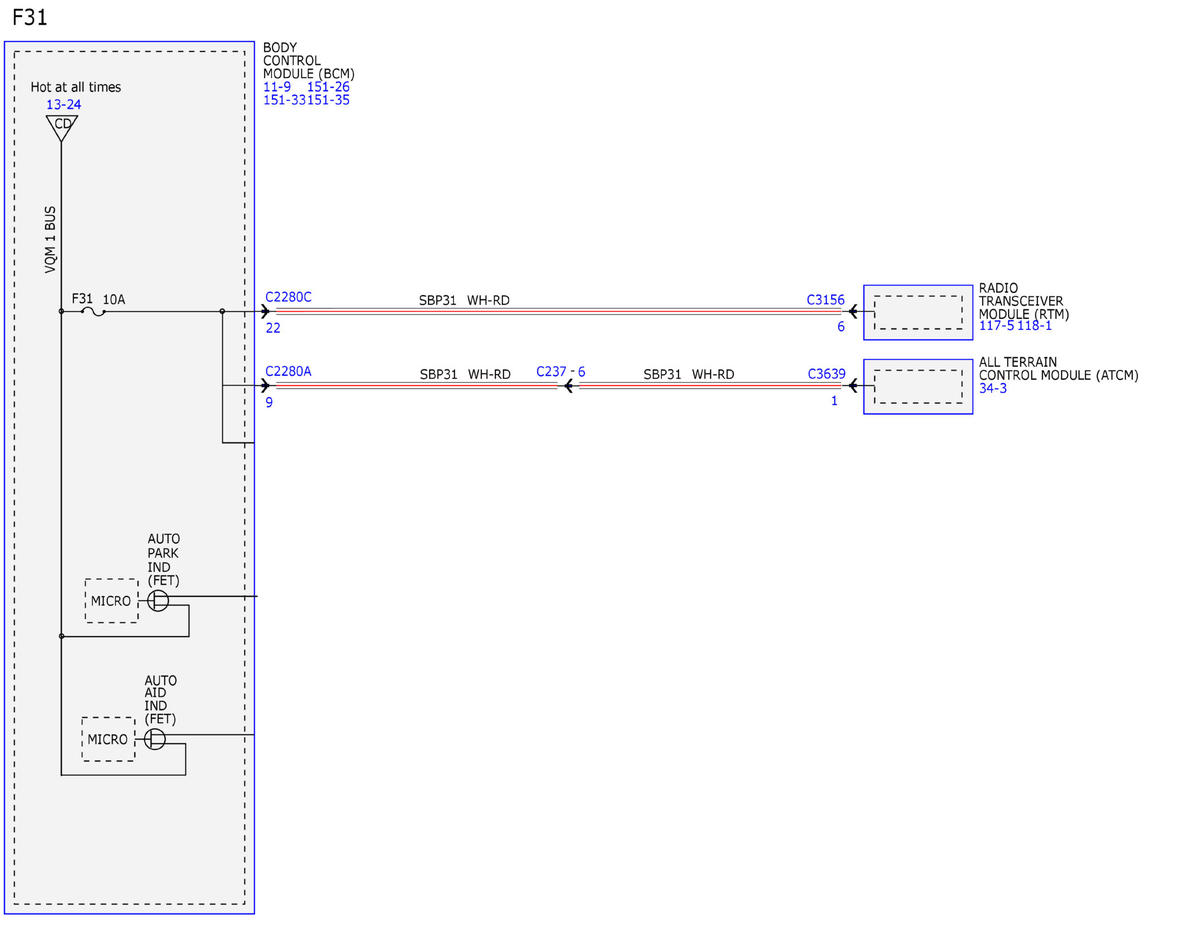

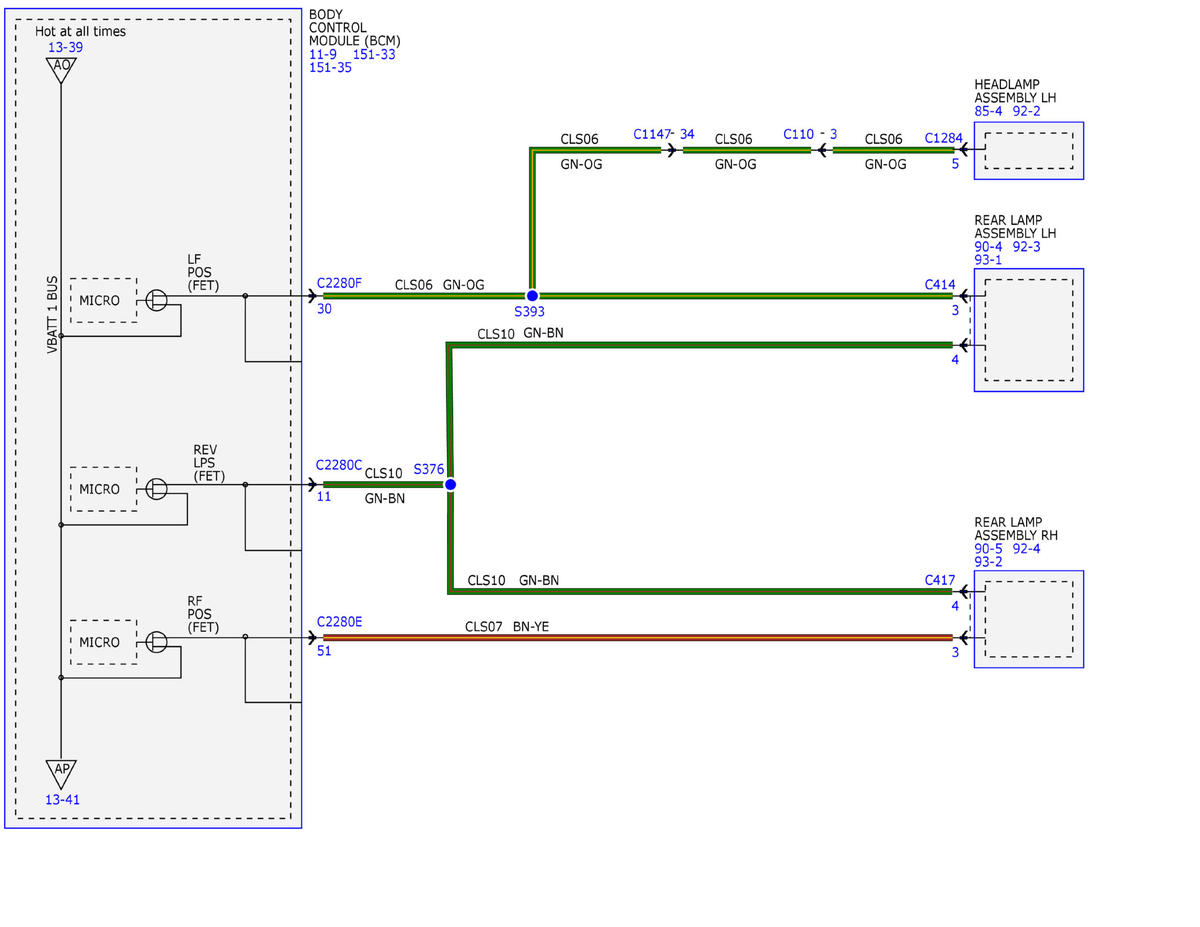

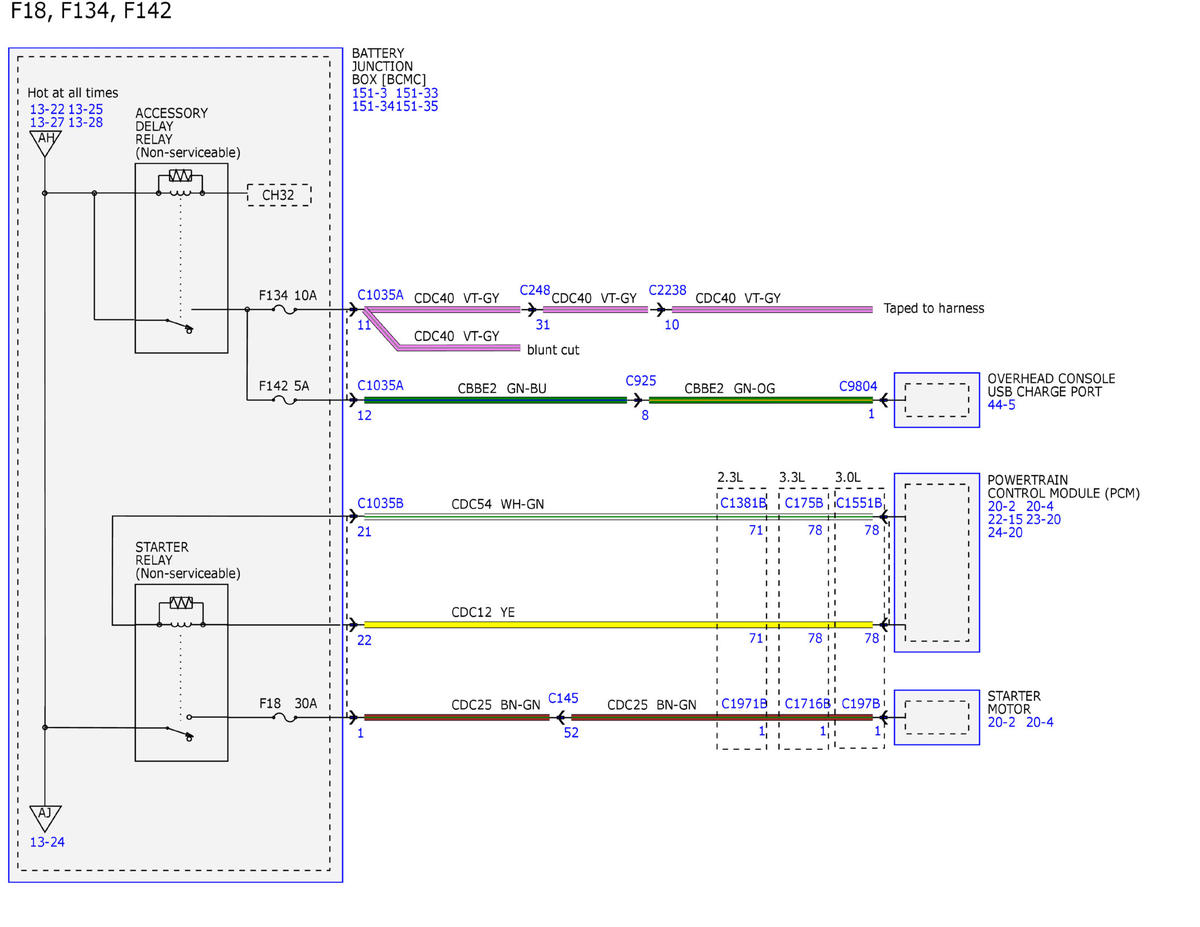

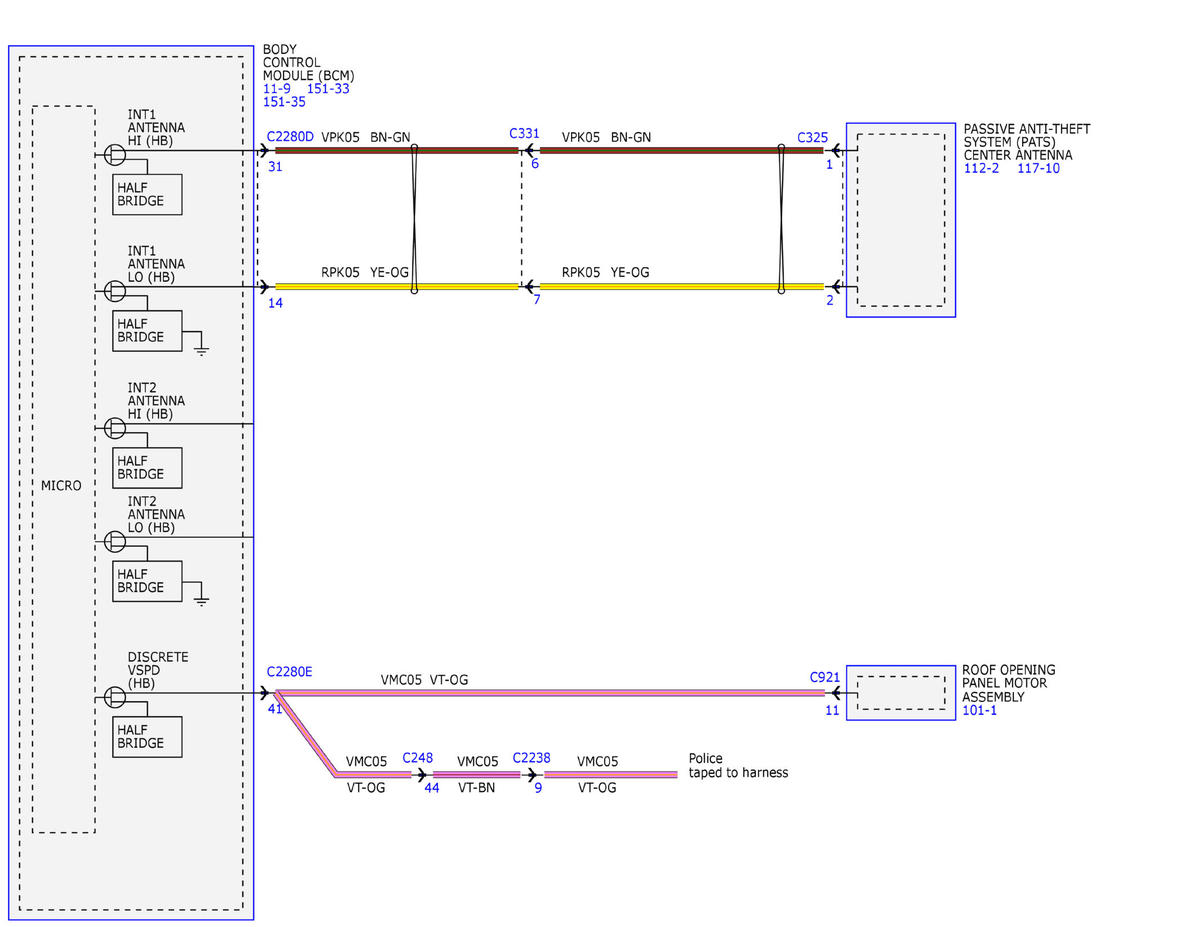

Fig 3: Power Distribution System Wiring Diagrams (3 Of 54)
Courtesy of FORD MOTOR COMPANY

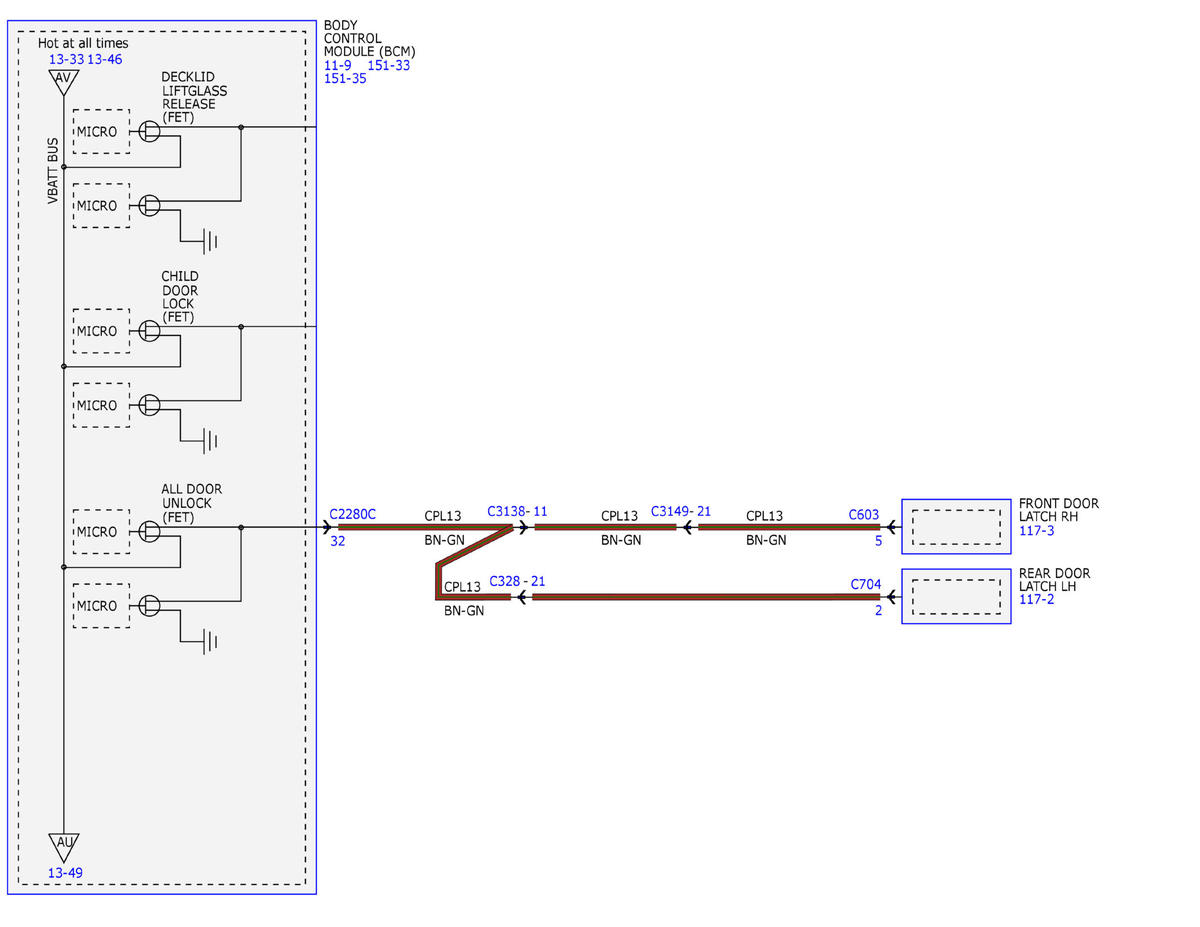

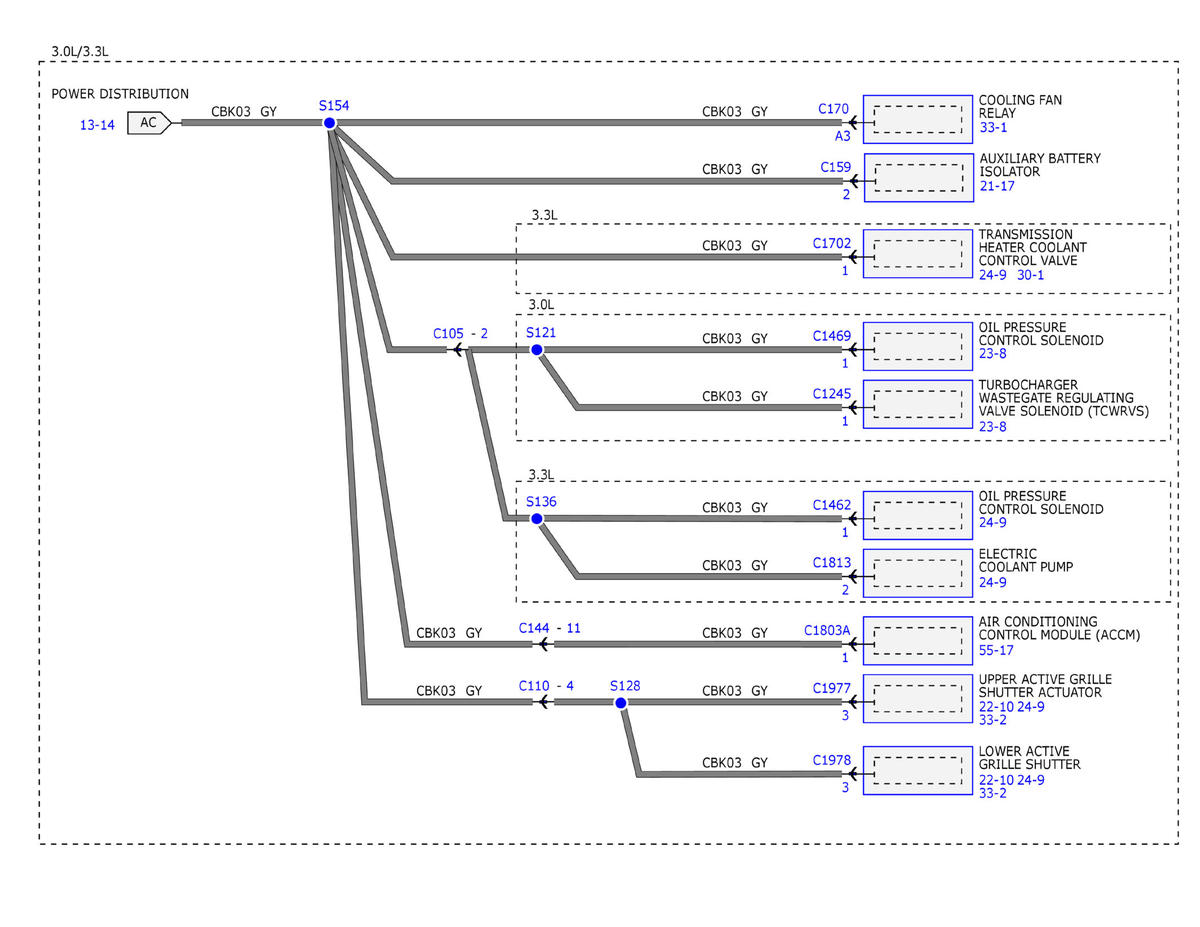

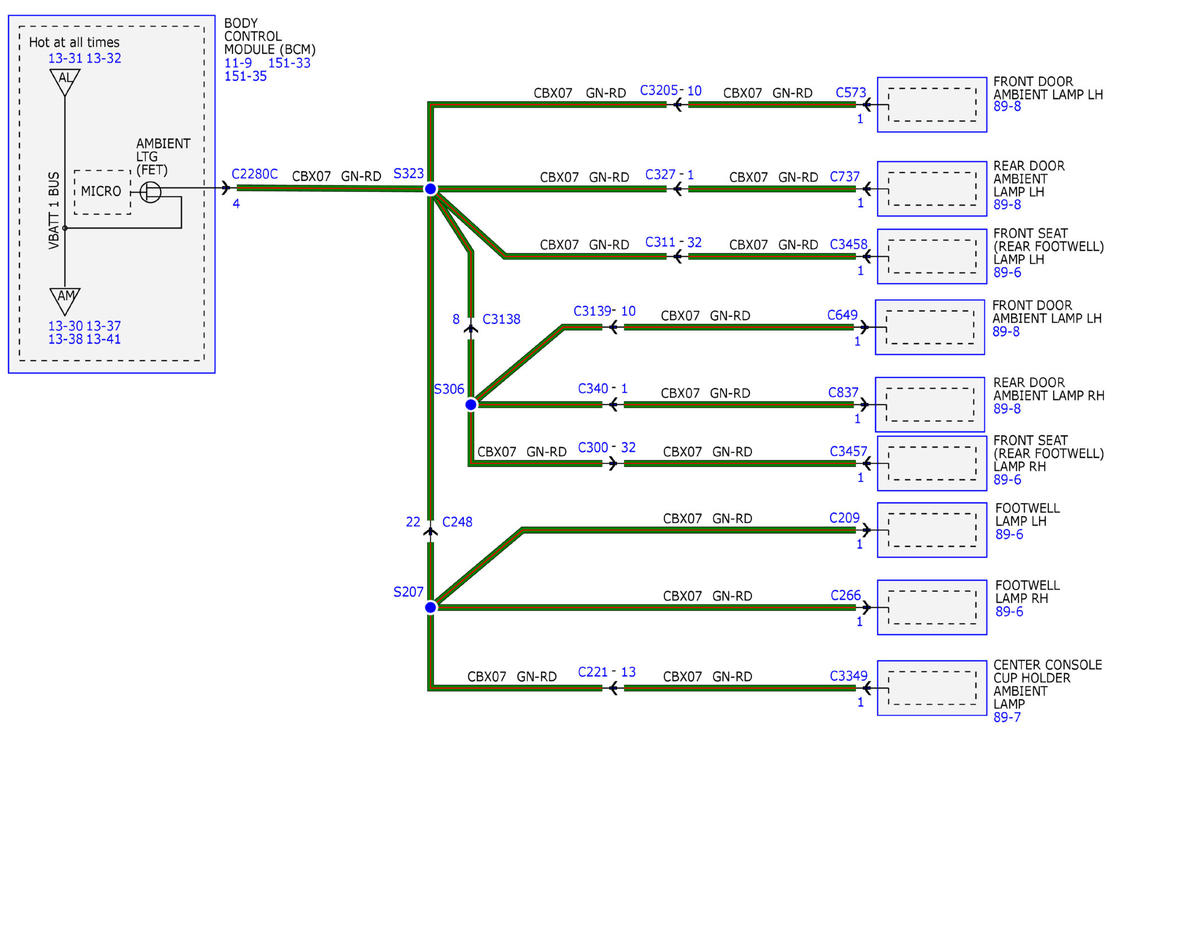

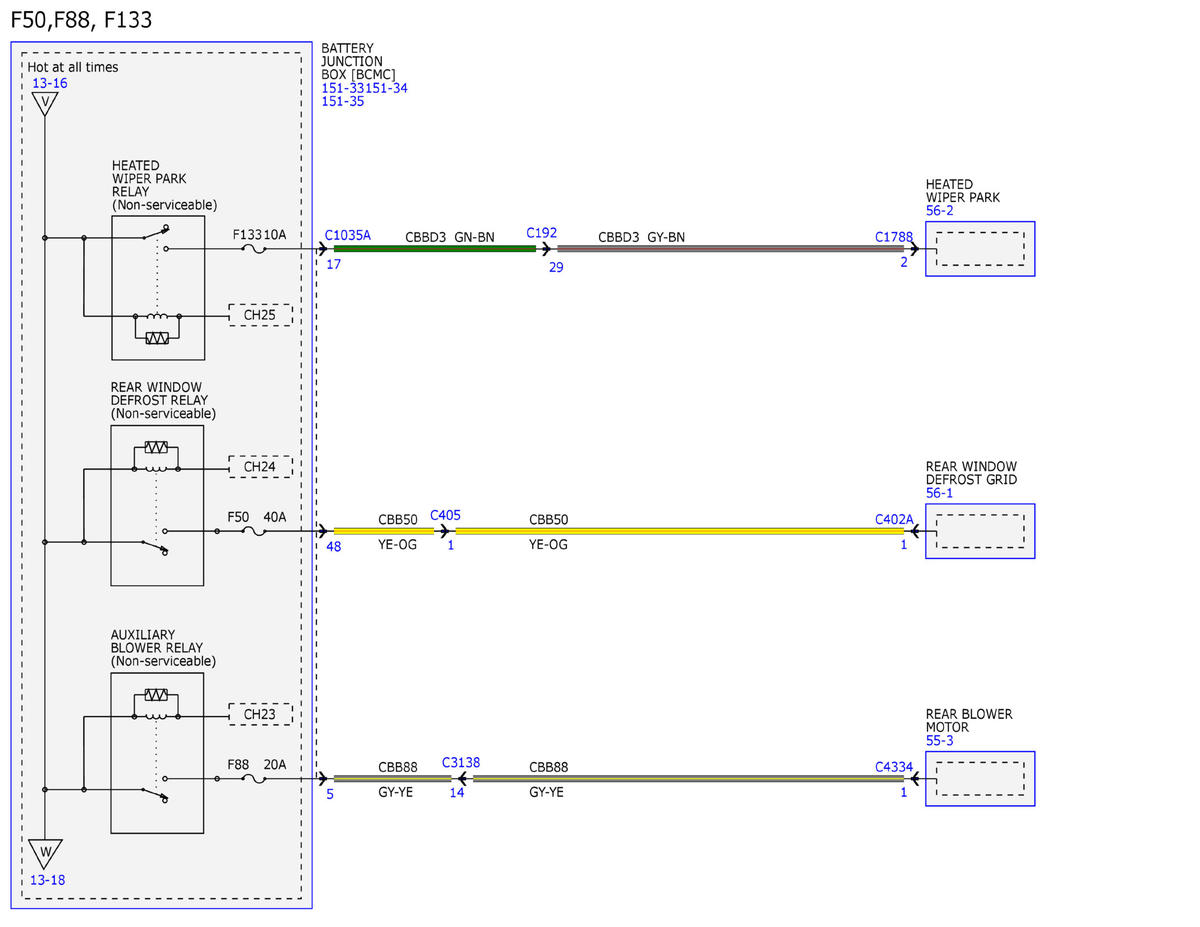

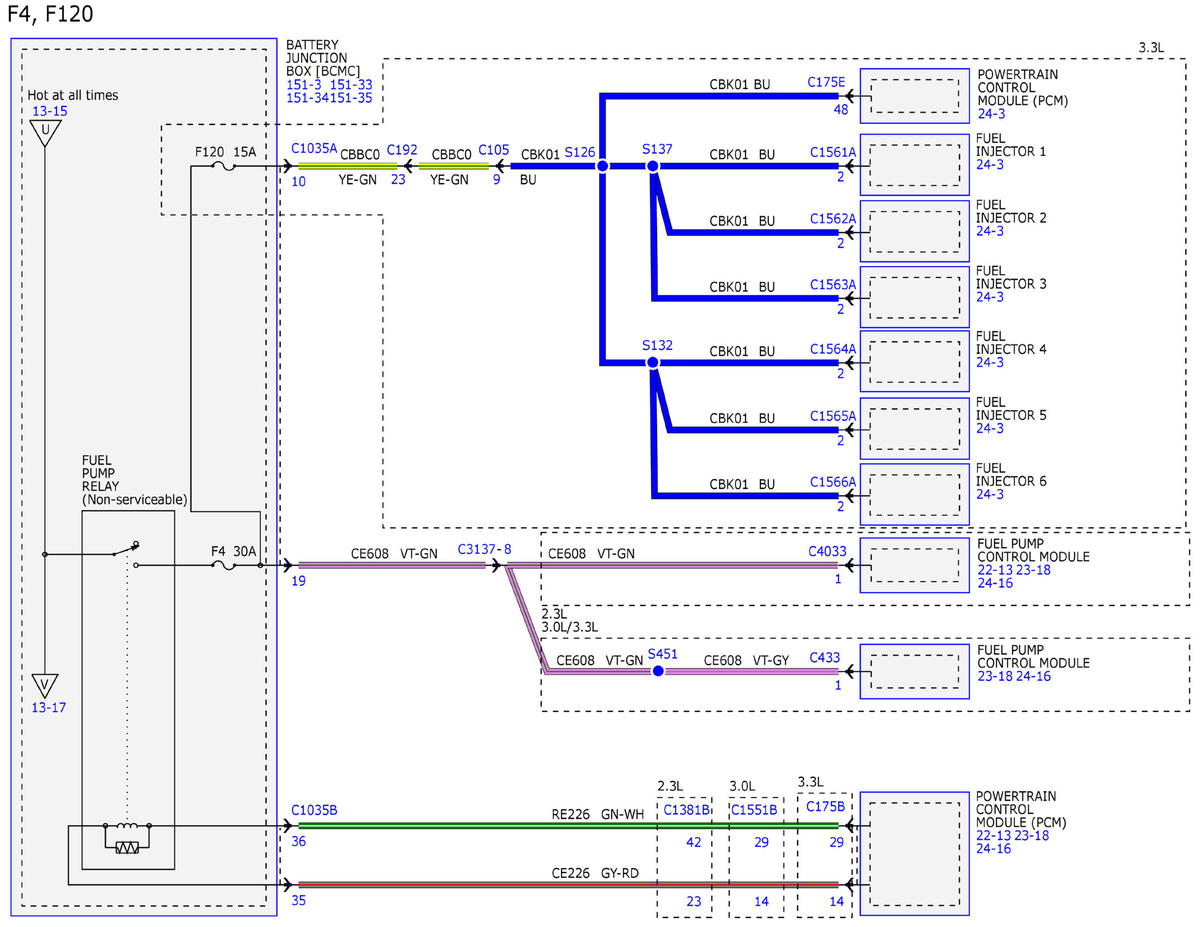

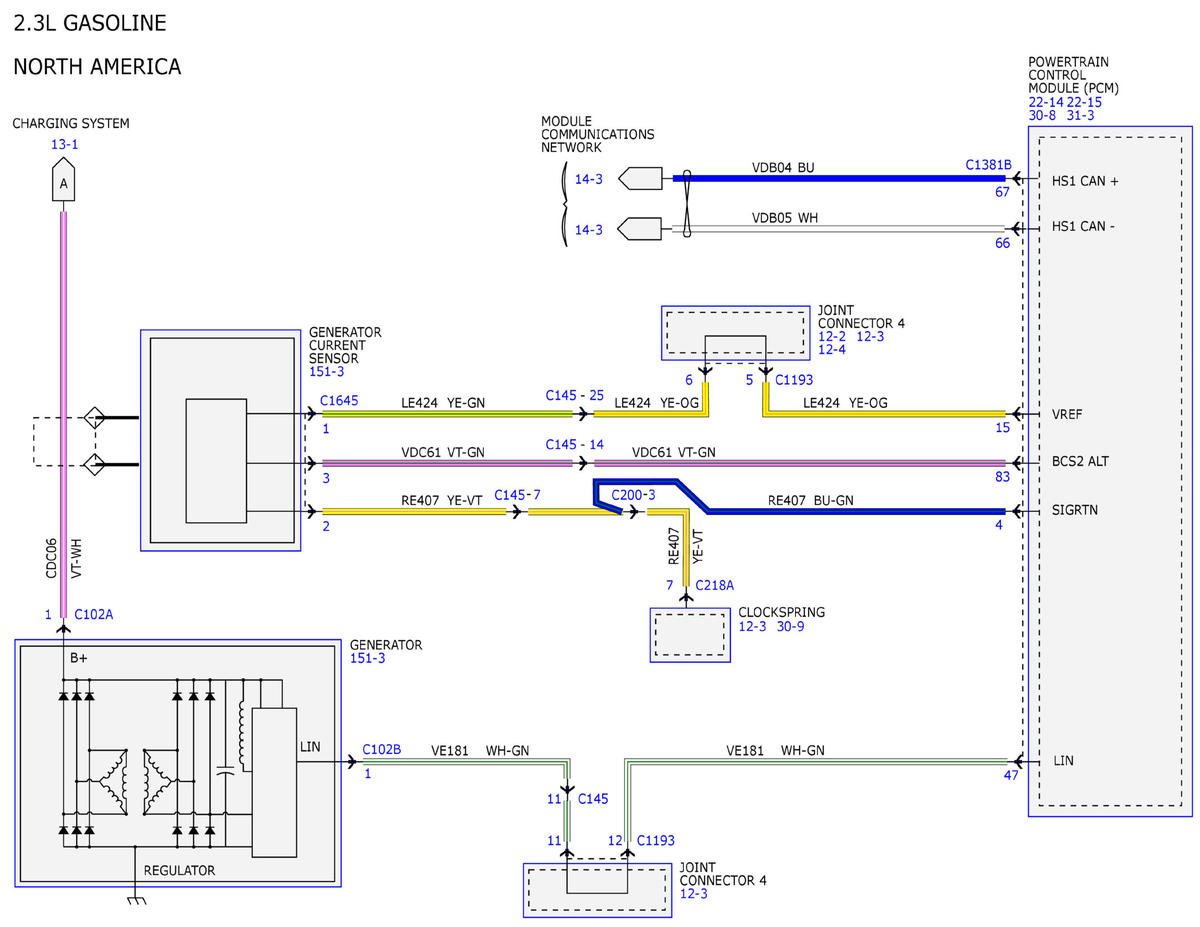

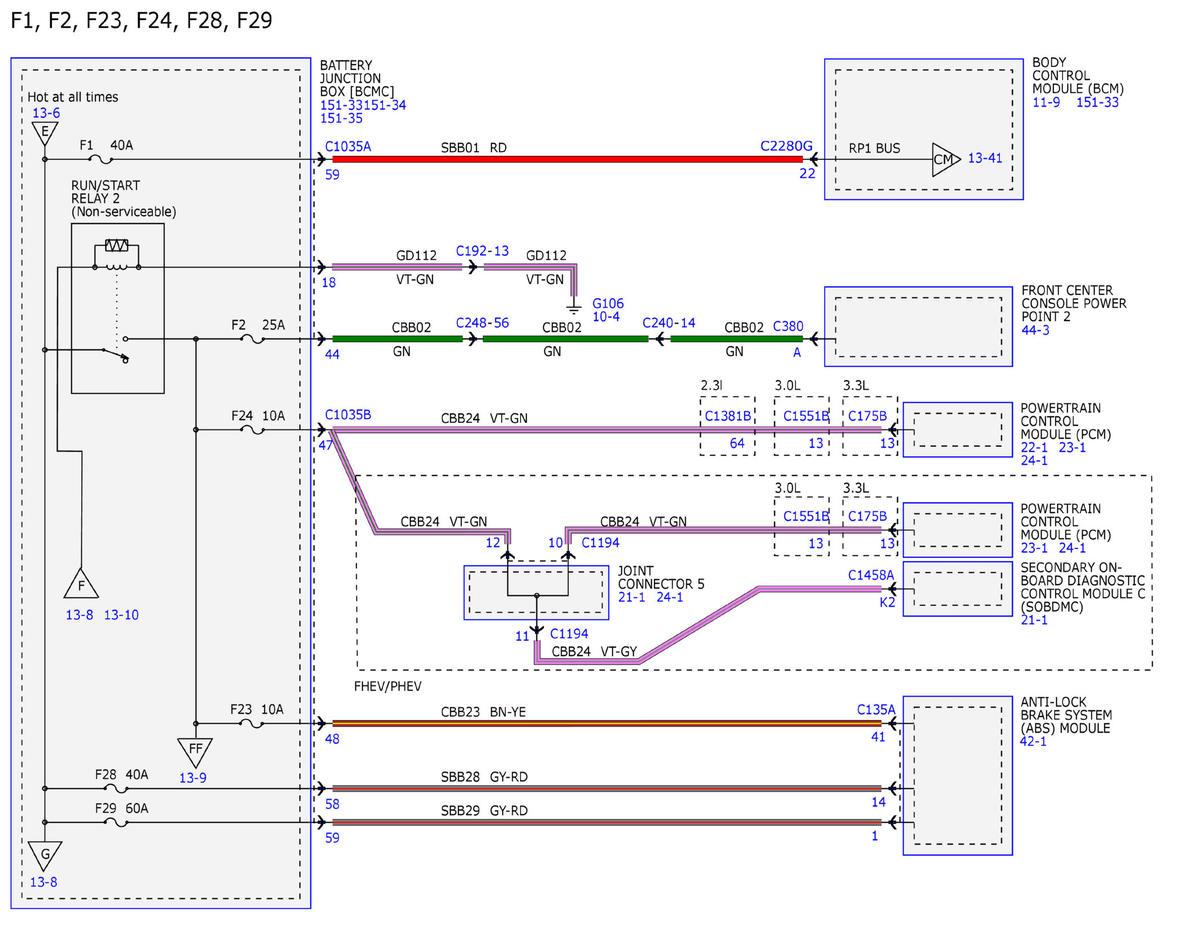

Fig 4: Power Distribution System Wiring Diagrams (4 Of 54)
Courtesy of FORD MOTOR COMPANY

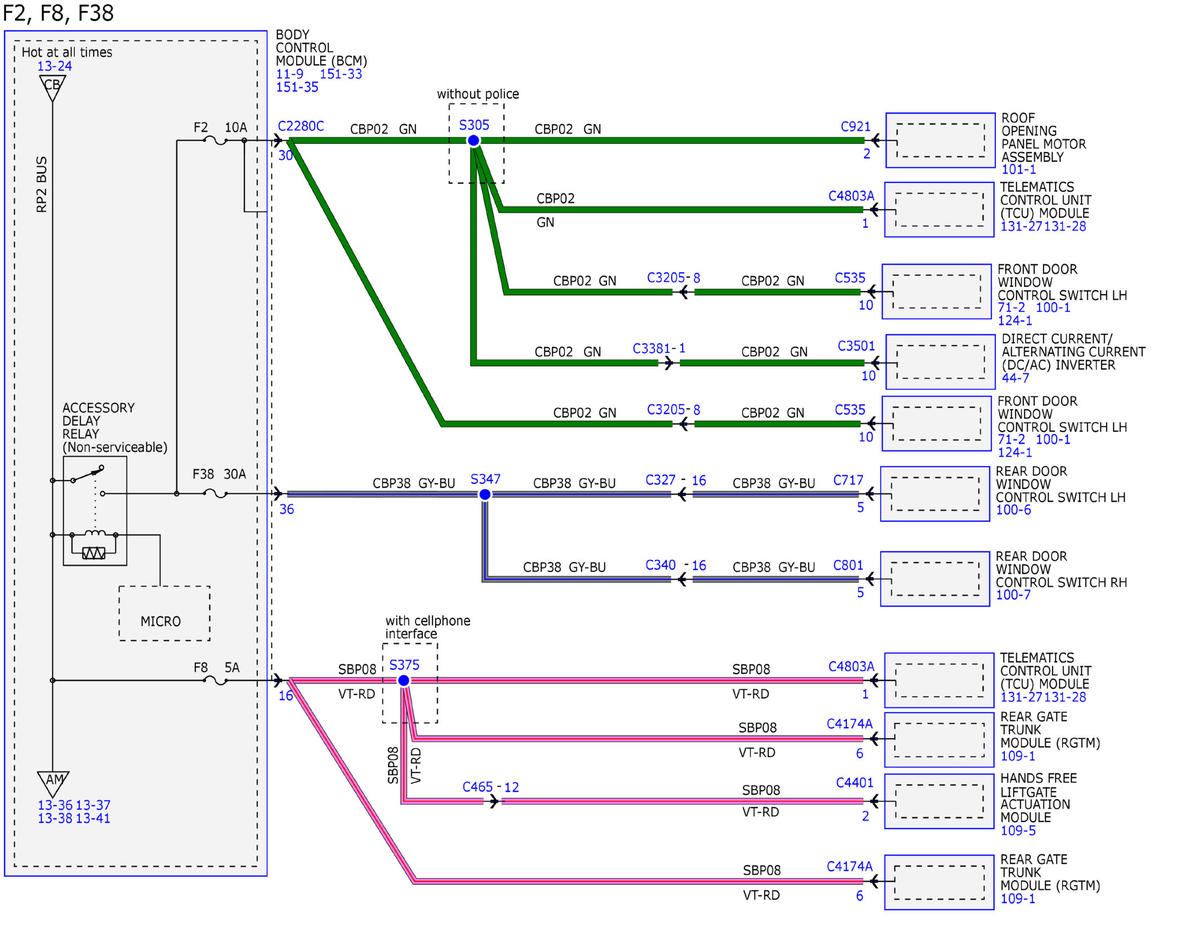

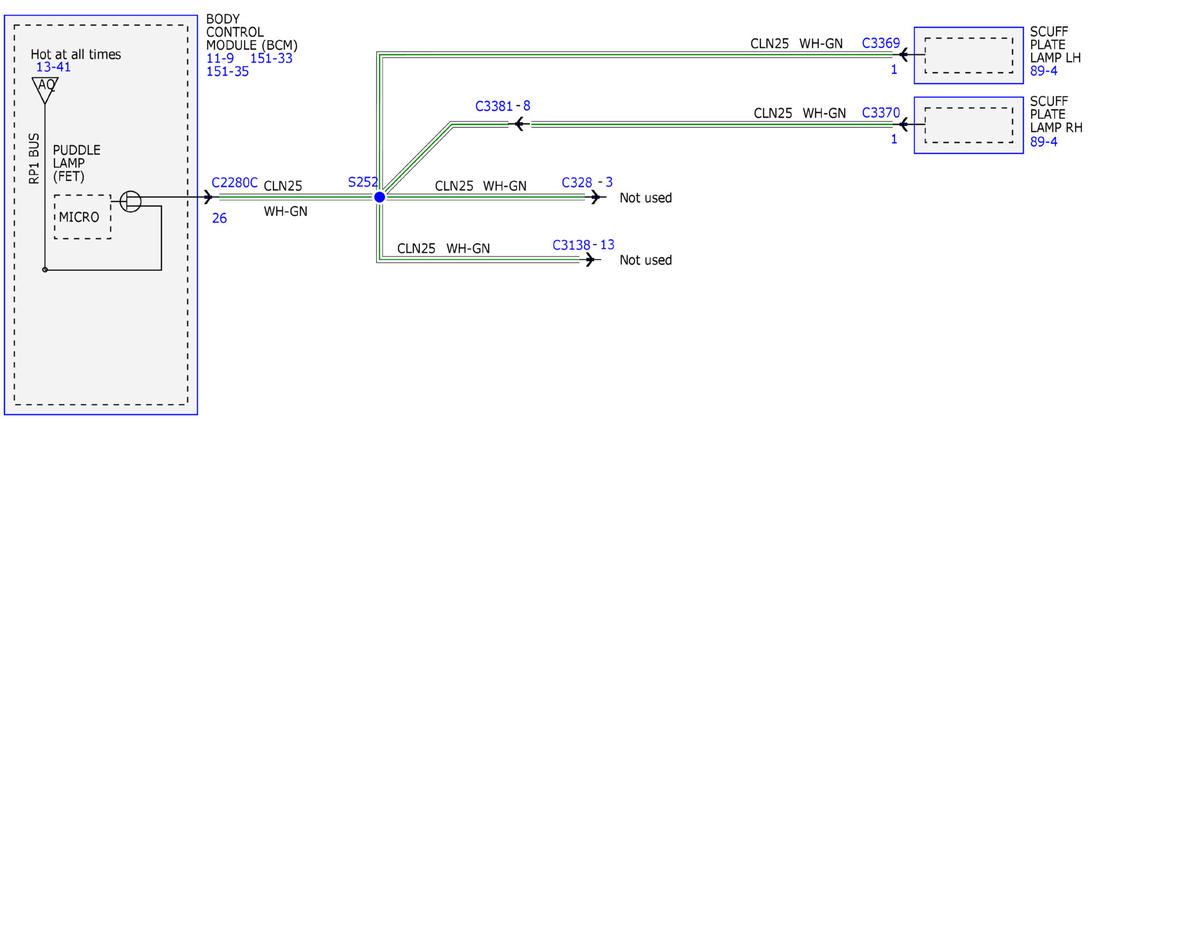

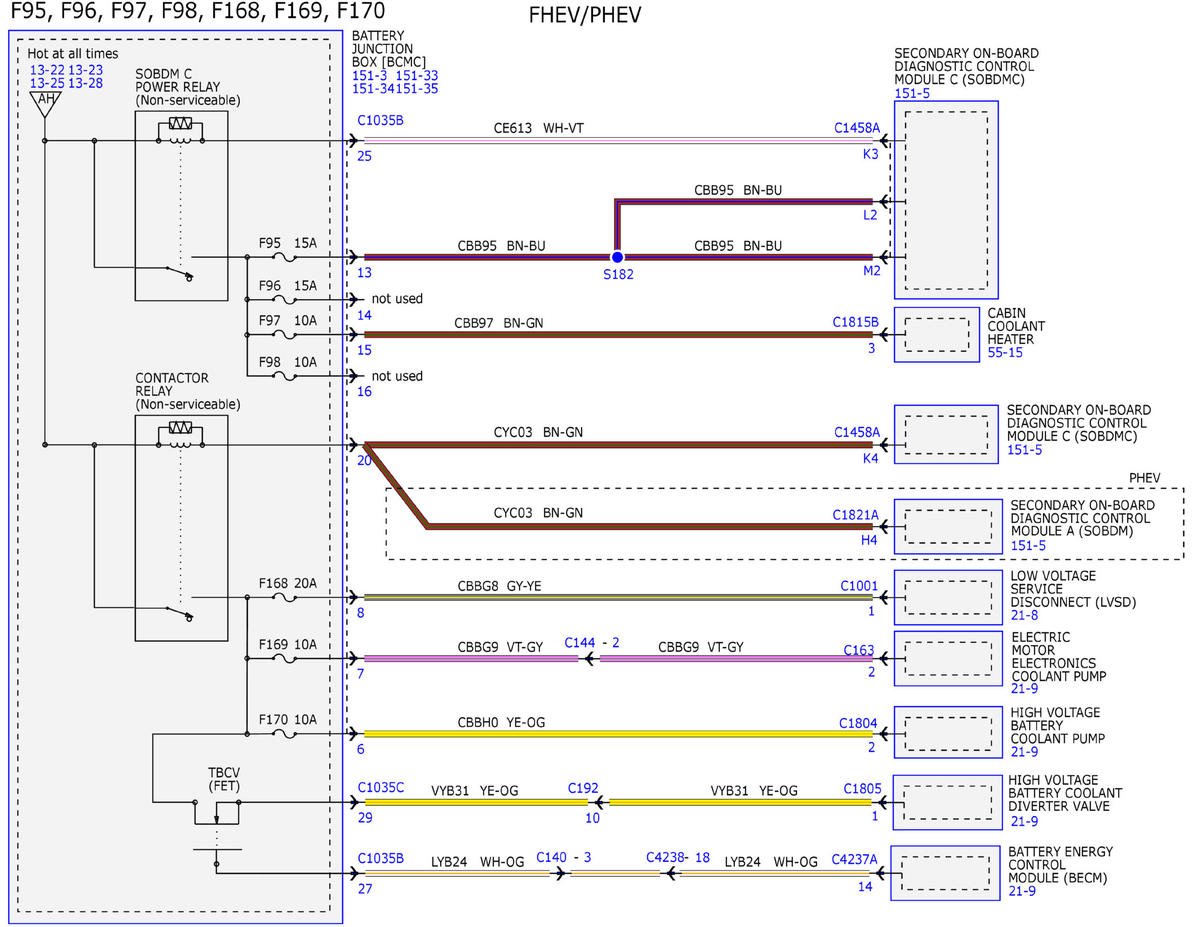

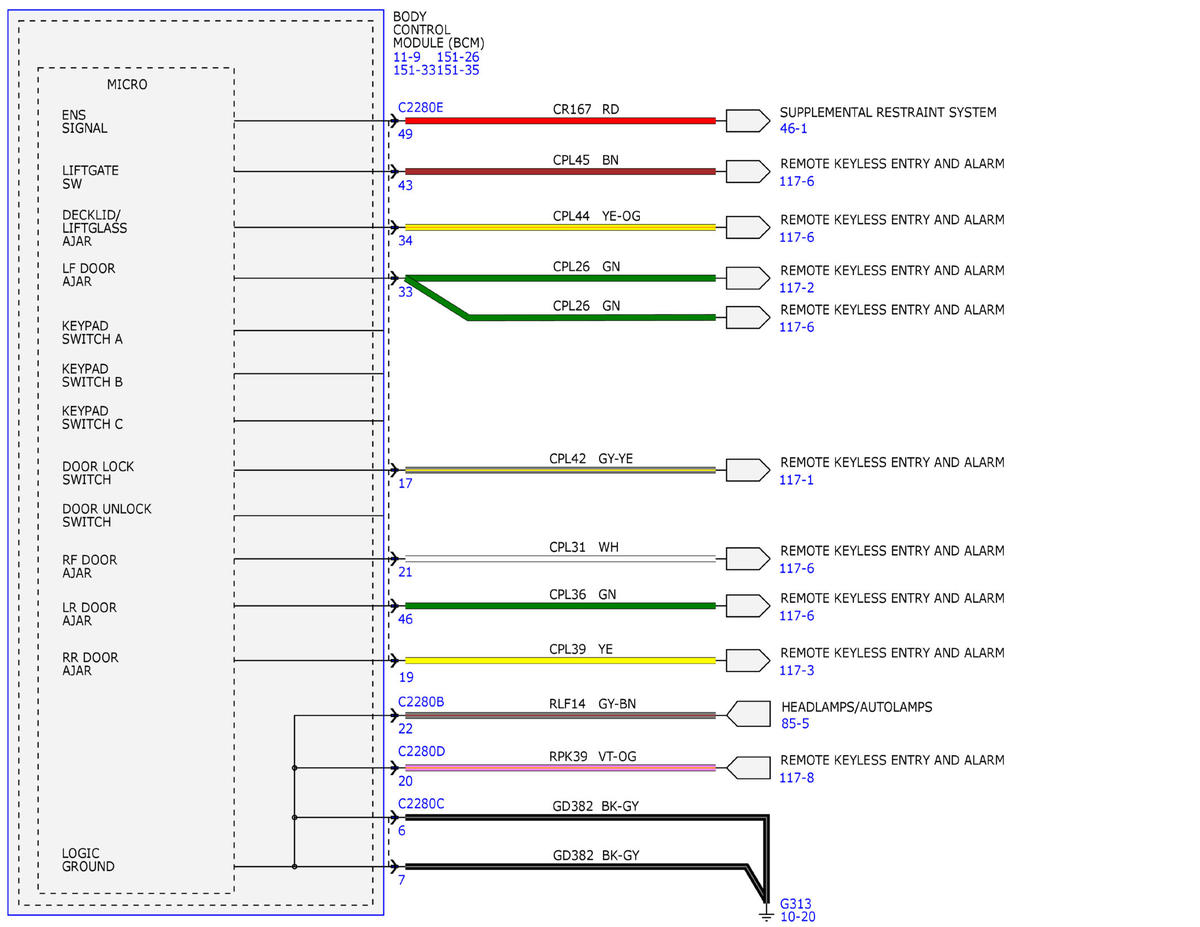

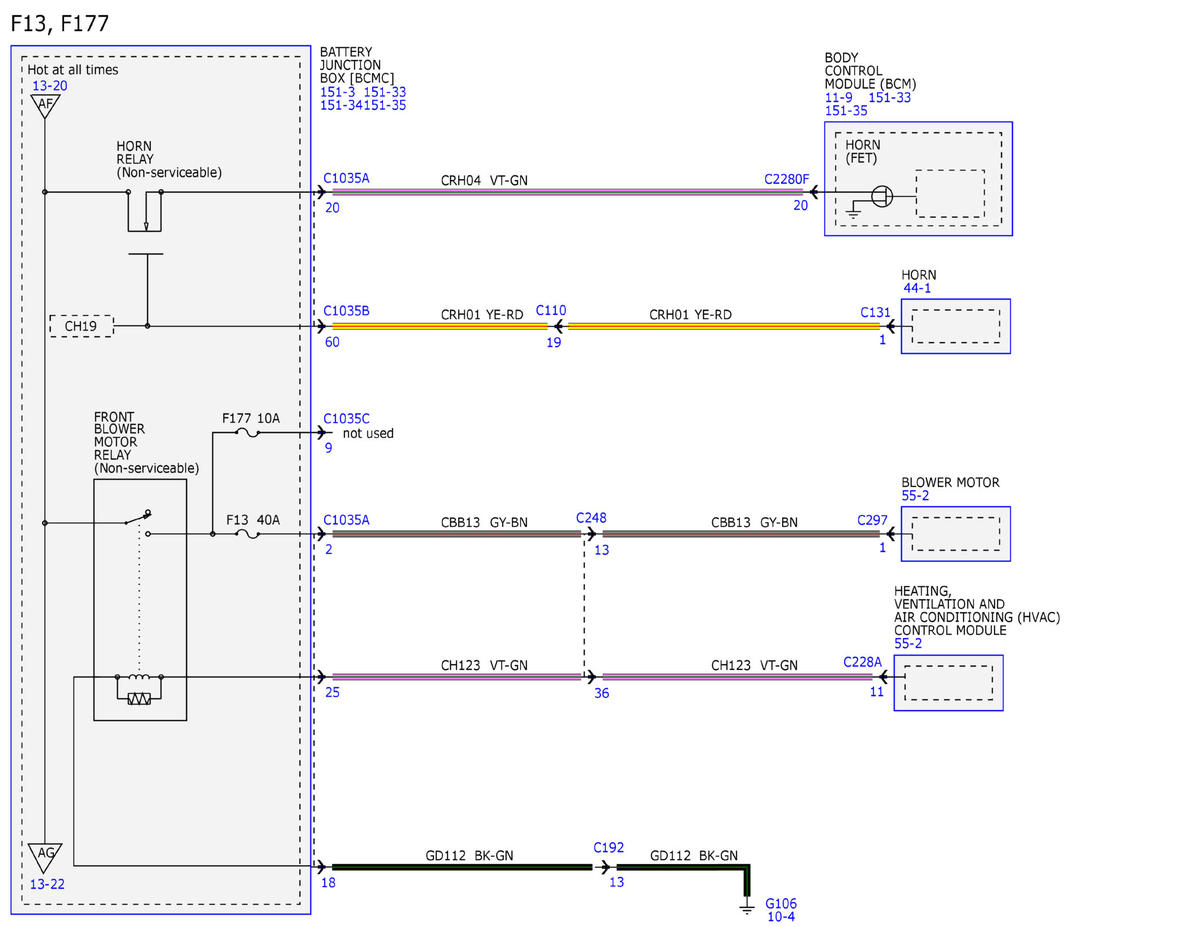

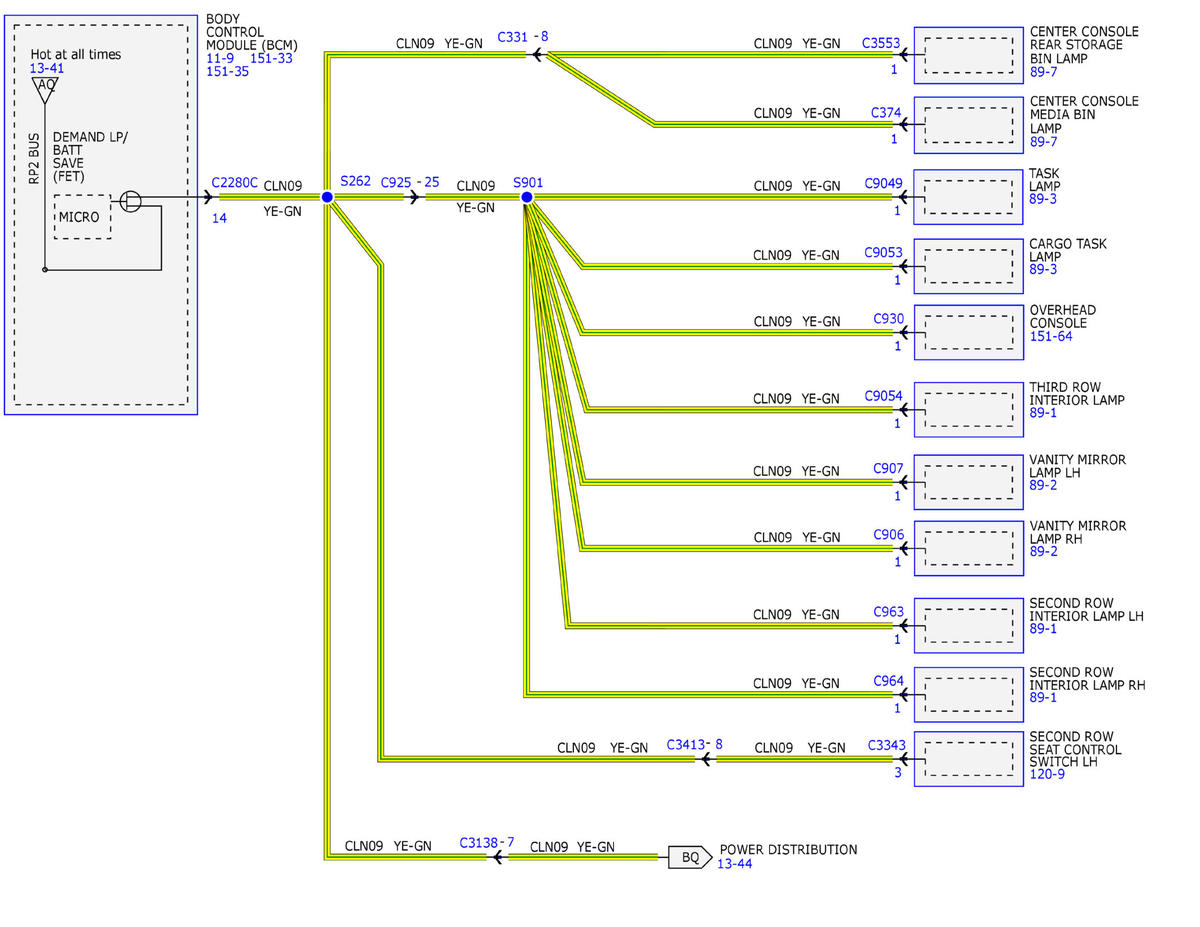

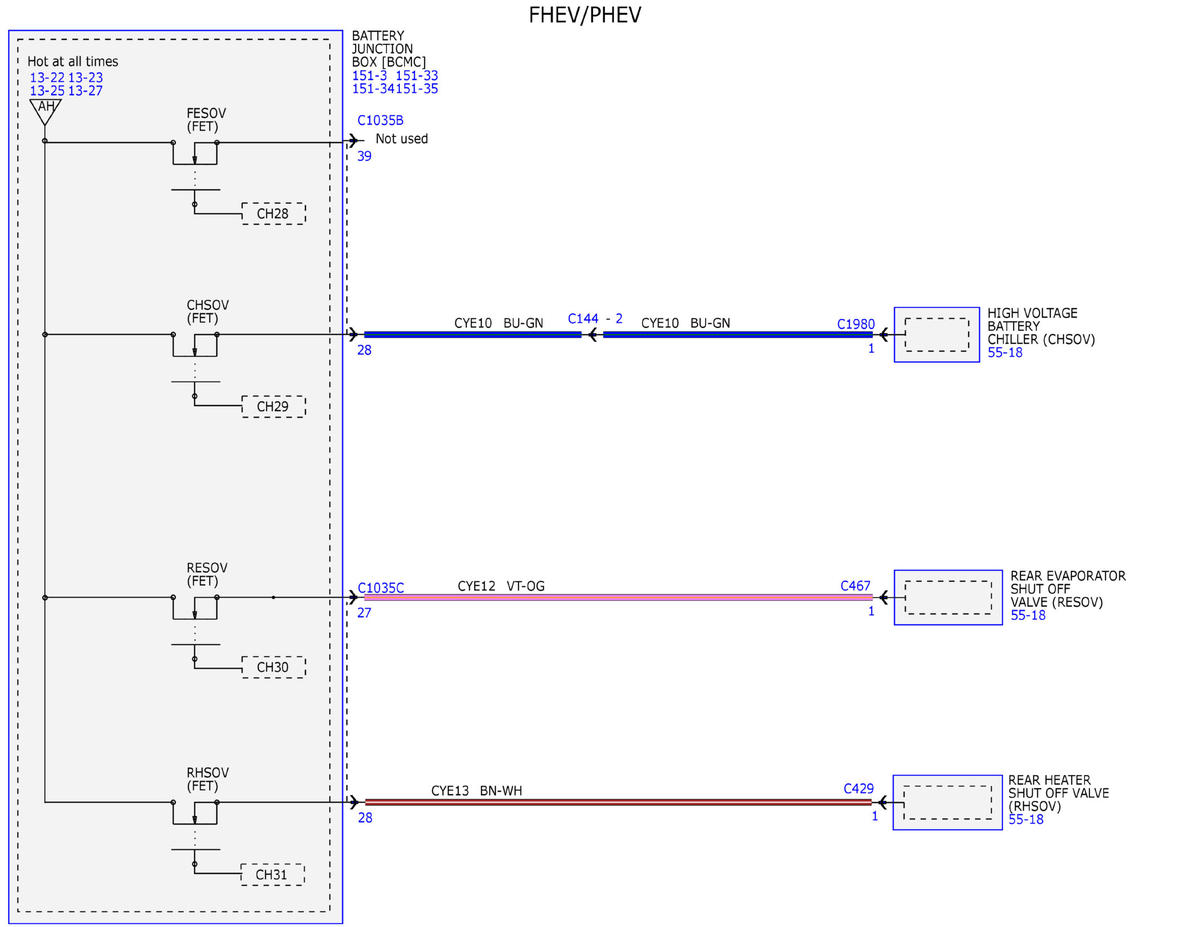

Fig 5: Power Distribution System Wiring Diagrams (5 Of 54)
Courtesy of FORD MOTOR COMPANY

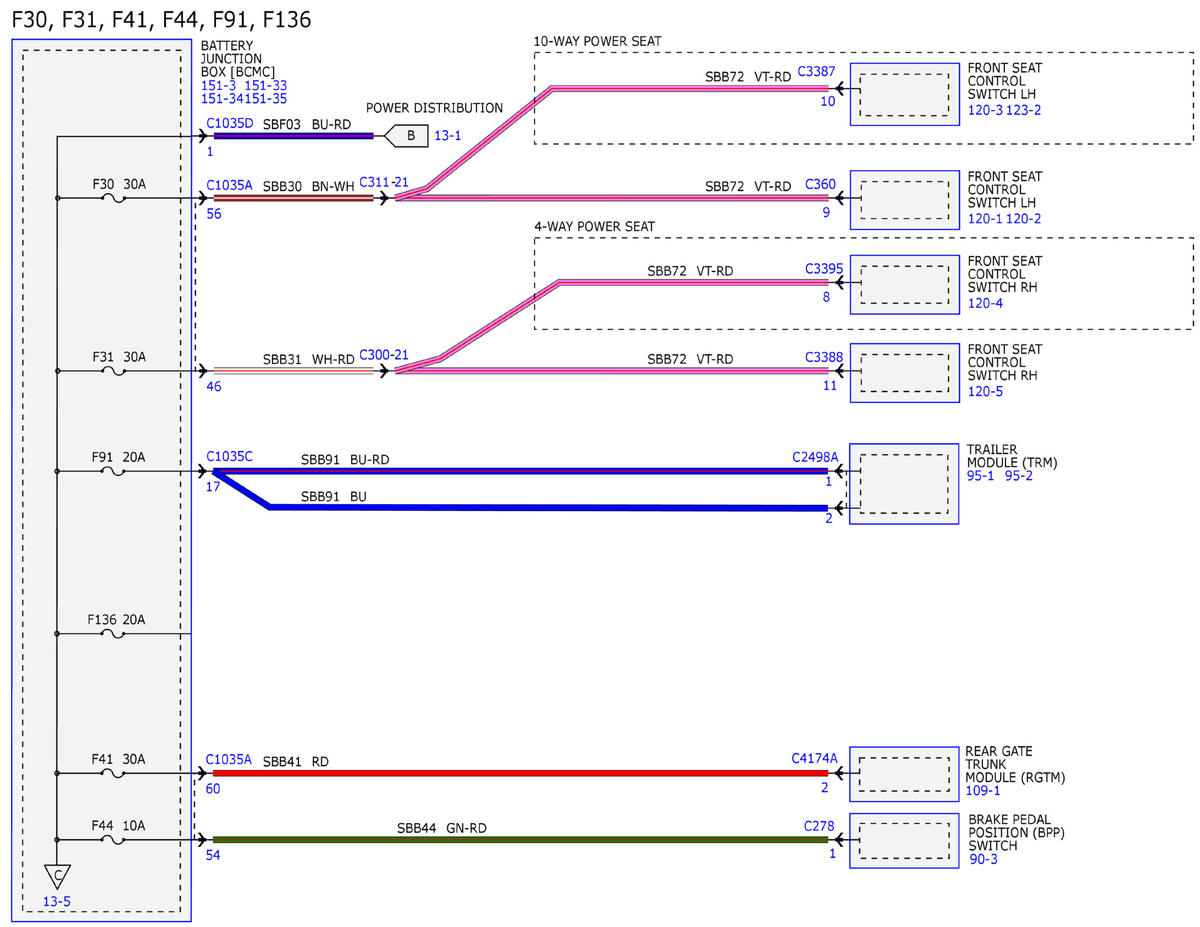

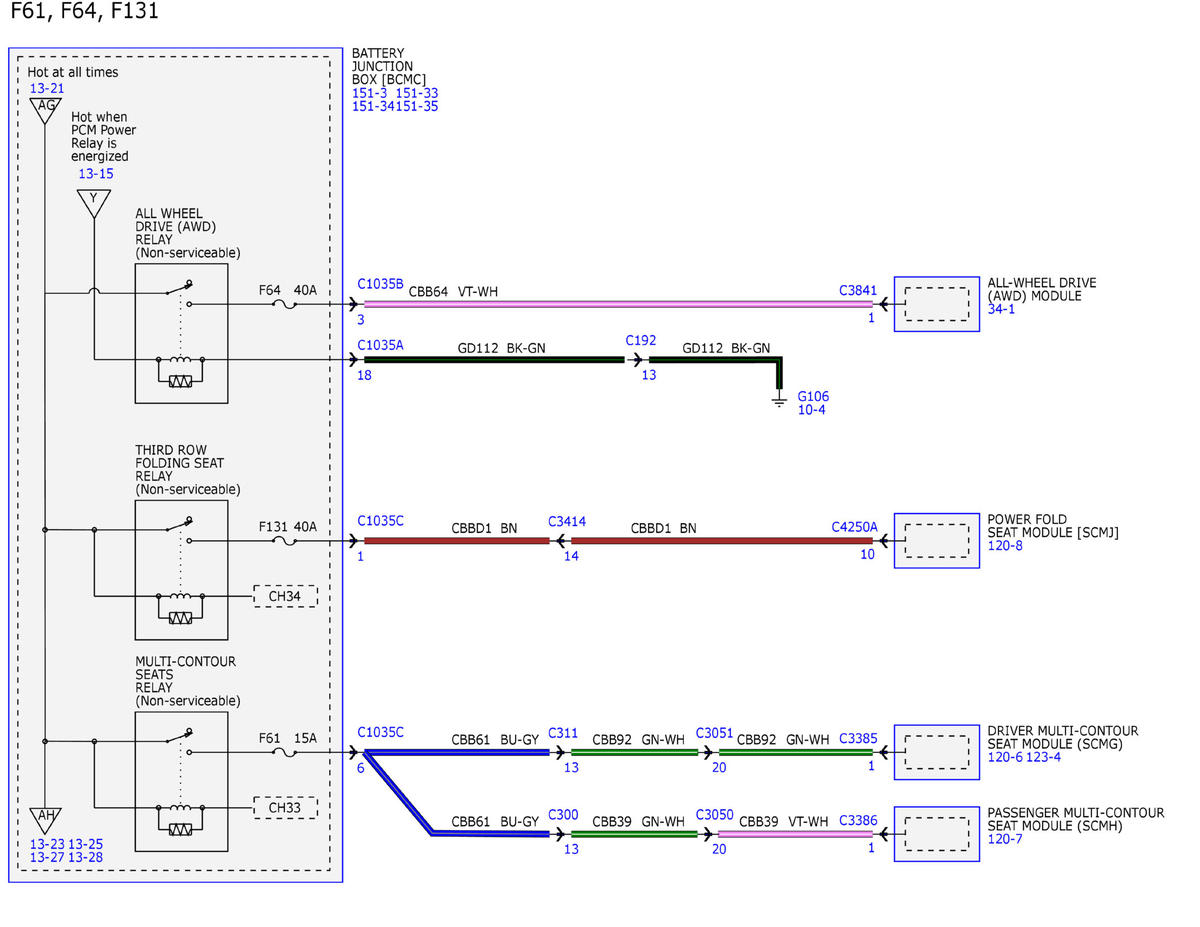

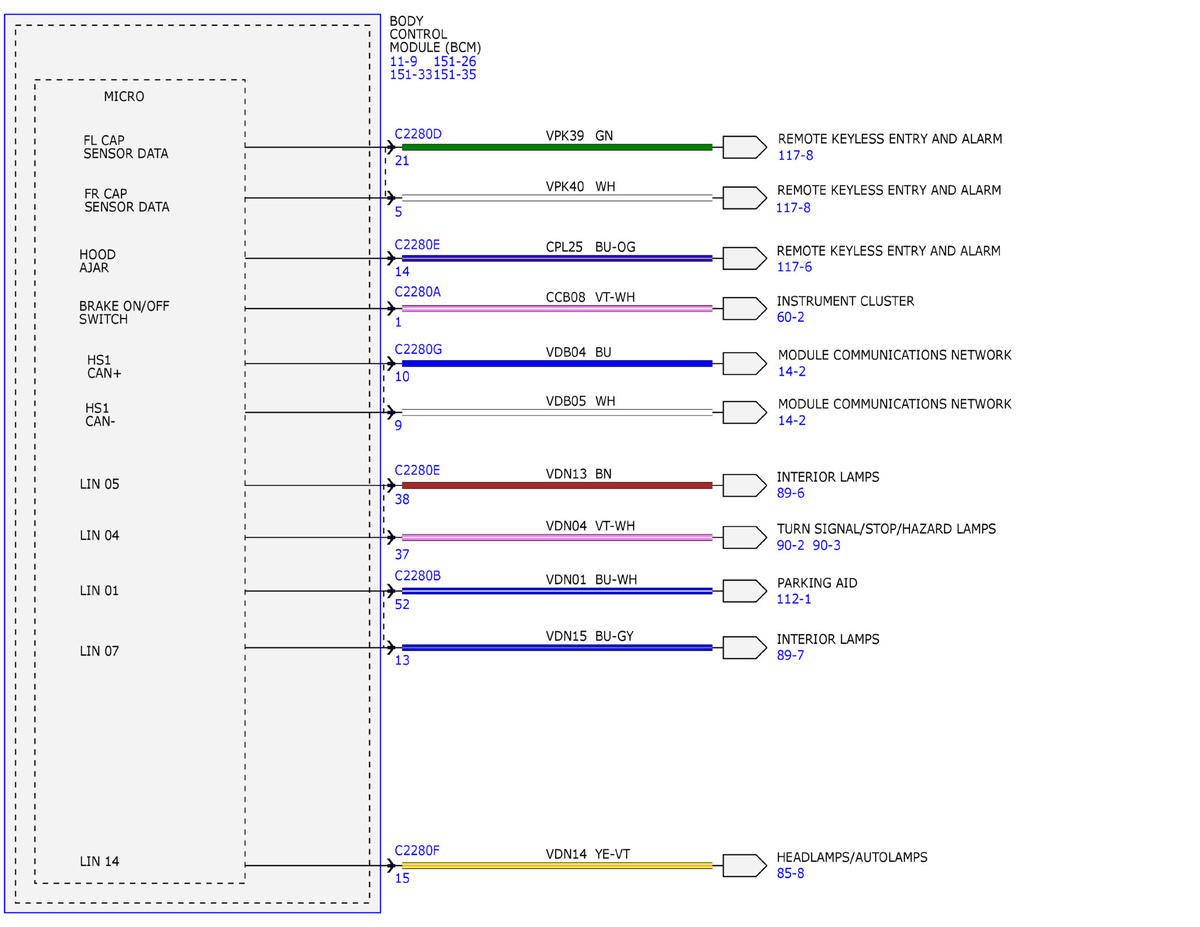

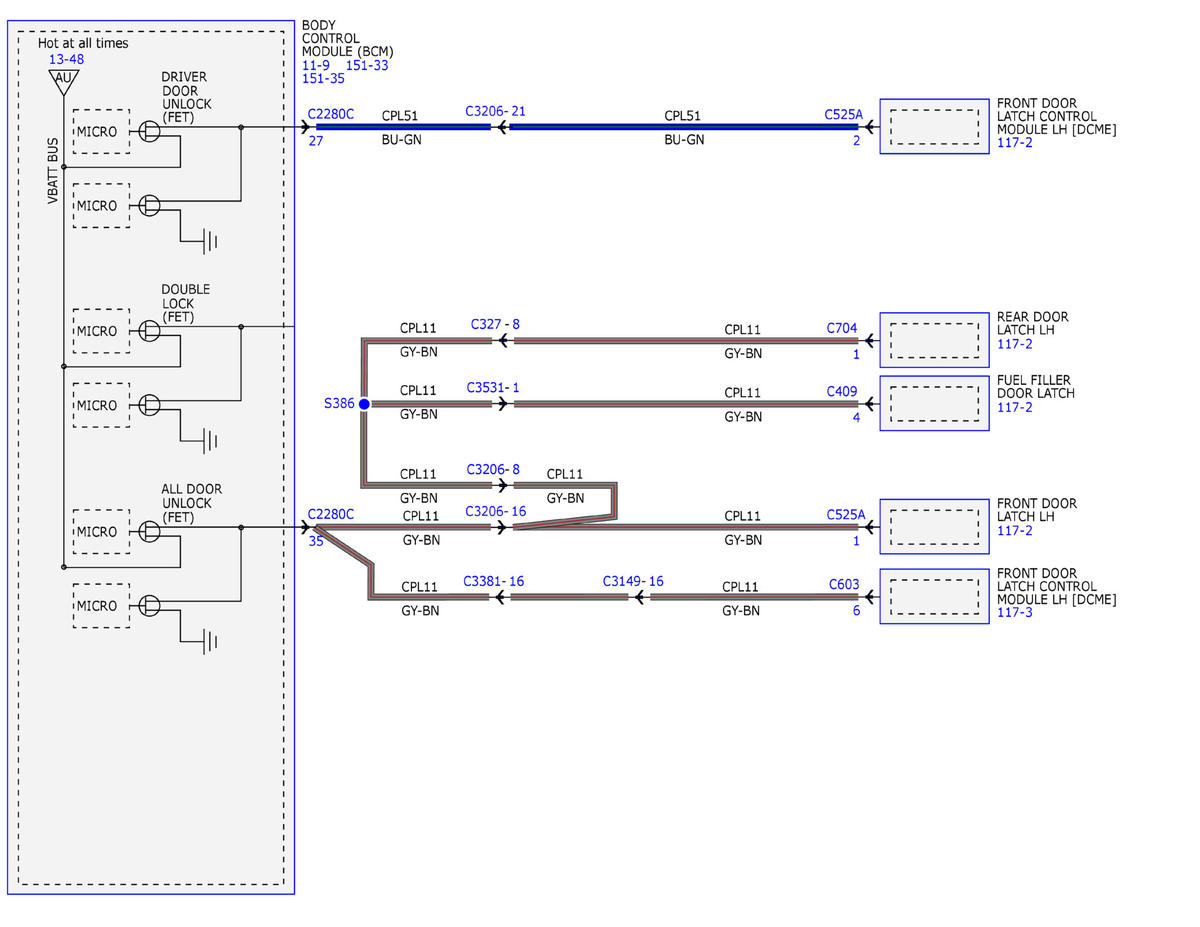

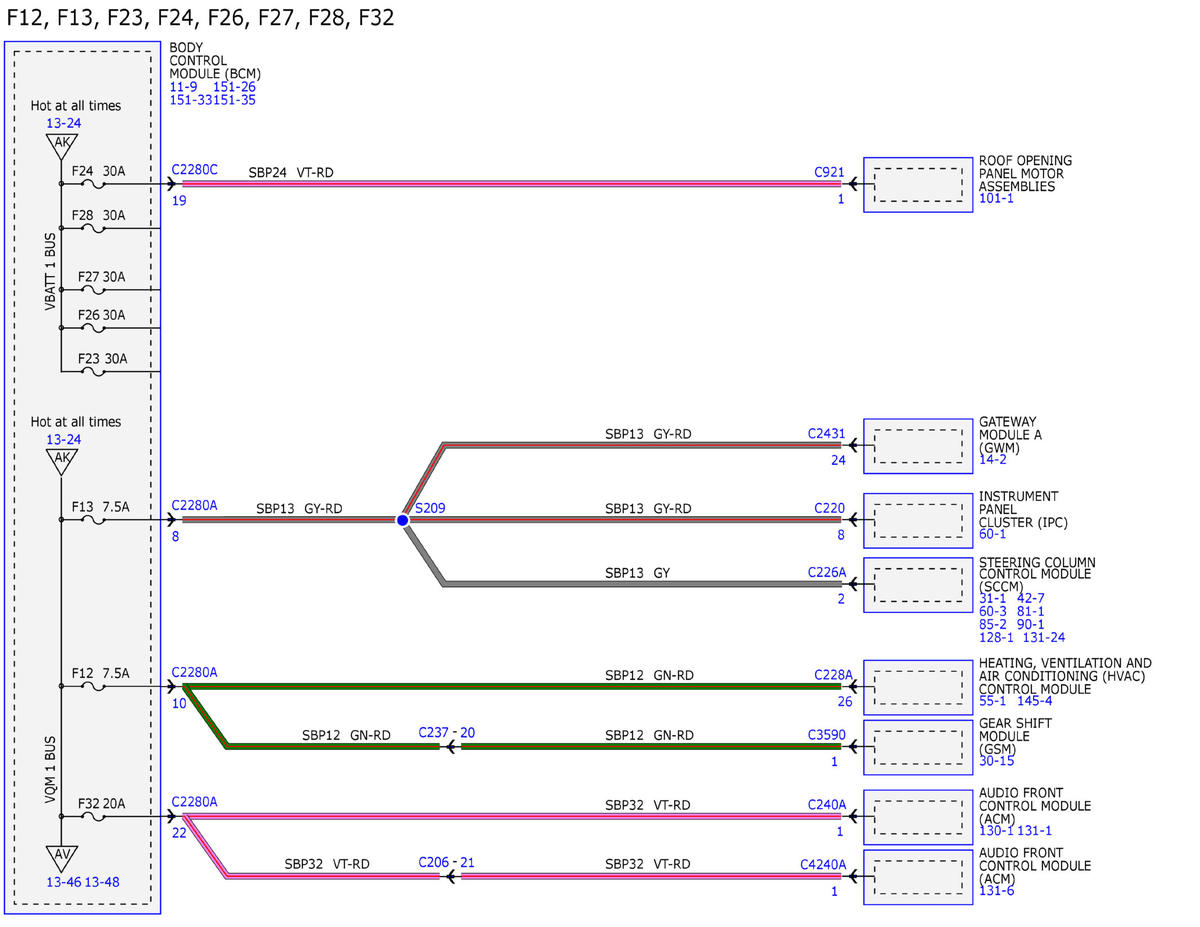

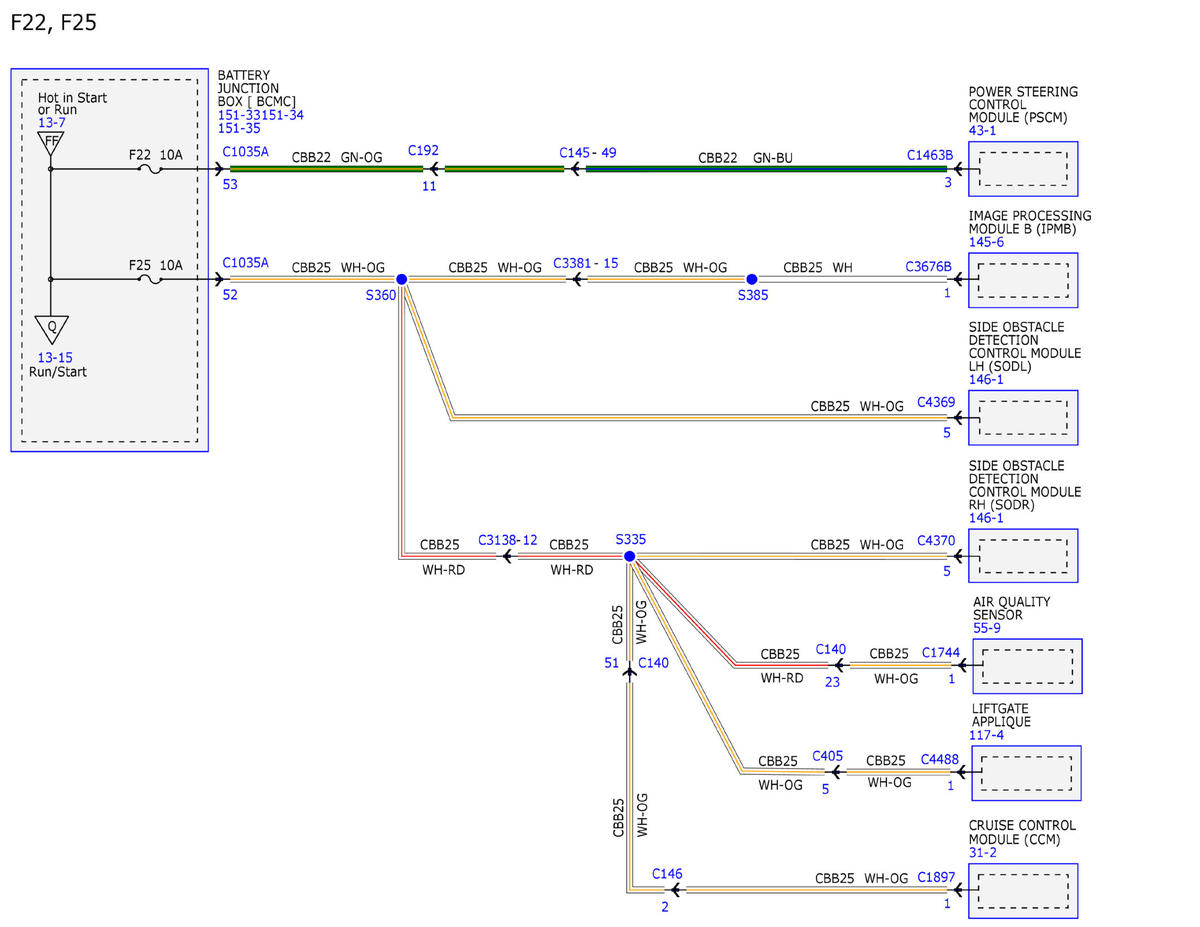

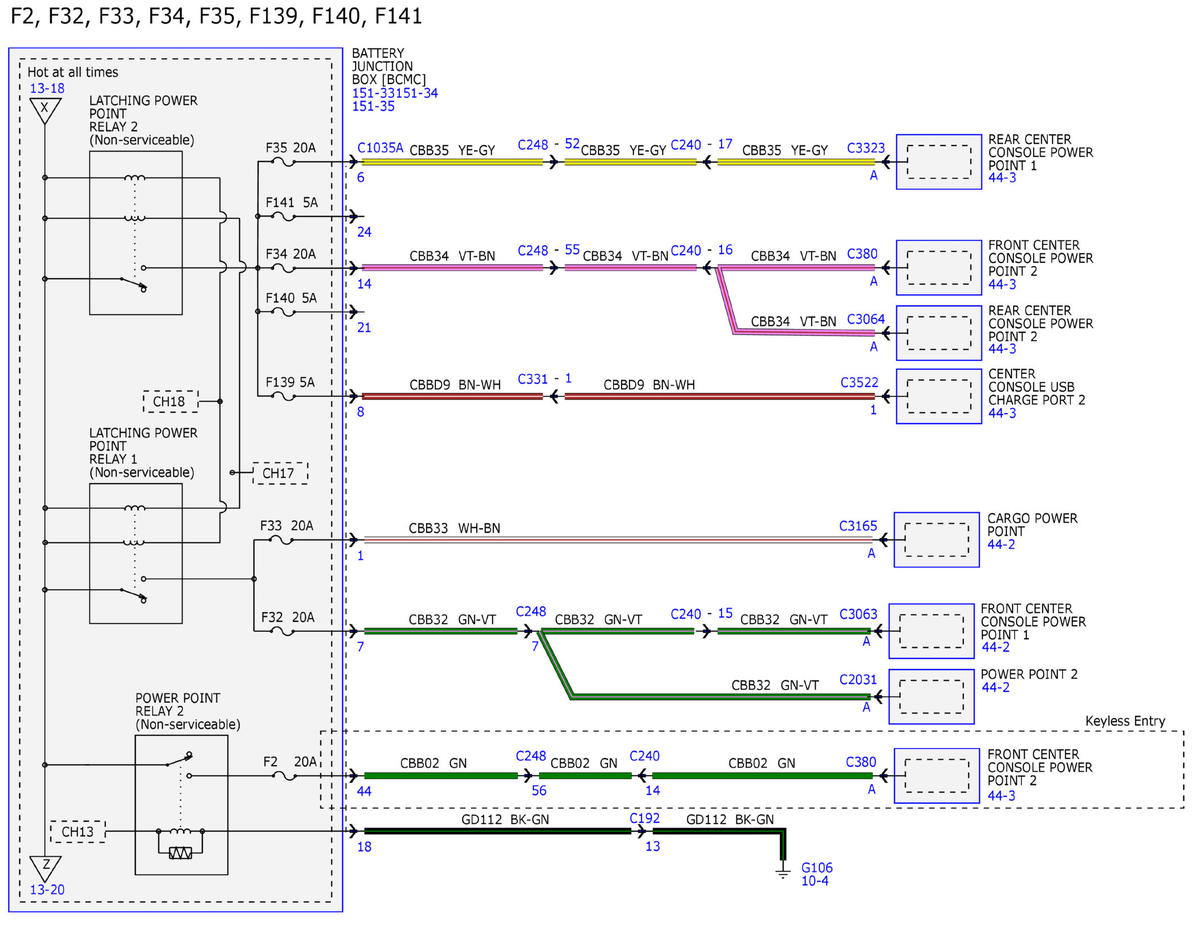

Fig 6: Power Distribution System Wiring Diagrams (6 Of 54)
Courtesy of FORD MOTOR COMPANY

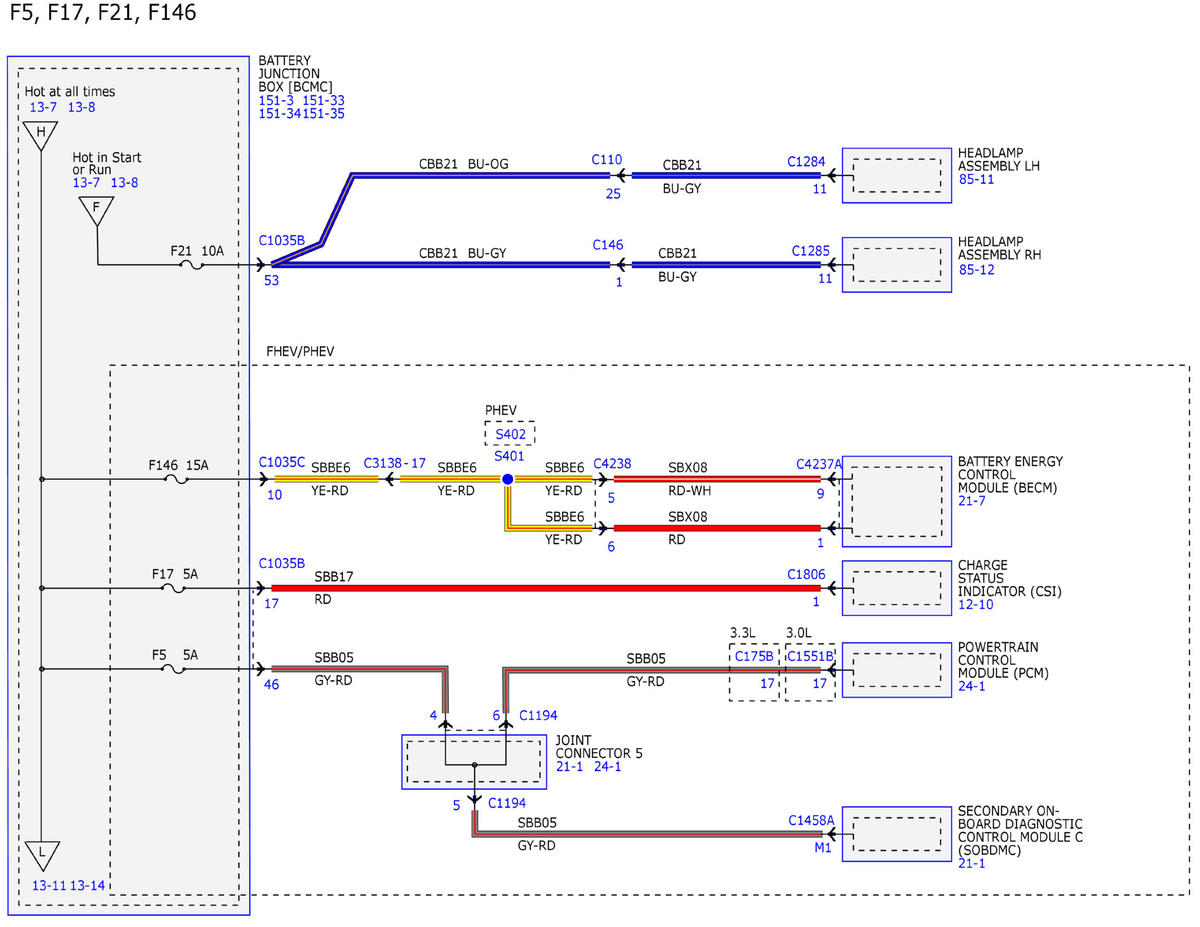

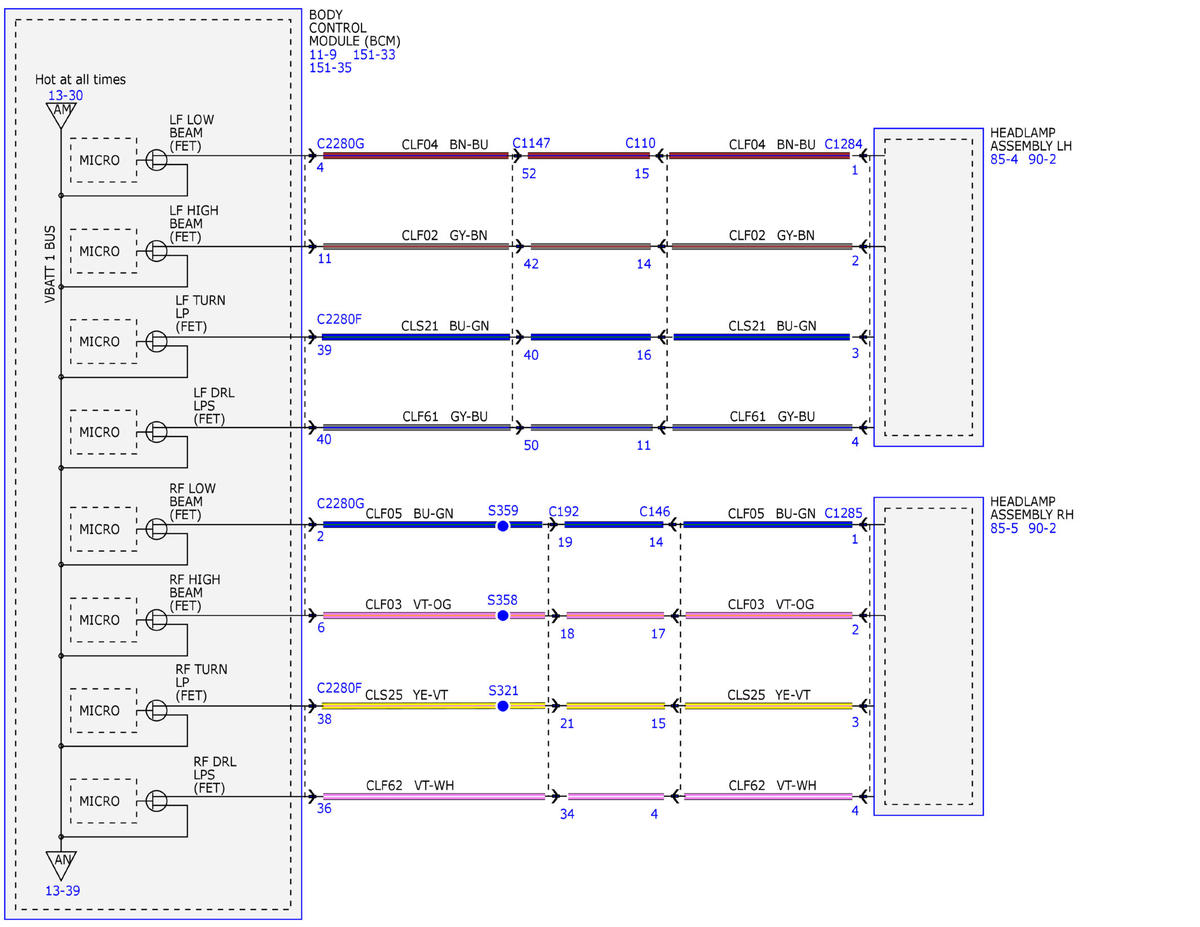

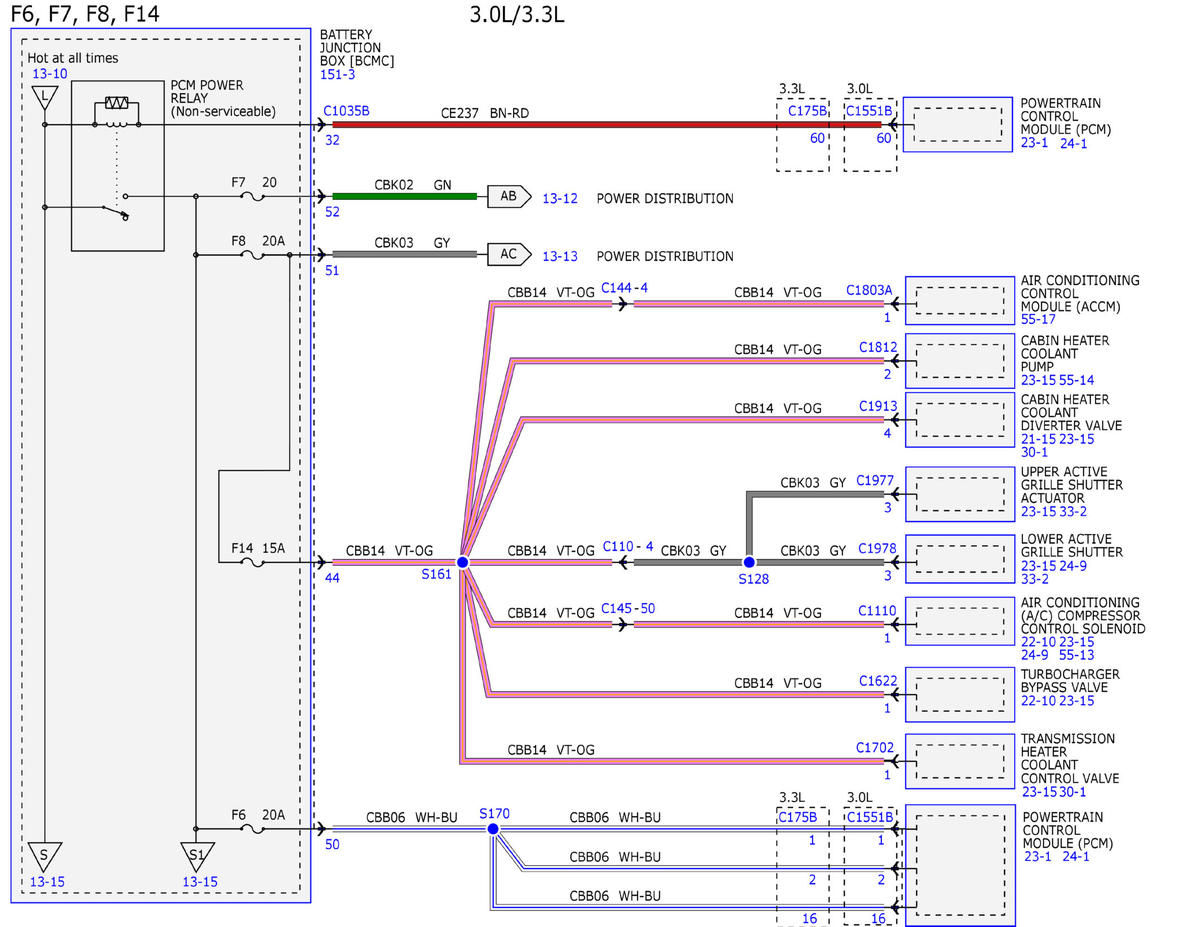

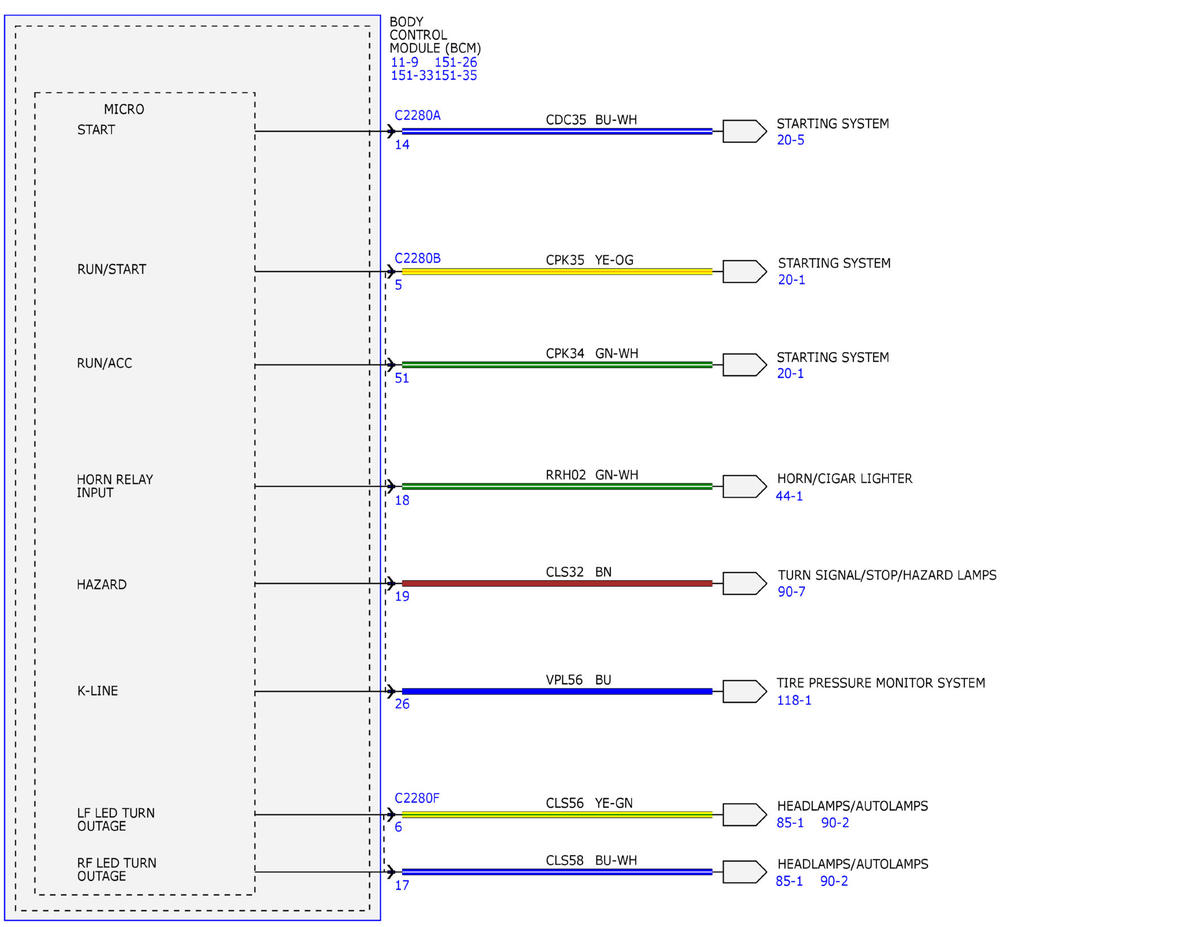

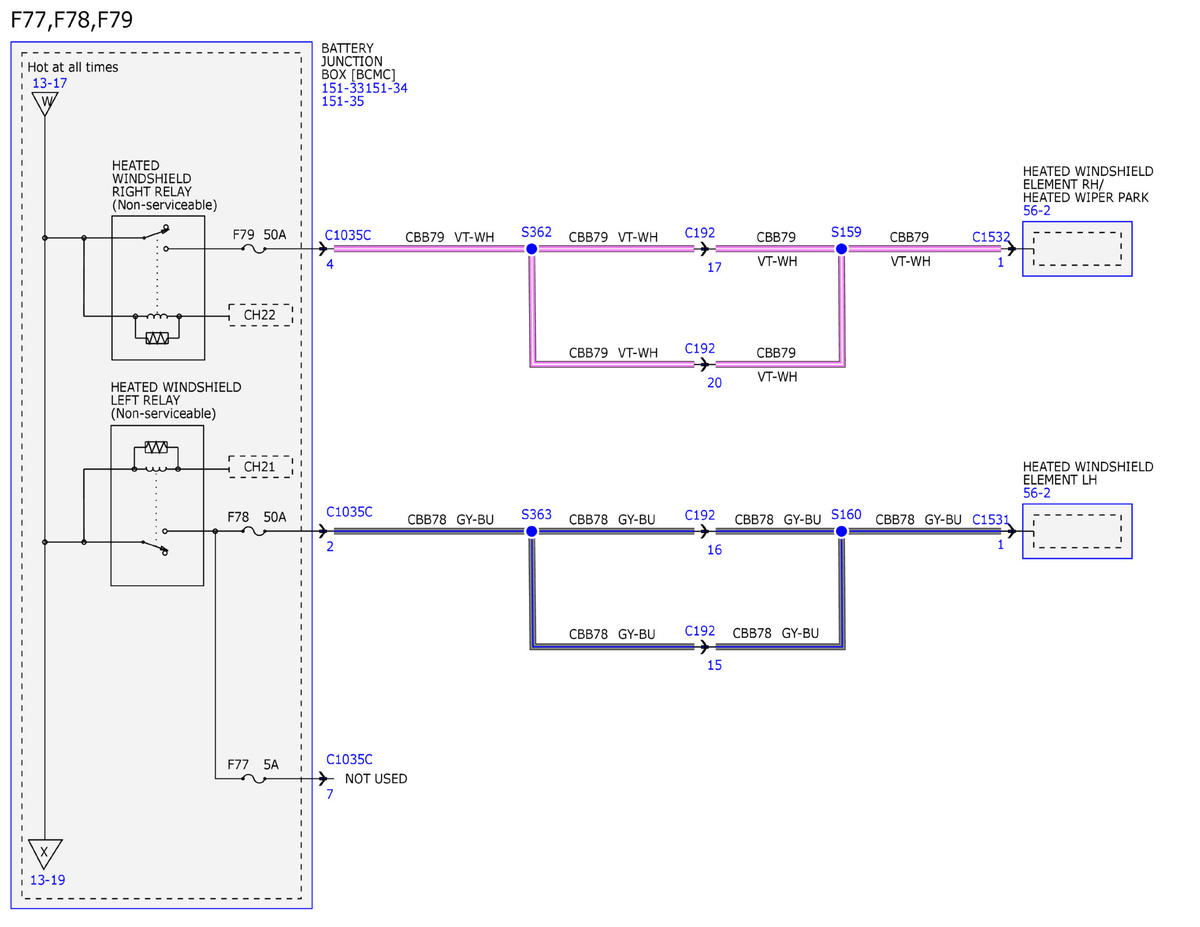

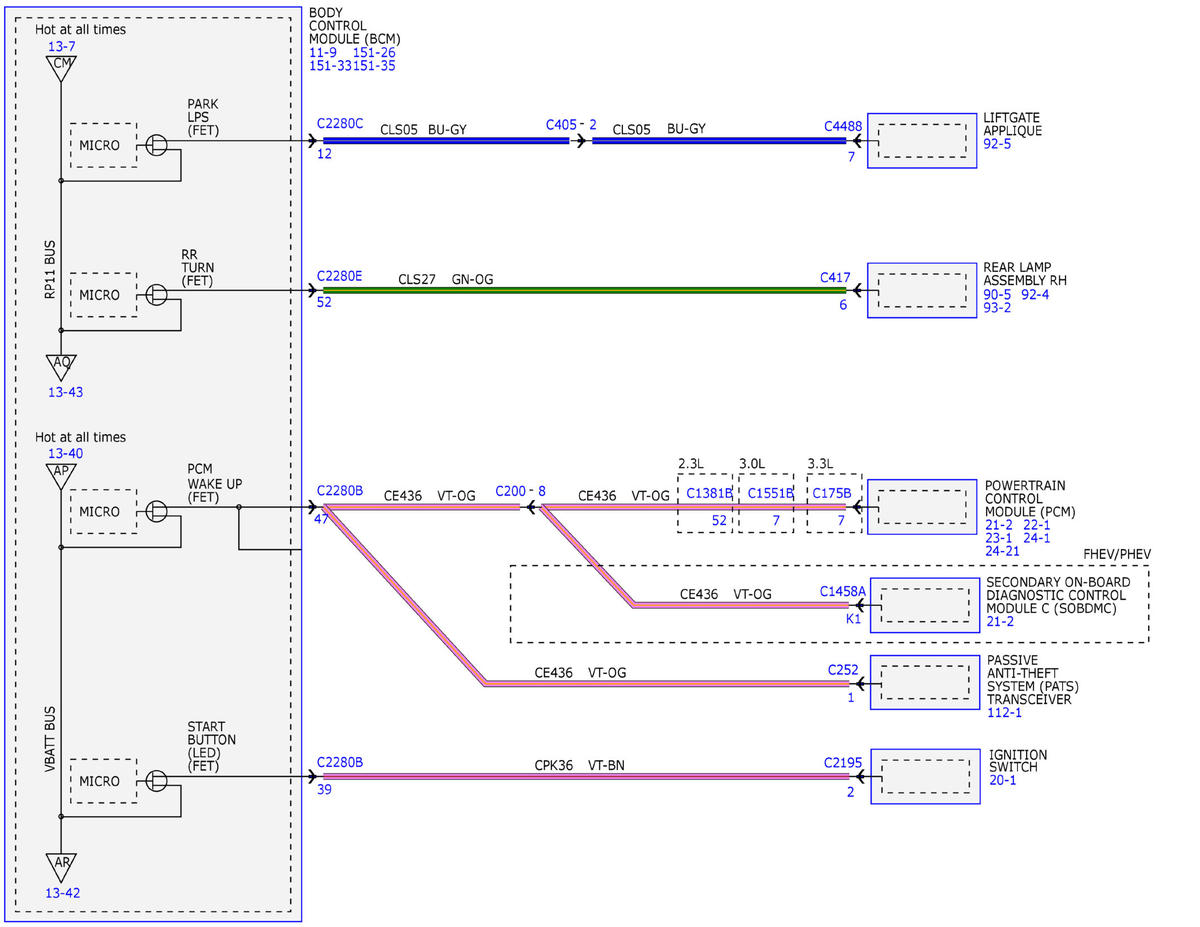

Fig 7: Power Distribution System Wiring Diagrams (7 Of 54)
Courtesy of FORD MOTOR COMPANY

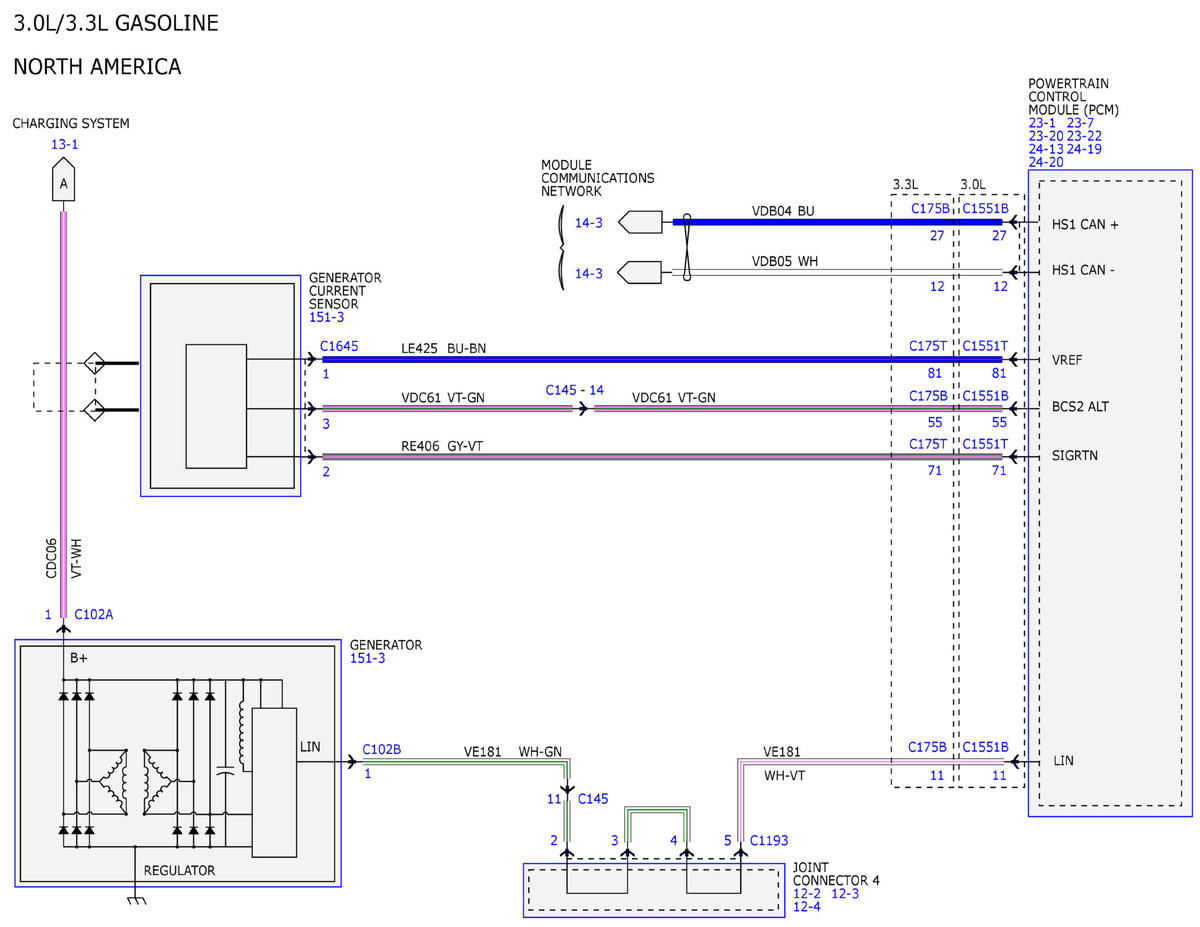

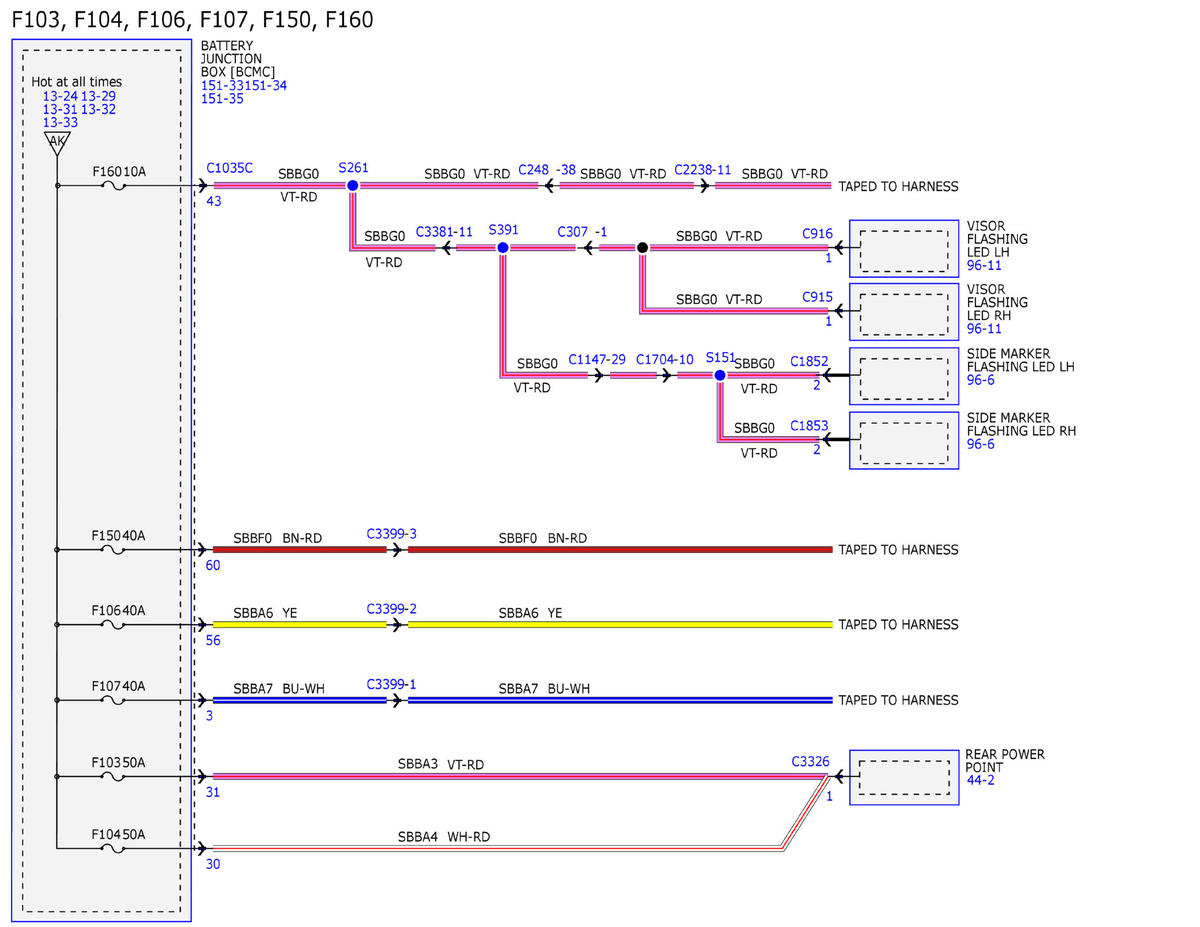

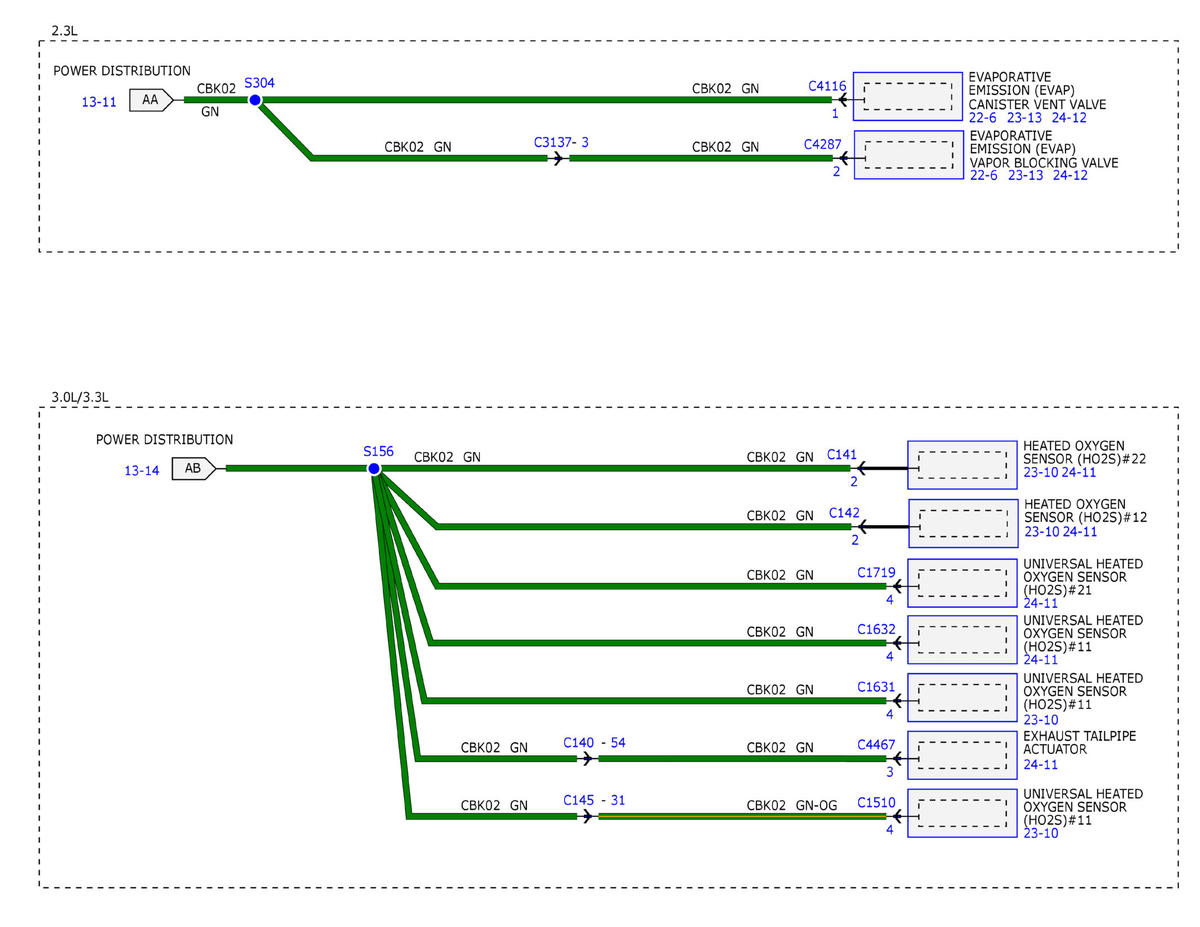

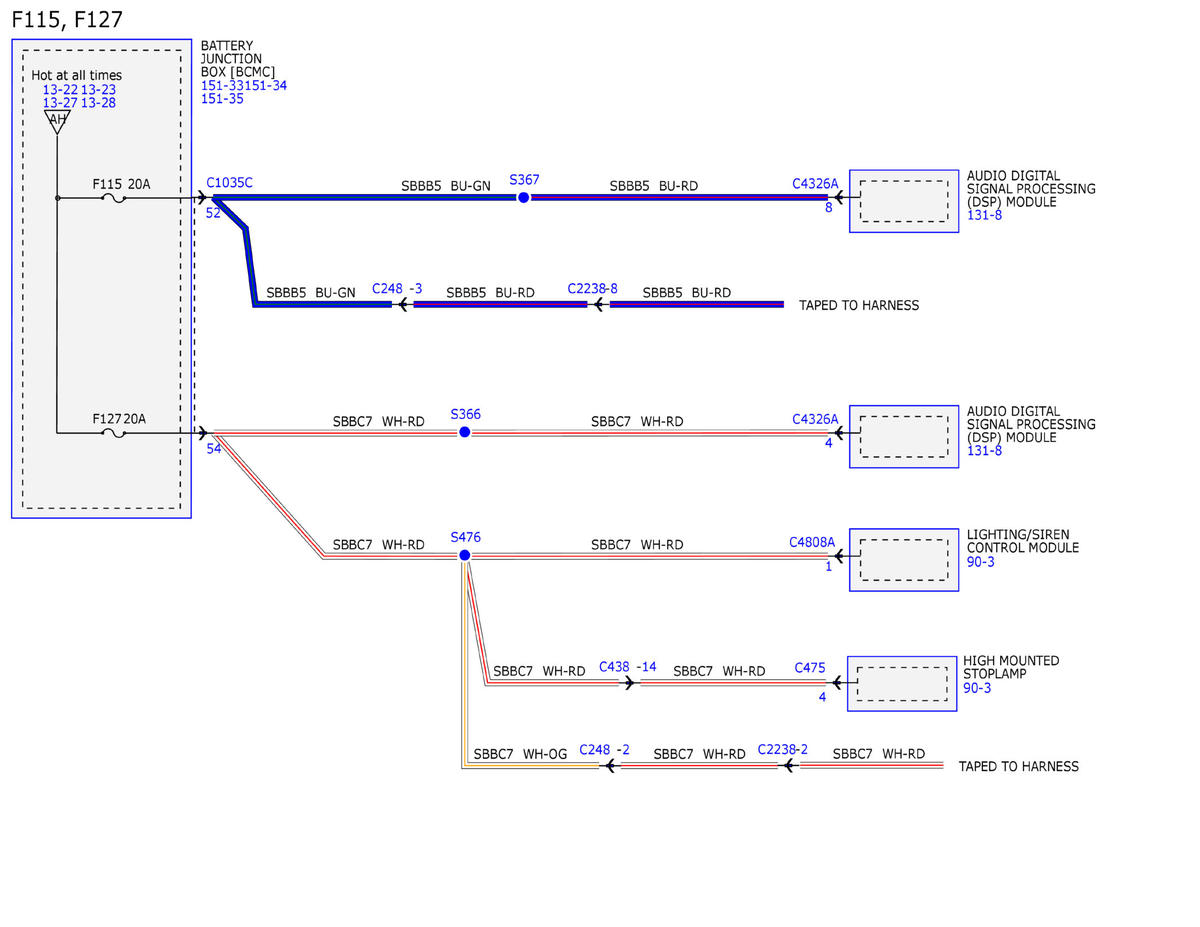

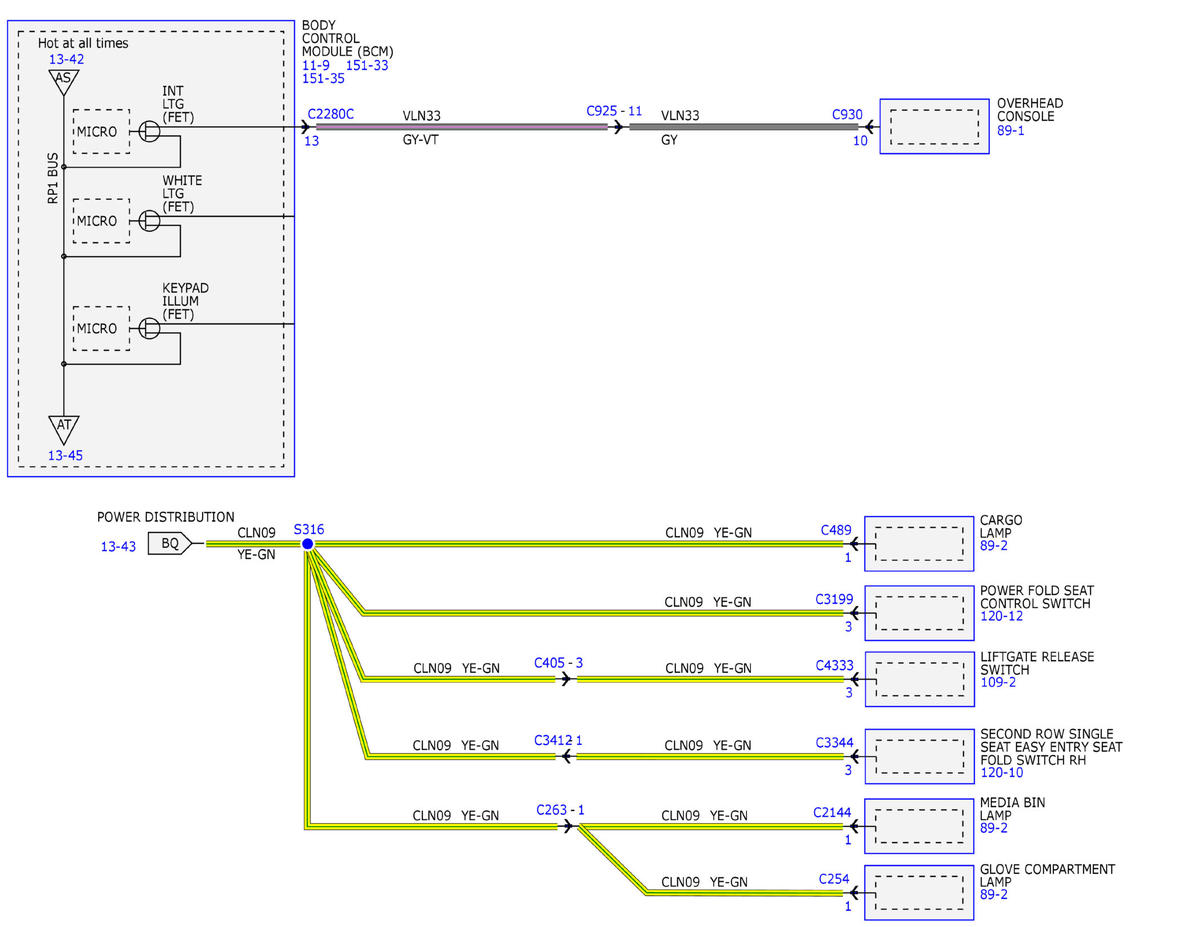

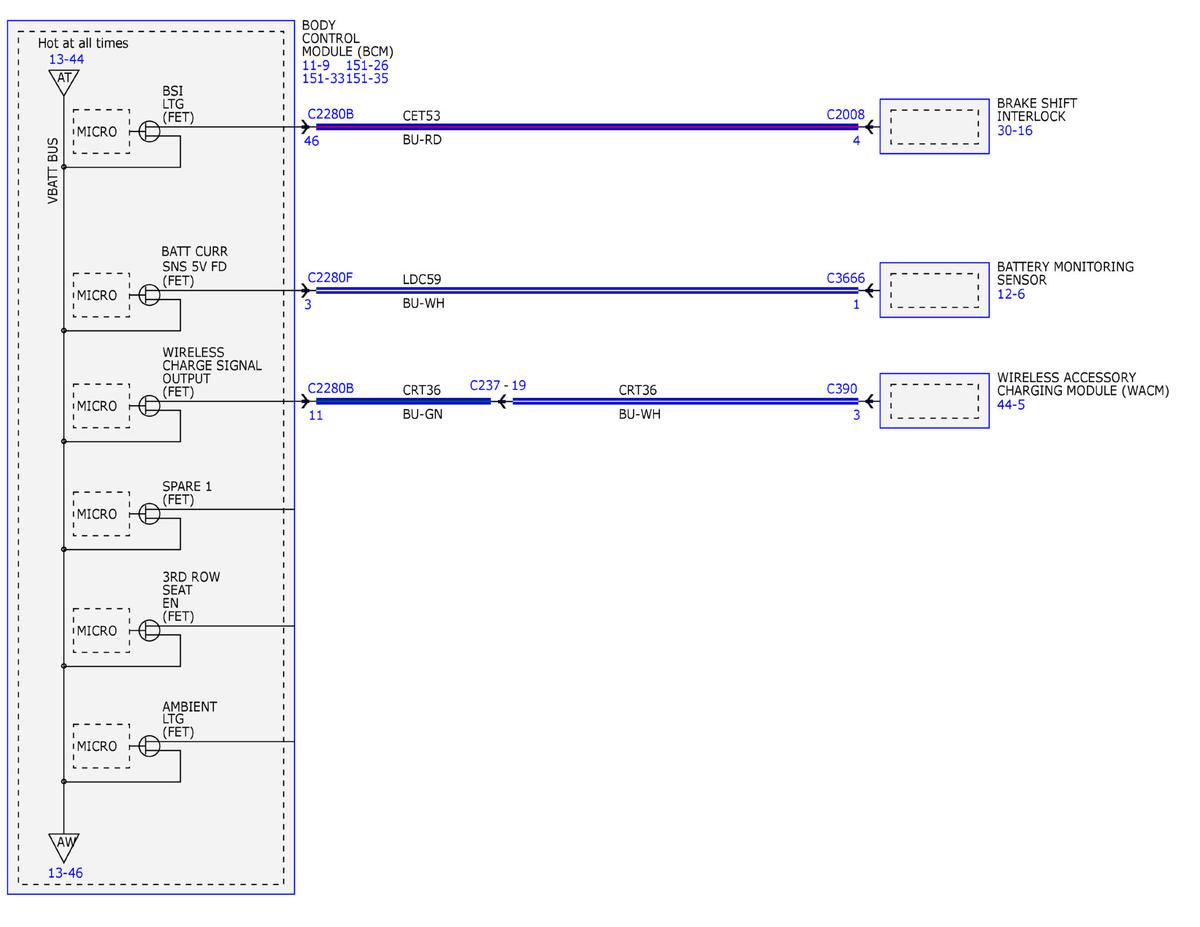

Fig 8: Power Distribution System Wiring Diagrams (8 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution System Wiring Diagrams (9 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution System Wiring Diagrams (10 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution System Wiring Diagrams (11 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution System Wiring Diagrams (12 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution System Wiring Diagrams (13 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution System Wiring Diagrams (14 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution System Wiring Diagrams (15 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution System Wiring Diagrams (16 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution System Wiring Diagrams (17 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution System Wiring Diagrams (18 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution System Wiring Diagrams (19 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution System Wiring Diagrams (20 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution System Wiring Diagrams (21 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution System Wiring Diagrams (22 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution System Wiring Diagrams (23 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution System Wiring Diagrams (24 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution System Wiring Diagrams (25 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution System Wiring Diagrams (26 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution System Wiring Diagrams (27 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution System Wiring Diagrams (28 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution System Wiring Diagrams (29 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution System Wiring Diagrams (30 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution System Wiring Diagrams (31 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution System Wiring Diagrams (32 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution System Wiring Diagrams (33 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution System Wiring Diagrams (34 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution System Wiring Diagrams (35 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution System Wiring Diagrams (36 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution System Wiring Diagrams (37 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution System Wiring Diagrams (38 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution System Wiring Diagrams (39 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 40: Power Distribution System Wiring Diagrams (40 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 41: Power Distribution System Wiring Diagrams (41 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 42: Power Distribution System Wiring Diagrams (42 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 43: Power Distribution System Wiring Diagrams (43 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 44: Power Distribution System Wiring Diagrams (44 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 45: Power Distribution System Wiring Diagrams (45 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 46: Power Distribution System Wiring Diagrams (46 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 47: Power Distribution System Wiring Diagrams (47 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 48: Power Distribution System Wiring Diagrams (48 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 49: Power Distribution System Wiring Diagrams (49 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 50: Power Distribution System Wiring Diagrams (50 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 51: Power Distribution System Wiring Diagrams (51 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 52: Power Distribution System Wiring Diagrams (52 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 53: Power Distribution System Wiring Diagrams (53 Of 54)
Courtesy of FORD MOTOR COMPANY
Fig 54: Power Distribution System Wiring Diagrams (54 Of 54)
Courtesy of FORD MOTOR COMPANY
