Fuse And Relay Information

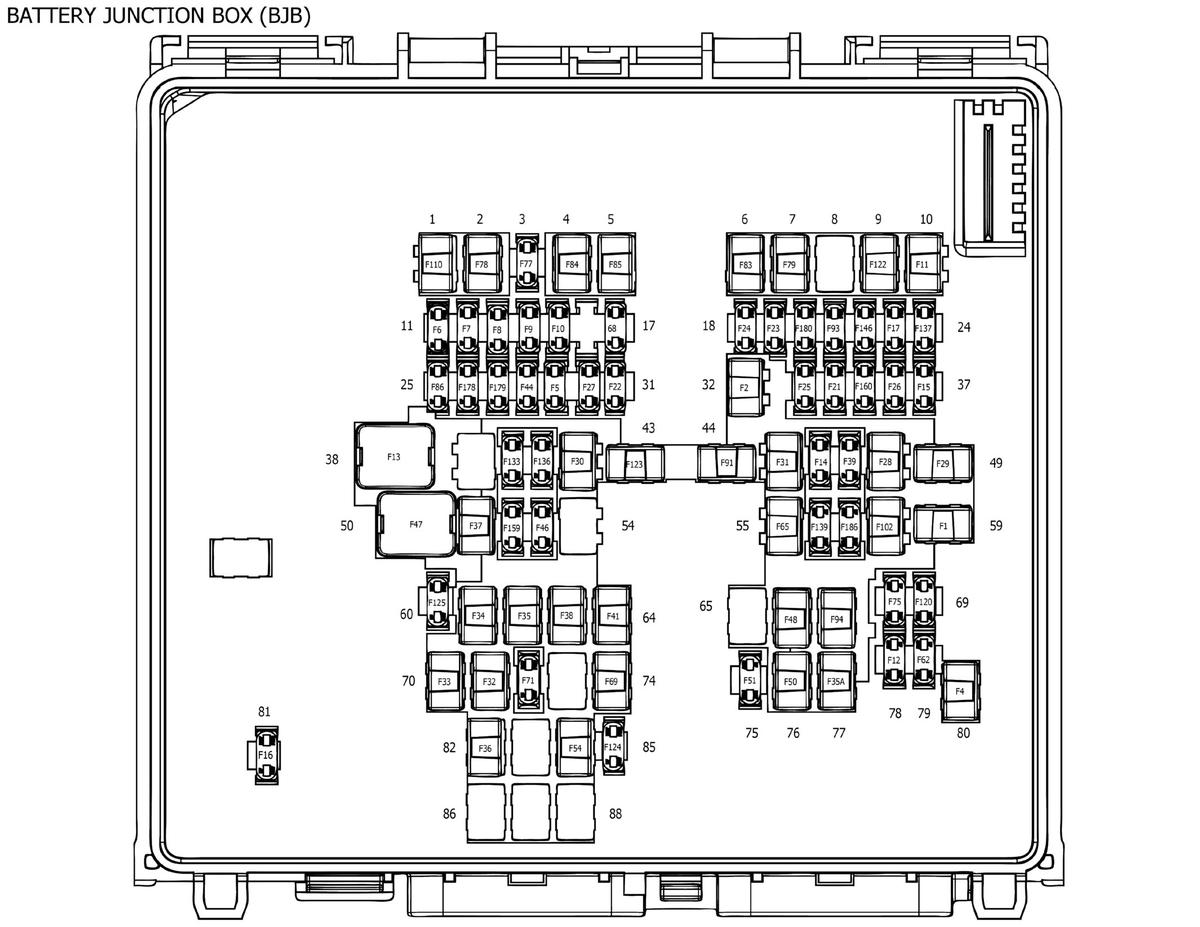

Fig 1: Battery Junction Box (BJB)

Courtesy of FORD MOTOR COMPANY

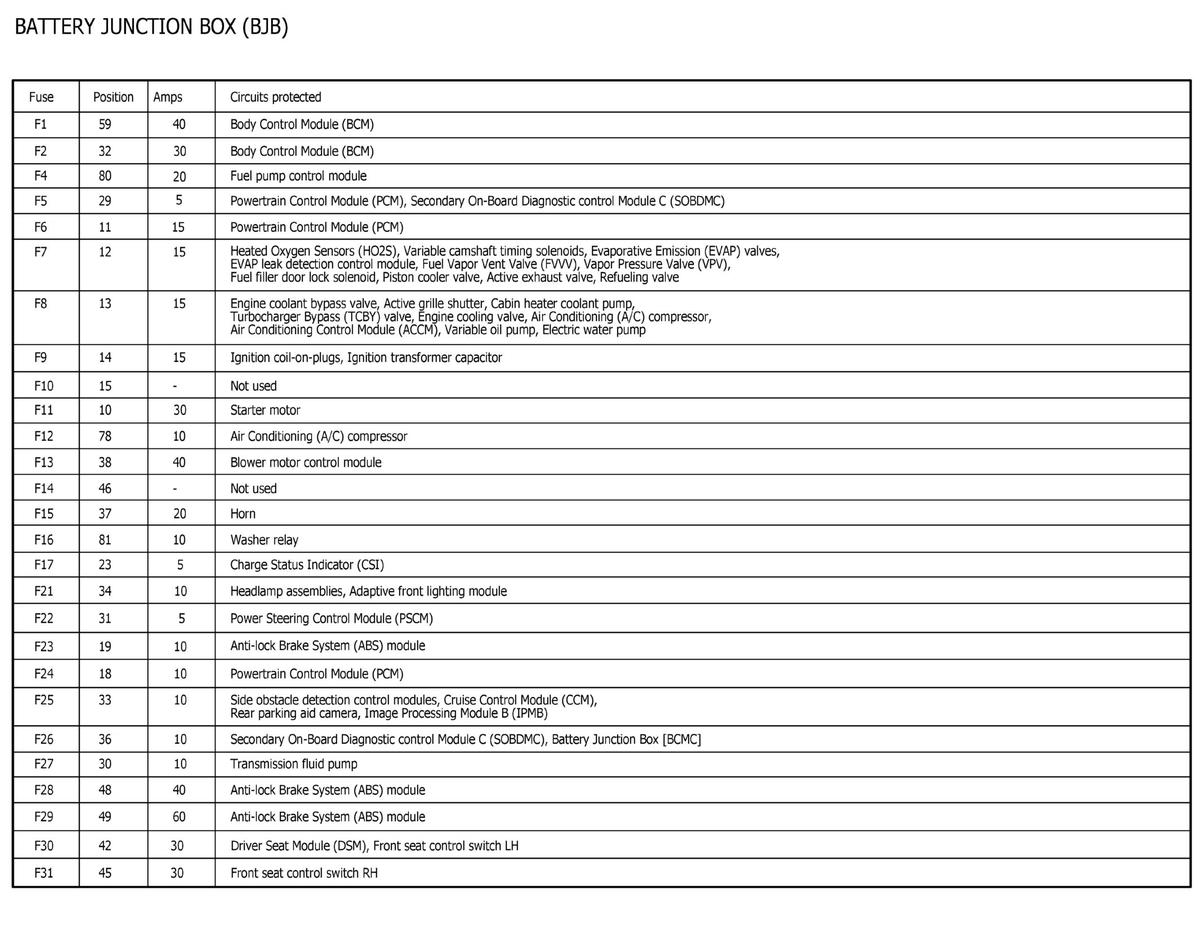

Fig 2: Battery Junction Box Component Chart 1 (BJB)

Courtesy of FORD MOTOR COMPANY

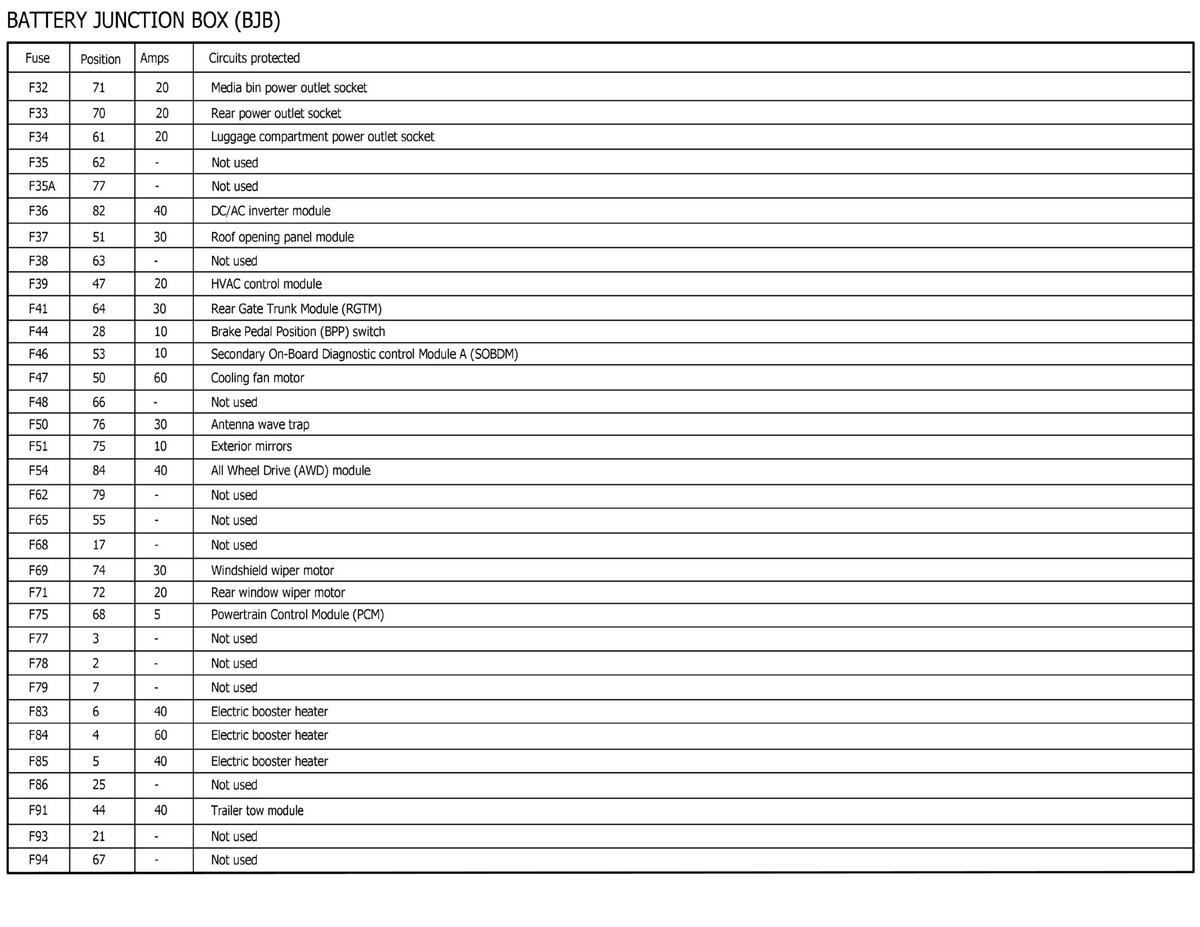

Fig 3: Battery Junction Box Component Chart 2 (BJB)

Courtesy of FORD MOTOR COMPANY

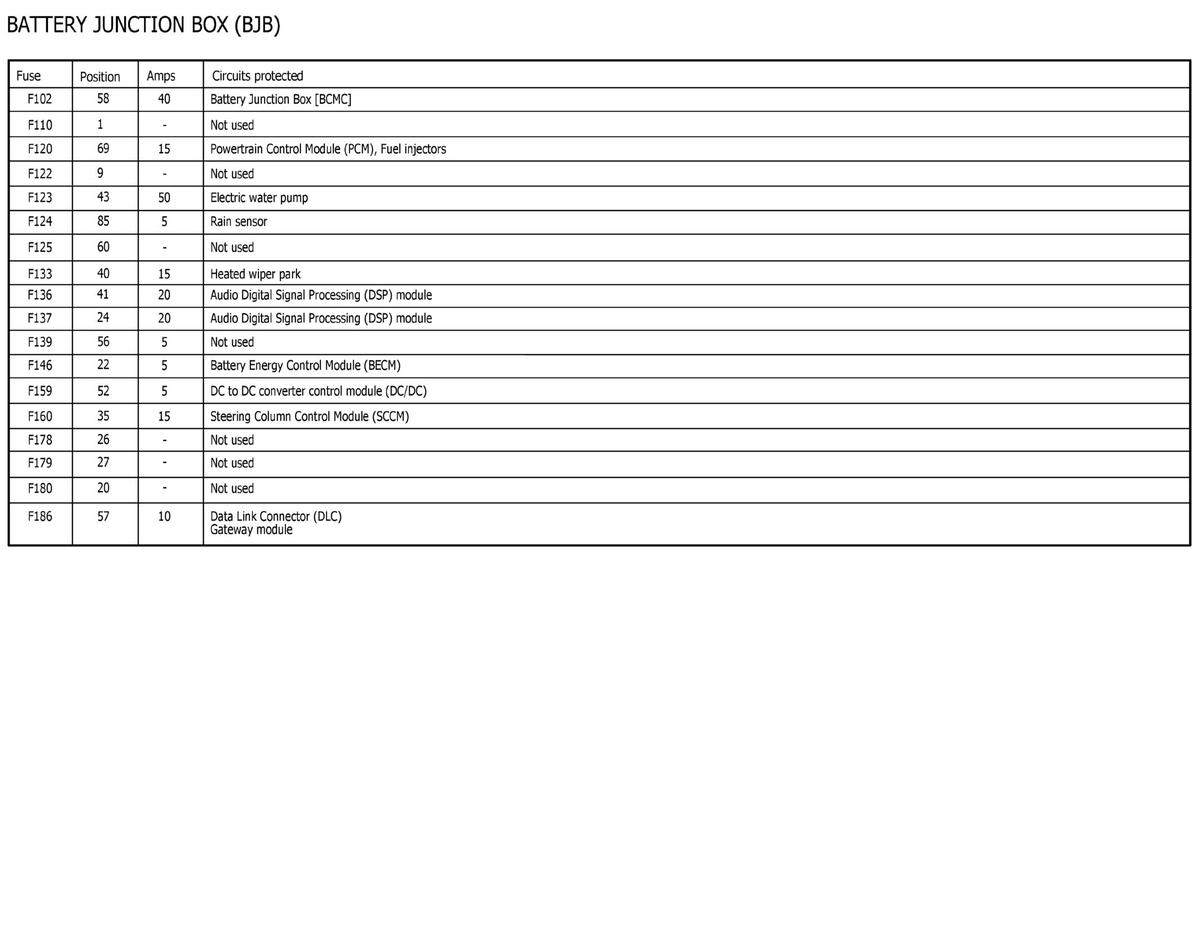

Fig 4: Battery Junction Box Component Chart 3 (BJB)

Courtesy of FORD MOTOR COMPANY

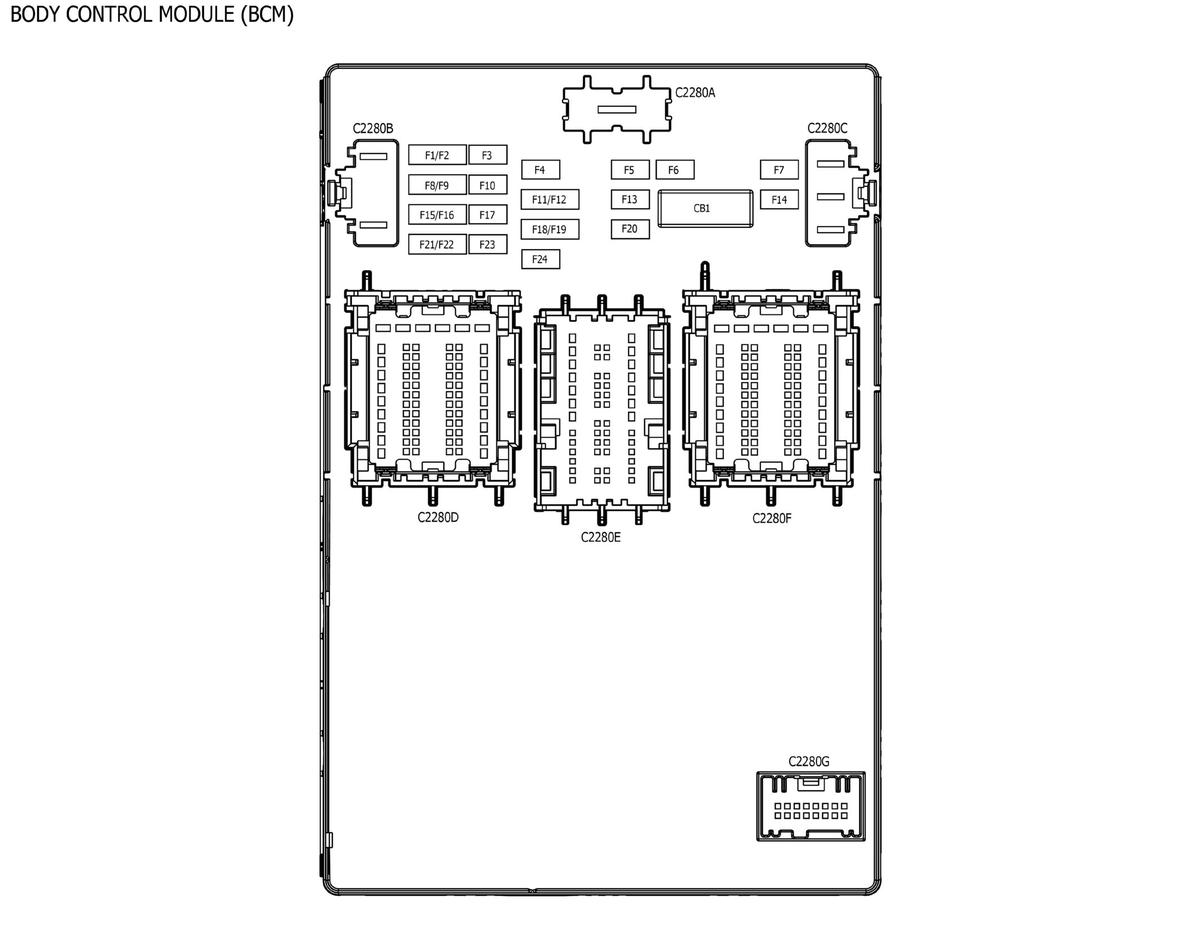

Fig 5: Body Control Module (BCM)

Courtesy of FORD MOTOR COMPANY

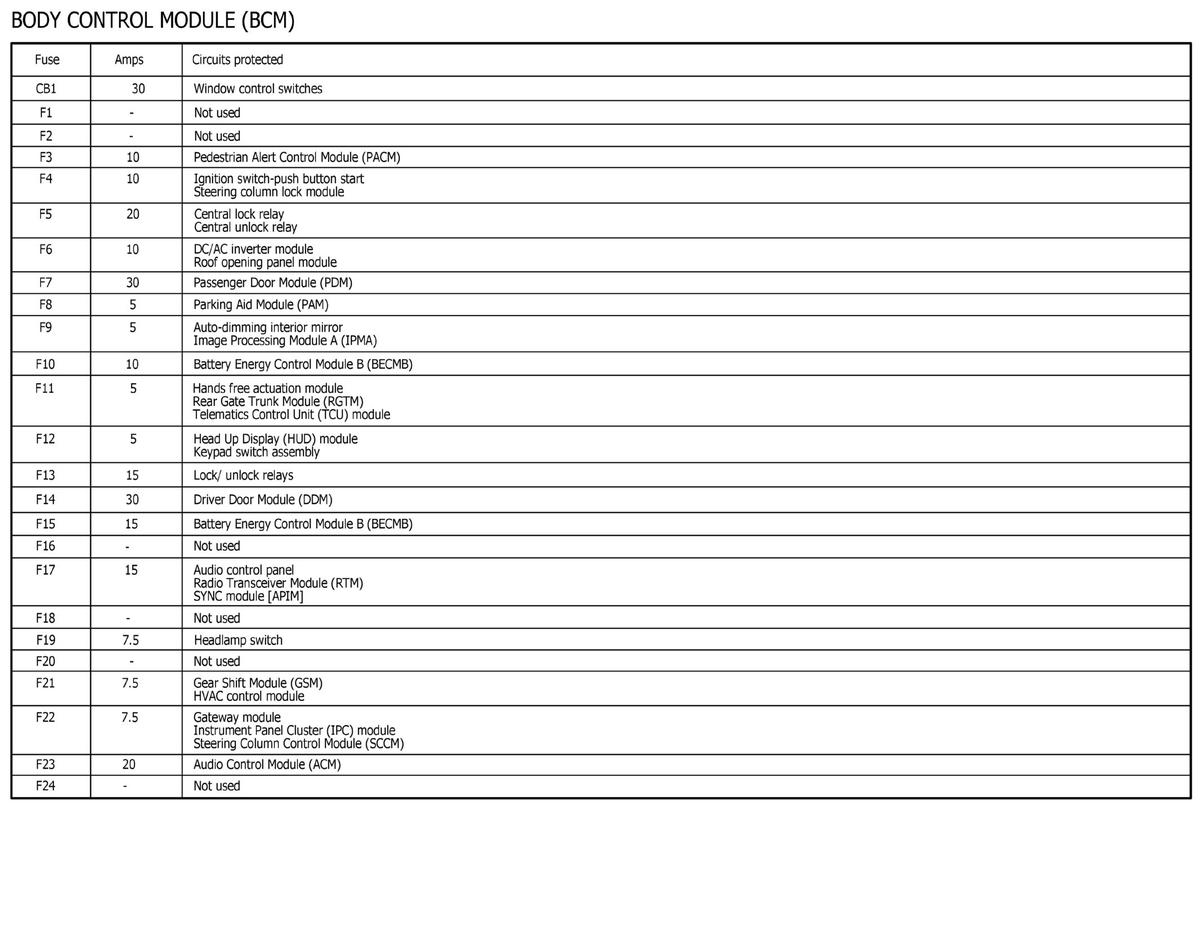

Fig 6: Body Control Module Connector Chart (BCM)

Courtesy of FORD MOTOR COMPANY

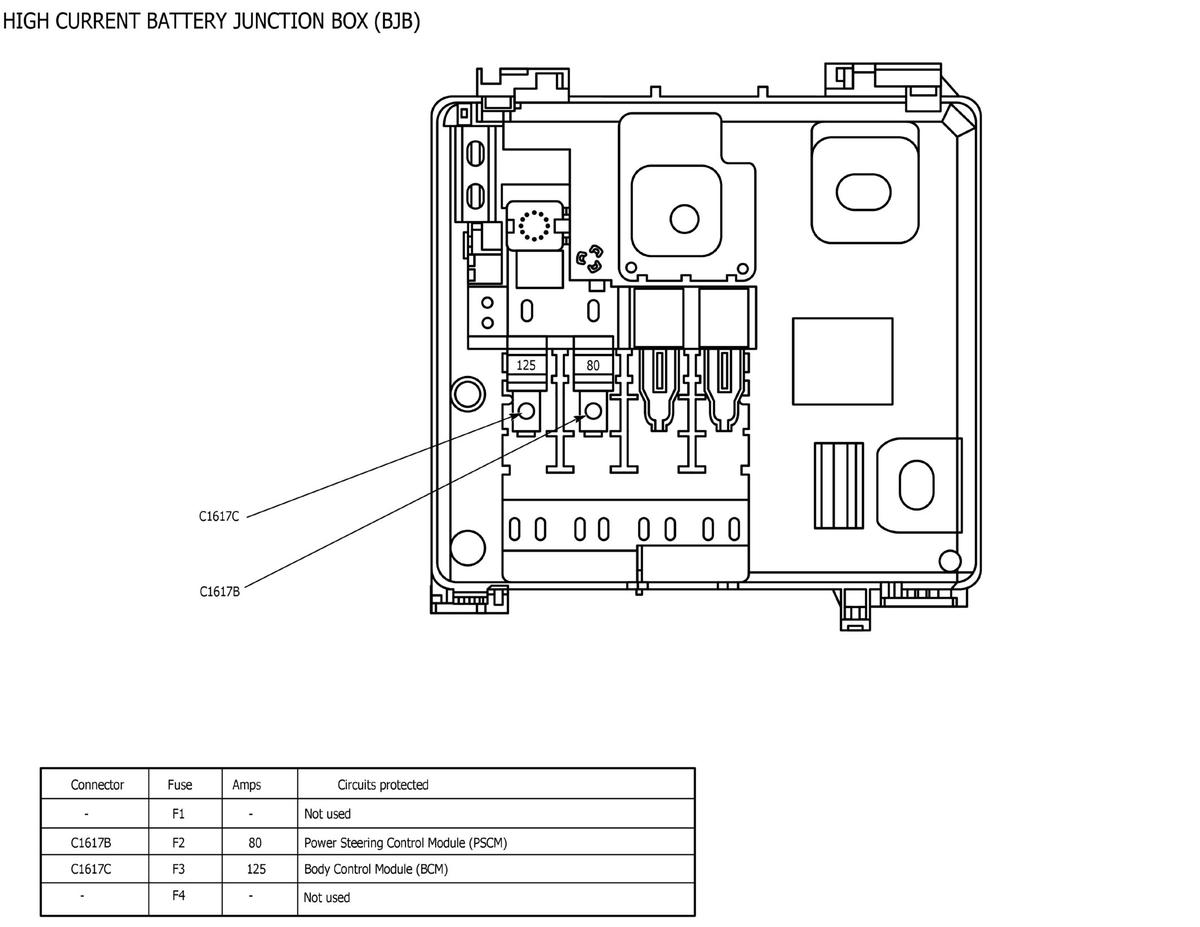

Fig 7: High Current Battery Junction Box (BJB)

Courtesy of FORD MOTOR COMPANY

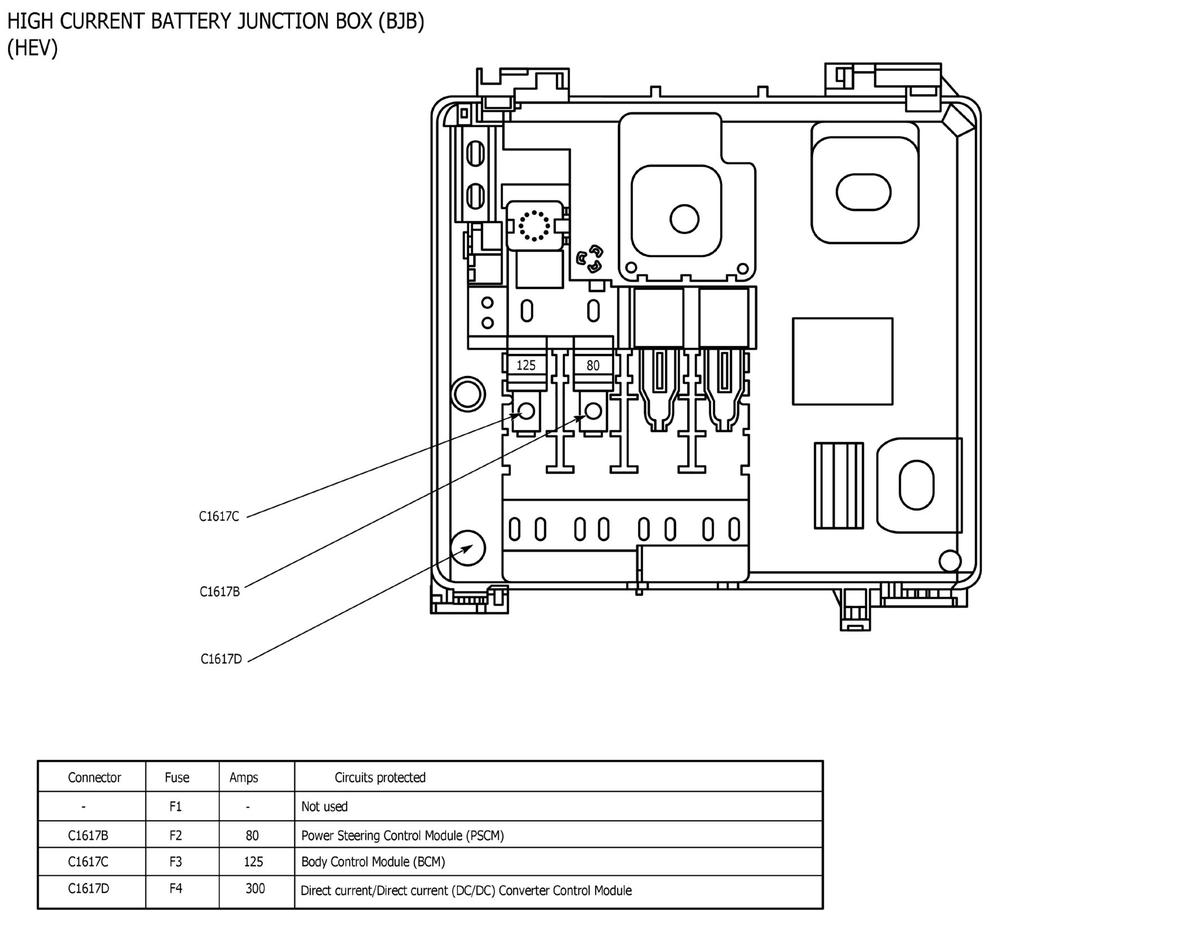

Fig 8: High Current Battery Junction Box (HEV) (BJB)

Courtesy of FORD MOTOR COMPANY
