System Diagram
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The system diagrams include all component options. Some components may not be equipped on the vehicle.

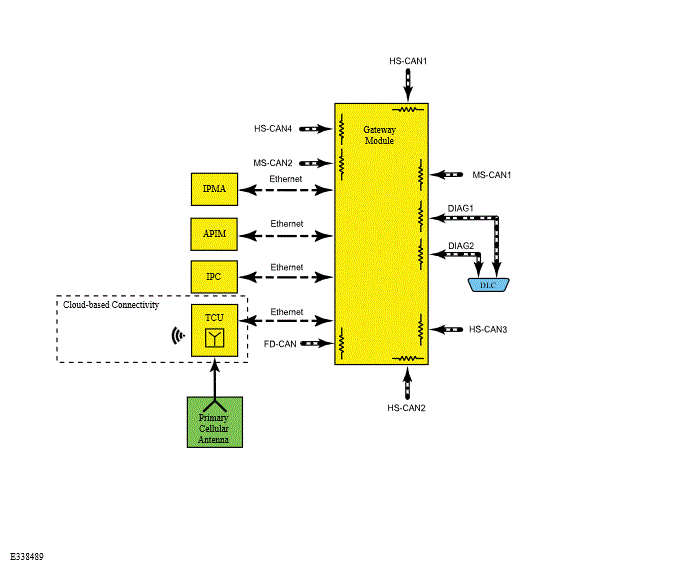

Ethernet Communication Network
 Courtesy of FORD MOTOR COMPANY
|
