Steering Column Multifunction Switch LH: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .
- If equipped, remove the steering column control switch. Refer to: Steering Column Control Switch .

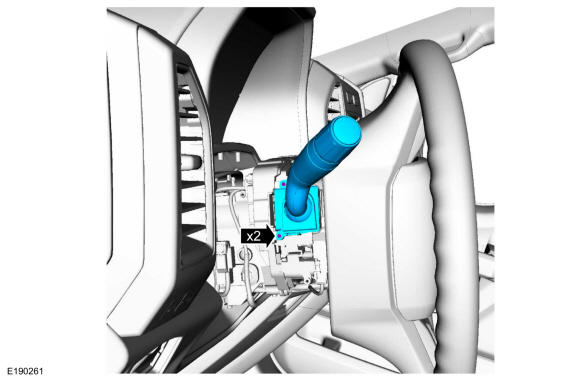

- Remove the screw(s) and the steering column multifunction switch.
