Image Processing Module A (IPMA): Removal

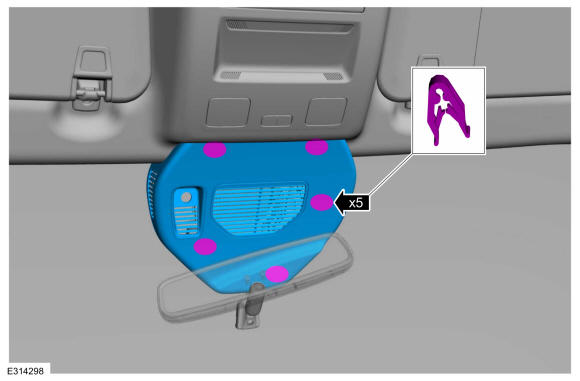

  1. Release the clips and remove the IPMA cover.
    GFD591197Courtesy of FORD MOTOR COMPANY

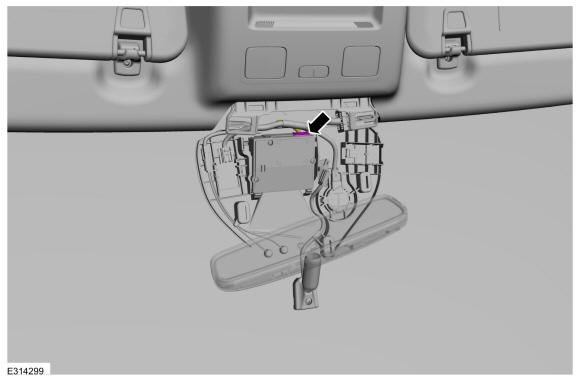

  2. Disconnect the electrical connector.
    GFD591198Courtesy of FORD MOTOR COMPANY

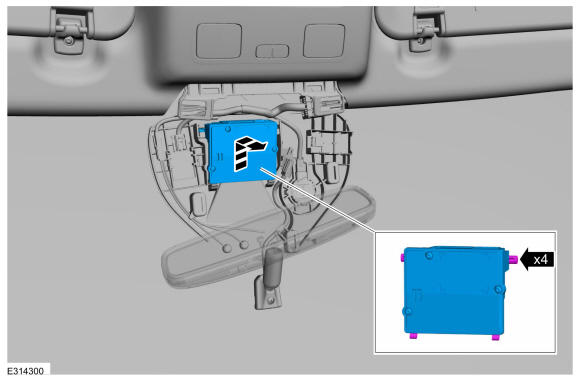

  3. Release the tabs and remove the IPMA.
GFD591199Courtesy of FORD MOTOR COMPANY
