Mode Indicator Switch (MIS): Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Only vehicles with a mechanical shift transfer case are equipped with a Mode Indication Switch (MIS).
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the mode indicator electrical connector.

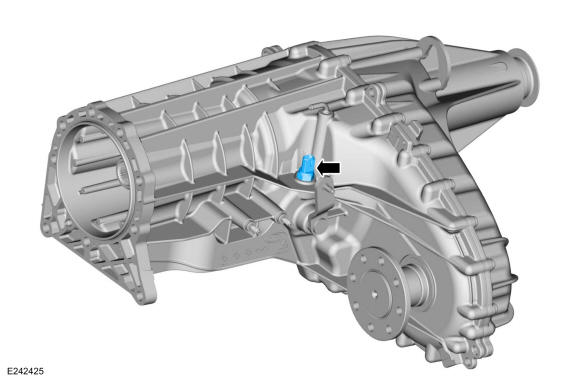

- Remove the MIS.
Torque: 30 lb.ft (41 Nm)
