Rear Door Window Control Switch: Removal

NOTE: LH side shown, RH side similar.

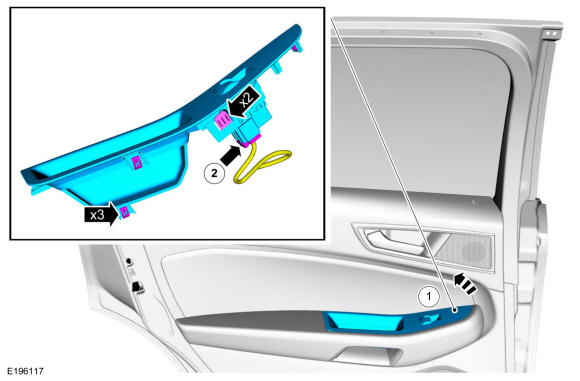

  1. Remove the rear door window control switch.

    1. Remove the rear door window control switch and the bezel assembly.
    2. Disconnect the rear door window control switch electrical connector.

    GFD597935Courtesy of FORD MOTOR COMPANY
  2. NOTE: This step is only necessary when installing a new component.

    Remove the rear door window control switch.

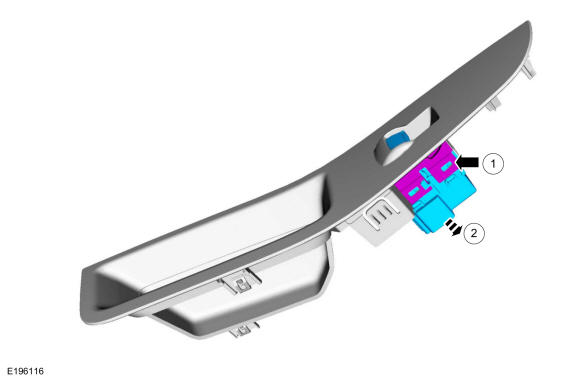

    1. Release the retaining tabs from the rear door window control switch.
    2. Remove the rear door window control switch from the bezel.

GFD597936Courtesy of FORD MOTOR COMPANY
