Module Controlled Functions - Component Location

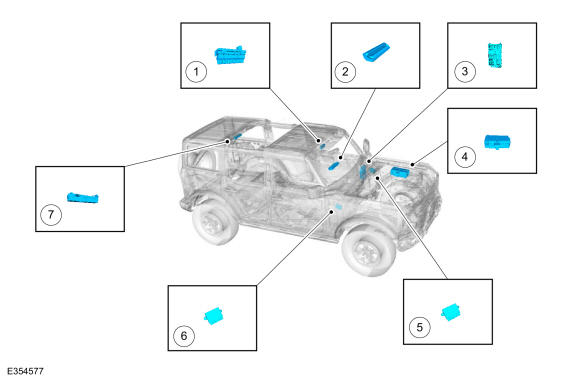

GFD627684Courtesy of FORD MOTOR COMPANY
Item Description
1 Auxiliary Switches
2 SIMA
3 BCM
4 BCMC
5 DDM
6 PDM
7 RTM
