Rear Gate Trunk Module (RGTM): Removal

WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Wiring Diagrams

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair. Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.

Remove the LH D-pillar trim panel. Refer to: D-Pillar Trim Panel .

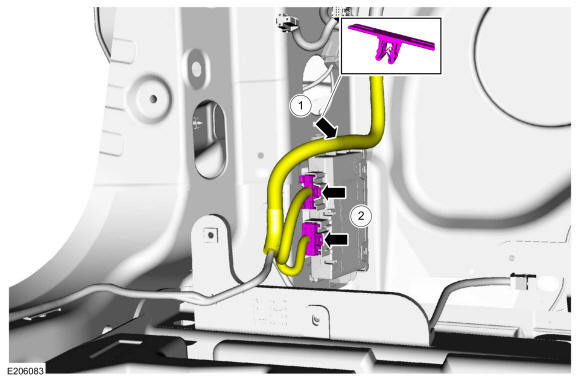

1. Detach the retainer.
2. Disconnect the electrical connectors and position aside the electrical harness.
Courtesy of FORD MOTOR COMPANY

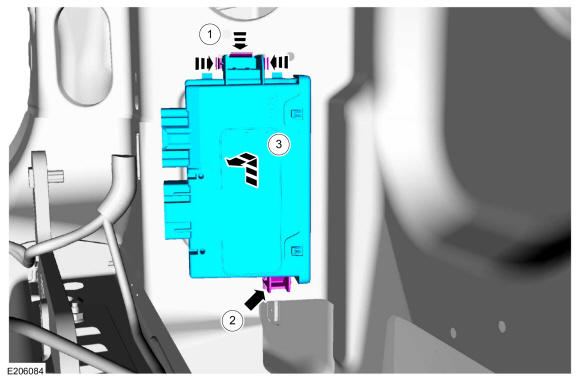

Remove the RGTM.
1. Release the retaining clips.
2. Release the tab.
3. Remove the RGTM.

Courtesy of FORD MOTOR COMPANY
