Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

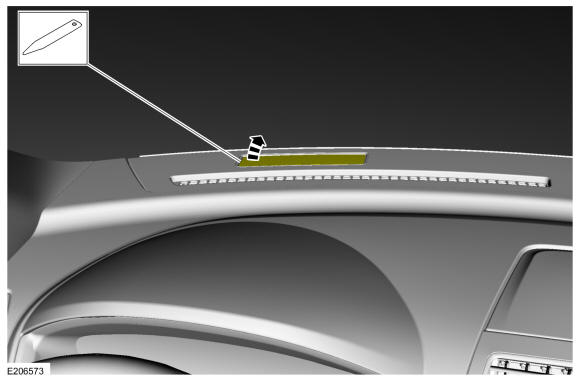

  1. Using a non-marring tool, position the HUD up. Use the General Equipment: Interior Trim Remover
    GFD417238Courtesy of FORD MOTOR COMPANY

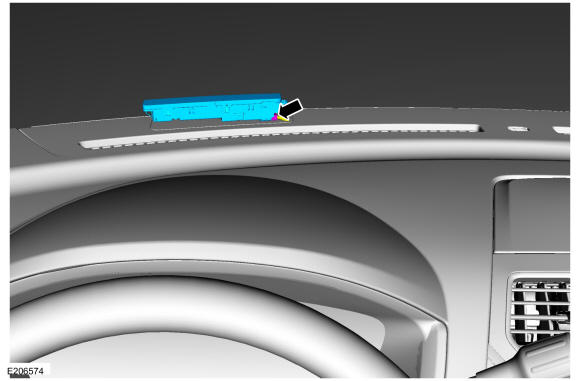

  2. Disconnect the electrical connector and remove the HUD.
GFD417239Courtesy of FORD MOTOR COMPANY
