Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

Using a diagnostic scan tool, begin the PMI process for the CCM following the on-screen instructions.
Remove the front bumper cover. Refer to: Front Bumper Cover .
Cruise control module (CCM)

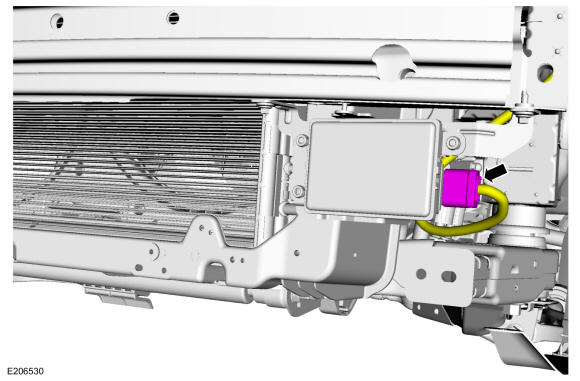

Disconnect the CCM electrical connector.

Courtesy of FORD MOTOR COMPANY

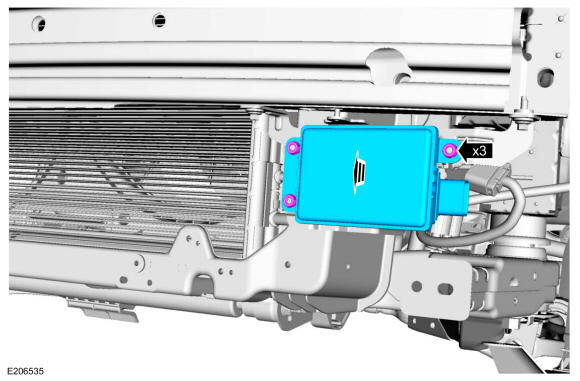

Separate the grommets and remove the CCM.

Courtesy of FORD MOTOR COMPANY

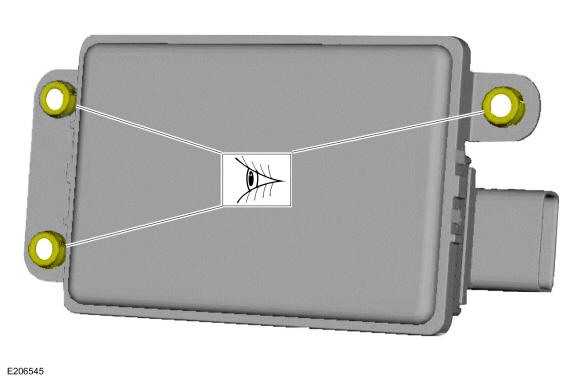

Inspect the grommets for damage.

Courtesy of FORD MOTOR COMPANY

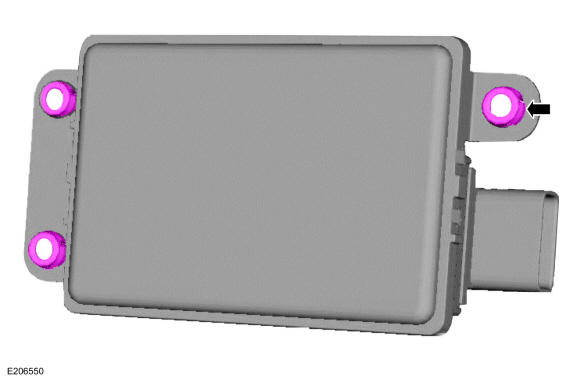

Replace any damaged grommets.

Courtesy of FORD MOTOR COMPANY

Cruise control module (CCM) bracket
Disconnect the CCM electrical connector.

Courtesy of FORD MOTOR COMPANY

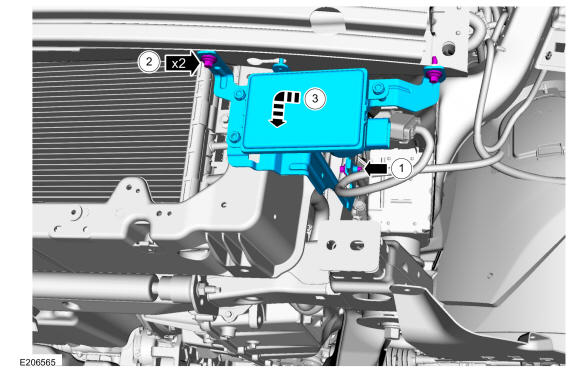

Remove the CCM an bracket assembly.
1. Remove the rear bolt.
  Torque: 71 lb.in (8 Nm)
2. Remove the front bolts.
  Torque: 71 lb.in (8 Nm)
3. Position the CCM and bracket assembly to the left and down to release the assembly from the bumper.

Courtesy of FORD MOTOR COMPANY
