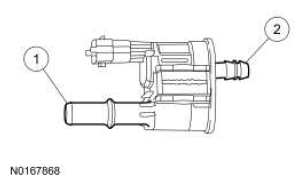

Typical Fuel Tank Isolation Valve (FTIV)

G12083934Courtesy of FORD MOTOR CO.
Item Number Description
1 - To Fuel Tank
2 - To EVAP Canister
