Power Windows

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

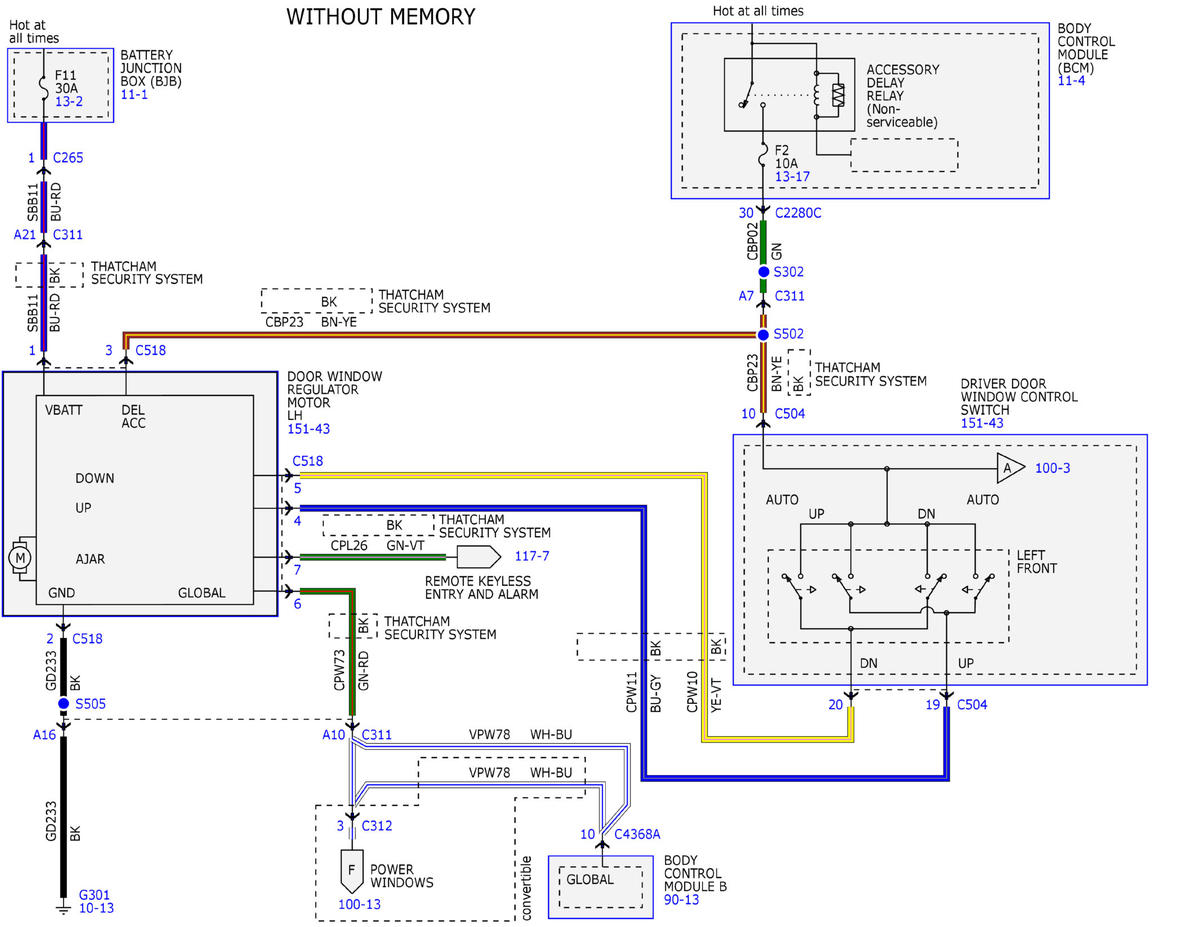

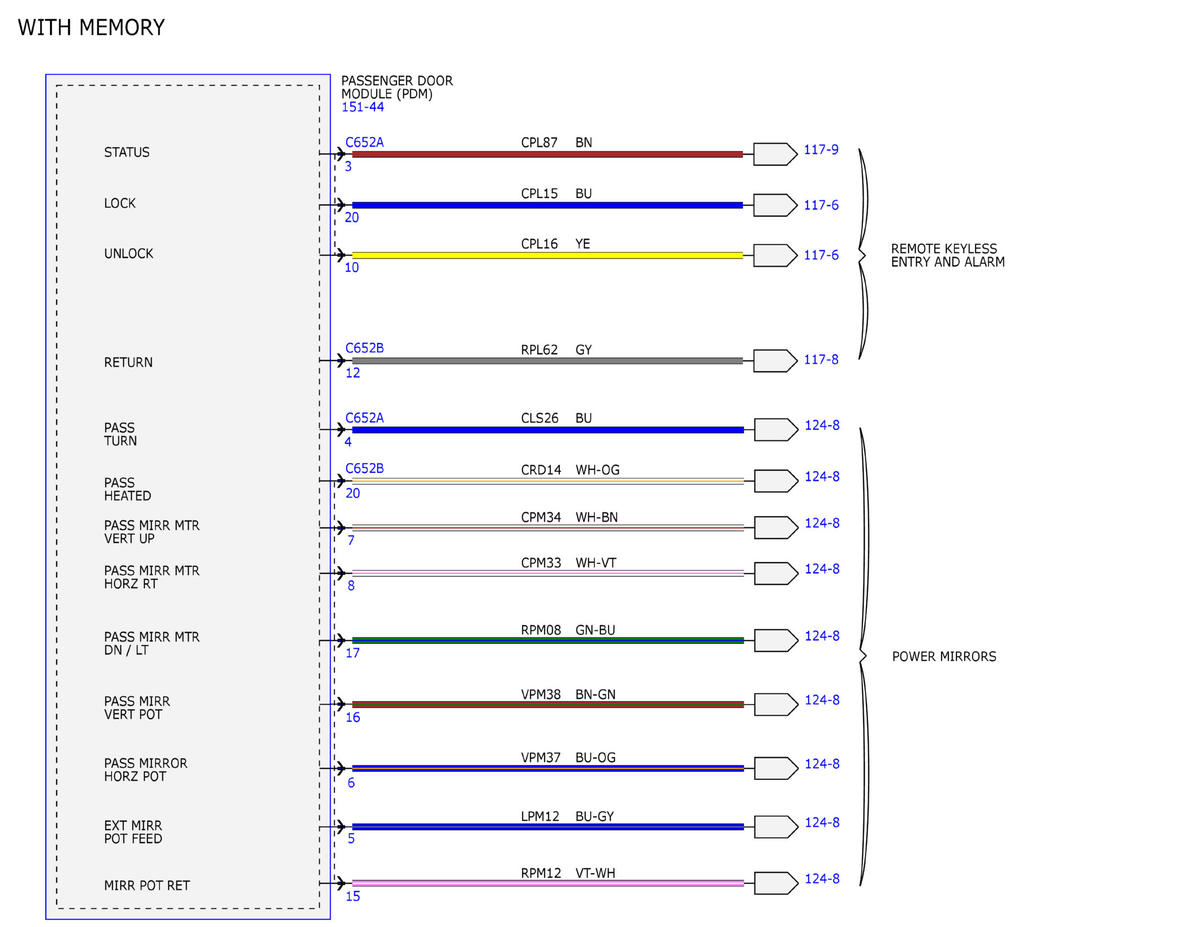

Fig 1: Power Windows Wiring Diagrams (1 Of 13)

Courtesy of FORD MOTOR COMPANY

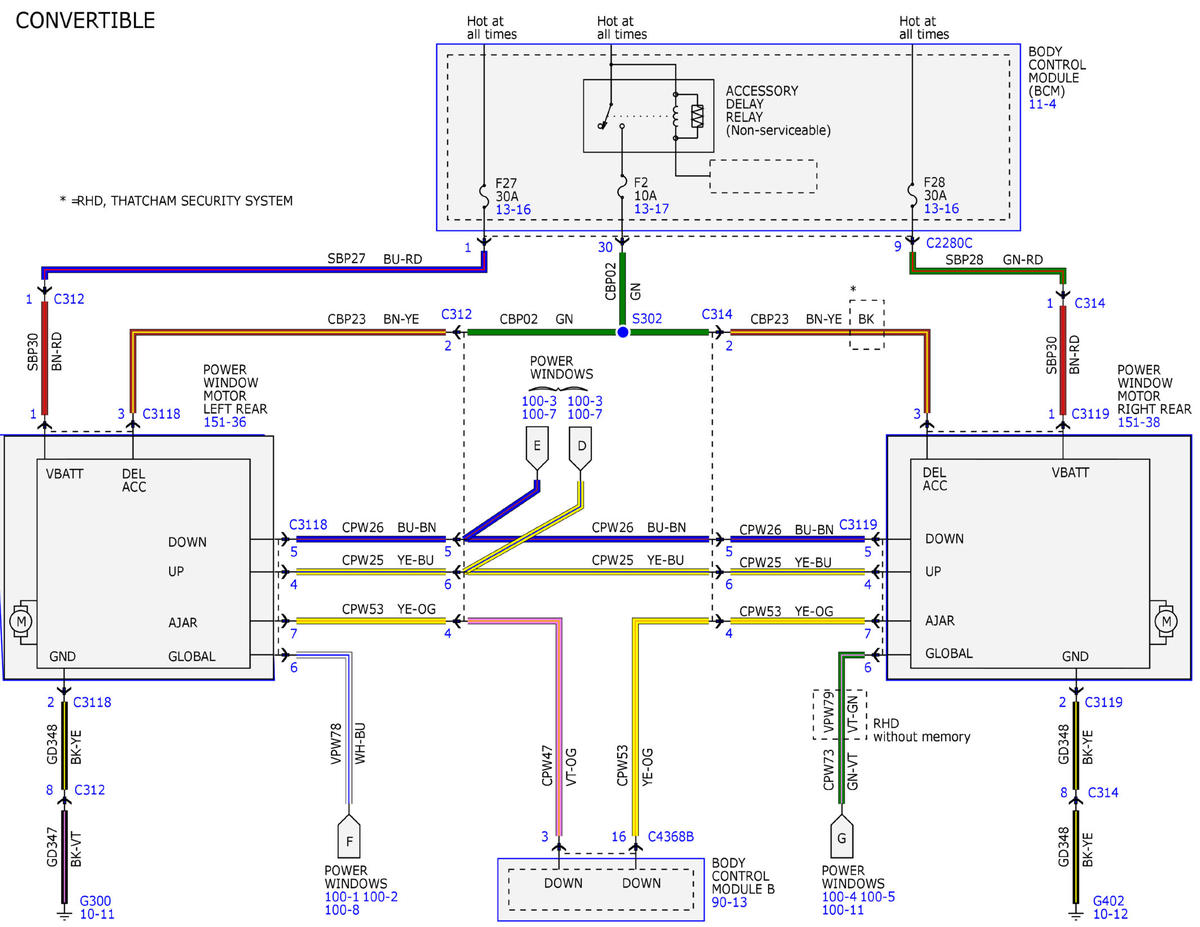

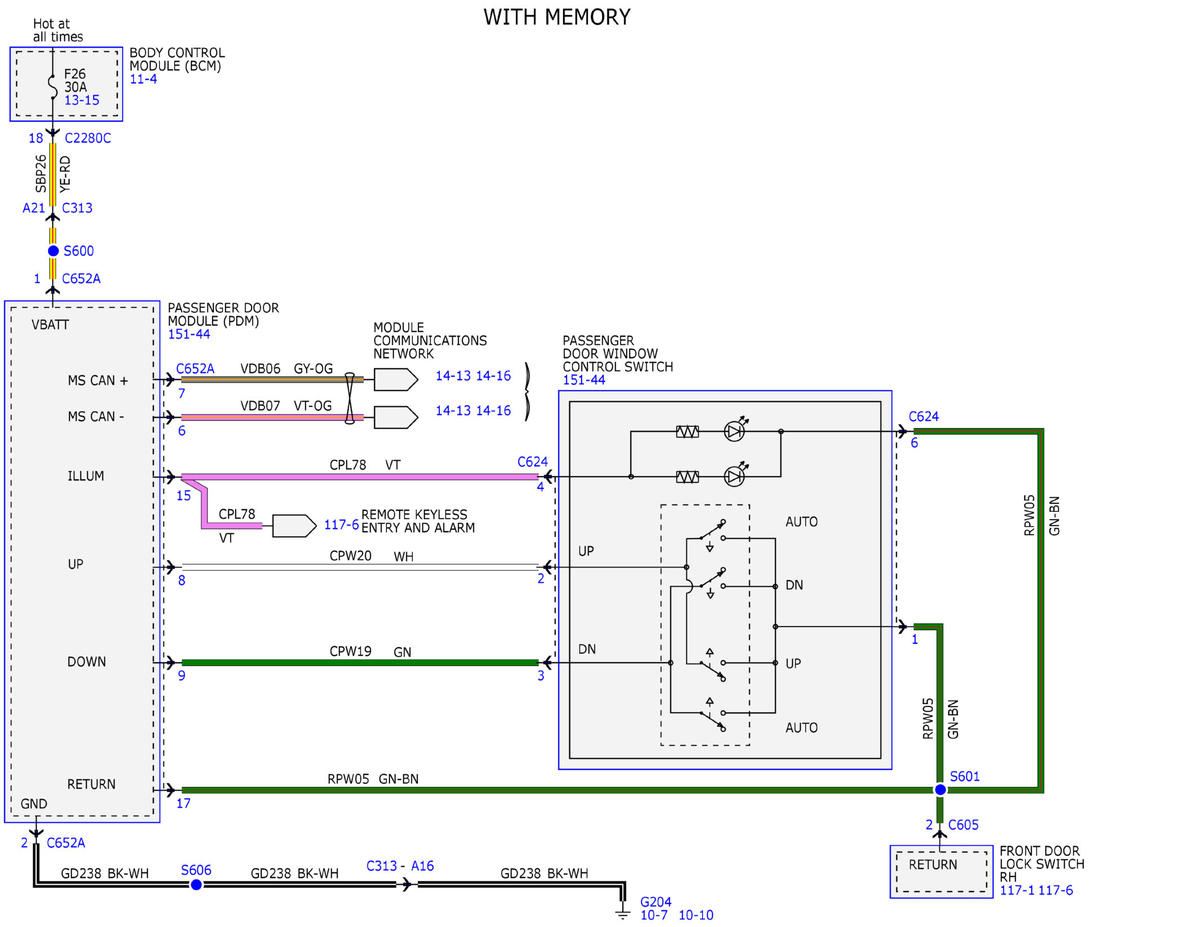

Fig 2: Power Windows Wiring Diagrams (2 Of 13)

Courtesy of FORD MOTOR COMPANY

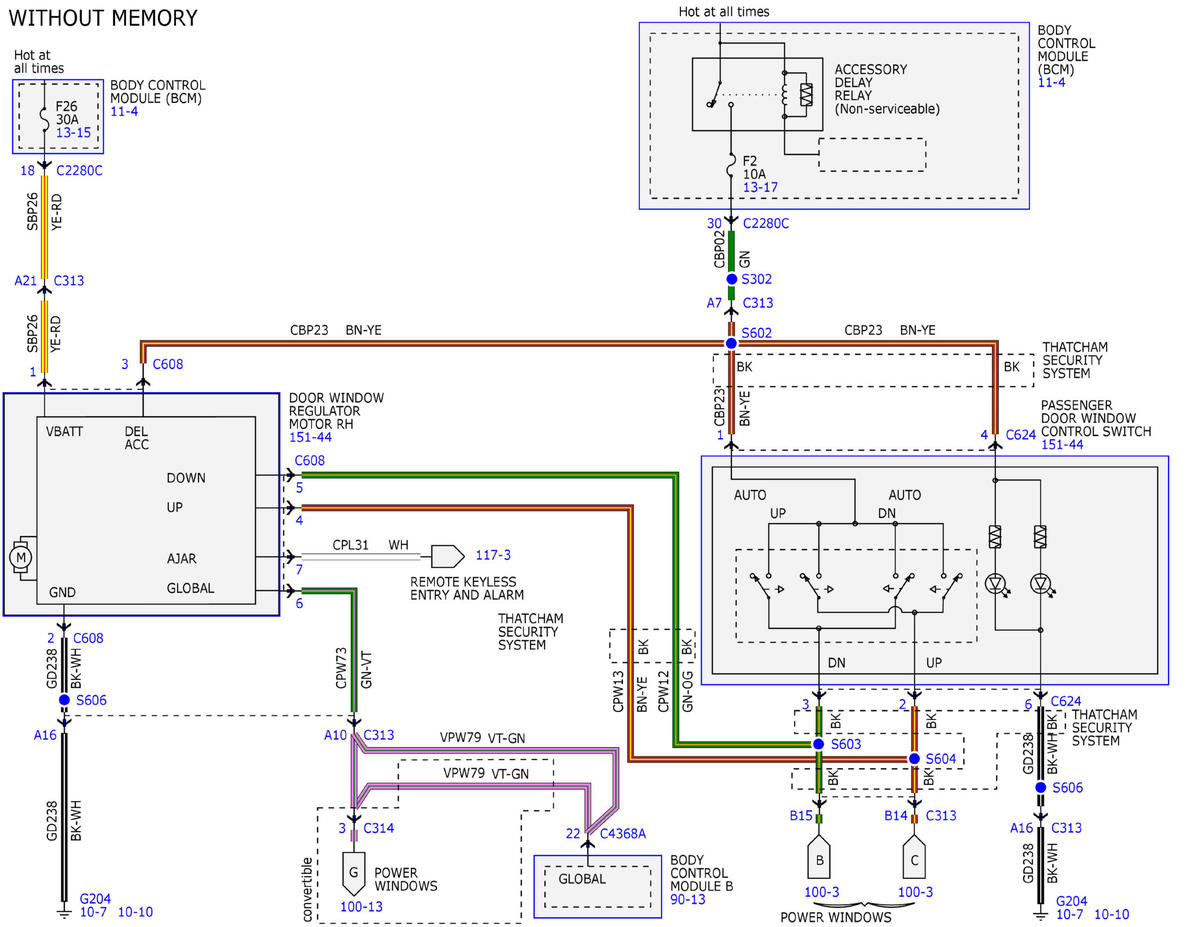

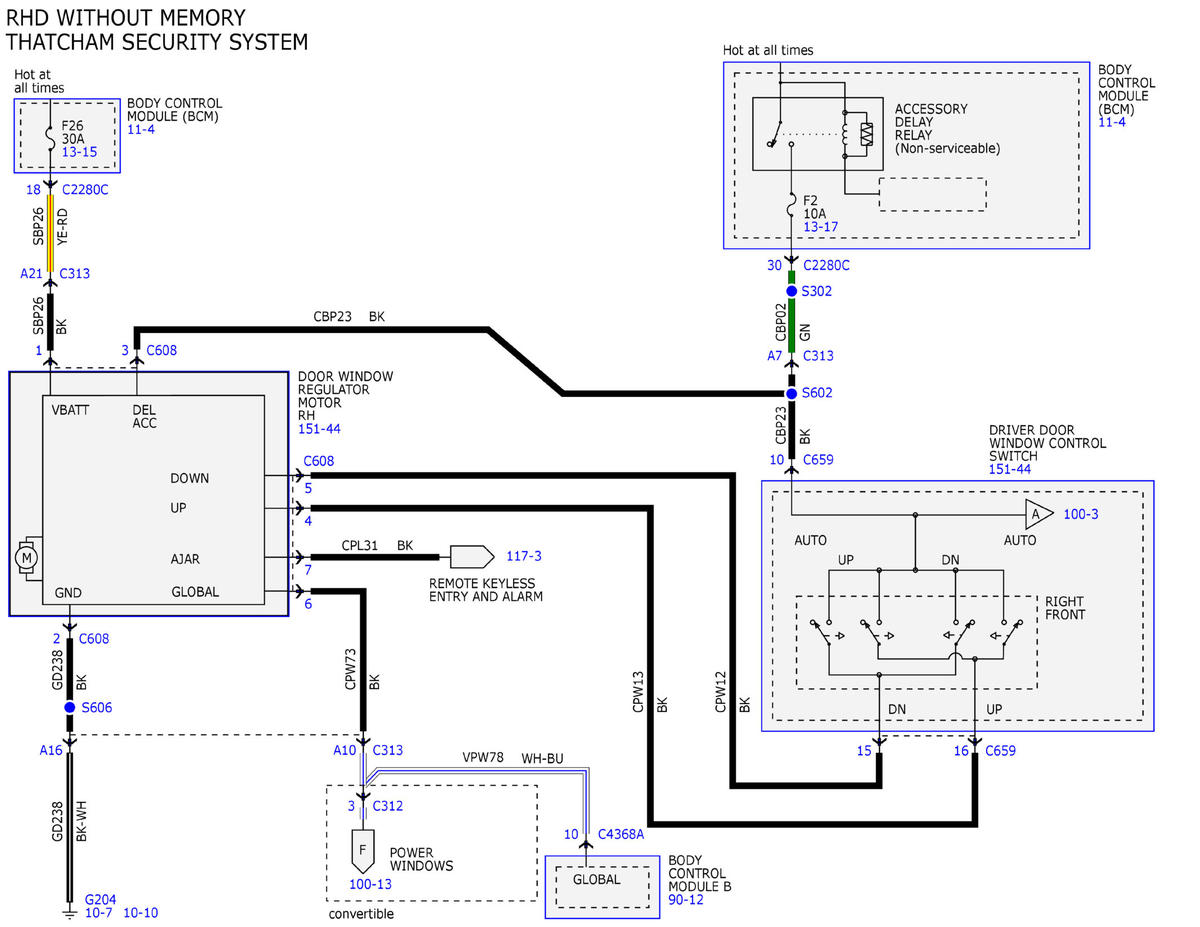

Fig 3: Power Windows Wiring Diagrams (3 Of 13)

Courtesy of FORD MOTOR COMPANY

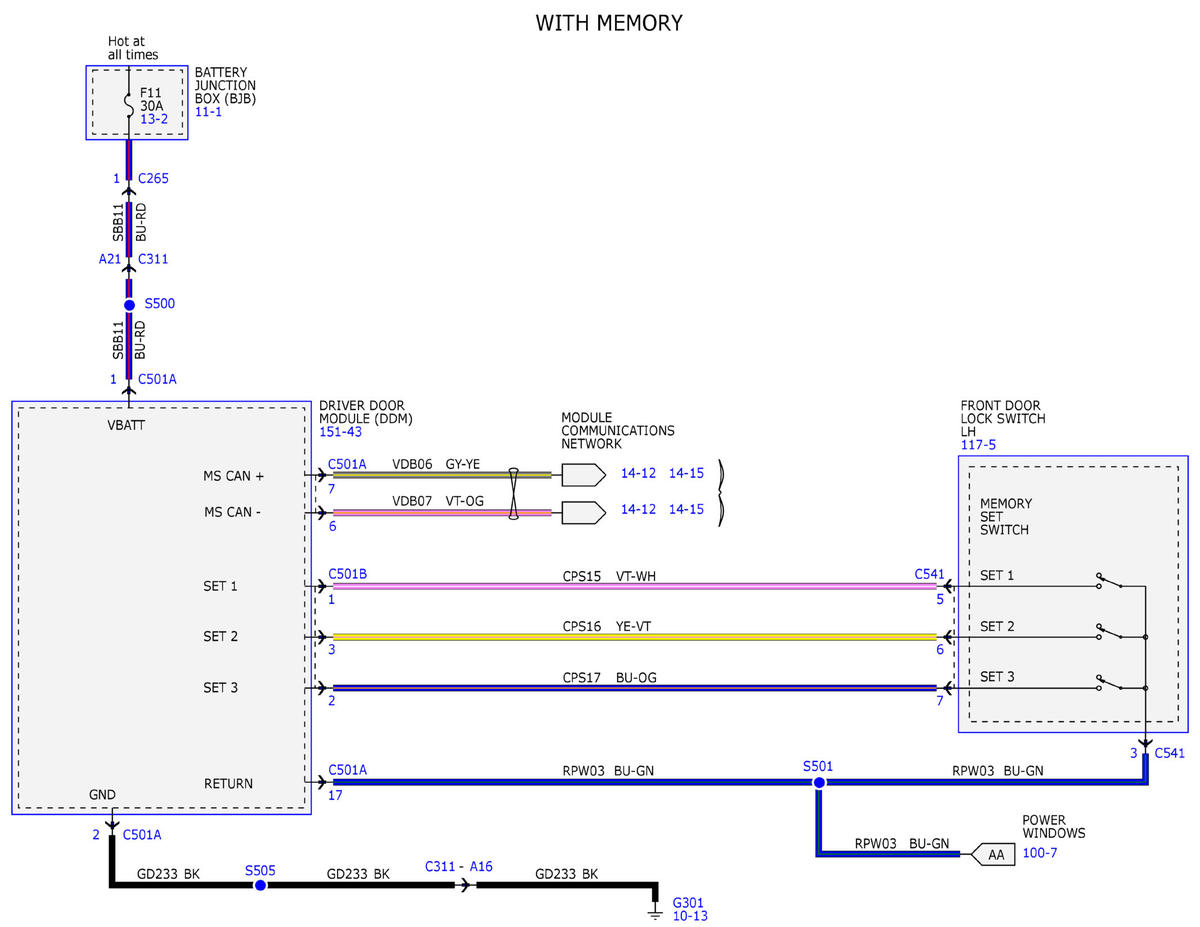

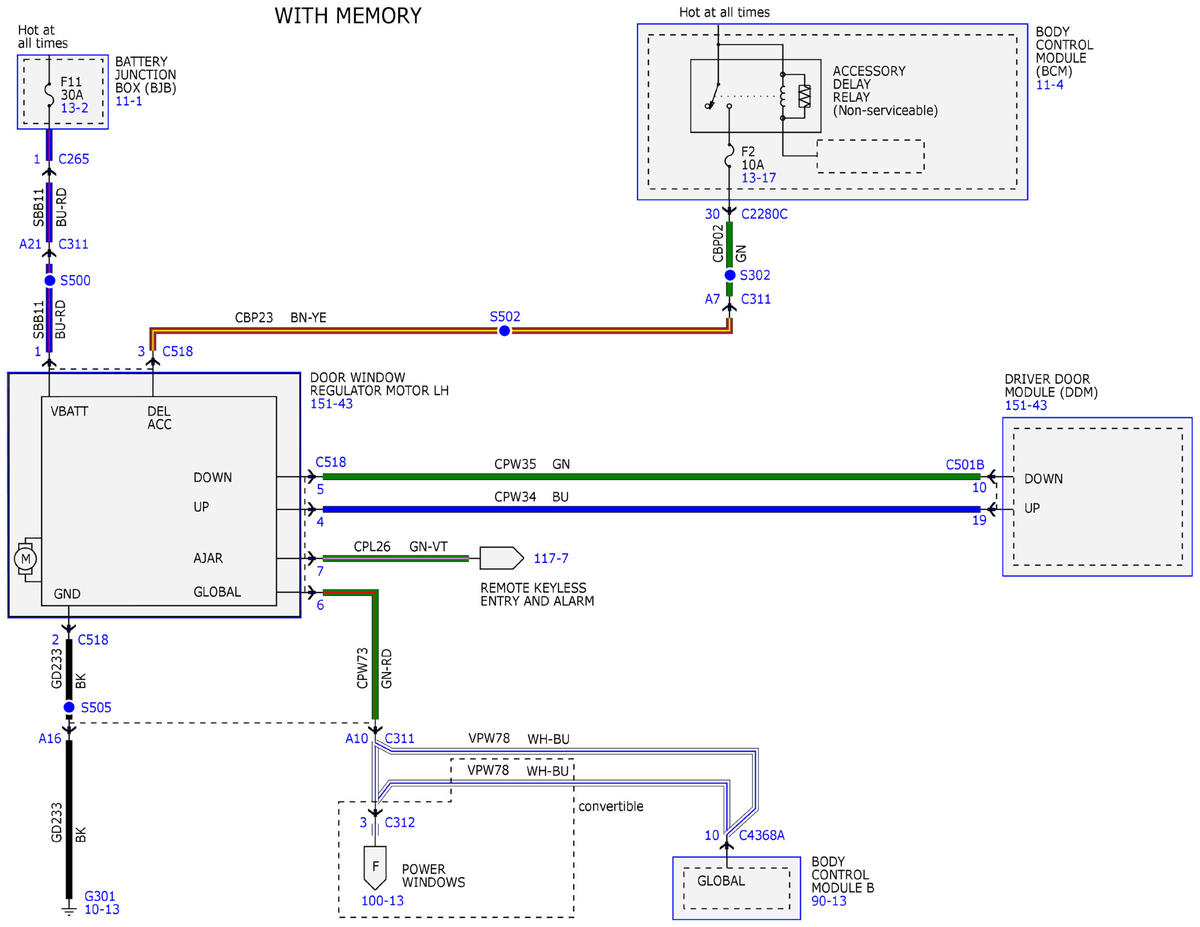

Fig 4: Power Windows Wiring Diagrams (4 Of 13)

Courtesy of FORD MOTOR COMPANY

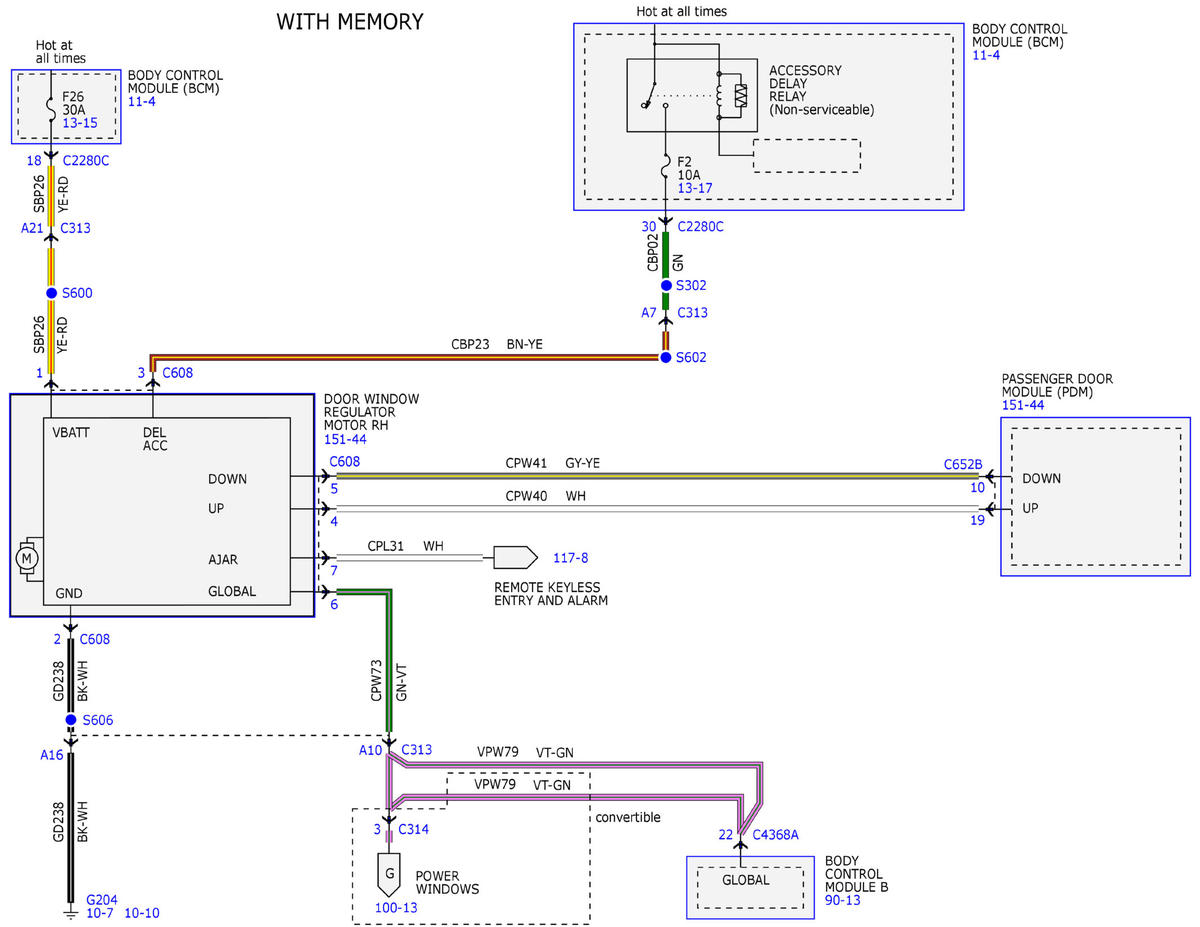

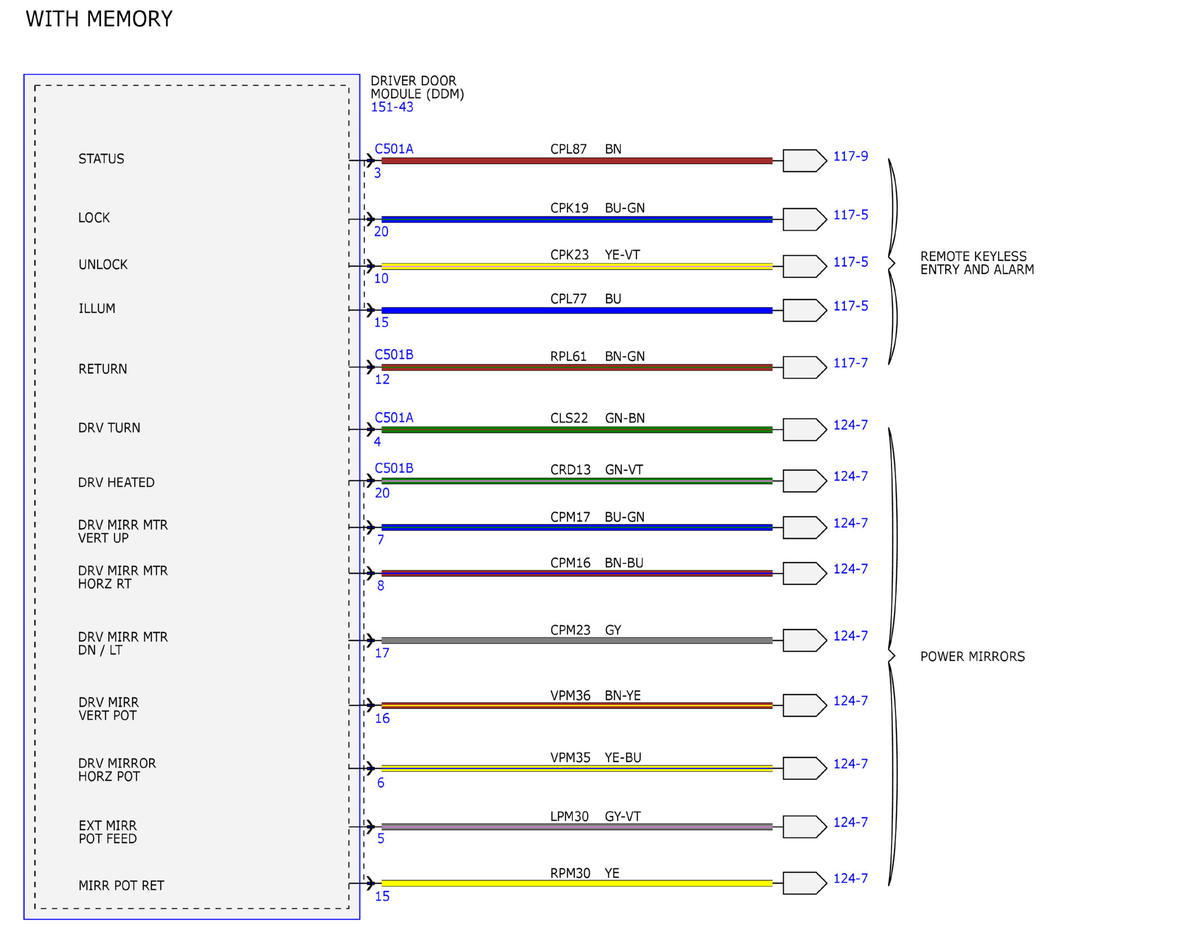

Fig 5: Power Windows Wiring Diagrams (5 Of 13)

Courtesy of FORD MOTOR COMPANY

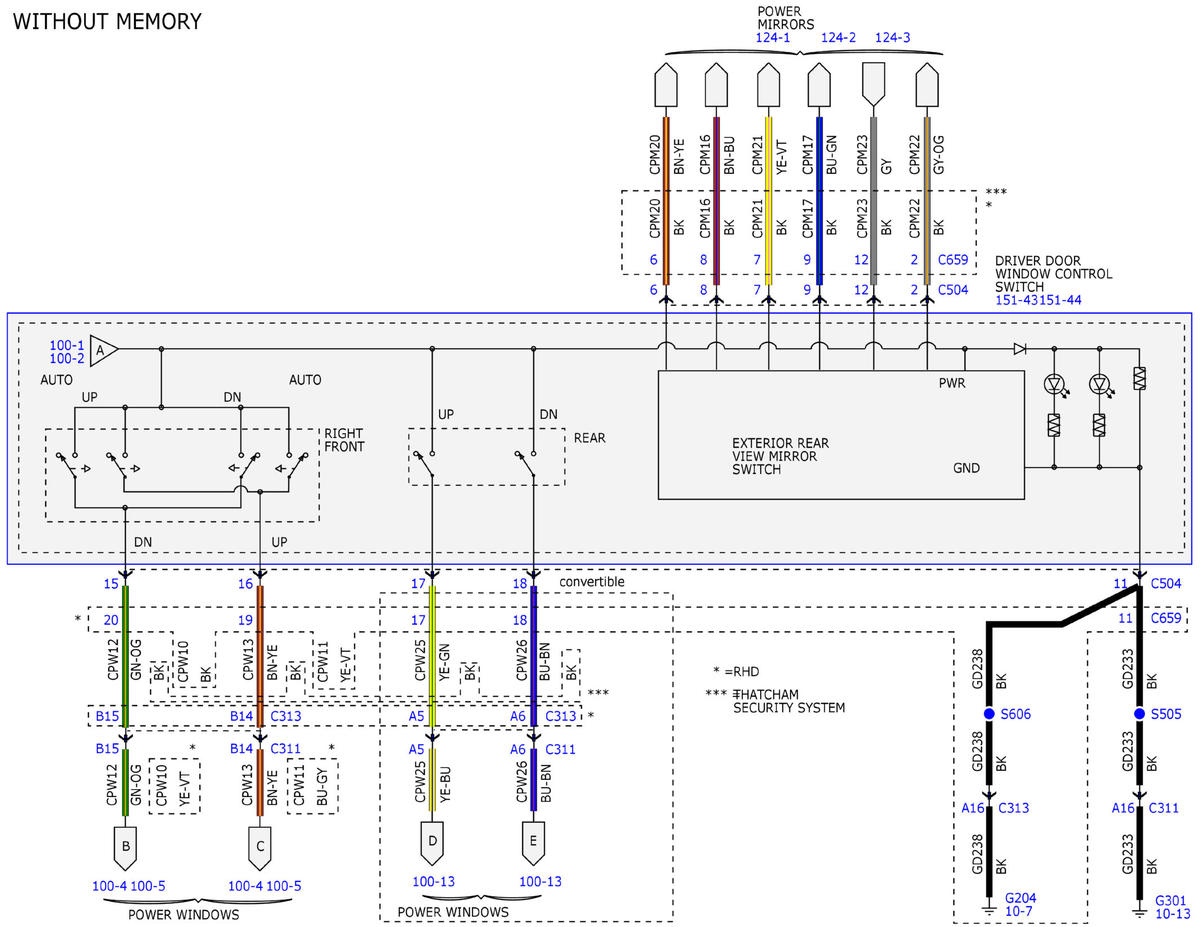

Fig 6: Power Windows Wiring Diagrams (6 Of 13)

Courtesy of FORD MOTOR COMPANY

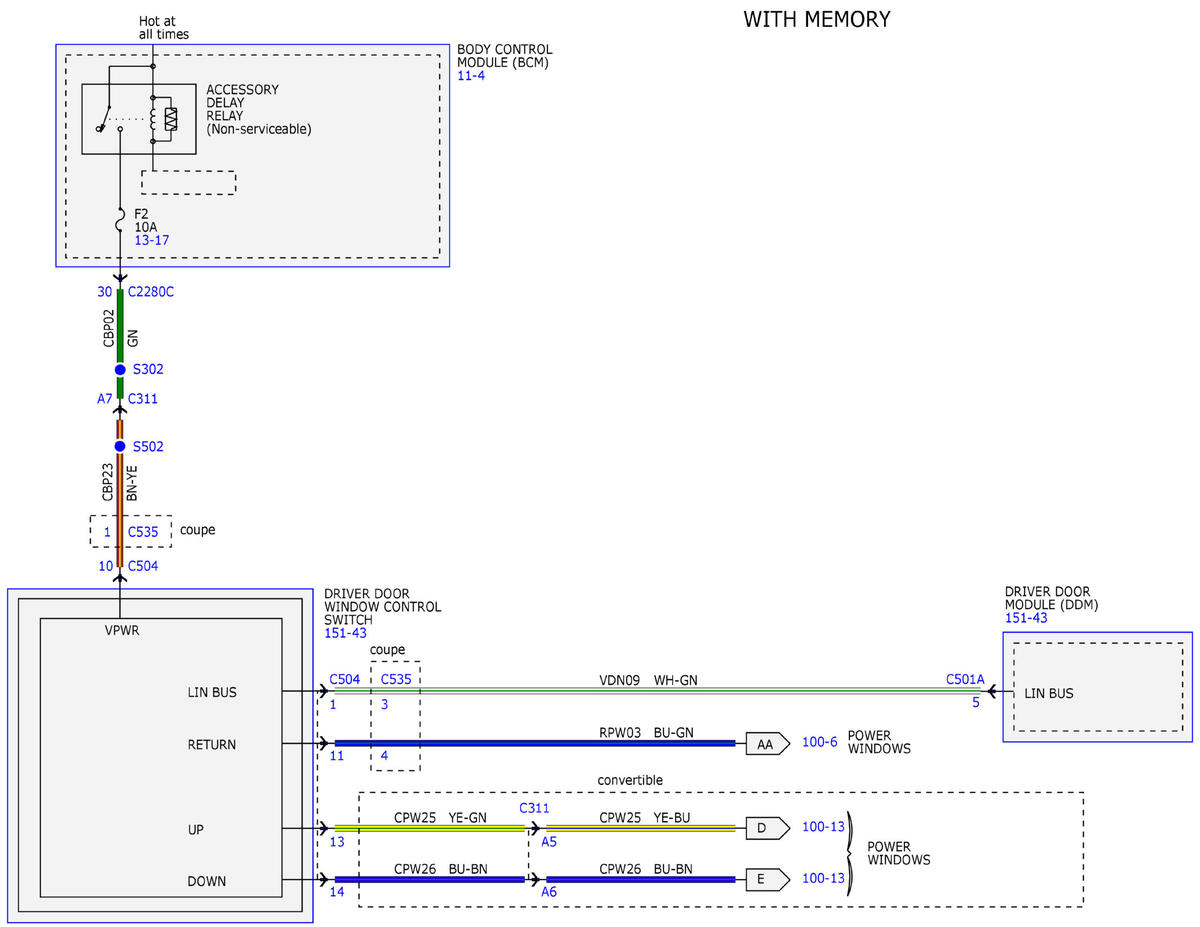

Fig 7: Power Windows Wiring Diagrams (7 Of 13)

Courtesy of FORD MOTOR COMPANY

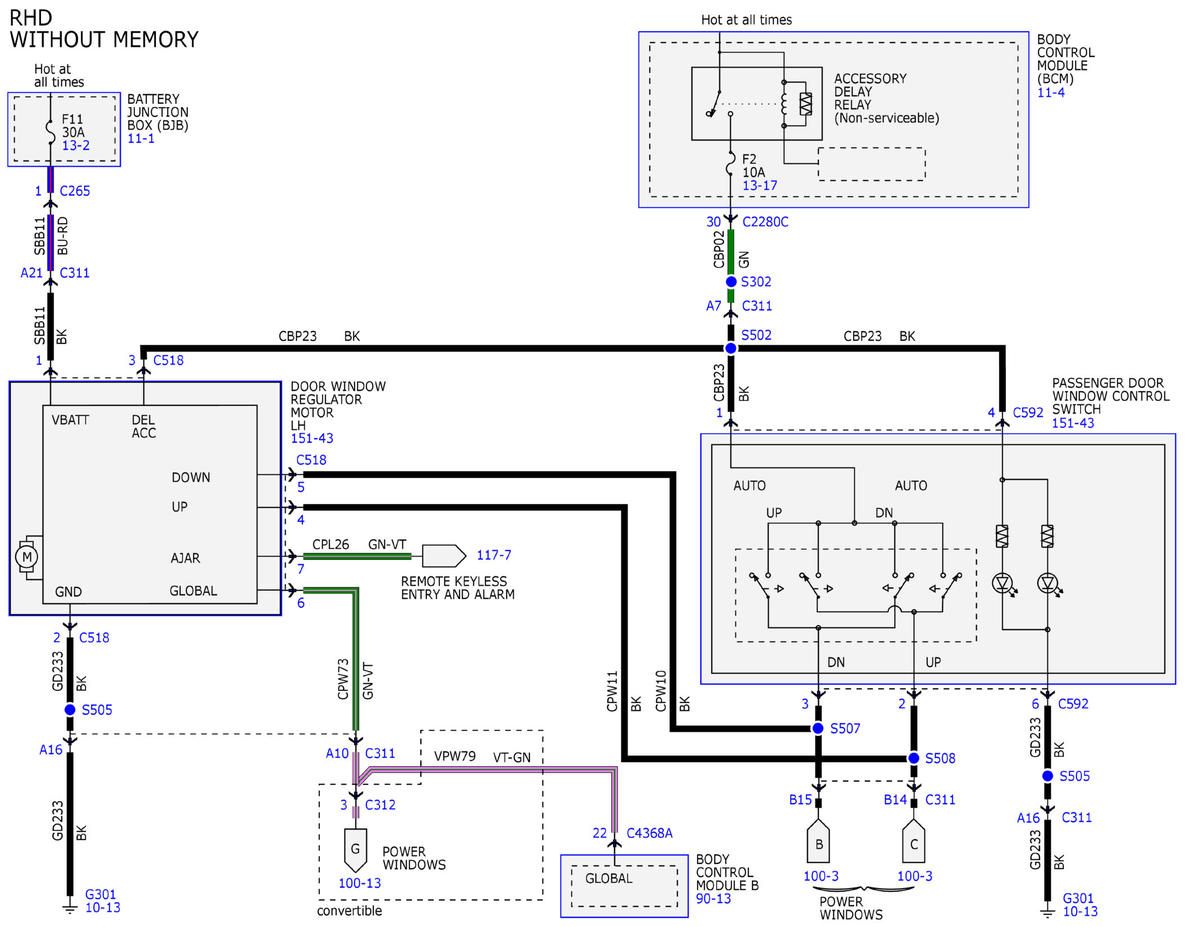

Fig 8: Power Windows Wiring Diagrams (8 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Windows Wiring Diagrams (9 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Windows Wiring Diagrams (10 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Windows Wiring Diagrams (11 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Windows Wiring Diagrams (12 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Windows Wiring Diagrams (13 Of 13)

Courtesy of FORD MOTOR COMPANY
