Edge ST-Line, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Auto-Start-Stop System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Auto-Start-Stop System

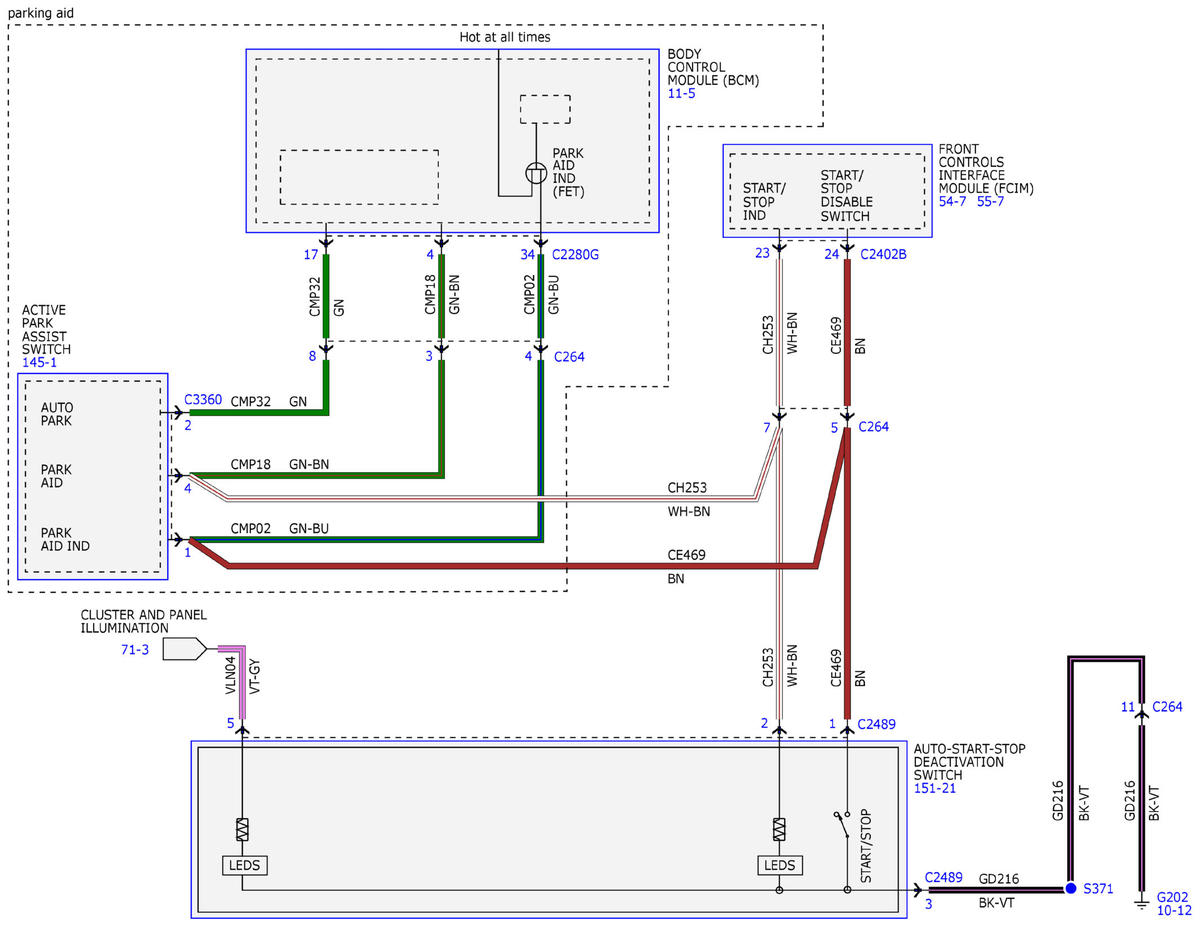

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR COMPANY

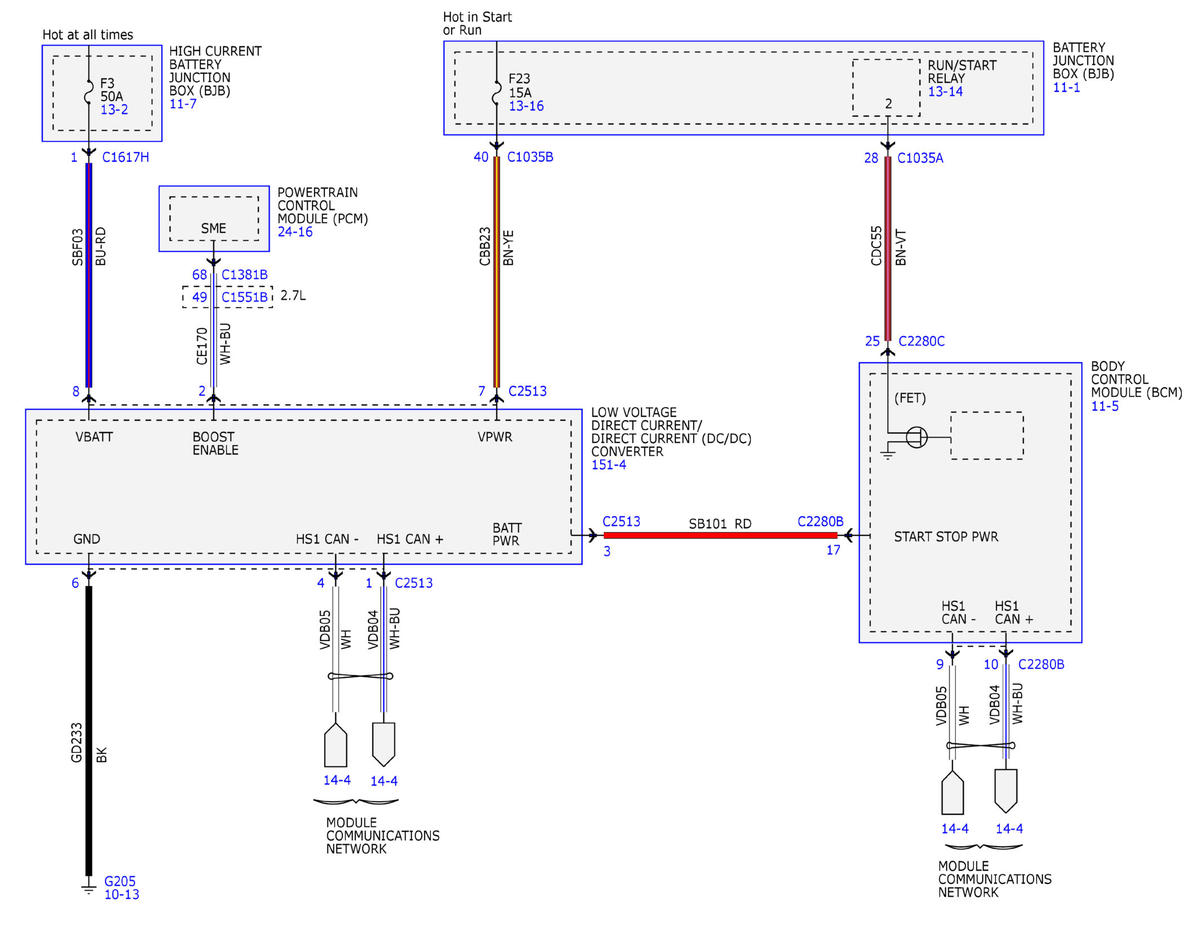

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR COMPANY

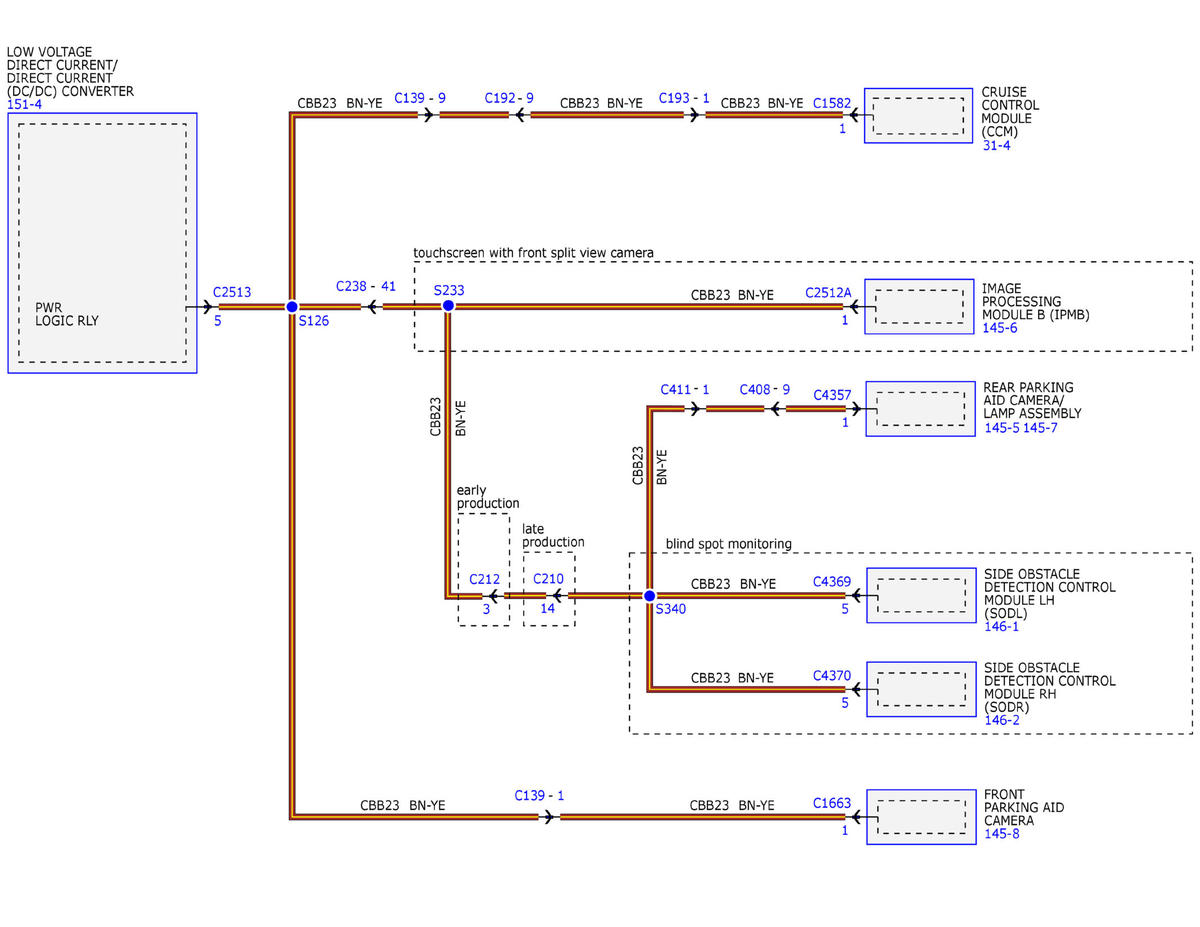

Fig 3: Auto-Start-Stop System Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR COMPANY
