Electronic Engine Controls- Front

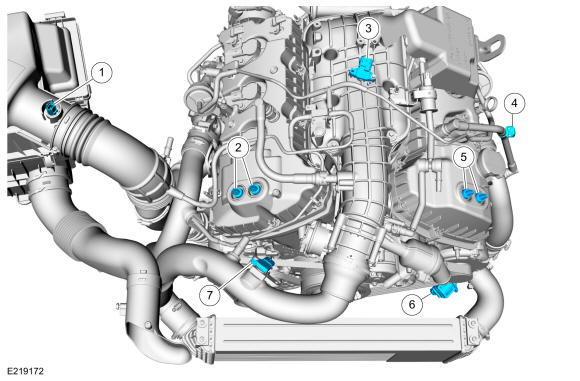

GFD349499Courtesy of FORD MOTOR COMPANY
Item Description
1 IAT sensor
2 RHVCT oil control solenoid
3 MAPT sensor
4 Crankcase pressure sensor
5 LHVCT oil control solenoid
6 Turbocharger By-Pass Valve
7 Turbocharger Boost Pressure and Charge Air Temperature Sensor
