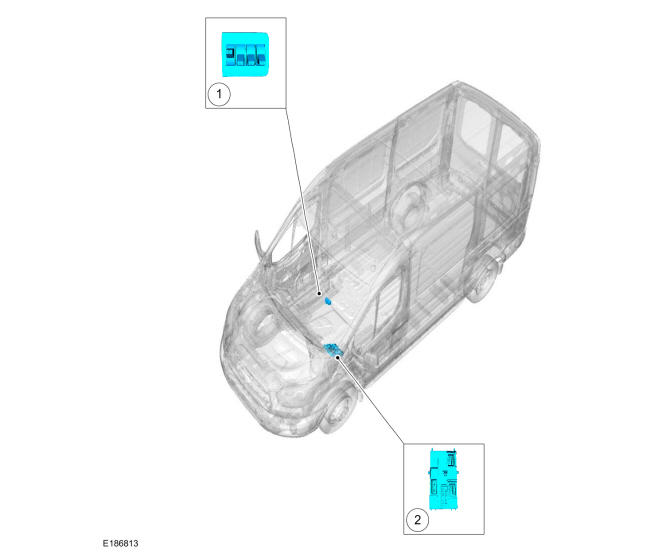

Module Controlled Functions - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
AUXILIARY SWITCHES
2
BCM
