Thermostatic Expansion Valve: Notes
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Material
| Item | Specification |
| Motorcraft® PAG Refrigerant Compressor OilYN-12-D | WSH-M1C231-B |

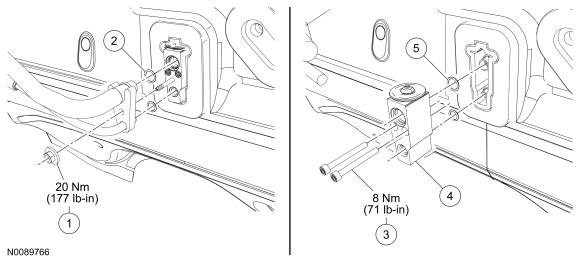

| Item | Part Number | Description |
|---|---|---|
| 1 | W707142 | Thermostatic Expansion Valve(TXV) fitting nut |
| 2 | 19E889 | TXV manifold and tube O-ring seal (2 required) |
| 3 | 7A711 | TXV bolt (2 required) |
| 4 | 19849 | TXV |
| 5 | 19E889 | Evaporator core O-ring seal (2 required) |
